YL-HHJ02 Ribbon Blender Mixer

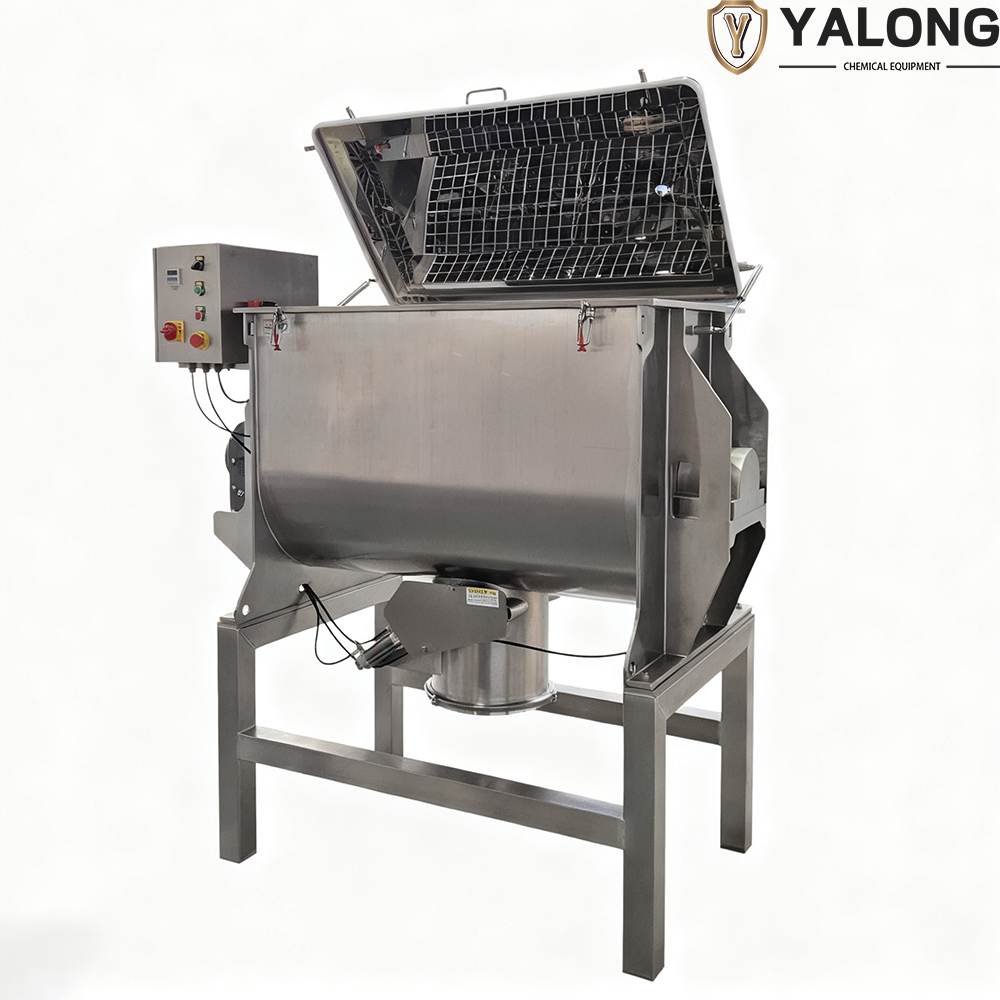

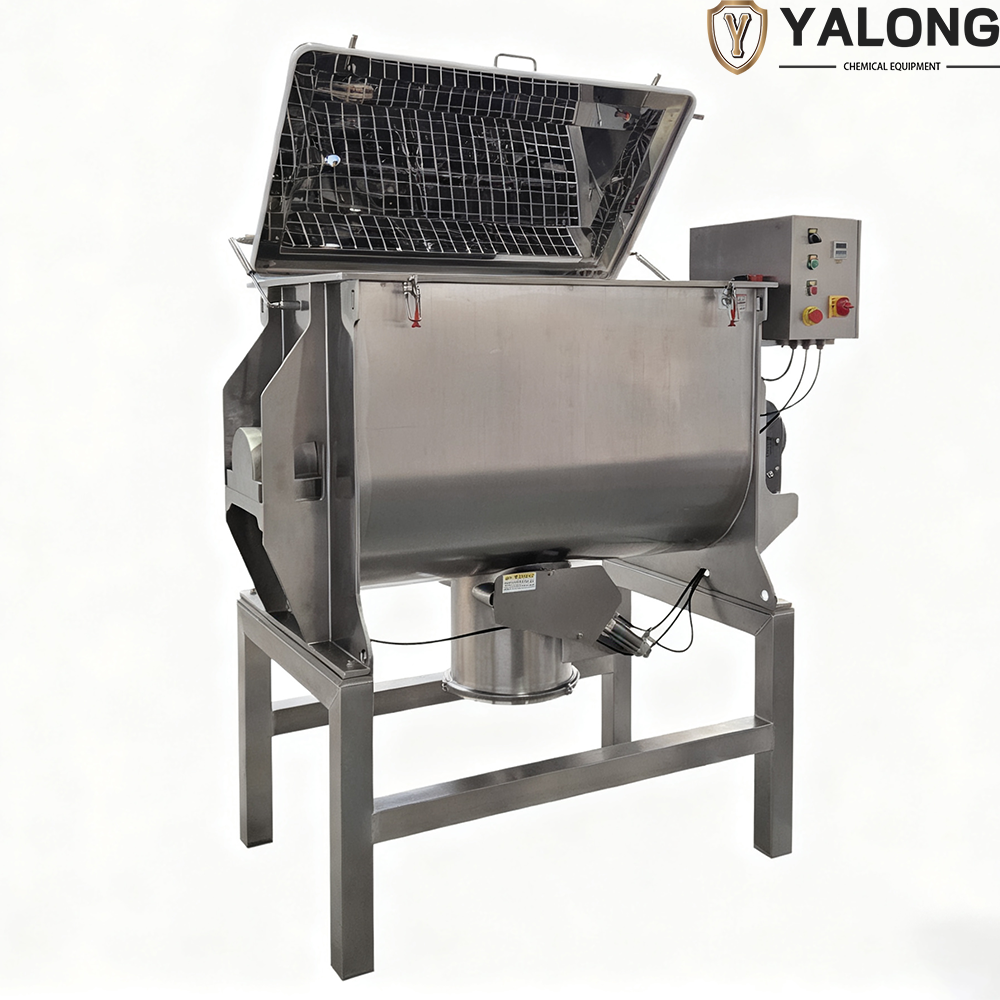

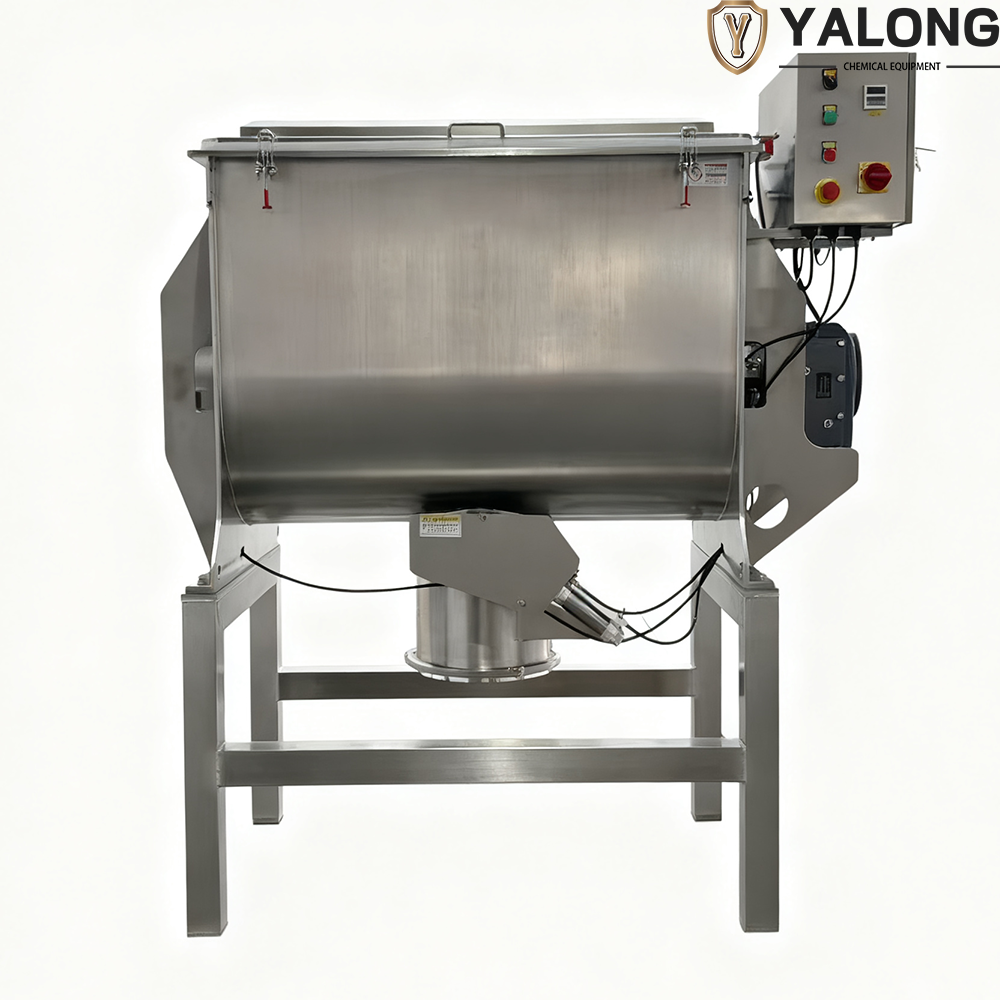

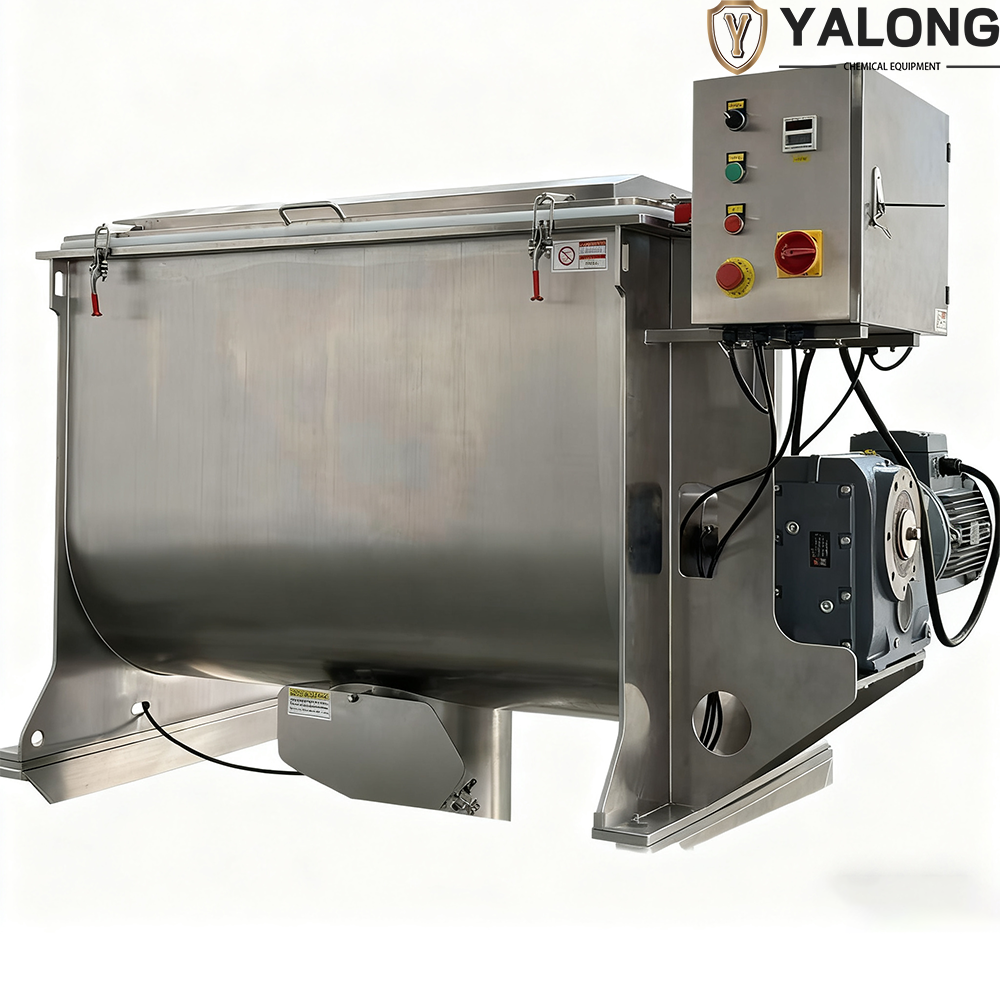

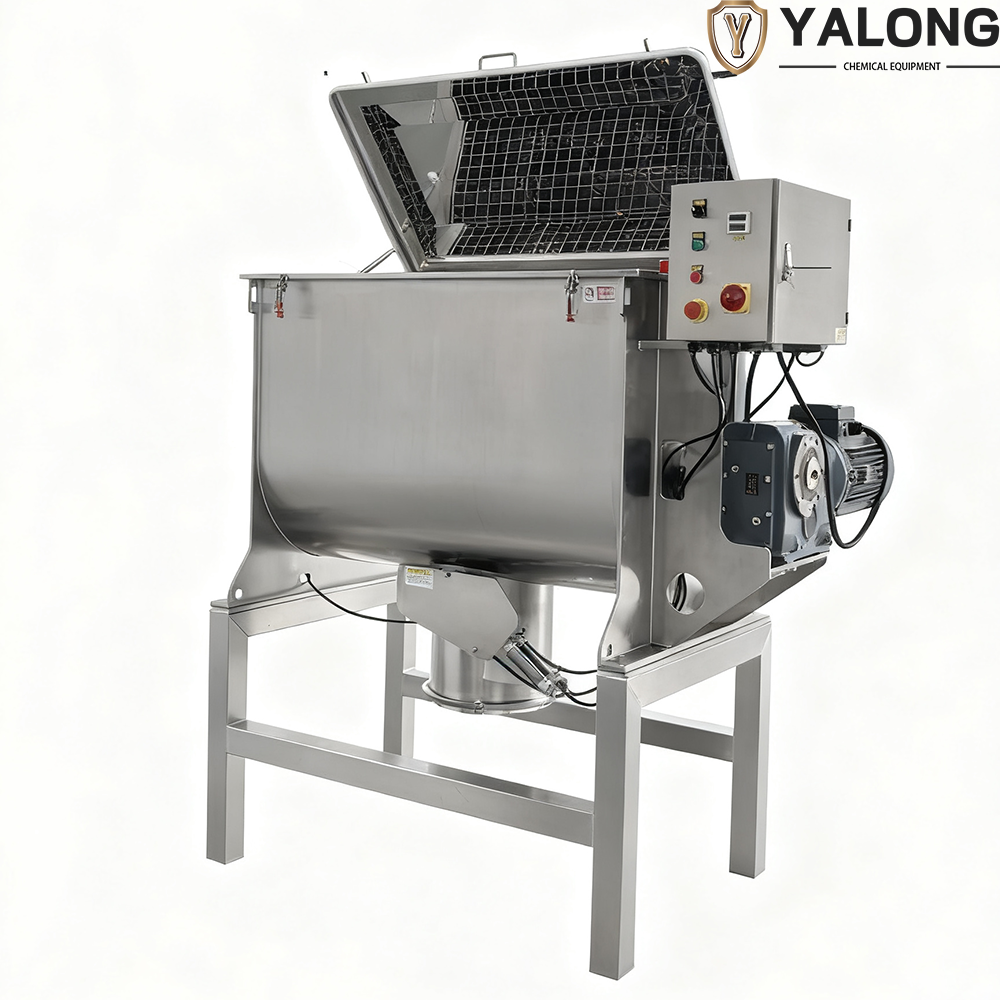

The machine consists of U-shaped containers, ribbon mixing blade and transmission component. Ribbon mixing blades are usually made into double or three layer. The outer helix collects the material from both sides to the center, and the inner helix conveys the material from the center to both sides, forming a convective mixing. The ribbon mixer has a good effect on the mixing of viscous or cohesive powder particles and the mixing of powder particles material added liquid or paste materials. The cover can be made into a fully open door to facilitate cleaning equipment and replace the product.

Main Features

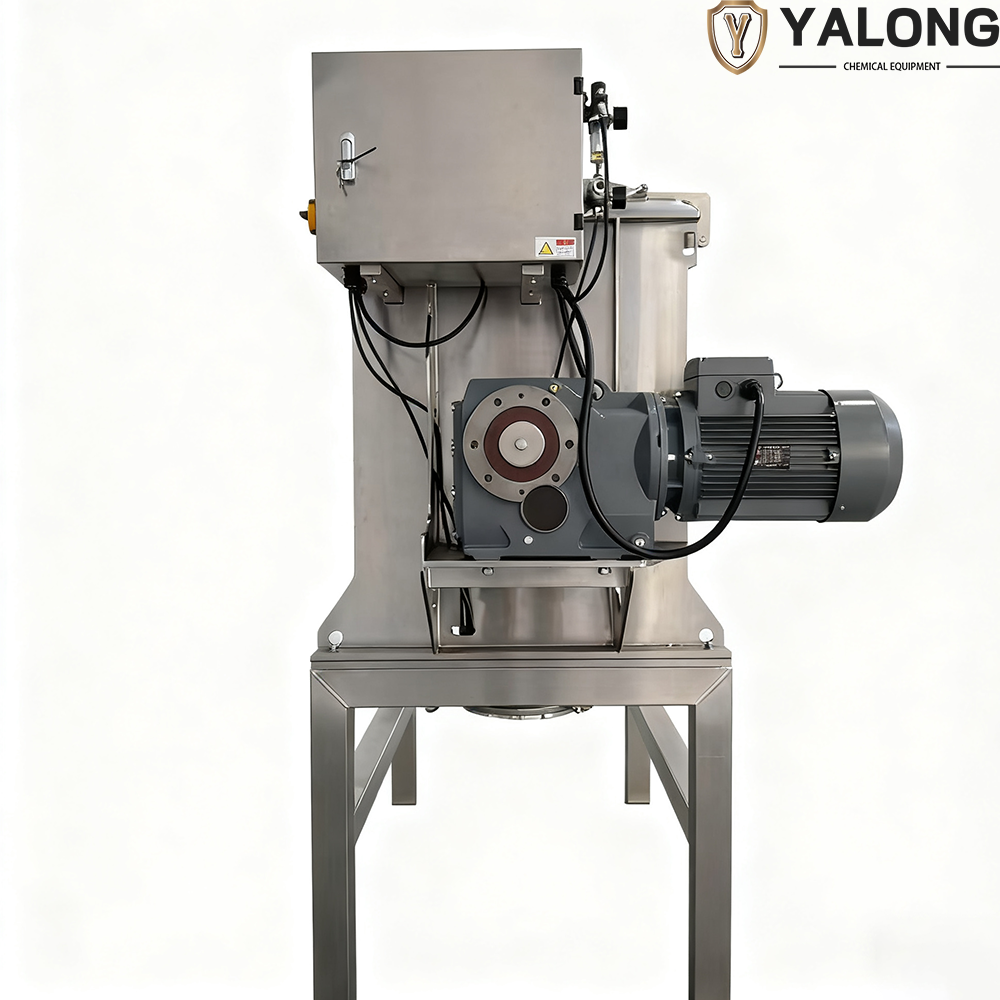

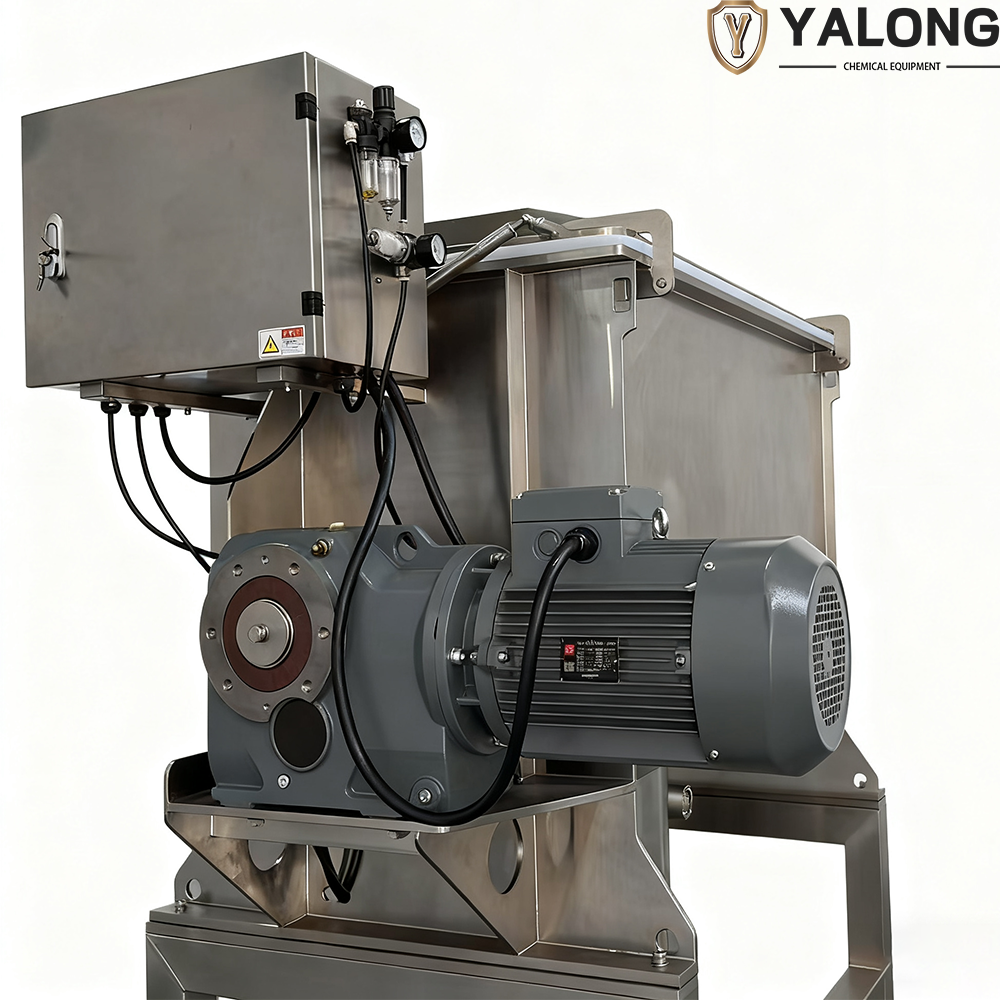

1. Driving advantage: the standard product is driven by gear reducer. Compared with cycloid reducer driven by belt pulley, gear reducer has overload protection function.

2. Disassemble and assemble flexibly: The main shaft of the spiral ribbon is connected with the flange of the driving shaft in the barrel body, and can be quickly dismantled when the mixing shaft needs to be repaired or replaced. Flexible disassemble and assemble design makes U-shaped cylinder and two end plates completely welded, avoiding to produce gaps in the large flange connection of the cylinder to accumulate powder material.

3. Disconnected spiral ribbon: Compared with the connected spiral tape, it is greater that the shearing motion of the material produced by the disconnected spiral ribbon. It can also form more eddies in the mixing process, accelerate the mixing speed and improve the mixing uniformity.

4. Spindle seal: When mixing ultrafine powder, the main shaft seal can increase the air-tightness setting, effectively blocking the flow of gas inside and outside.
