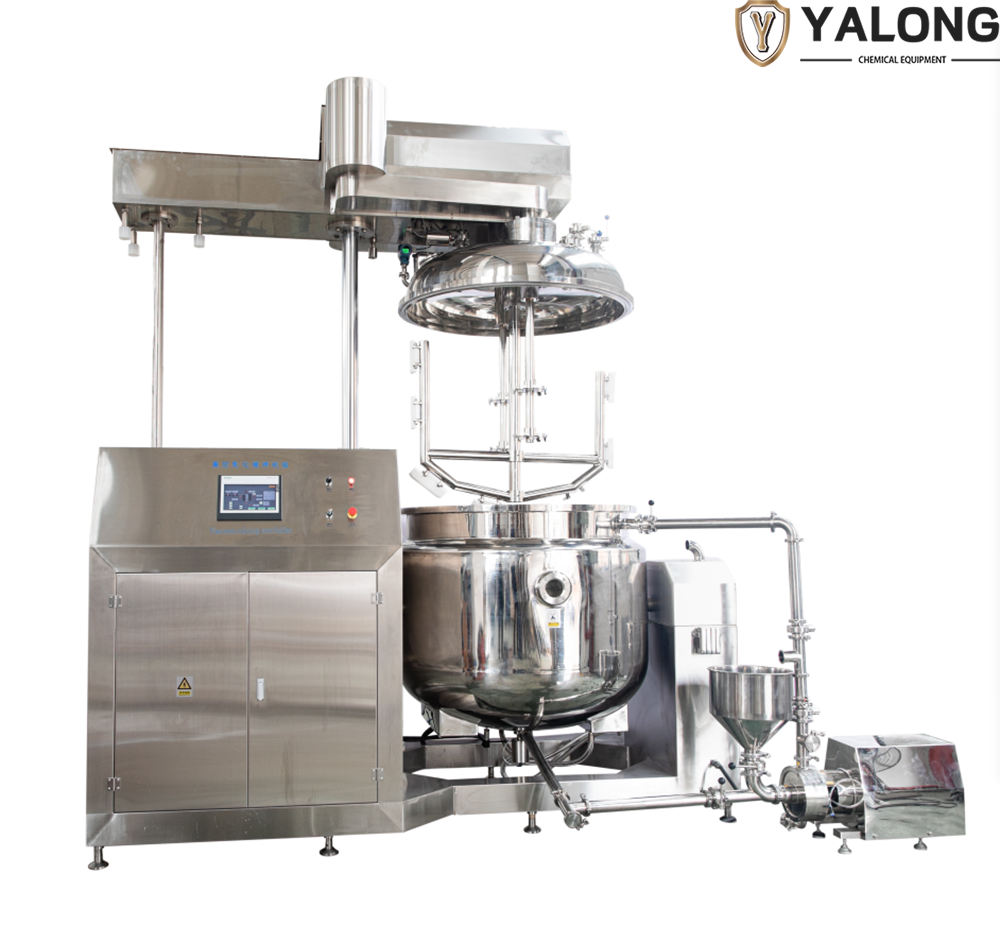

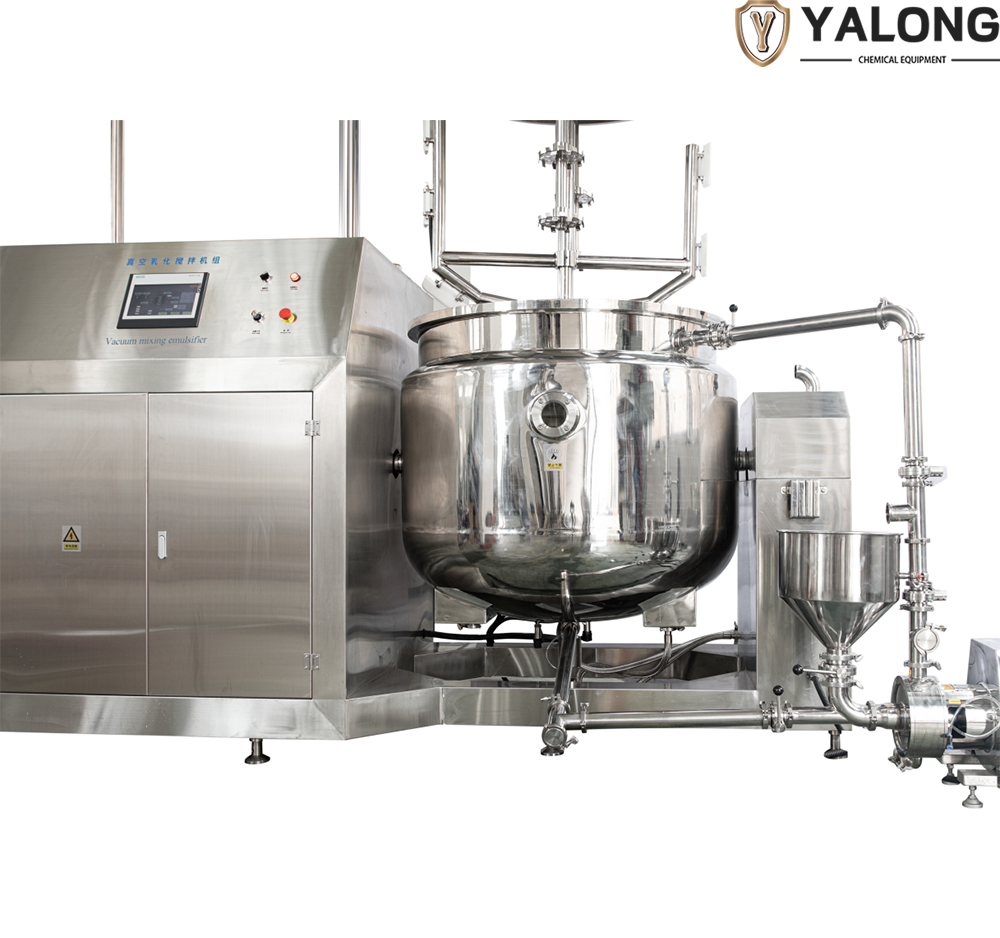

Features:

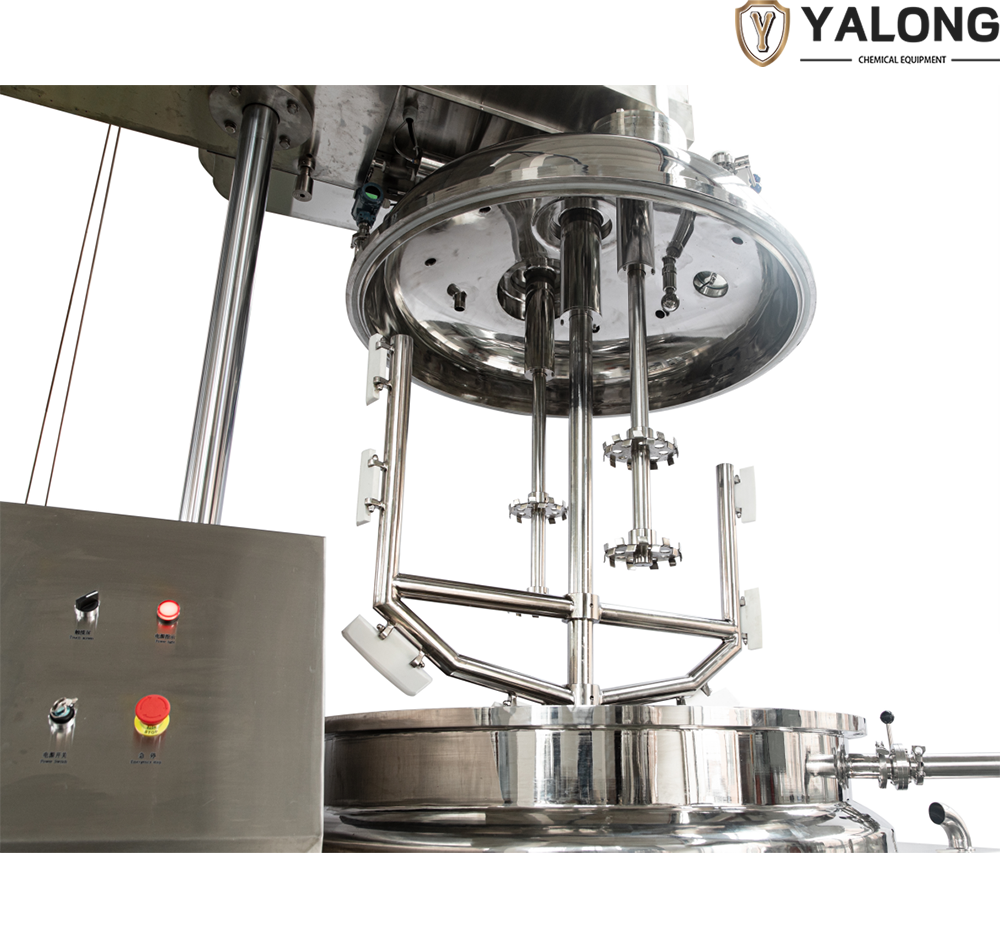

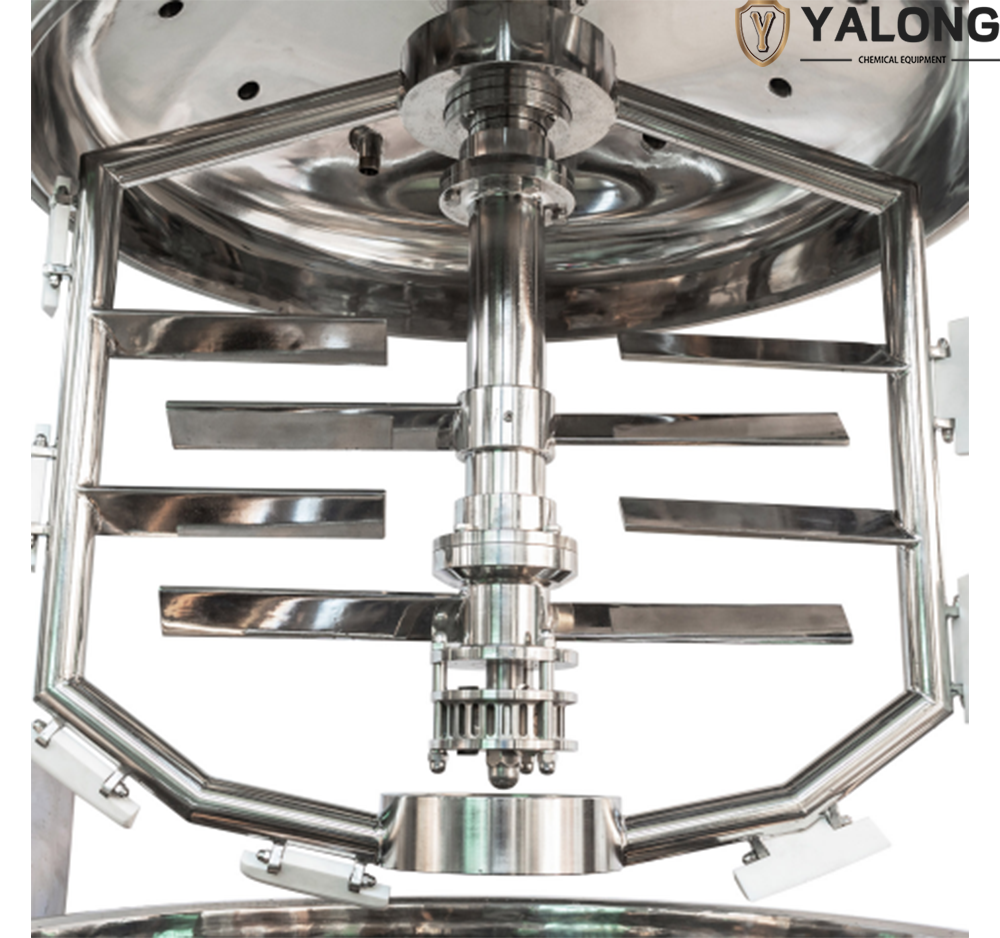

1, It’s used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;

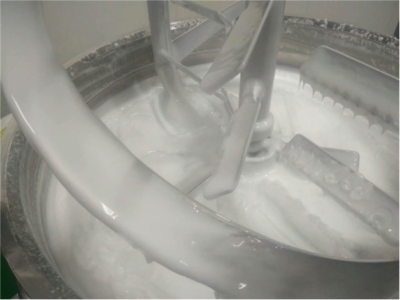

2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;

3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;

4,Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.

5, Customer can choose frequency conversion timing homogenizer and highest rotate speed is 3000 r/min.

The vertical motor is high speed motor which can rotate between 0—3500 rmp/min

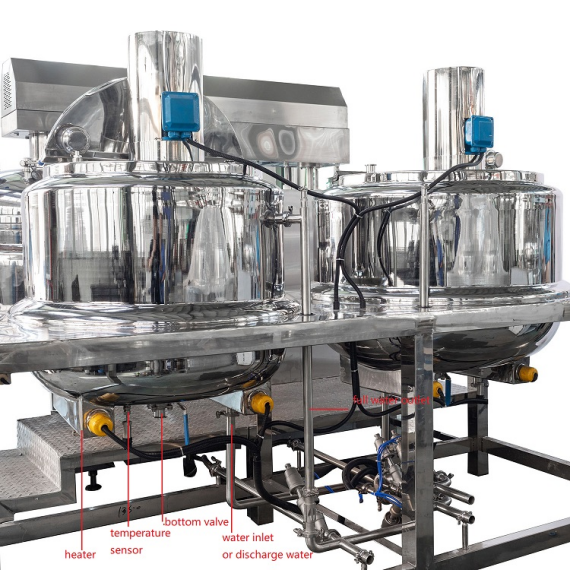

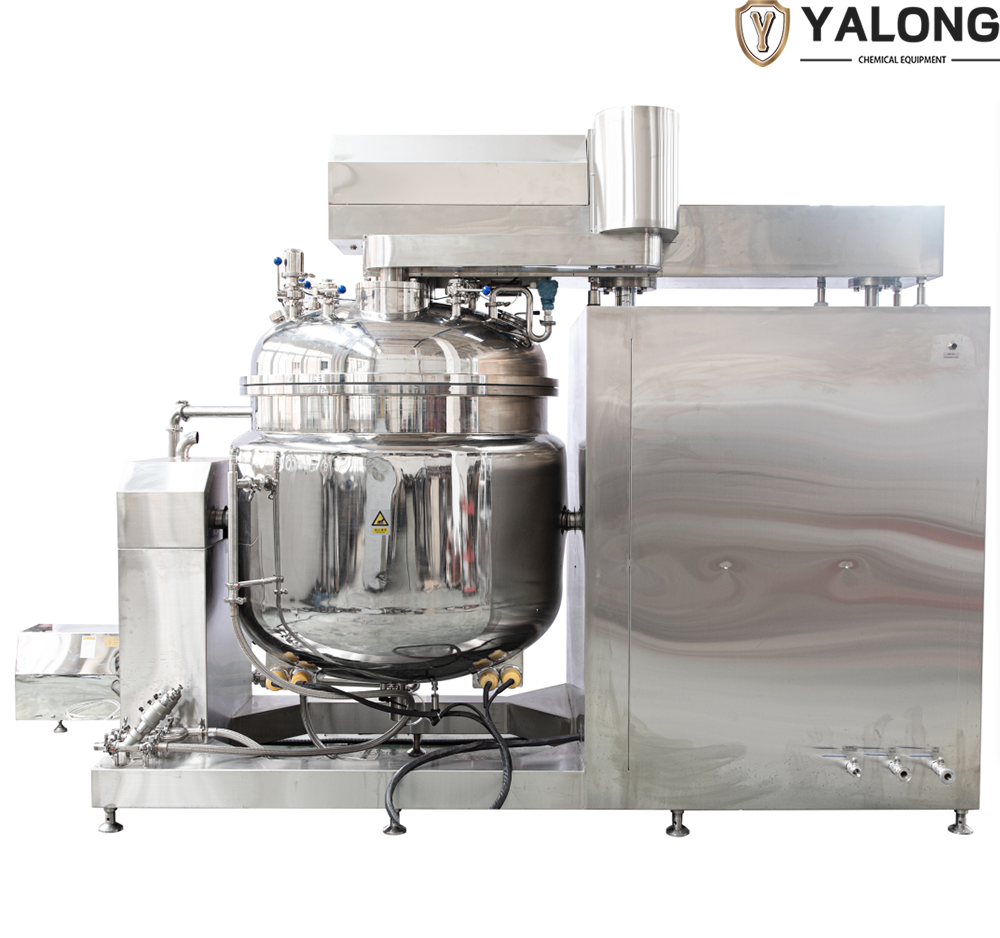

Heater: it is heating the jacket water, the jacket must have water when you heating. Temperature sensor: it is show the
temperature of the jacket Bottom valve: product out or discharge clean water Water inlet or discharge water: this pipe for water
inlet when you heating. It can not heat without water in the jacket. If you do not use this machine for long time, you can
discharge water .

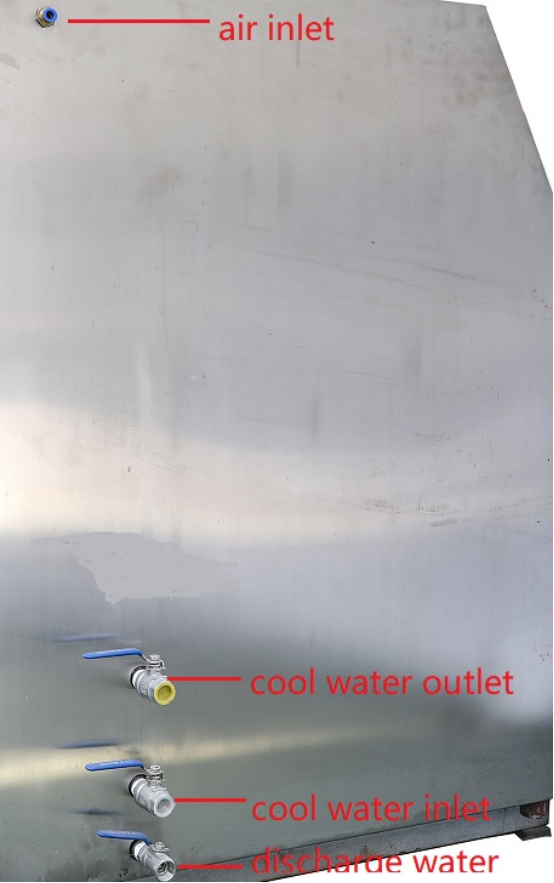

Air inlet: it is compressed air inlet, it need 1-3bar. Cool water inlet: this cooling water for vacuum pump.the vacuum pump need
cooling water or tap water or chilled water for cooling. Cool water outlet: it is cooling water outlet Discharge water: this water from seperator

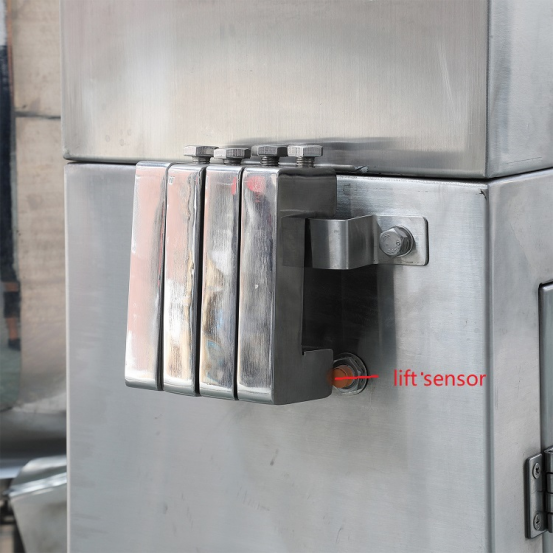

Lift sensor: if four hook not here, the machine can not lift, when the compressed air into main tank, if the tank has pressure,
the up cover and down cover will seperate. You can hook up and down cover, let the product outlet. But the pressure inside of the
tank not more than 1 bar.
