A multifunctional mini centrifugal filter for enhancing filtration efficiency
$5,000.00a set of

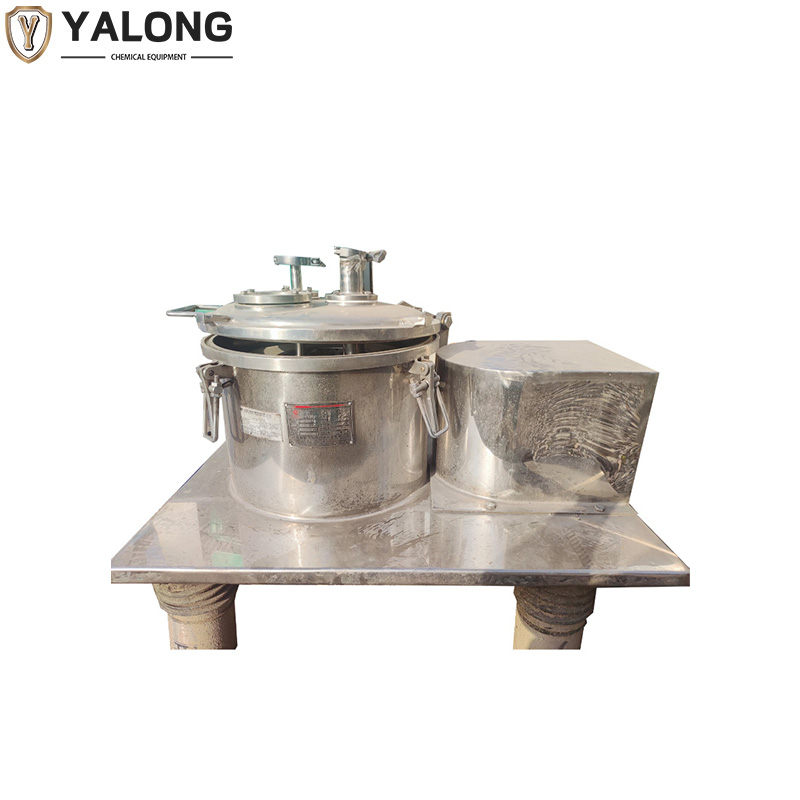

Stainless steel vertical filtration/centrifugal separation equipment, with a compact structure and excellent sealing performance, is entirely made of high-quality stainless steel, resistant to corrosion and easy to clean. The equipment operates stably and can achieve efficient solid-liquid separation of materials. The operation and maintenance are simple, and it is suitable for industrial applications in the fields of chemical engineering, food, and pharmaceuticals where there are high requirements for material purity and production efficiency.
Main structural components

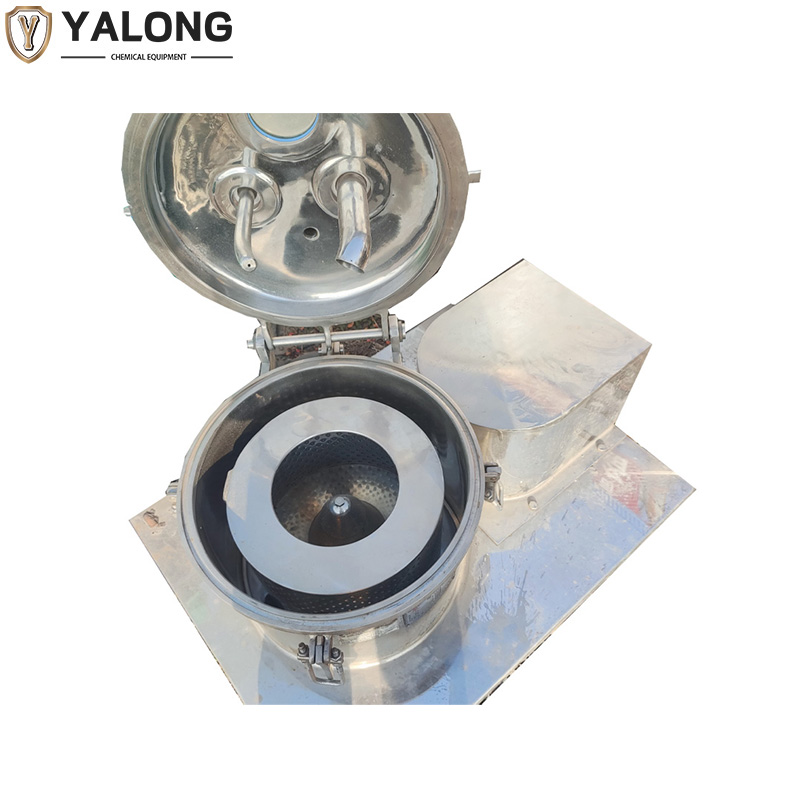

The interior of the stainless steel drum is a perforated filtration drum used for loading materials. The liquid is discharged through the filter holes, while the solids remain inside the drum.
Upturned lid
Stainless steel material. With observation holes and feeding ports. It is sealed during operation, and can be opened for discharging after shutdown.
Motor drive system
Driven to rotate at high speed by belts or couplings. The base is connected to a shock absorption system. The bottom is equipped with spring shock absorbers. They are used to absorb vibrations during operation and reduce noise. The requirements for the foundation are relatively low.
Flat frame
The entire machine is installed on a thick steel plate platform. Good stability and easy maintenance
The drum rotates at high speed (typically 800–1500 rpm)
Under the action of centrifugal force:
Liquid → Discharged through the filter cloth and the drum holes
Solid → Remain on the inner wall of the drum
Open the machine cover after it has been shut down.
Manual or assisted discharging
| Drum dia mm |
200 |
|---|---|
| Drum volume L |
2 |
| Rotation speed rpm |
2800 |
| Centrifugal force |
878 |
| Motor power KW |
0.75 |
| Weight kg |
65 |
