a Starch Separation Centrifuge with a Processing Capacity Ranging From 20 to 500 Tons Per Hour
$30,000.00a set of
Disc separators are utilized to separate starch from gluten (also referred to as protein) in corn starch production. During the separation process, gluten is separated into the light liquid phase, while crude starch milk is discharged from the heavy liquid phase. Notably, the crude starch milk contains approximately 1%–2% residual gluten, which requires further removal to ensure product purity.
In traditional production processes, three disc separators of the same model but with different nozzle diameters were typically employed for this separation step. However, this configuration has become obsolete due to its high initial investment cost.
In modern large-capacity production facilities, an optimized process is adopted: a single disc separator is combined with a 9–12 stage hydrocyclone system to wash the crude starch milk, ultimately yielding high-purity corn starch. Under standard production conditions, approximately 0.7 kg of corn starch can be obtained from 1 kg of corn raw material.

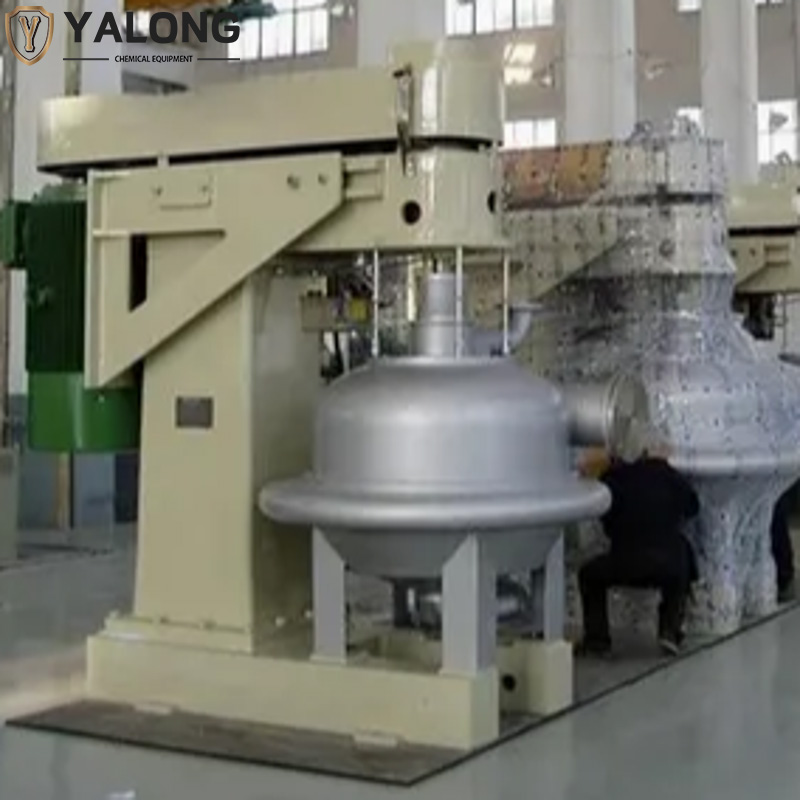

The DPF-type separator is primarily composed of key components including a feeding device, rotating drum, cover, machine body, horizontal shaft, vertical shaft, washing bottom pump, base, and motor.
During operation, when the rotating drum operates at a high rotational speed, the material is delivered into the disc separation zone via the feeding pump.
Ultra-High Rotational Speed: Adopts a high-speed operational design to enhance centrifugal separation efficiency.
Precision Dynamic Balancing: Features sophisticated dynamic balancing technology for stable performance.
Low Vibration During Long-Term Operation: Maintains extremely low vibration levels even during extended working cycles, ensuring operational reliability.
Superior Safety Performance: Complies with strict safety standards, providing robust operational security.
Continuous Operation Capability: Supports 24/7 continuous workflow without frequent shutdowns, improving production efficiency.
Nozzle-Type Discharging System: Utilizes a nozzle-based discharging mechanism for consistent and efficient material output.
| Treatment Capacity(T/H) |
30-60 |
|---|---|
| Speed of Drum |
2850-4800 |
| Motor Power (Kw) |
75/55 |
| weight (kg) |
3500 |
| Outline Size(mm) |
2000*1000*2050 |
