Advanced Fully Automatic Chamber Filter Press
$12,800.00
Our recessed plate filter press is a high-efficiency solid-liquid separation solution for global industrial needs. Equipped with reinforced polypropylene filter plates and acid-resistant filter cloth, it ensures stable operation in harsh environments like chemical processing and wastewater treatment.
Featuring PLC automatic control and hydraulic pressure system, it realizes intelligent operation from filtration to cake discharge, reducing labor costs by 40%. The unique filter chamber design boosts filtration speed by 30%, while optional diaphragm squeezing lowers cake moisture content to 8-13%.
With compact structure and easy maintenance, it meets environmental standards of EU and Southeast Asia. Widely applied in mining, food, pharmaceutical and new energy industries, this reliable equipment delivers cost-saving and eco-friendly results for international clients.
描述

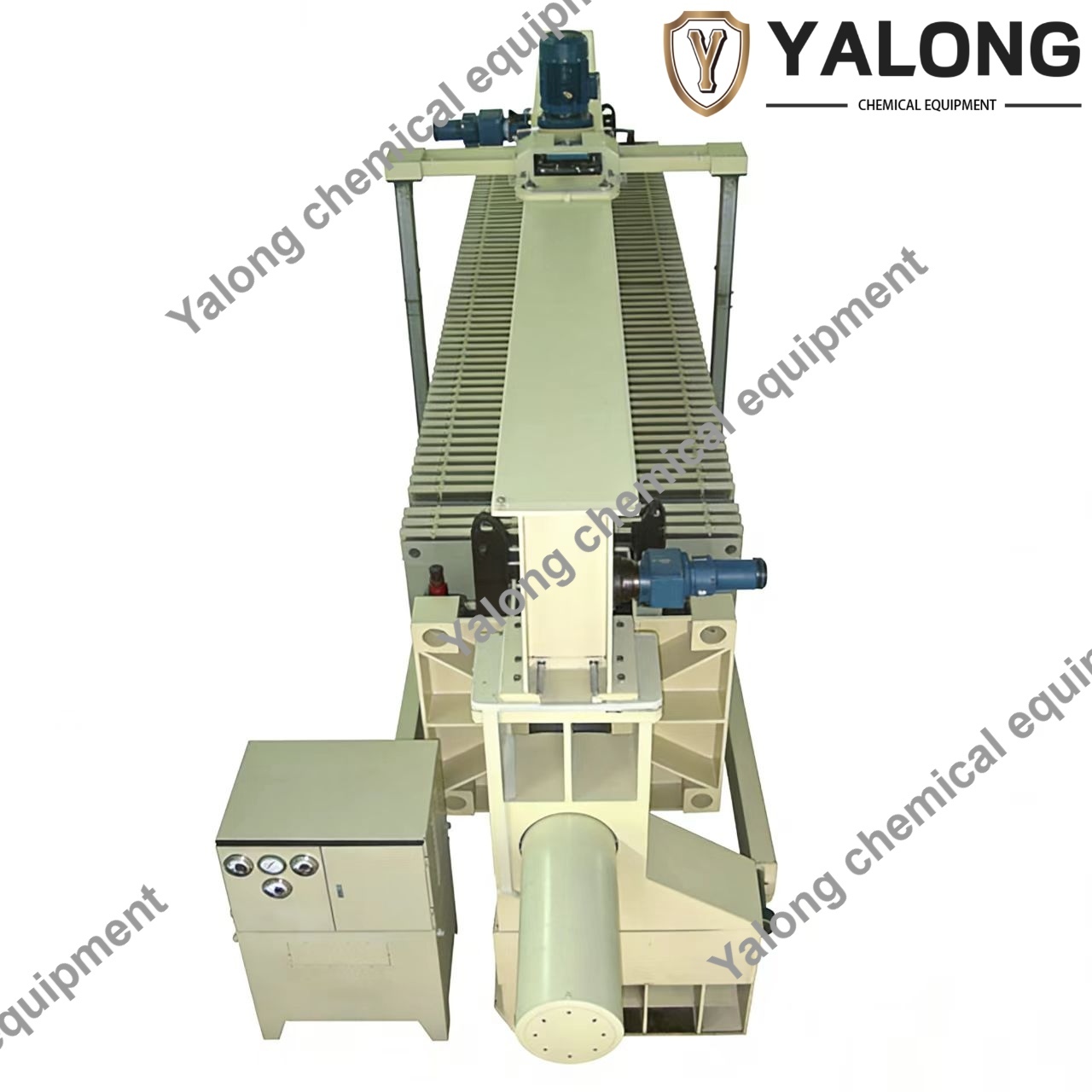

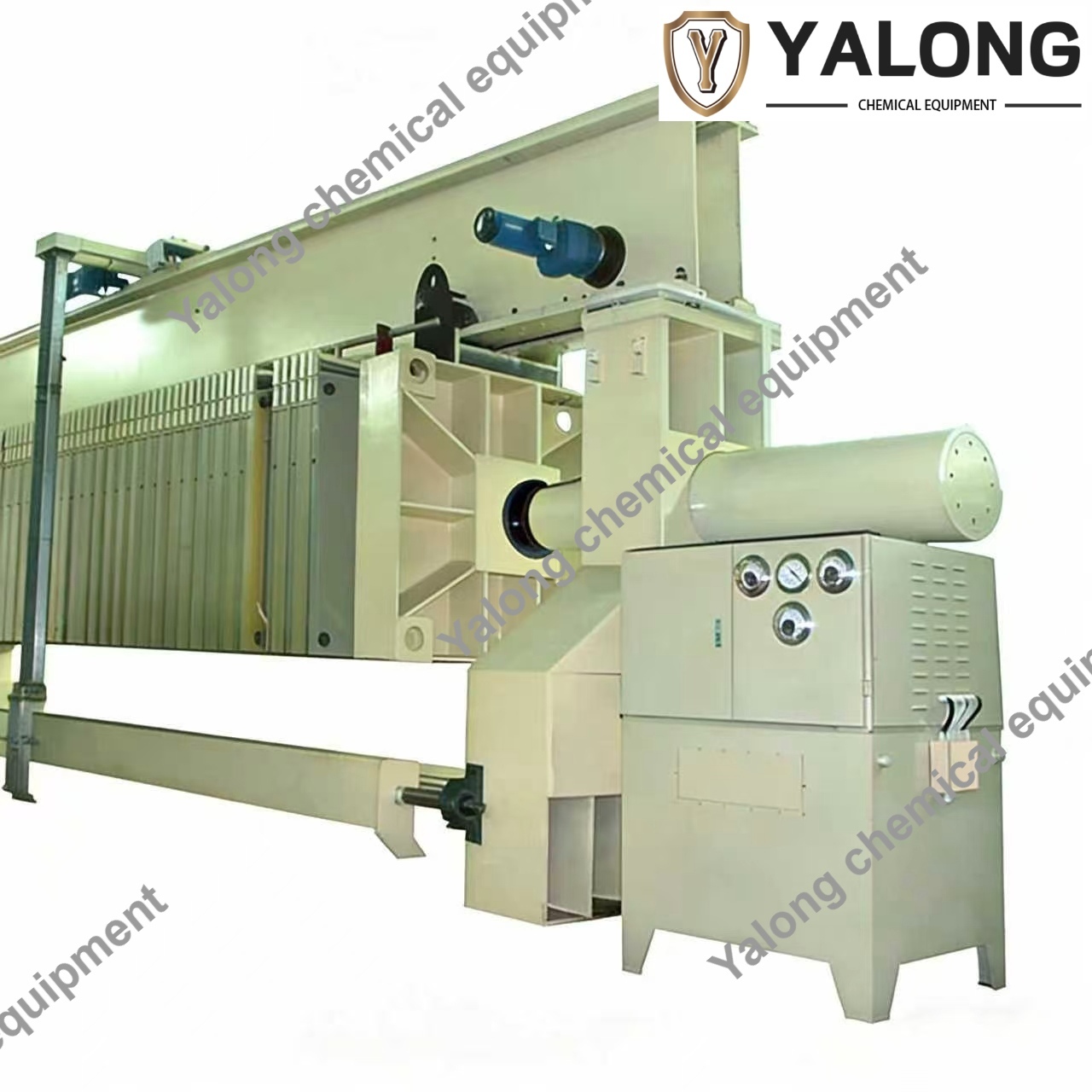

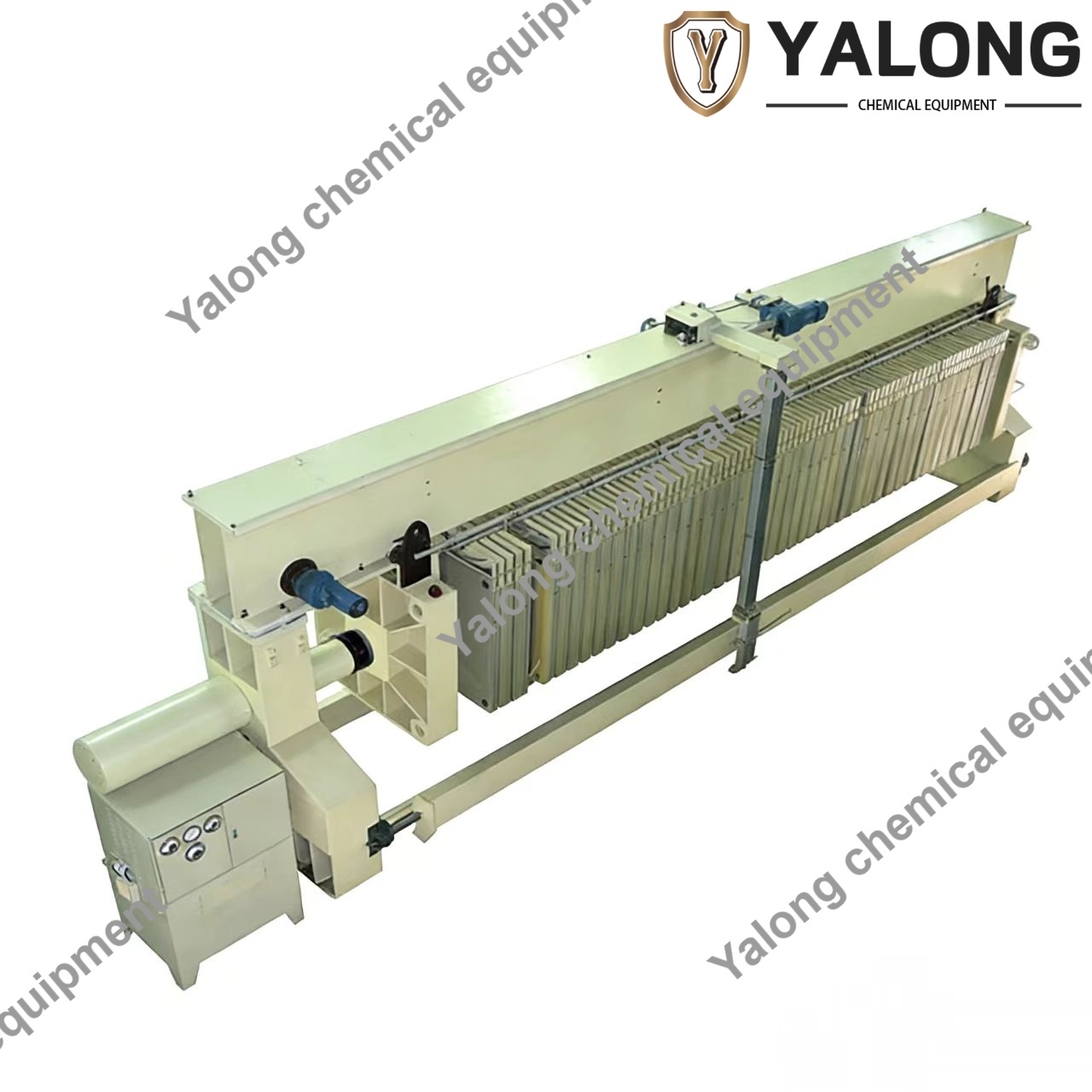

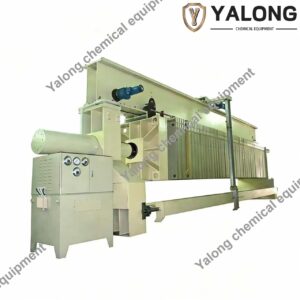

Advanced Fully Automatic Chamber Filter Press for Chemical Slurry
A chamber filter press is an industrial device that separates solids from liquids in a suspension by applying pressure. It’s made up of a bunch of filter plates and frames arranged alternately, with filter cloth sandwiched in between.It is widely used in wastewater treatment, chemical industry, pharmaceutical manufacturing, food and beverage production, mining, and other sectors.
A chamber filter press is a type of filter press widely used across various industries for solid-liquid separation. It is commonly employed in wastewater treatment plants, mining operations, the chemical industry, and food processing facilities.
It forces the liquid portion to pass through filter cloth while retaining solid particles within the chambers. The basic structure of a chamber filter press consists of a series of filter plates with filter cloth, alternating with solid plates. The filter plates in our products are typically made of materials such as polypropylene, cast iron, or stainless steel, depending on the application and the nature of the material being filtered. Each plate features a central cavity or chamber where solids accumulate during the filtration process.
Filtration Principle: The filter cloth acts as a medium, allowing liquid to pass through while retaining solids. This results in the formation of a filter cake within the chambers and the collection of filtrate, thereby achieving efficient solid-liquid separation.
Applications
This equipment is applicable to a wide range of industries and materials, including but not limited to:
Wastewater & Sludge Treatment: Electroplating wastewater, steel mill effluent, municipal/port sludge dewatering, water treatment plant residuals, dust collection wastewater, printing/dyeing effluent, papermaking wastewater, biological wastewater, leather processing wastewater, red mud, and electroplating sludge.
Chemical Industry: Basic chemicals, pesticides, catalysts, gypsum, soap, mercury, sodium chloride, waste acid recovery, cesium chloride.
Mining & Minerals: Iron ore, gold mine tailings, calcium carbide slag, electrolytic manganese, calcium carbonate, industrial sand, brine mud, aluminum phosphide, potassium chloride, zinc chloride, calcium hypochlorite, manganese chloride.
Food & Beverage: Edible oils (palm oil, palm kernel oil), vegetable butter, syrups, raw/beet/cane sugars, soy sauce, fruit juice pectin.
Pharmaceuticals: Bulk active pharmaceutical ingredients (APIs), traditional Chinese medicine preparations.
Ceramics & Clay: Kaolin, ceramic slip, clay.
Chemical Industry: Basic chemicals, pesticides, catalysts, gypsum, soap, mercury, sodium chloride, waste acid recovery, cesium chloride.
Mining & Minerals: Iron ore, gold mine tailings, calcium carbide slag, electrolytic manganese, calcium carbonate, industrial sand, brine mud, aluminum phosphide, potassium chloride, zinc chloride, calcium hypochlorite, manganese chloride.
Food & Beverage: Edible oils (palm oil, palm kernel oil), vegetable butter, syrups, raw/beet/cane sugars, soy sauce, fruit juice pectin.
Pharmaceuticals: Bulk active pharmaceutical ingredients (APIs), traditional Chinese medicine preparations.
Ceramics & Clay: Kaolin, ceramic slip, clay.
Advantages of Chamber Filter Press
1.High Filtration Efficiency: We utilize advanced filtration technologies, such as precise filter cloth arrangement and optimized plate design, to achieve highly efficient filtration performance.
2.Robust and Durable Construction: The filter plates are typically made from high-strength polypropylene or other corrosion-resistant materials.
3.Excellent Sealing Performance: The chamber filter press is equipped with a reliable sealing system that prevents leakage and ensures consistent pressure is applied throughout the filtration process.
4.User-Friendly Operation: The equipment features automated or semi-automated control systems that simplify operation and reduce manual intervention.
5.Wide Range of Applications: Customization options are available to tailor the filter press to meet specific process requirements.
2.Robust and Durable Construction: The filter plates are typically made from high-strength polypropylene or other corrosion-resistant materials.
3.Excellent Sealing Performance: The chamber filter press is equipped with a reliable sealing system that prevents leakage and ensures consistent pressure is applied throughout the filtration process.
4.User-Friendly Operation: The equipment features automated or semi-automated control systems that simplify operation and reduce manual intervention.
5.Wide Range of Applications: Customization options are available to tailor the filter press to meet specific process requirements.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material |
FRPP |
| Pressure |
Hydraulic Pressure |
| Filter Area |
40m2 |
| Filter Volume |
534L |
| Motor Power |
2.2kw |
| Filter Plate Thickness |
30mm |
| Filter Plate Size |
870*870mm |
| Filter Plate |
23PCS |
