Automatic Membrane Filter Press Machine
$12,800.00
Our Diaphragm Filter Press is a high-efficiency solid-liquid separation solution, engineered for industries like mining, chemical, food & beverage. It features robust steel frame, wear-resistant filter plates and precise hydraulic system, ensuring stable operation and low maintenance cost.
With customizable filter areas (10–2000㎡) and pressure settings, it adapts to diverse slurry types, delivering ultra-clear filtrate and high cake dryness. We offer OEM/ODM service, global delivery and 12-month warranty. Trusted by clients in 50+ countries, our filter press boosts your production efficiency and reduces waste disposal cost.
描述

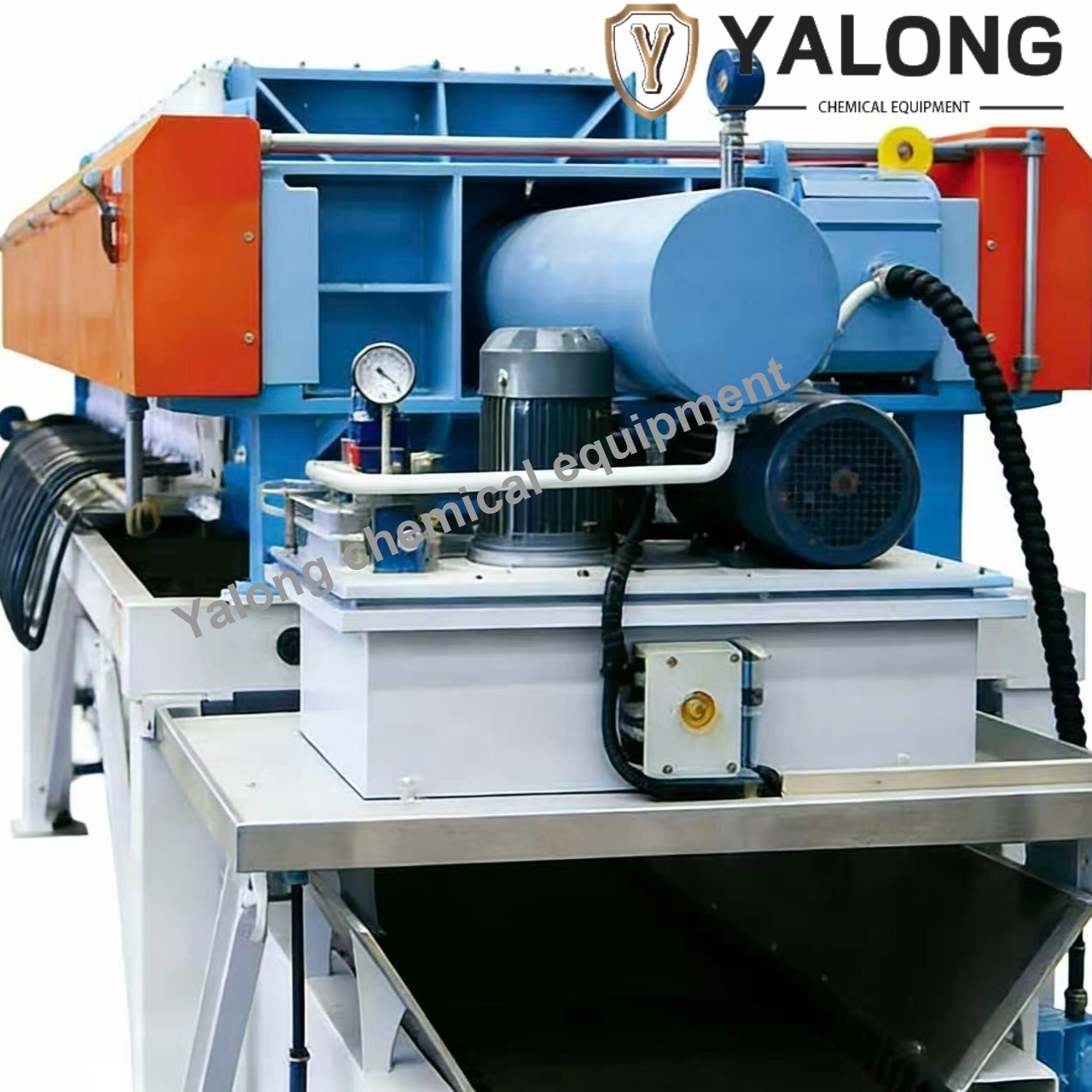

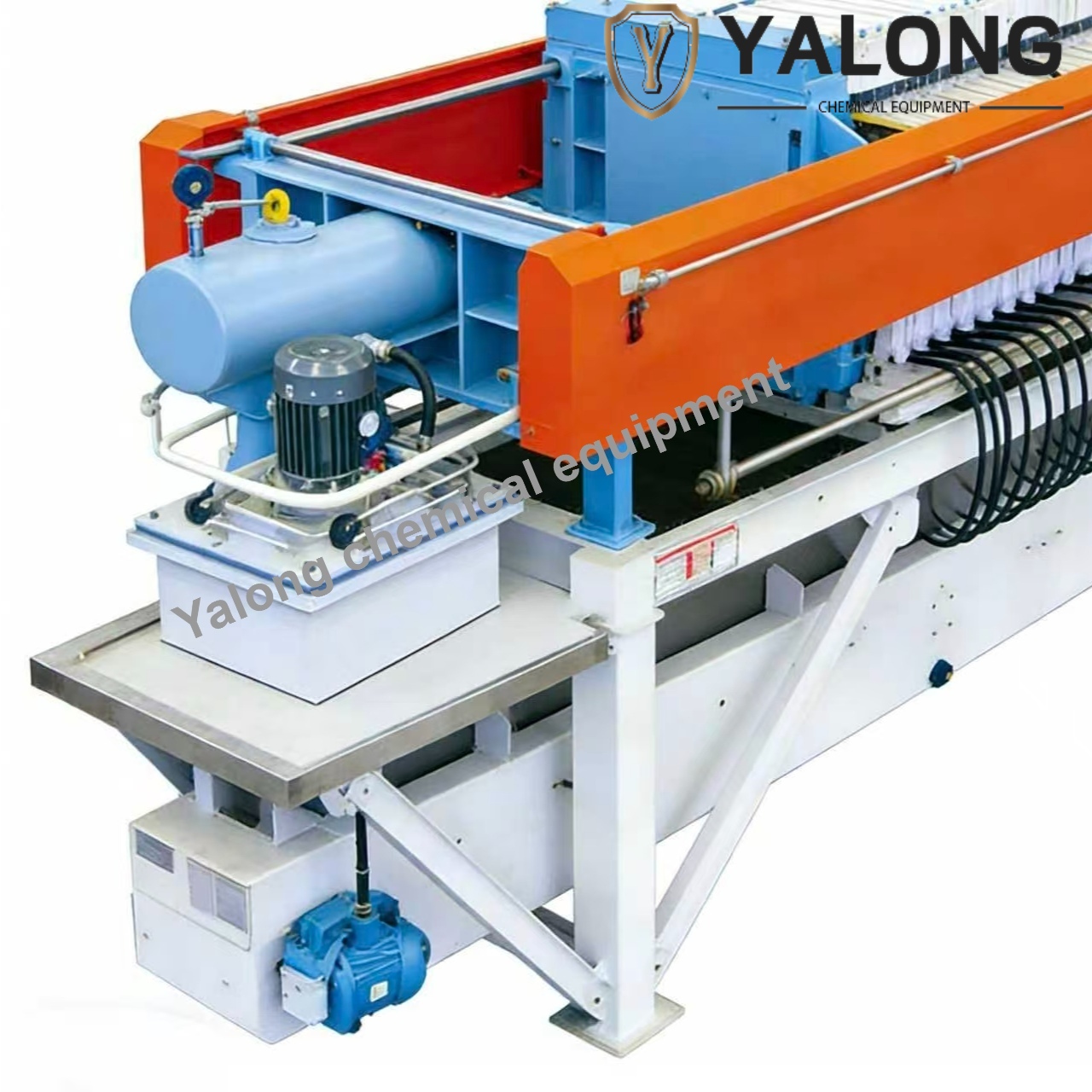

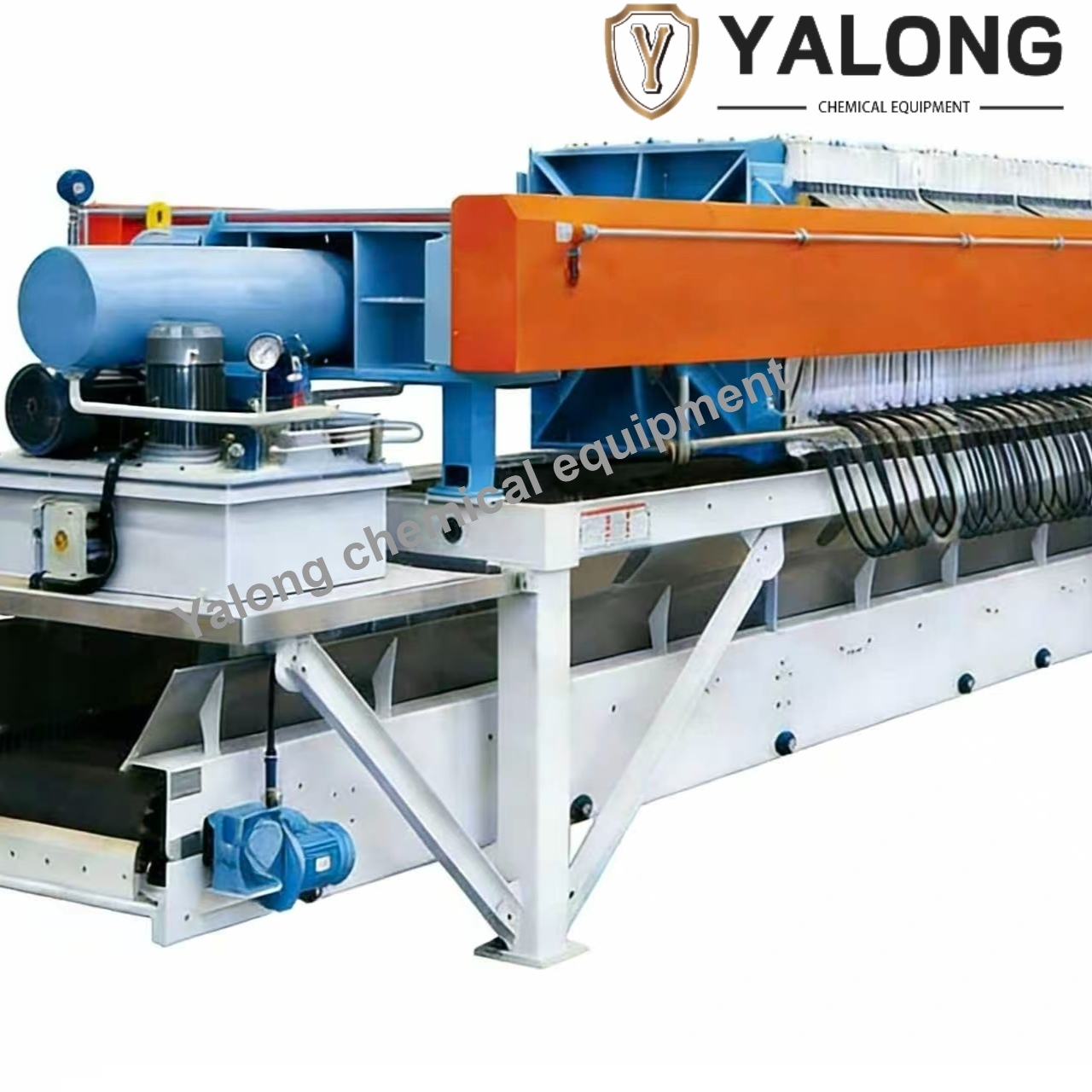

Automatic Membrane Filter Press Machine for Sludge – CE Certified
A plate and frame filter press is basically a machine that separates solids from liquids. It’s made up of a bunch of filter plates and frames arranged alternately, with filter cloth sandwiched in between.It is widely used in wastewater treatment, chemical industry, pharmaceutical manufacturing, food and beverage production, mining, and other sectors.
The key components of a plate and frame filter press are the filter plates and the filter frames. These elements are arranged alternately to form a series of chambers for the slurry (a mixture of solid and liquid) to pass through. The filter plates are typically made of polypropylene or stainless steel, while the frames can be made from various materials such as plastic or metal.
A plate and frame filter press how it works: you pump the solid-liquid mixture into the spaces between the plates and frames. The liquid passes through the filter cloth and flows out, while the solids get trapped on the cloth, building up what’s called a filter cake. Once the process is done, you just take the cake out. This equipment is super common in industries like chemicals, pharmaceuticals, food processing, and wastewater treatment. The good thing is it’s really efficient at filtering, but the downside is it usually runs in batches, not continuously.”
The great thing about its design is that it’s simple and modular, so it’s easy to customize for whatever you need.
The plate and frame filter press offers several key advantages over other filtration methods, including:
1.High Filtration Efficiency: It achieves an excellent level of solid-liquid separation, producing a clear filtrate and a dry, solid cake.
2.Modular Design: Its configuration allows for easy customization to suit various processing capacities and specific application needs.
3.Low Maintenance: With a robust yet straightforward design, it requires minimal maintenance and is easy to clean.
4.Environmental Benefits: The press promotes sustainability by facilitating water reuse and significantly reducing waste.
5.Flexibility: Cake thickness can be easily adjusted by changing the frame thickness. It is suitable for a wide range of slurry characteristics.
6.Complete Cake Washing: The design allows for efficient and thorough cake washing if required.
7.Robust Construction: Simple design ensures durability and a long service life.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material |
PE or Stainless Steel |
| Pressure |
Hydraulic Pressure |
| Pulling Plate |
Manual/Automatic |
| Thickness of Press Cake(mm) |
30mm |
| Filtering Area(mm) |
80 |
| Filter Plate Number |
22/23 |
| Power |
10kw |
