Automatic Pressure-Regulated Recessed Chamber Filter Press
$12,800.00
A rugged, high-efficiency solid-liquid separation solution built for chemical, mining, environmental protection and food processing sectors. Its recessed filter plates form integrated enclosed chambers, eliminating separate frames to cut down installation time and maintenance workload significantly.
When slurry is pumped into the chambers, pressure-driven filtration kicks off instantly: liquid seeps through filter media smoothly, while solid particles are trapped to form uniform, easy-to-discharge filter cakes. Featuring superior sealing, stable operation and strong adaptability to high-viscosity slurries, this cost-effective equipment is your trusted pick for material purification, wastewater treatment and residue recovery.
描述

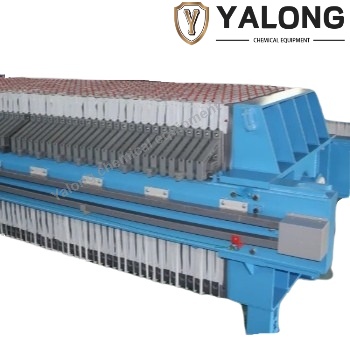

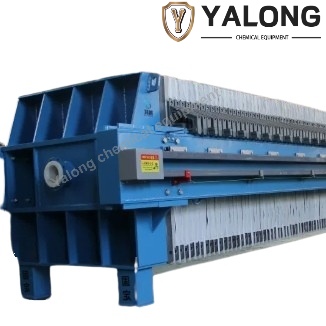

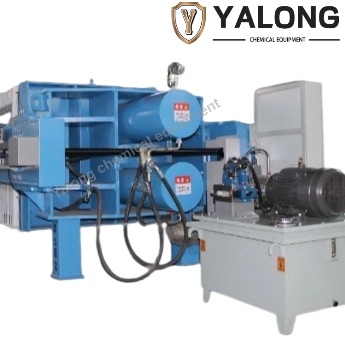

Automatic Pressure-Regulated Recessed Chamber Filter Press with Program Control
A chamber filter press is an industrial device that separates solids from liquids in a suspension by applying pressure. It’s made up of a bunch of filter plates and frames arranged alternately, with filter cloth sandwiched in between.It is widely used in wastewater treatment, chemical industry, pharmaceutical manufacturing, food and beverage production, mining, and other sectors.
A chamber filter press is a type of filter press widely used across various industries for solid-liquid separation. It is commonly employed in wastewater treatment plants, mining operations, the chemical industry, and food processing facilities.
It forces the liquid portion to pass through filter cloth while retaining solid particles within the chambers. The basic structure of a chamber filter press consists of a series of filter plates with filter cloth, alternating with solid plates. The filter plates in our products are typically made of materials such as polypropylene, cast iron, or stainless steel, depending on the application and the nature of the material being filtered. Each plate features a central cavity or chamber where solids accumulate during the filtration process.
Filtration Principle: The filter cloth acts as a medium, allowing liquid to pass through while retaining solids. This results in the formation of a filter cake within the chambers and the collection of filtrate, thereby achieving efficient solid-liquid separation.
Advantages of Chamber Filter Press
1.High Filtration Efficiency: We utilize advanced filtration technologies, such as precise filter cloth arrangement and optimized plate design, to achieve highly efficient filtration performance.
2.Robust and Durable Construction: The filter plates are typically made from high-strength polypropylene or other corrosion-resistant materials.
3.Excellent Sealing Performance: The chamber filter press is equipped with a reliable sealing system that prevents leakage and ensures consistent pressure is applied throughout the filtration process.
4.User-Friendly Operation: The equipment features automated or semi-automated control systems that simplify operation and reduce manual intervention.
5.Wide Range of Applications: Customization options are available to tailor the filter press to meet specific process requirements.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material: |
FRPP |
| Pressure |
Hydraulic Pressure |
| Feed Hole Position |
120 |
| Filter Area |
200 Square Meter |
| Application |
Food Industry/Metallurgical Industry/Sand and Gravel Factory |
