Automatic Rotary Pfizer Vaccine Filling and Capping Machine for Glass Bottles
$18,000.00

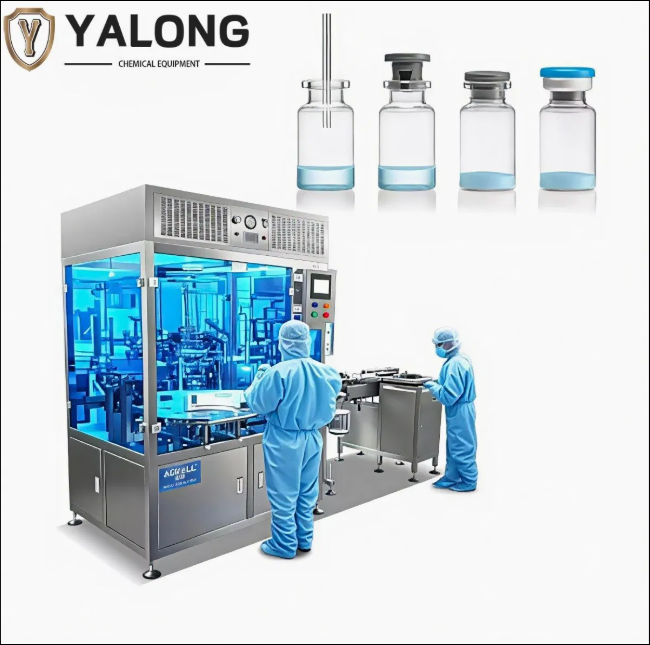

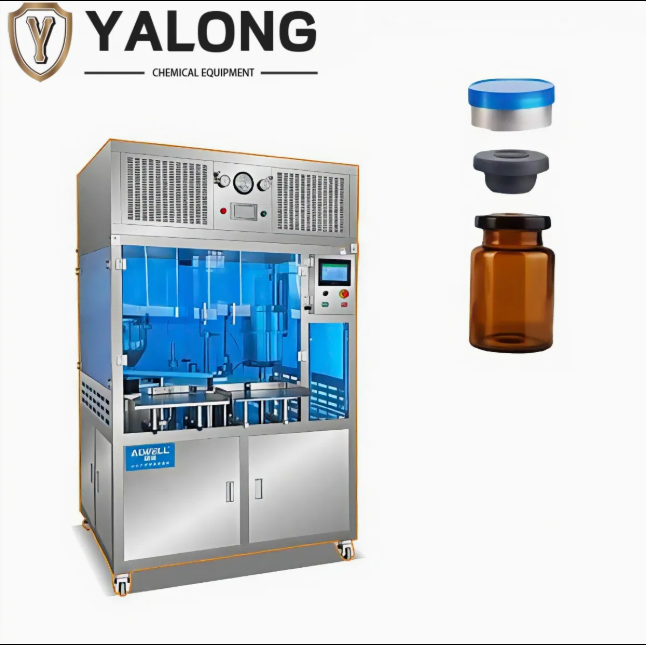

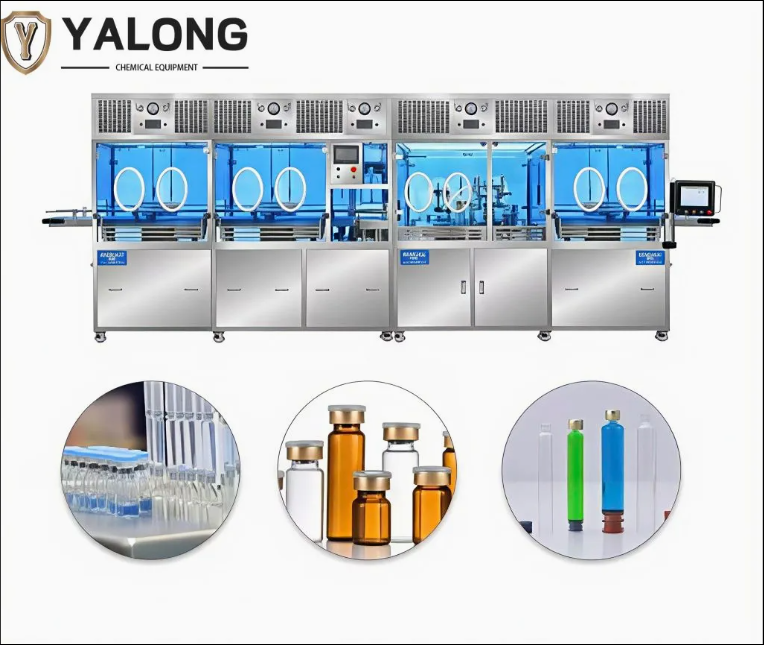

Main Introduction of Filling and Capping Machine
This automatic filling and capping machine is specialized equipment engineered for liquid filling and capping operations of bottled products. It integrates peristaltic pump filling, positioning-type cap feeding, and magnetic torque capping technologies, ensuring precise and consistent processing. Equipped with PLC control system, touch screen operation interface and imported photoelectric detection devices, the machine delivers superior accuracy and stability. Fully compliant with the latest GMP standards, it is widely applicable to the pharmaceutical, food, chemical, healthcare product, and pesticide industries.
Features frequency conversion control for convenient adjustment of filling speed, coupled with an automatic counting function.
Incorporates a no-bottle no-filling mechanism for automatic stop, eliminating material waste.

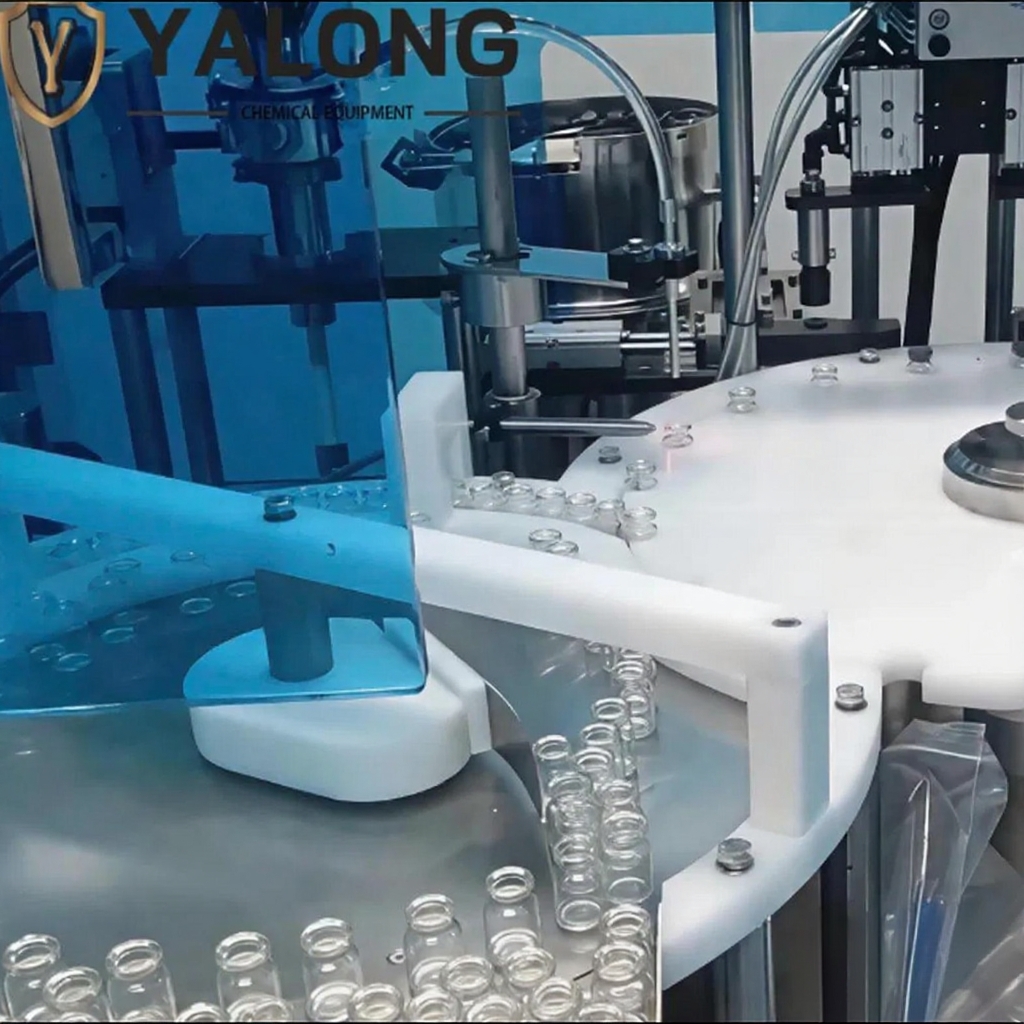

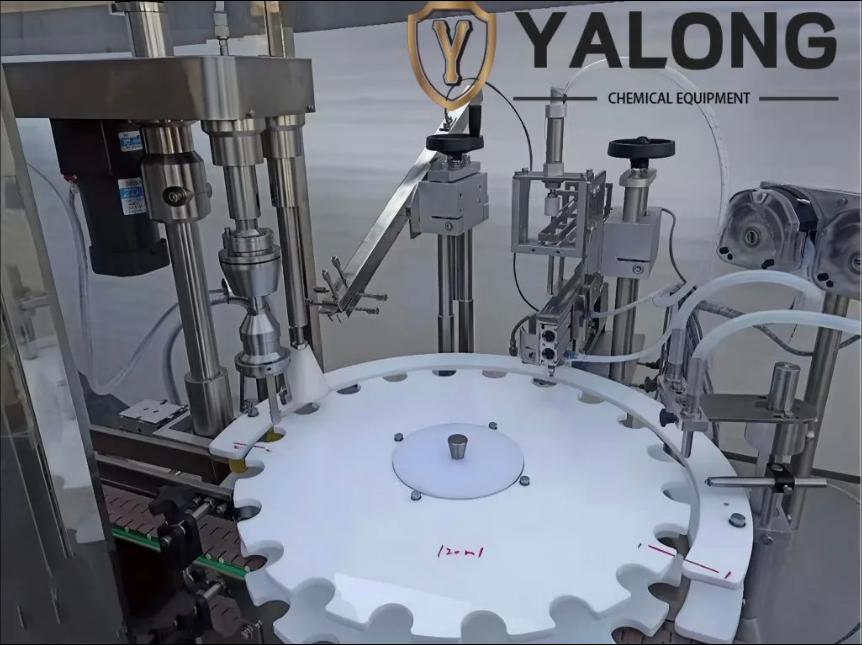

Utilizes a rotary turntable for positioning during filling, ensuring stable and reliable performance.
Adopts high-precision cam indexing control for accurate positioning of bottles and caps throughout the process.
Core Features
Equipped with HMI (human-machine interface) and PLC controller for intuitive, hassle-free operation.
Frequency conversion control enables easy adjustment of filling speed, paired with an automatic counting function for production tracking.
Built-in no-bottle no-filling mechanism triggers automatic stop, effectively reducing material waste.
Rotary turntable positioning ensures stable, reliable filling with consistent precision across batches.
High-precision cam indexing control guarantees accurate alignment of bottles and caps throughout the process.
The parameter in this sheet is for reference only, some of the data may be different with different case.
|
Brand
|
ALWELL
|
|
Type
|
Vial bottle filling machine
|
|
Number of filling heads
|
2/4/6/8
|
|
Filling range
|
1ml-50ml
|
|
Bottle diameter
|
5-100mm(Can Customize)
|
|
Bottle height
|
5-100mm
|
|
Working speed
|
0-60 bottles/min.(depending on liquid,bottle and caps)
|
|
Filling accuracy
|
1%
|
|
Qualified rate of finished products
|
industry/medicine/Chemical
|
|
Applicable bottle
|
vial bottle
|
|
Warranty
|
1 Year
|
|
Material
|
Stainless Steel 304
|
|
Machine weight
|
About 341kg
|
|
Package size
|
About About 2350*1250*2100mm
|
Advantage:1 Machine design beautiful, PLC touch screen control.
2 The electrical equipment all adopt the world famous brand, the quality is high.
3 Machine structure design is simple, easy to adjust.
4 The photoelectric equipment adopts German LEUZE,the accuracy is high.
|
Power supply
|
AC220V ;50HZ (or according to client voltage requirement )
|
|
Power
|
2.5kw
|
|
label length
|
6-300mm,label width:20-150mm
|
|
bottle size
|
20≤diameter≤150mm,20≤height≤300mm
|
|
label speed
|
20-120pcs/min
|
|
Label inner diameter
|
76mm,Label outer diameter:350mm
|
|
label precision
|
±1mm
|
|
Weight
|
400kg
|
We provide 1 year warranty, lifetime technical support, remote video guidance,
Yalong Chemical Equipment Co., Ltd. is a global comprehensive service provider of chemical equipment, offering full-range solutions for clients in chemical, pharmaceutical, food, environmental protection, and new materials industries worldwide.
Our main products include reactors, centrifuges, dryers, filter presses, food & pharmaceutical packaging machines, water treatment equipment and other chemical machinery. We provide customizable products at competitive prices based on clients’ specific needs.
In addition to high-quality equipment supply, we offer one-stop services from process design, equipment customization, installation and commissioning to technical training. Our business has expanded to Southeast Asia, the Middle East, Europe, South America, Africa and other regions.
Adhering to the philosophy of “Integrity as the Foundation, Customer First, and Win-Win Cooperation”, we strive to be a trusted strategic partner and engineering service provider for our clients.
OEM/ODM OEM/ODM
Competitive pricing & bulk discountsFast shipping & customs clearance support
Turnkey project solutions
Capping/Sealing Equipment
Labeling Equipment
Automatic Packaging Equipment
Conveying & Sorting Equipment
Mixing & Agitating Equipment
Reaction Equipment
Drying Equipment
Filtration & Separation Equipment
Storage Equipment
Q: What is your minimum order quantity?
Answer: 1 set.
Question: How to choose the right equipment?
Answer: Please inform us of your User Requirements Specification (URS). We will recommend suitable equipment for you based on your requirements, application experience, and feedback from our customers.
Question: How to solve equipment malfunctions during use?
Answer: Please send your questions to us in the form of pictures or videos (preferably short videos), and we will identify and solve them. If a malfunction occurs within the warranty period, we will replace the new part for you free of charge.
| Application |
Cleaning, Detergent, Cosmetics, Skin Care Products, Hair Care Products, Syrup |
|---|---|
| Type |
Piston Filling Machine |
| Forming Species |
Liquid |
| Forming Function |
Forming, Filling, Sealing |
| Material |
Stainless Steel 304 |
| Feed Cylinder Structure |
Single-Room Feeding |
| Filling Range |
20ml-200ml(Can Be Customized) |
