B2-K1014 CNC Universal End Milling Machine
$50,000.00a set of

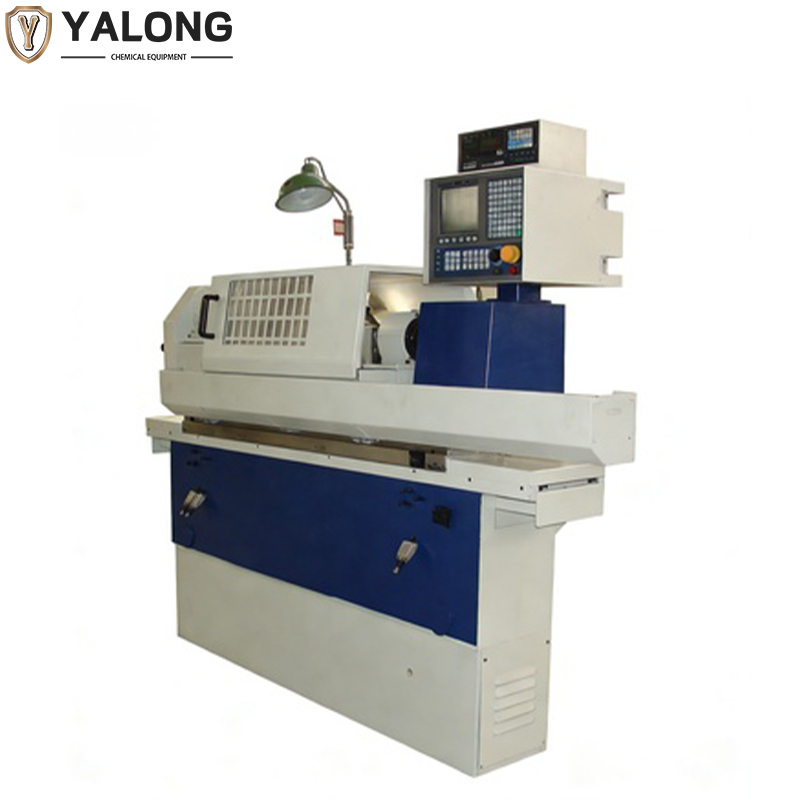

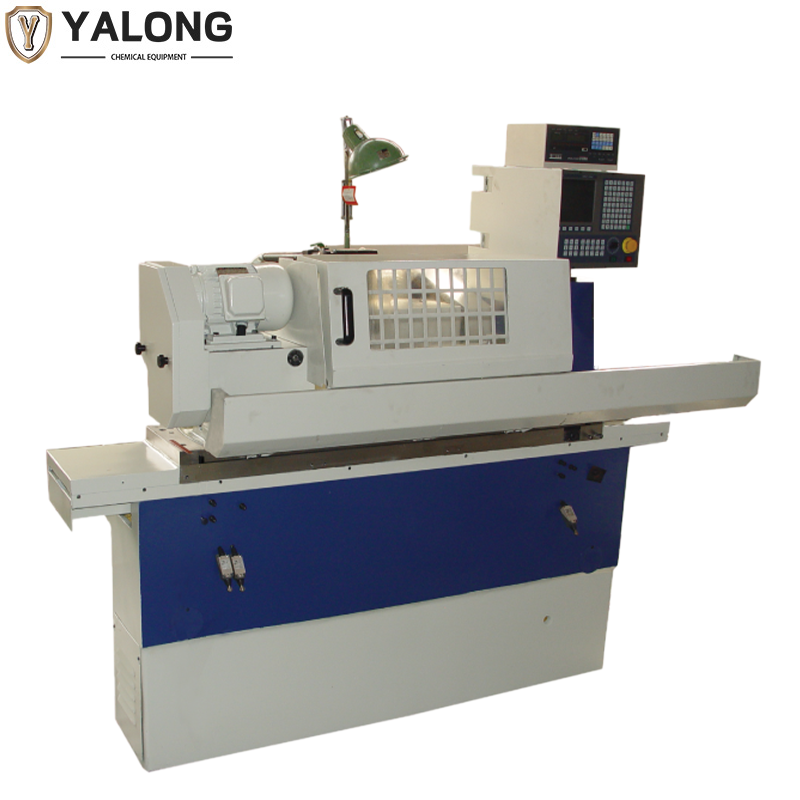

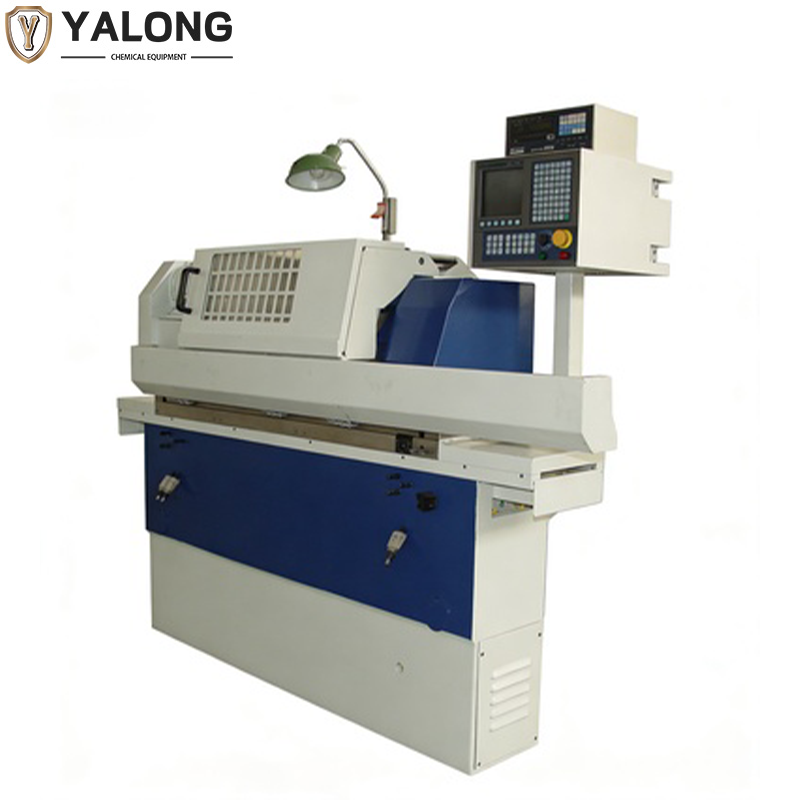

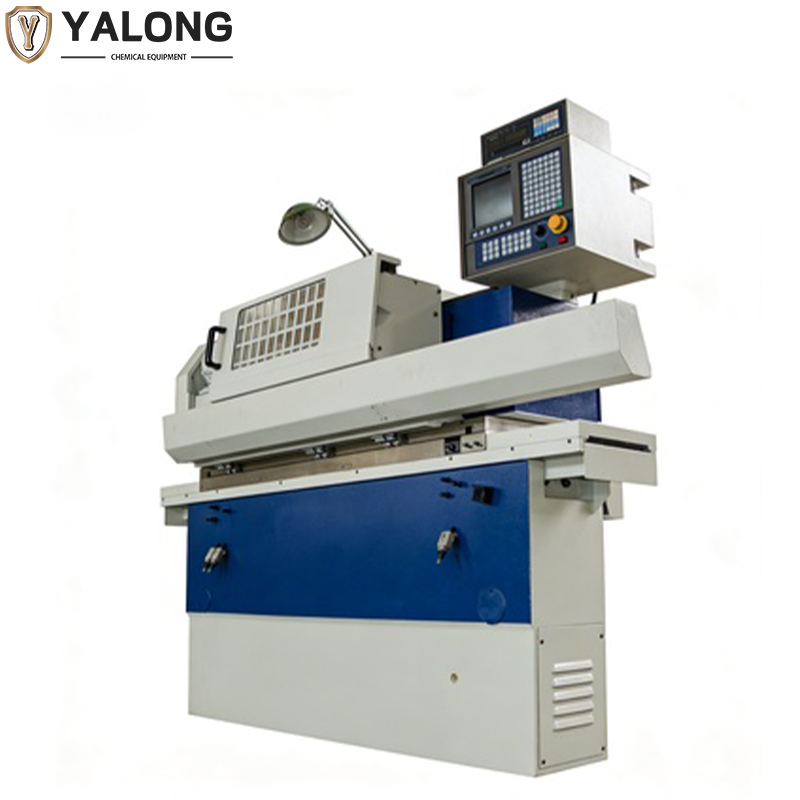

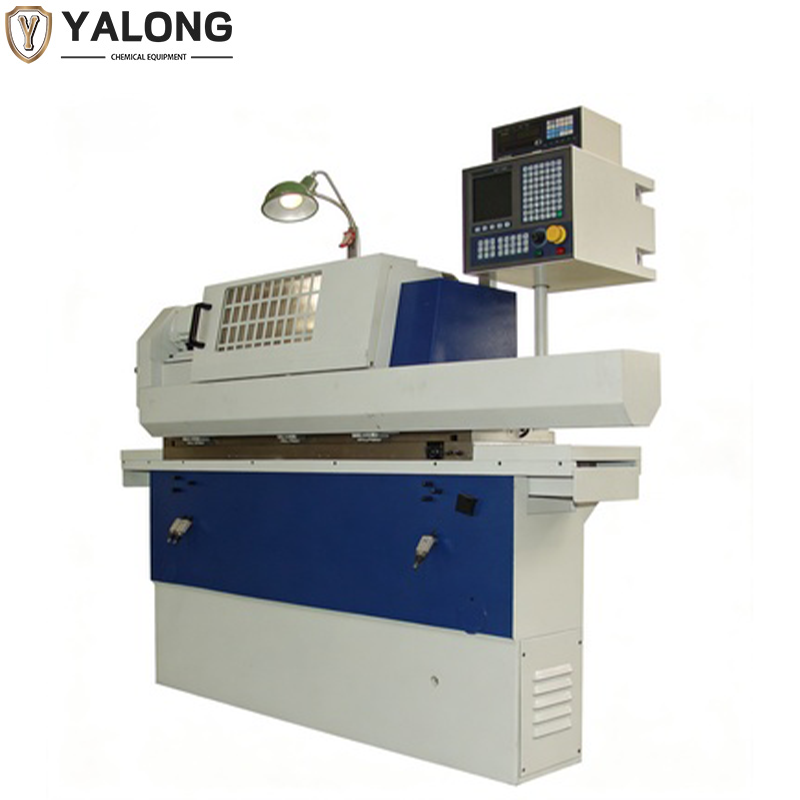

Precision B2-K1014 CNC Universal Cylindrical Grinder Machine for Optimal Performance
The B2-K1014 CNC universal cylindrical grinder is a popular and economical CNC product developed to meet the user’s needs. It features a compact structure, easy operation, reliable quality, and high cost-effectiveness. This machine is suitable for use in batch and small-to-medium batch production workshops and can basically meet the requirements of modern production for high precision, high efficiency, and flexibility.
The integrated mechanical and electrical structure layout adopts working area protection or overall protection, which is convenient for maintenance and meets ergonomic requirements.
The grinding wheel spindle adopts a sleeve-type large-cone dynamic pressure shaft system structure with oil-immersed lubrication, featuring high rotational accuracy and good rigidity.
Two-axis feed is provided, with the worktable (Z-axis) and the grinding wheel carriage (X-axis) driven by AC servo-roller screw pairs.
A front-mounted diamond dressing device is used to achieve precise CNC dressing and automatic compensation.
An active measurement device is configured to achieve full closed-loop control in grinding processing.
A CNC system is adopted, fully absorbing the advanced technologies of modern cylindrical grinders.
| maximum rotating diameter |
Φ220 |
|---|---|
| distance between centers |
500 |
| height of center |
125 |
| Maximum grinding diameter |
Φ200 |
| Inner hole grinding range |
Φ13~φ80 |
| The maximum weight of the top floor |
50 |
| control system |
Kainite / Mitsubishi E60 |
