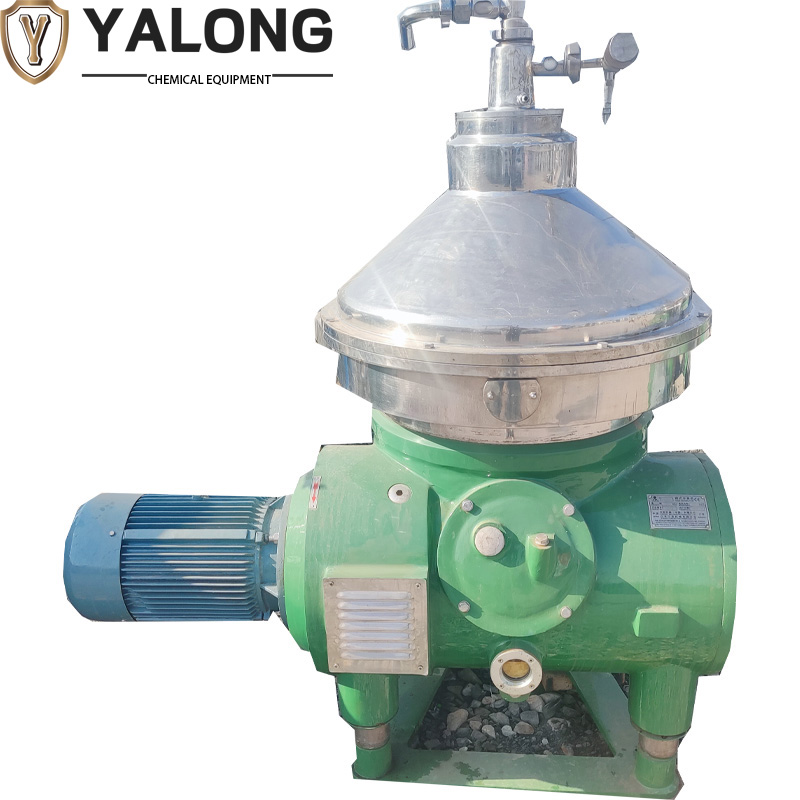

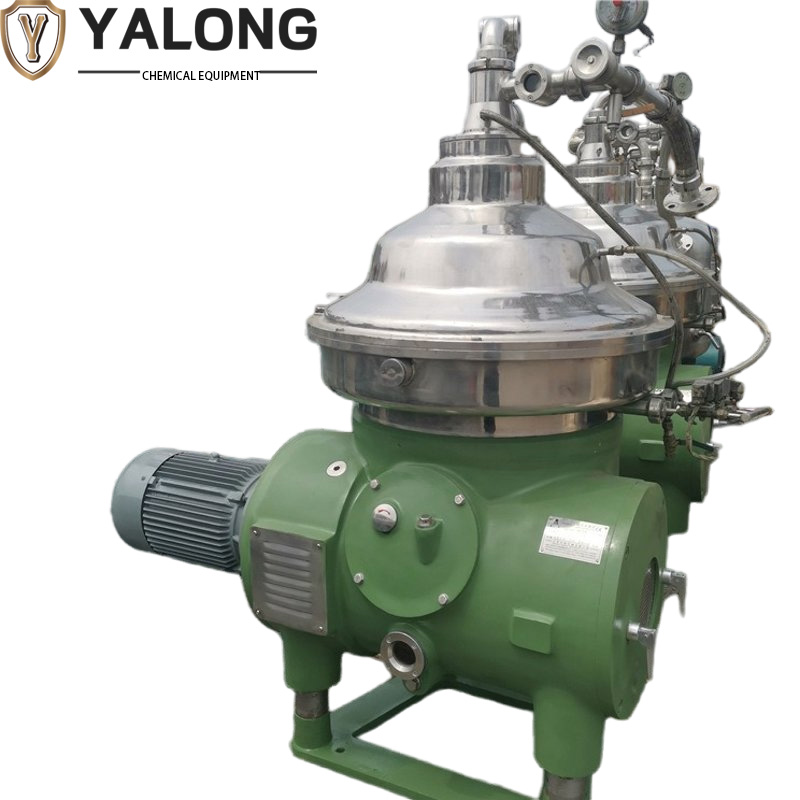

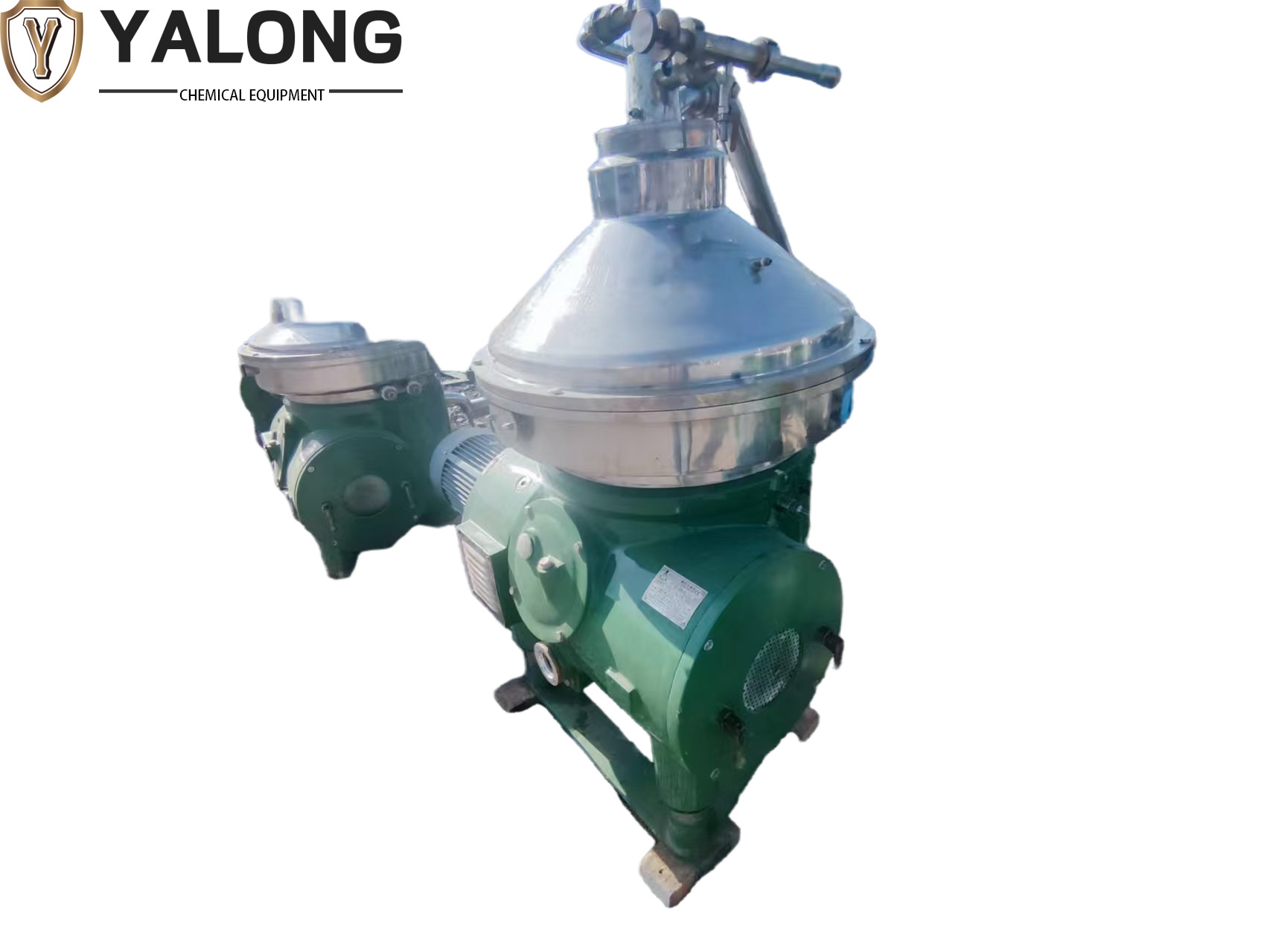

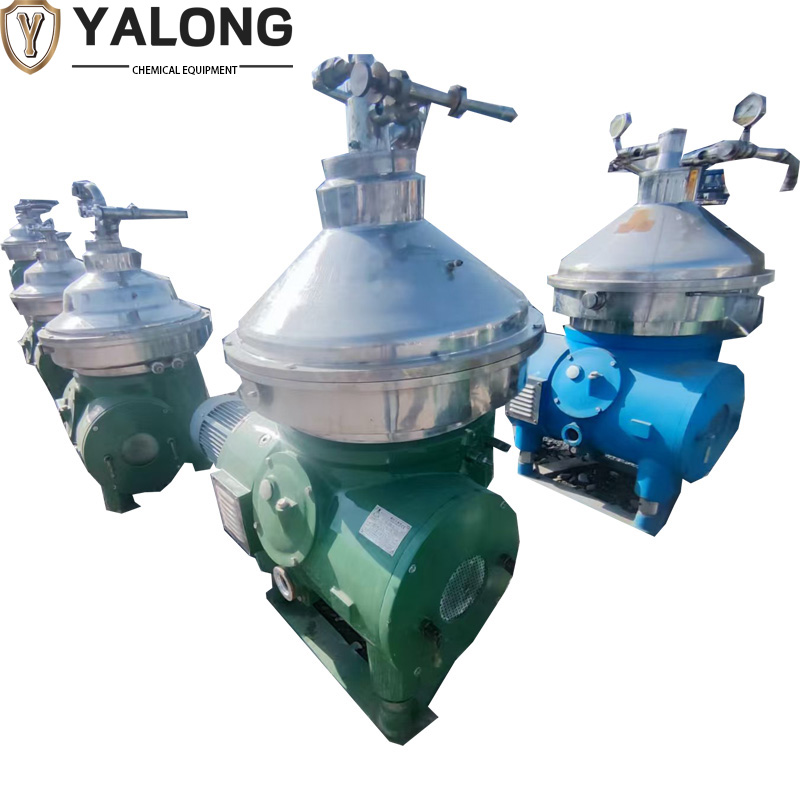

DHFY Series Kitchen Waste Oil and Kitchen Drain Oil Separator
$50,000.00a set of
Processing capacity: 1 – 10 KL/h. Kitchen waste oil and grease separator centrifuge
Product Introduction:

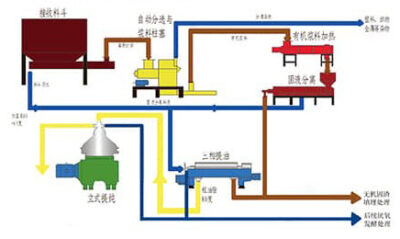

By processing a large amount of food waste, kitchen waste, and gutter oil into resources, we can obtain products such as biogas, biodiesel, organic fertilizer, and high-protein feed. However, during the processing, the separation of oil, water, and solid must be carried out with mature technical support. Considering the difficult handling characteristics of food waste and gutter oil, our company’s technicians, based on advanced design concepts, independently developed a disc-type separator with a special mechanical structure, achieving the ultimate separation effect.
By processing a large amount of food waste, kitchen waste, and gutter oil into resources, we can obtain products such as biogas, biodiesel, organic fertilizer, and high-protein feed. However, during the processing, the separation of oil, water, and solid must be carried out with mature technical support. Considering the difficult handling characteristics of food waste and gutter oil, our company’s technicians, based on advanced design concepts, independently developed a disc-type separator with a special mechanical structure, achieving the ultimate separation effect.
描述
Main structure
Conical top cover:
It contains multiple layers of discs with feed pipes at the top and exhaust and drainage interfaces. Suitable for sealed, continuous operation.
It contains multiple layers of discs with feed pipes at the top and exhaust and drainage interfaces. Suitable for sealed, continuous operation.
Mainframe housing:
Inside is a high-speed rotating drum. The rotational speed is usually between 6000–12000 rpm. It generates extremely strong centrifugal force (up to 8000–12000 g)
Inside is a high-speed rotating drum. The rotational speed is usually between 6000–12000 rpm. It generates extremely strong centrifugal force (up to 8000–12000 g)
Motor and transmission system:
On the left is the main drive motor. It directly drives the drum to rotate at high speed
On the left is the main drive motor. It directly drives the drum to rotate at high speed
Discharge port and slag removal structure:
At the lower part, there is a discharge port
At the lower part, there is a discharge port
Working principle:
1. Materials are continuously fed from the top.
2. They enter the high-speed rotating disc assembly.
3. An extremely thin liquid layer is formed between the discs.
4. Under the action of strong centrifugal force:
The heavy phase (solid or heavy liquid) → moves outward
The light phase (clear liquid or light liquid) → flows inward
5. Achieving: Solid-liquid separation
2. They enter the high-speed rotating disc assembly.
3. An extremely thin liquid layer is formed between the discs.
4. Under the action of strong centrifugal force:
The heavy phase (solid or heavy liquid) → moves outward
The light phase (clear liquid or light liquid) → flows inward
5. Achieving: Solid-liquid separation
其他信息
| 重量 | 1000 磅 |
|---|---|
| 尺寸 | 1555 × 1130 × 1640 英寸 |
| Treatment Capacity (L/H) |
1000~5000 |
| Inlet Pressure (MPa) |
0.05 |
| Outlet Pressure (MPa) |
0.~0.3 |
| Motor Power (Kw) |
7.5~15 |
