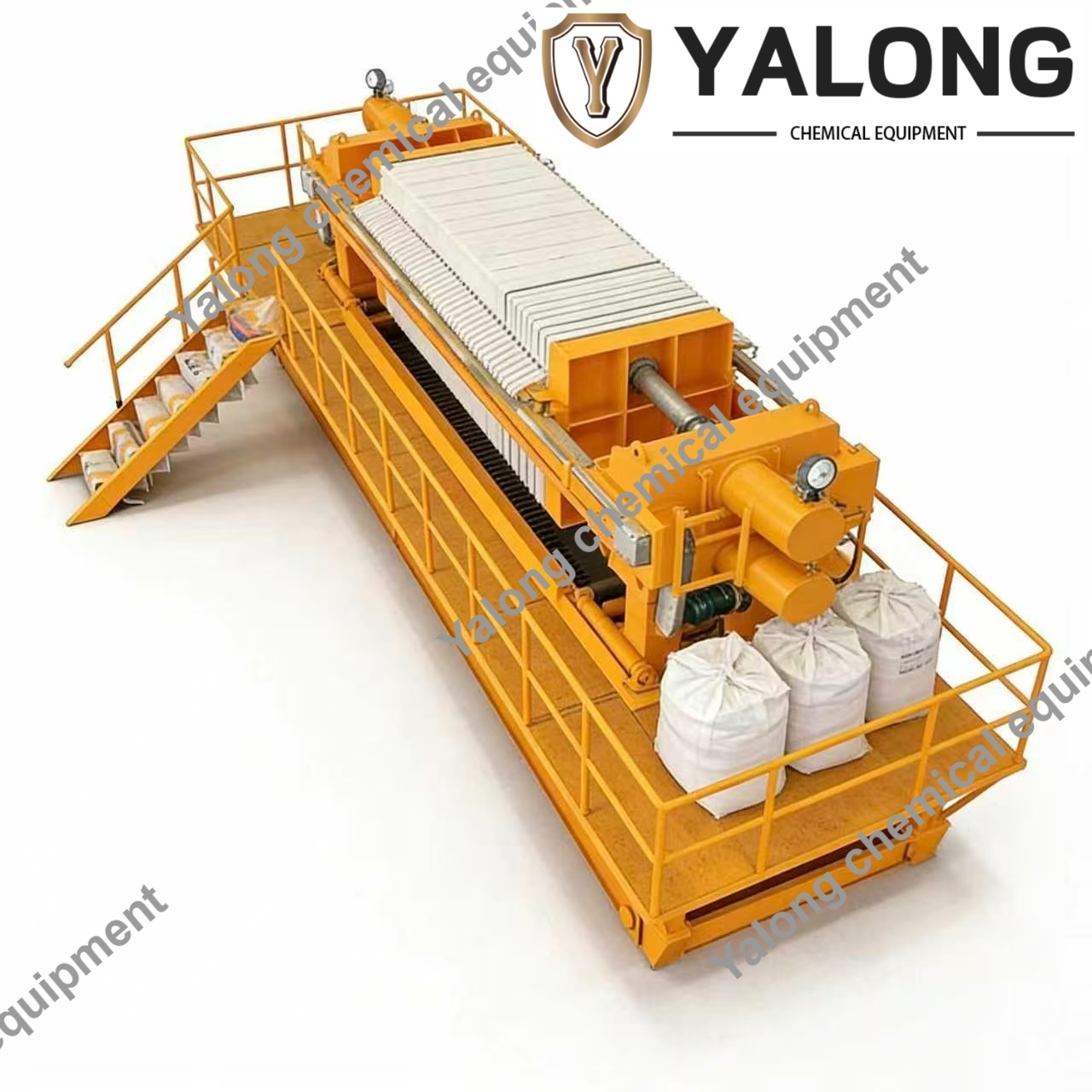

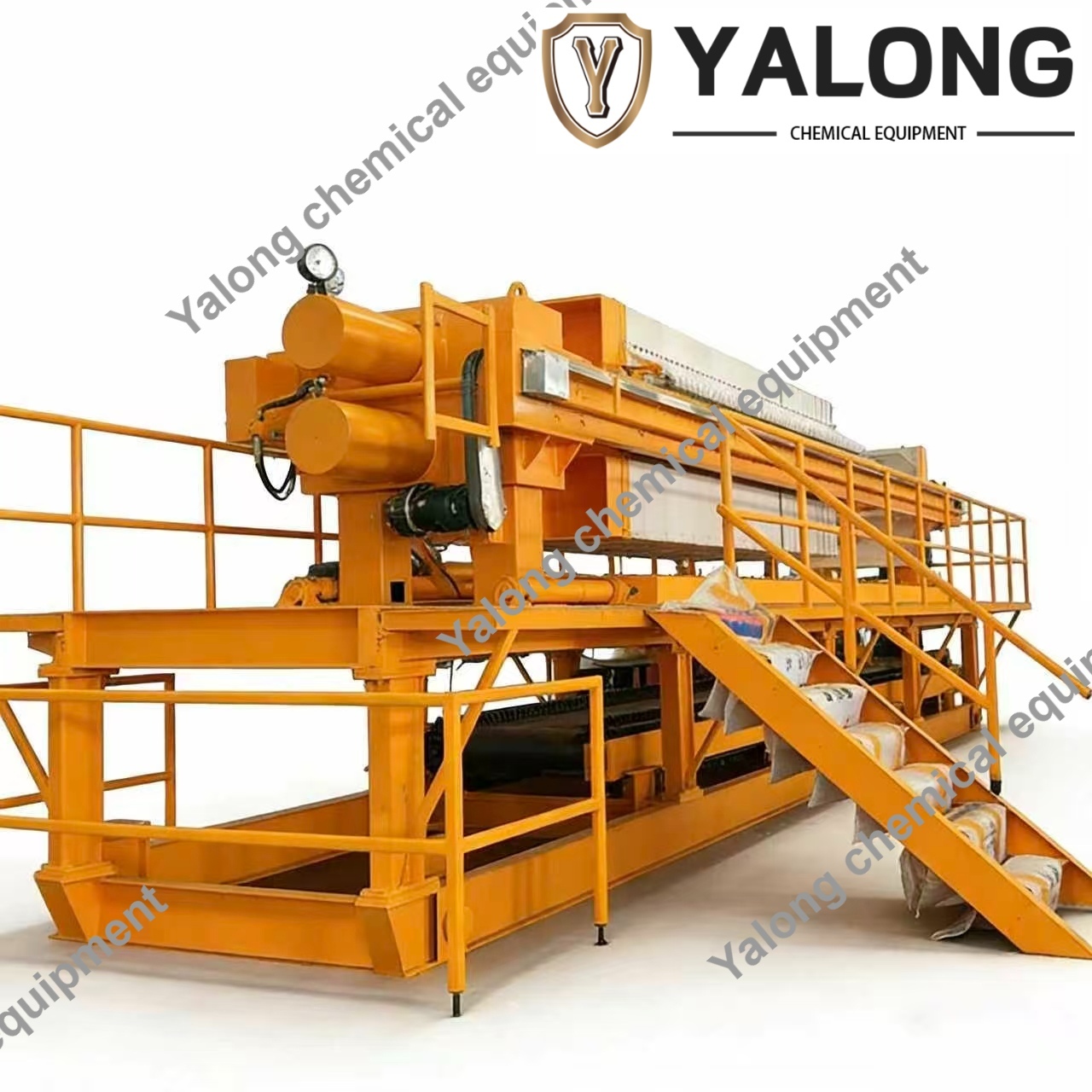

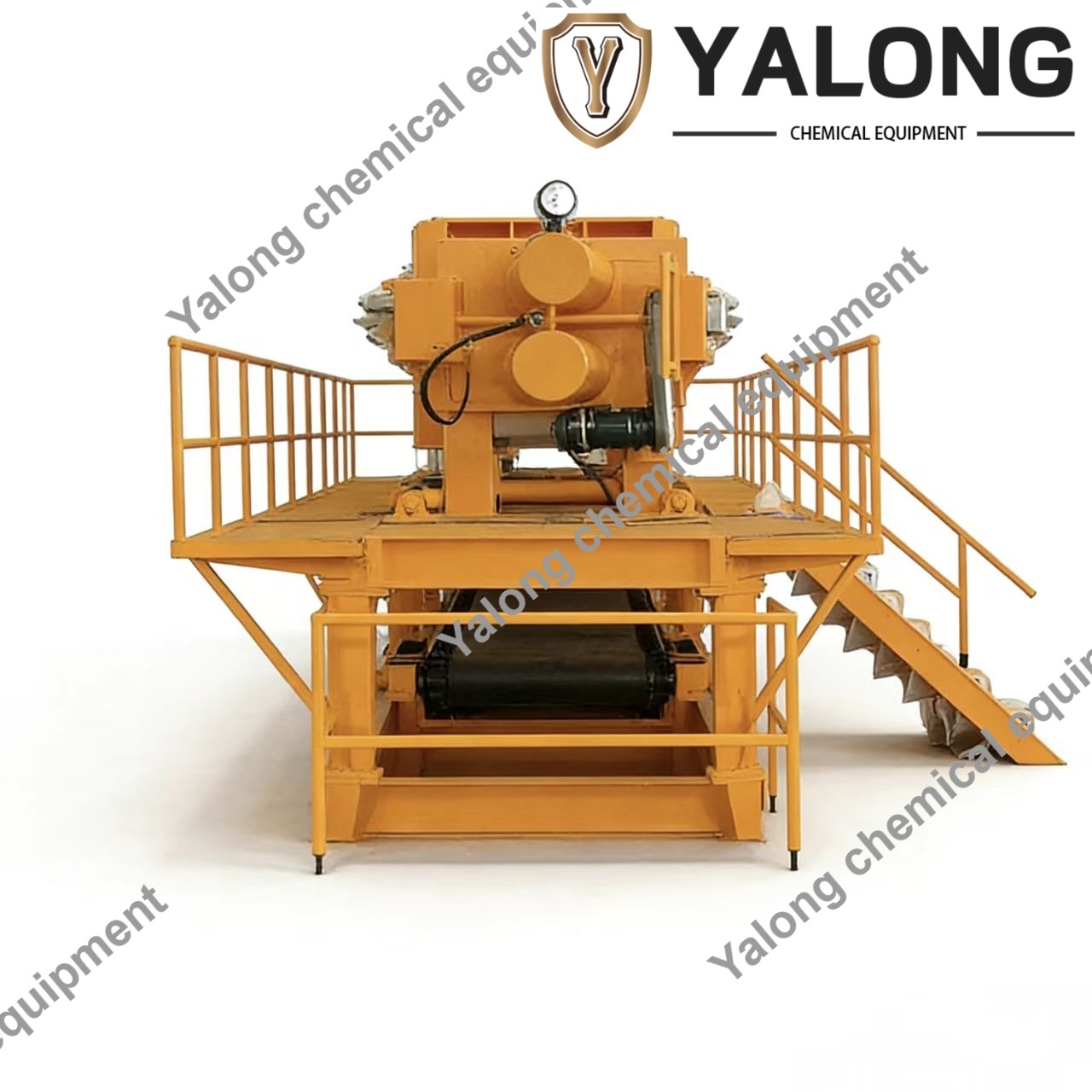

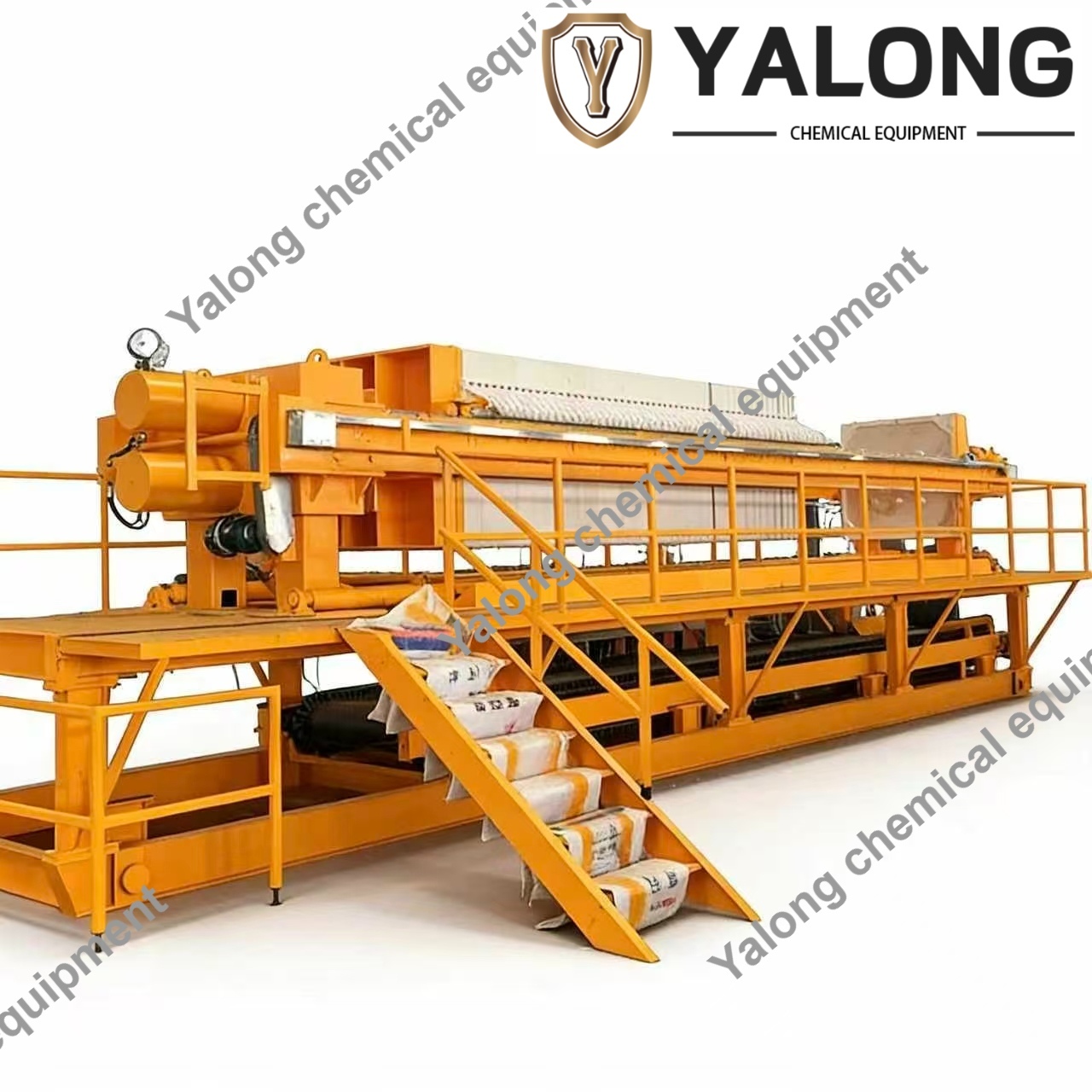

Durable Automatic Diaphragm Filter Press
$15,800.00
Our membrane filter press is a top-tier solid-liquid separation solution, widely trusted in petroleum, chemical, metallurgy, wastewater treatment, and food-pharmaceutical industries worldwide. Adopting integrated mechatronics design, it realizes automatic control of pressing, filtering, squeezing, and unloading processes.
Equipped with high-quality reinforced polypropylene filter plates, it boasts excellent corrosion resistance (pH 2-12) and durability. The secondary high-pressure squeezing technology reduces filter cake moisture content to below 60%, cutting transportation and drying costs significantly.
描述
Durable Automatic Filter Press for Enhanced Liquid Separation
A diaphragm filter press is a type of filter press equipped with elastic diaphragms installed between the filter plates and the filter cloths. During operation, once the feeding process is completed, high-pressure fluid or gas can be injected into the diaphragm plates. This causes the entire diaphragm to expand and compress the filter cake, thereby achieving further dewatering—a process commonly referred to as squeeze filtration.
A diaphragm filter press is a solid-liquid separation device that utilizes an elastic diaphragm to perform secondary squeezing of the filter cake, primarily used in industries such as chemical, environmental protection, pharmaceutical, and food processing. By incorporating diaphragm technology into the filter plates, it significantly enhances the solid dryness. Compared to traditional filtration processes, it achieves the lowest residual moisture content in the filter cake, making it one of the most robust and widely applied systems. Special materials such as PVDF are also available for specific requirements.
The working principle involves adding an elastic membrane between the filter plates and the filter cloth of a standard filter press. After the filter chamber completes feeding, high-pressure fluid or gas is injected into the diaphragm, causing it to expand and compress the filter cake. This further squeezes liquid out of the filter cake, significantly reducing its moisture content.
Key Design Features & Benefits:
1.Advanced Core Technology: The system incorporates proprietary Austrian engineering, resulting in a robust machine with a modern, streamlined appearance.
2.Durable and Stable Construction: Built with a high-stiffness structural frame, the system guarantees exceptionally smooth operation and minimal noise levels.
3.Cost-Effective Conditioning: Equipped with high-performance concentration and flocculation pretreatment equipment, it achieves superior solid-liquid separation while maintaining low operating costs.
4.Enhanced Belt Protection: During the gravity dewatering stage, an advanced distribution device ensures perfectly even material spreading, which significantly prolongs the service life of the filter belt.
5.Spill-Free Dewatering Process: The generously sized gravity and wedge dewatering sections progressively remove free water, ensuring materials enter the high-pressure squeeze section completely spill-free.
6.High-Efficiency Press Section: The roller arrangement is engineered to separate gravity and wedge water discharge. The large-diameter press rollers apply intense, gradual pressure, yielding maximum water removal, high throughput, and optimal energy efficiency.
2.Durable and Stable Construction: Built with a high-stiffness structural frame, the system guarantees exceptionally smooth operation and minimal noise levels.
3.Cost-Effective Conditioning: Equipped with high-performance concentration and flocculation pretreatment equipment, it achieves superior solid-liquid separation while maintaining low operating costs.
4.Enhanced Belt Protection: During the gravity dewatering stage, an advanced distribution device ensures perfectly even material spreading, which significantly prolongs the service life of the filter belt.
5.Spill-Free Dewatering Process: The generously sized gravity and wedge dewatering sections progressively remove free water, ensuring materials enter the high-pressure squeeze section completely spill-free.
6.High-Efficiency Press Section: The roller arrangement is engineered to separate gravity and wedge water discharge. The large-diameter press rollers apply intense, gradual pressure, yielding maximum water removal, high throughput, and optimal energy efficiency.
Advantages of diaphragm filter press
1.High Solid-Liquid Separation Efficiency: Through secondary pressing, the moisture content of the filter cake is significantly reduced, resulting in improved separation effectiveness.
2.High Level of Automation: Many units are equipped with programmable control systems, enabling fully automated operations including feeding, filtration, pressing, and cake discharge.
3.Flexible Operation: The degree of compression can be adjusted by controlling the pressure and duration of diaphragm inflation to suit different material requirements.
4.Wide Range of Applications: Widely utilized in industries requiring efficient solid-liquid separation and low filter cake moisture, such as chemical processing, metallurgy, mining, food processing, and wastewater treatment.
5.Customization options are available to tailor the filter press to meet specific process requirements.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material |
FRPP |
| Pressure |
Hydraulic Pressure |
| Cake Thickness |
30\35\40 |
| Main Motor Power |
1.1-3.0kw |
| Feeding Pressure |
0.8MPa |
| Plate Qty |
51-147 |
| Main Motor Power (Kw) |
1.1 |
| Plate Size |
1250*1250 |
