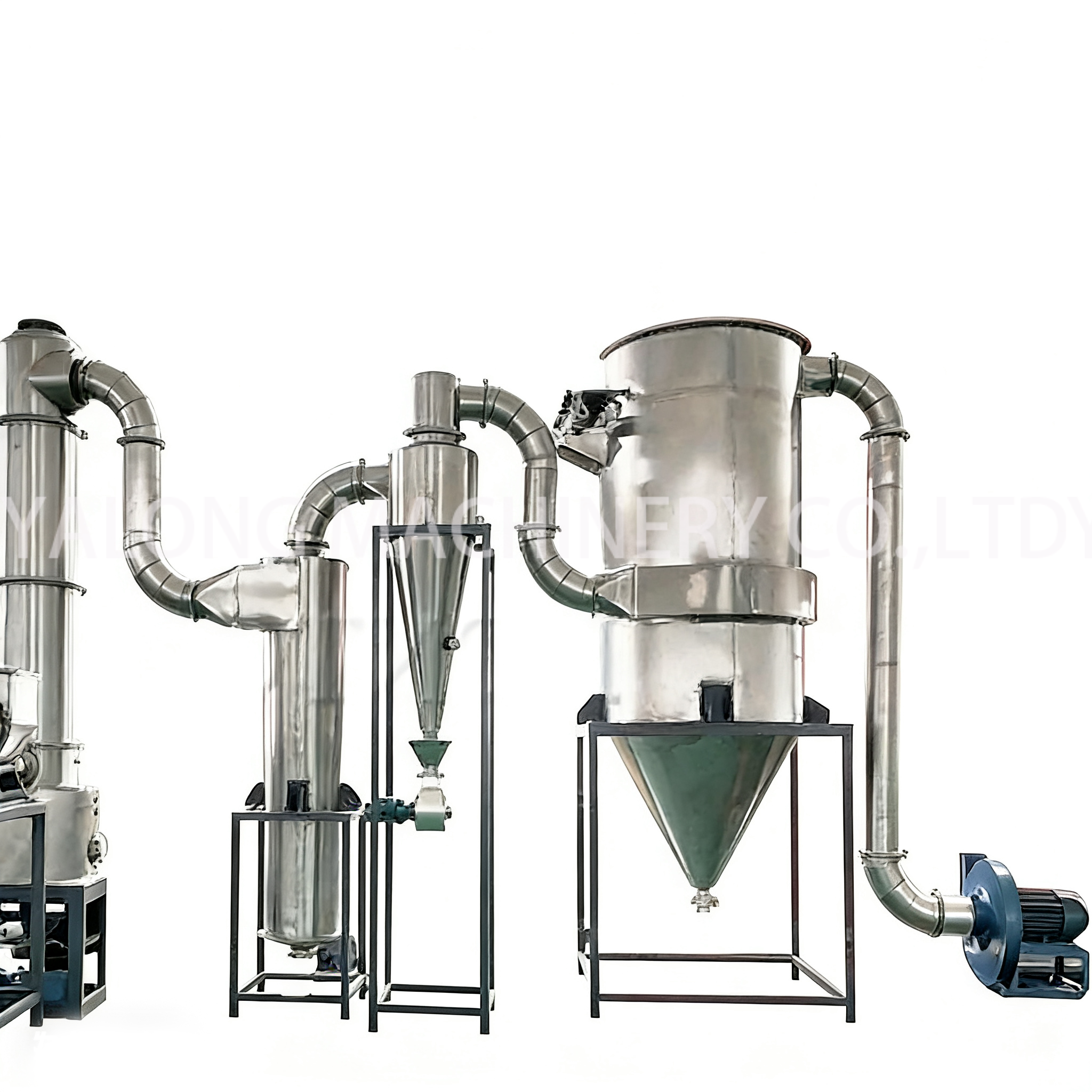

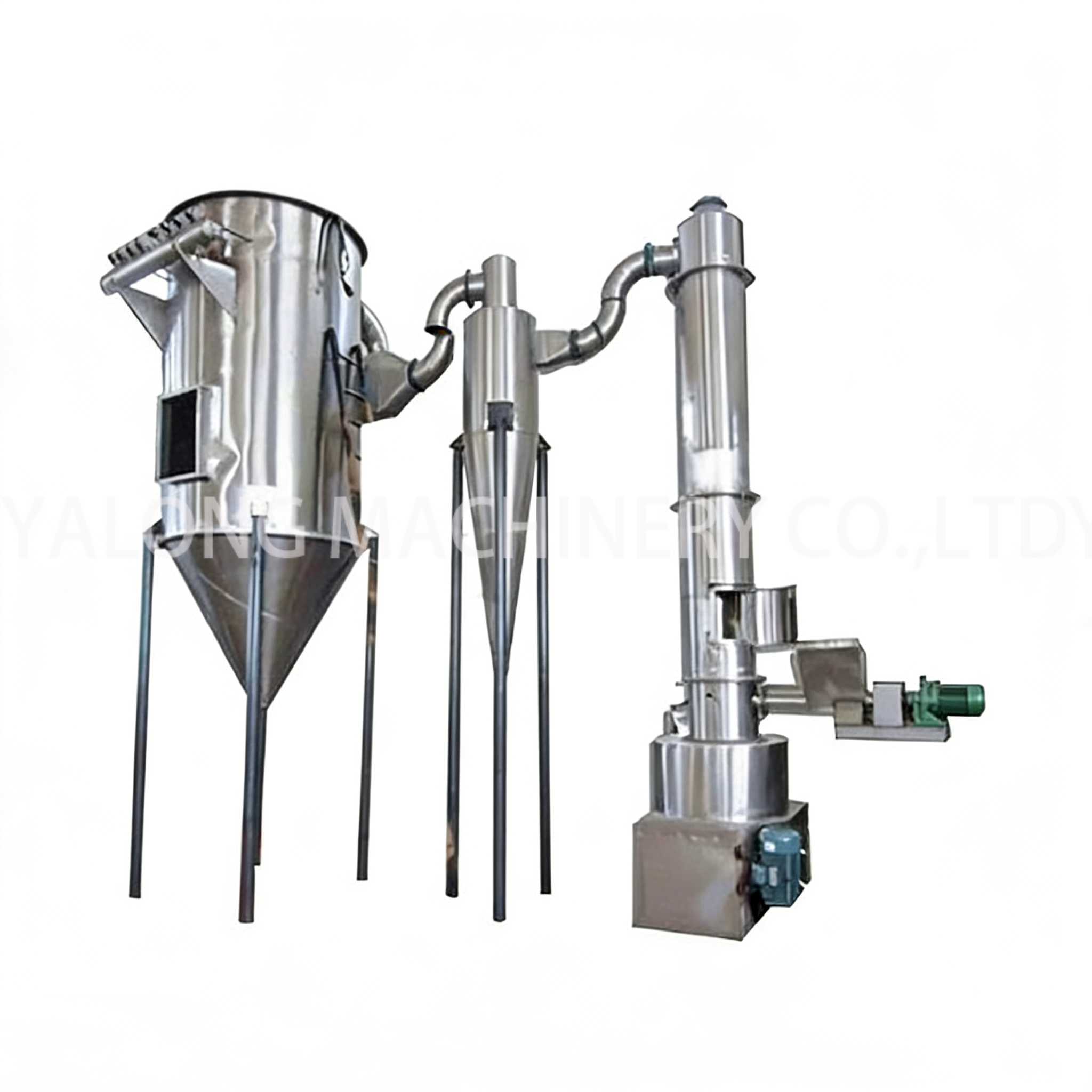

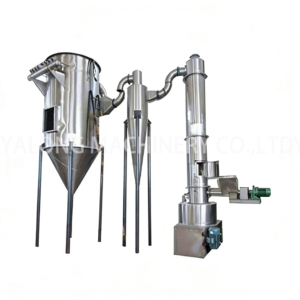

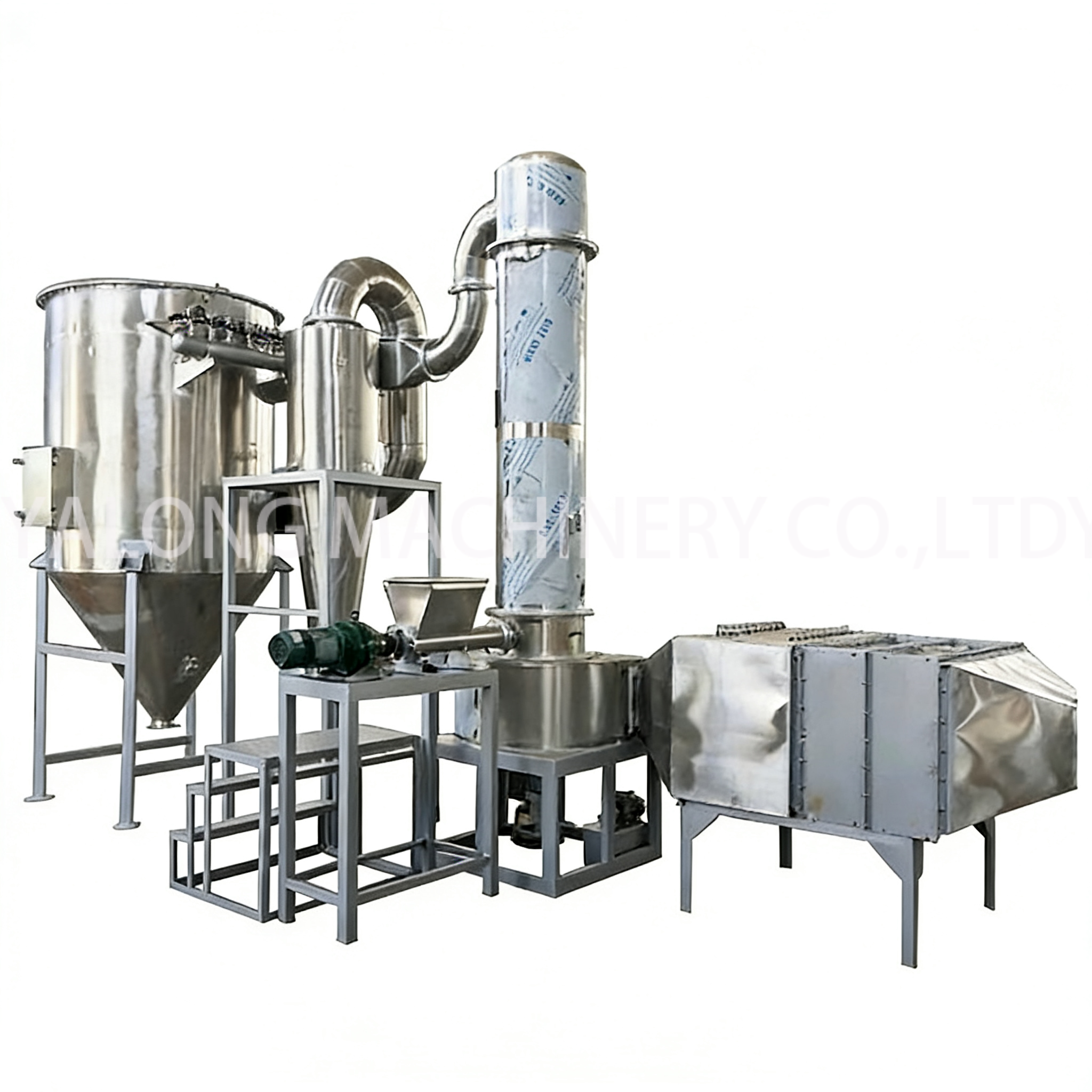

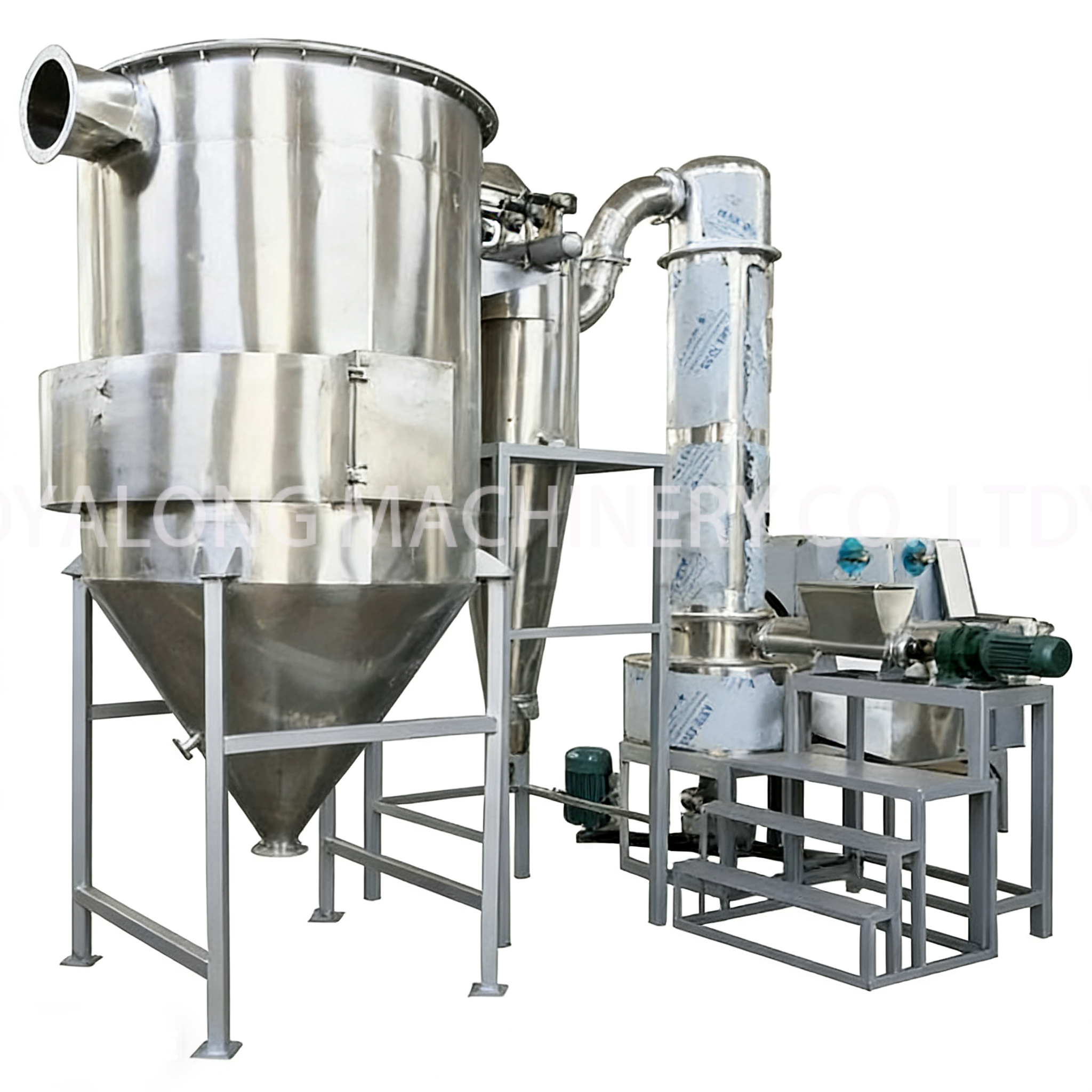

Fully Automatic Industrial Rotary Flash Drying Equipment
$15,000.00
This fully automatic industrial rotary flash drying equipment is a high-efficiency drying solution tailored for powdery, granular and paste materials in chemical, mineral, food and pharmaceutical industries. Adopting advanced rotary flash drying technology, it realizes rapid heat exchange between hot air and materials, with drying cycles as short as a few seconds.
Equipped with an intelligent PLC control system, it enables automatic adjustment of temperature, air volume and feeding speed, ensuring uniform drying effect and stable product quality. Its compact structure, low energy consumption and easy maintenance make it an ideal choice for large-scale continuous production, effectively improving enterprise production efficiency and reducing operating costs.
描述
Product Description
Hot air enters the bottom of the dryer along the tangential line and, driven by the agitator, forms a strong rotating air field. The pasty material is fed into the dryer by the screw feeder. Under the strong action of the high-speed rotating stirring blades, it is dispersed through impact, friction and shearing force. The blocky materials are rapidly crushed and come into full contact with hot air for heating and drying. The dehydrated and dried material rises with the hot air flow and the large particles are retained by the classification ring. Small particles are discharged from the center of the classification ring outside the dryer and recovered by the cyclone separator and dust collector. Undried or larger materials are thrown towards the wall under the action of centrifugal force and fall back to the bottom for crushing and drying. Applicable materials: organic substances, dyes, inorganic substances, food, etc.
Structure and Characteristics
Combining cyclone, fluidization and crushing classification technologies.
The equipment features a compact structure, small size, high production efficiency, and can operate continuously to achieve large-scale production with a small machine.
It features high drying intensity, low energy consumption and high thermal efficiency.
The material residence time is short and the product quality is good, which can be used for drying heat-sensitive materials.
It operates under micro-pressure or negative pressure, featuring good sealing performance, high efficiency and no environmental pollution.
其他信息
| Type |
Flashed drying equipment |
|---|---|
| Building area |
20 Square Meters |
| Material |
Stainless steel |
| Operating pressure |
Vacuum |
| Air Flow |
1150-2000 Cubic Meters Per Hour |
| Installed Capacity |
20 Kilowatts |
