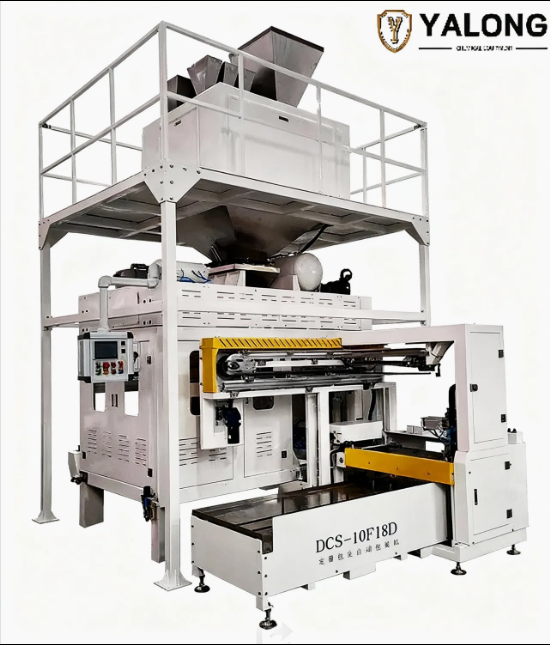

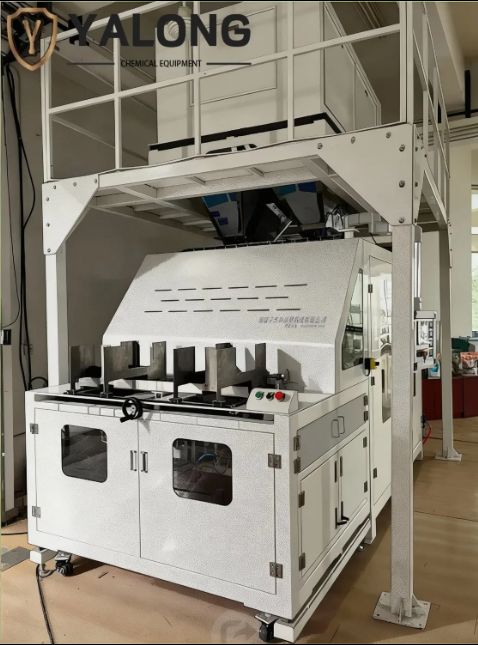

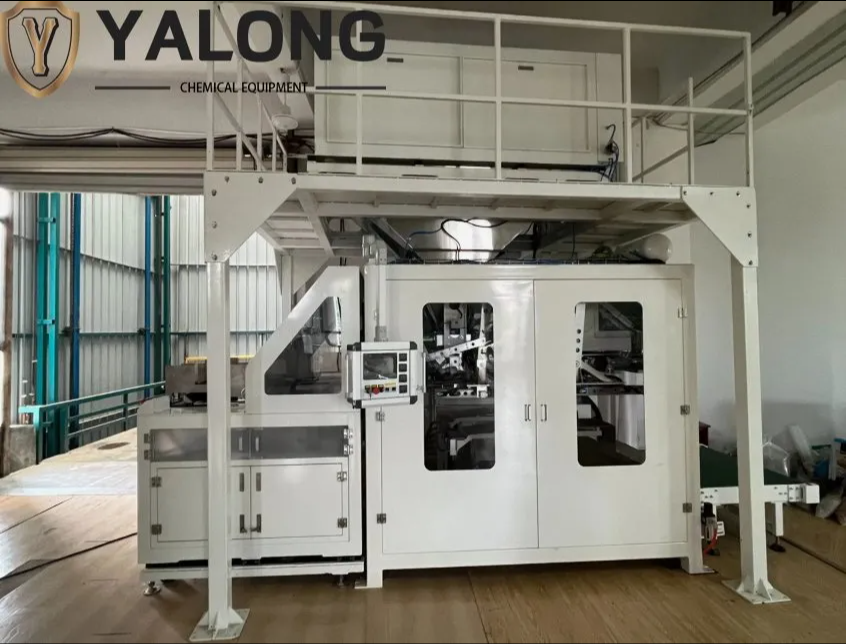

Fully-Automatic Pet Food Bag Filling Machine for Doypack & Stand-up Pouches
$7,800.00
Integrated Processing System: Seamlessly combines mixing and packaging in one unified workflow
Flexible Weighing Configuration: Customizable scale layout to match diverse production needsTotal 10 weighing units (5 mixers + 2 main feeders + 3 freeze-dry scales)
2 packaging stations with adjustable scale allocation
Standardized Weighing Setup (Customizable):5 Mixing Scales: Ensure precise ingredient blending
2 Main Feed Scales: Dispense base pet food accurately
3 Freeze-Dry Scales: Handle premium additives with care
Scale quantity can be fully customized based on customer requirements.
Formula-Specific Design: Optimized to handle diverse pet food types, including dry kibble, wet food and freeze-dried products.
High-Precision Weighing: Supports a weighing range of 0.5–5kg with an accuracy of ±10–15g for consistent portioning.
Advanced Control System: Equipped with Siemens PLC and an intuitive touchscreen interface for easy operation and precise parameter adjustment.
Hygienic & Food-Safe Build: Features easy-to-clean surfaces and food-grade components, complying with hygiene standards for pet food production.
Rapid Changeover: Modular structure allows quick switching between different formulas to minimize production downtime.
|
Specification
|
Details
|
|
Packaging Range
|
0.5-5 kg
|
|
Weighing Accuracy
|
±10-15 g
|
|
Bag Dimensions
|
Width: 160-330 mm
Length: 280-500 mm |
|
Production Capacity
|
1,500-1,600 bags/hour
|
|
Power Requirements
|
AC380V, 50Hz, 7 kW
|
|
Air Consumption
|
0.6 MPa, 20 m³/h
|
|
Discharge Height
|
250 mm
|
|
Installation Space
|

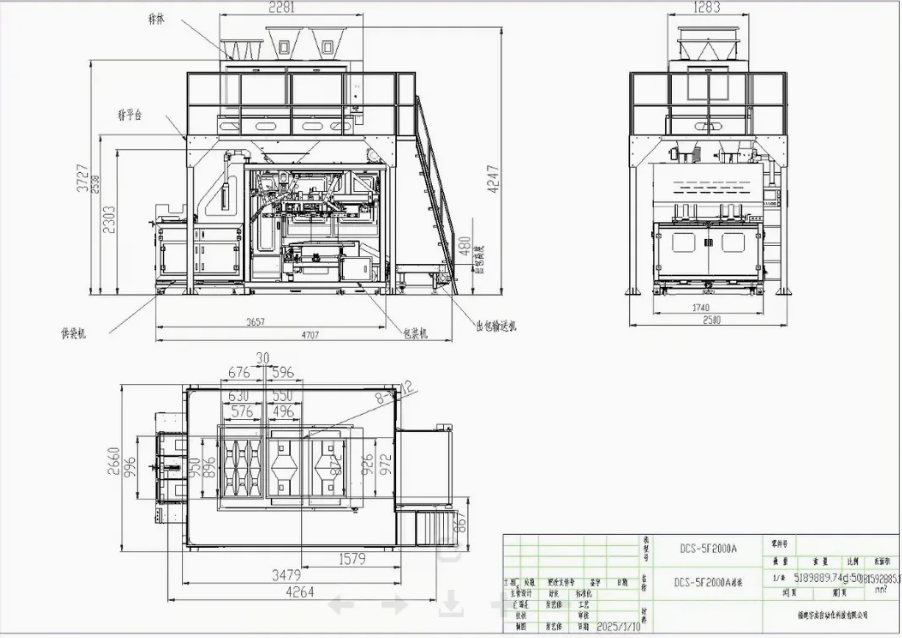

6250(L) × 2955(w)4100(H) mm
|
Cat Litter Processing: Perfect for mixing and packaging various types of cat litter products
Nutritional Supplements: Suitable for the packaging of pet nutritional supplements and health care products
|
No.
|
Name
|
Main Configuration/Brand
|
|
1
|
Weighing Module
|
German (Jieman)
|
|
2
|
PLC
|
Siemens (Germany)
|
|
3
|
Expansion Module
|
Siemens (Germany)
|
|
4
|
HMI Touchscreen
|
Beijer (Sweden)
|
|
5
|
Frequency Converter
|
Delta (Taiwan)
|
|
6
|
Servo Controller
|
Delta (Taiwan)
|
|
7
|
Linear Encoder
|
Omron (Japan)
|
|
8
|
Switching Power
|
Mean Well (Taiwan)
|
|
9
|
Terminal Blocks
|
Phoenix Contact (Germany)
|
|
10
|
Pneumatic Components
|
Airtac (Taiwan)
|
|
11
|
Gear Motor
|
Ziguang
|
|
12
|
Vacuum Pump
|
Becker (Germany)
|
|
13
|
Tractor Unit
|
Qinggong
|
We provide 1 year warranty, lifetime technical support, remote video guidance,
Our main products include reactors, centrifuges, dryers, filter presses, food & pharmaceutical packaging machines, water treatment equipment and other chemical machinery. We provide customizable products at competitive prices based on clients’ specific needs.
In addition to high-quality equipment supply, we offer one-stop services from process design, equipment customization, installation and commissioning to technical training. Our business has expanded to Southeast Asia, the Middle East, Europe, South America, Africa and other regions.
Adhering to the philosophy of “Integrity as the Foundation, Customer First, and Win-Win Cooperation”, we strive to be a trusted strategic partner and engineering service provider for our clients.
OEM/ODM OEM/ODM
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Capping/Sealing Equipment
Labeling Equipment
Automatic Packaging Equipment
Conveying & Sorting Equipment
Mixing & Agitating Equipment
Reaction Equipment
Drying Equipment
Filtration & Separation Equipment
Storage Equipment
Q: What is your minimum order quantity?
Answer: 1 set.
Question: How to choose the right equipment?
Answer: Please inform us of your User Requirements Specification (URS). We will recommend suitable equipment for you based on your requirements, application experience, and feedback from our customers.
Question: How to solve equipment malfunctions during use?
Answer: Please send your questions to us in the form of pictures or videos (preferably short videos), and we will identify and solve them. If a malfunction occurs within the warranty period, we will replace the new part for you free of charge.
| Application |
Cosmetics, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Pet Food Production Nutritional Supplement Packag |
|---|---|
| Type |
Filling and Sealing Machine |
| Forming Species |
Bag Moulding |
| Bag Moulding |
Forming, Filling, Seal |
| Bag Type |
Stand-up Pouch, Doypack, PE Bags |
| Feed Cylinder Structure |
Multi-Room Feeding |
| Mainly Used Area |
Pet Food |
| Packing Speed |
1500-1600 Bags Per Hour |
