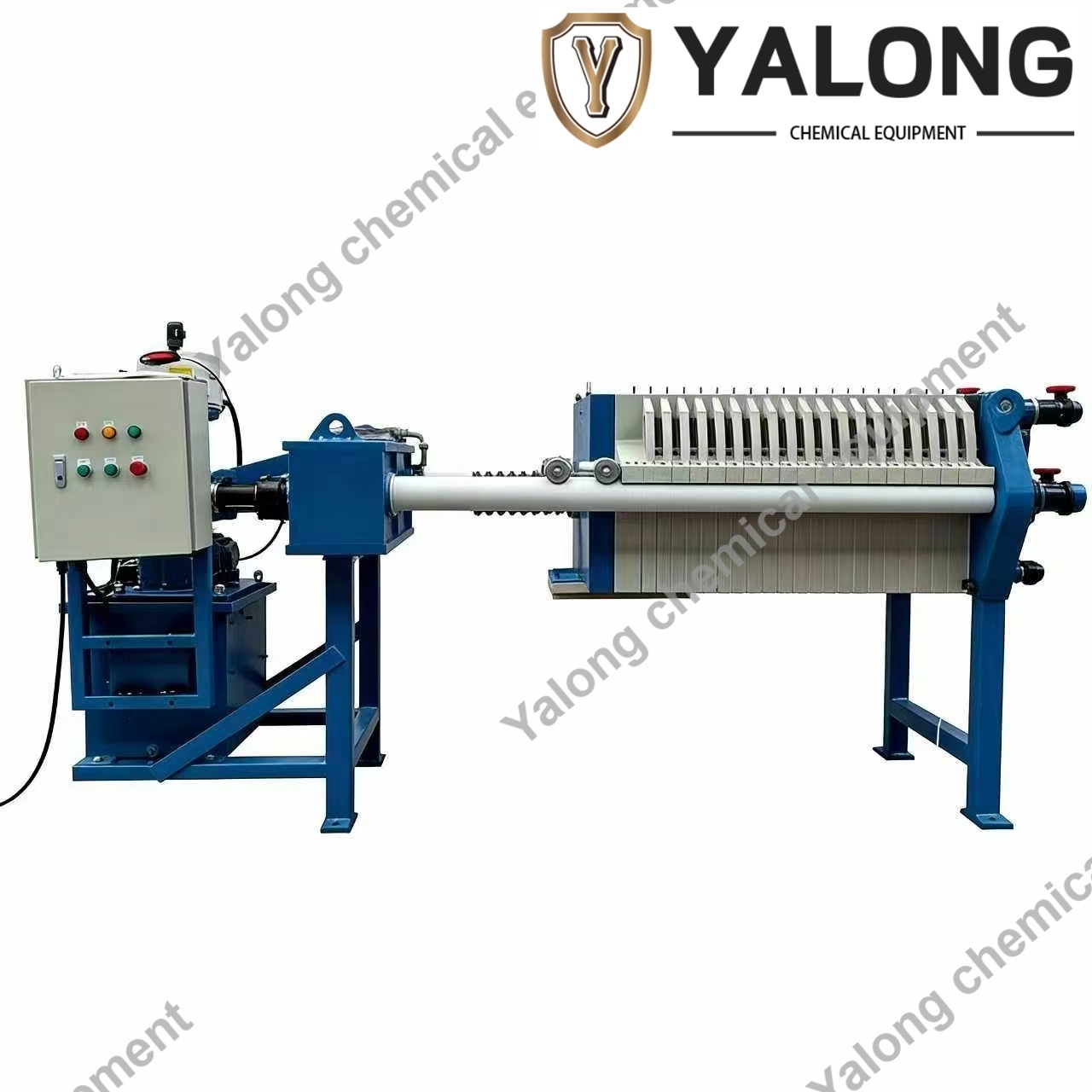

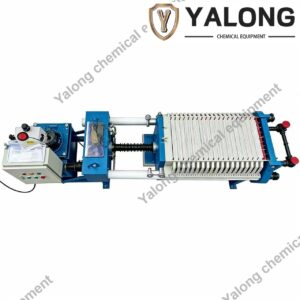

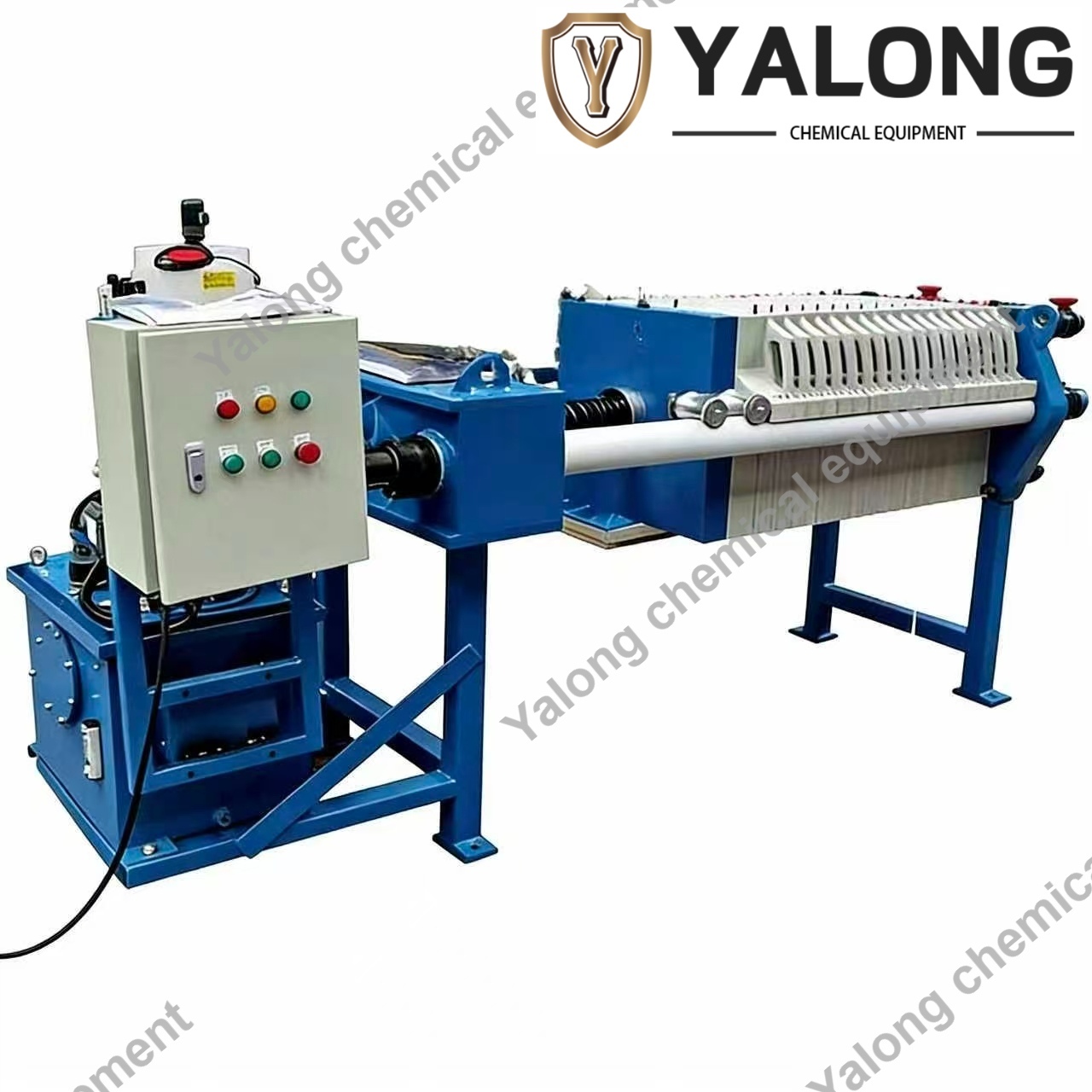

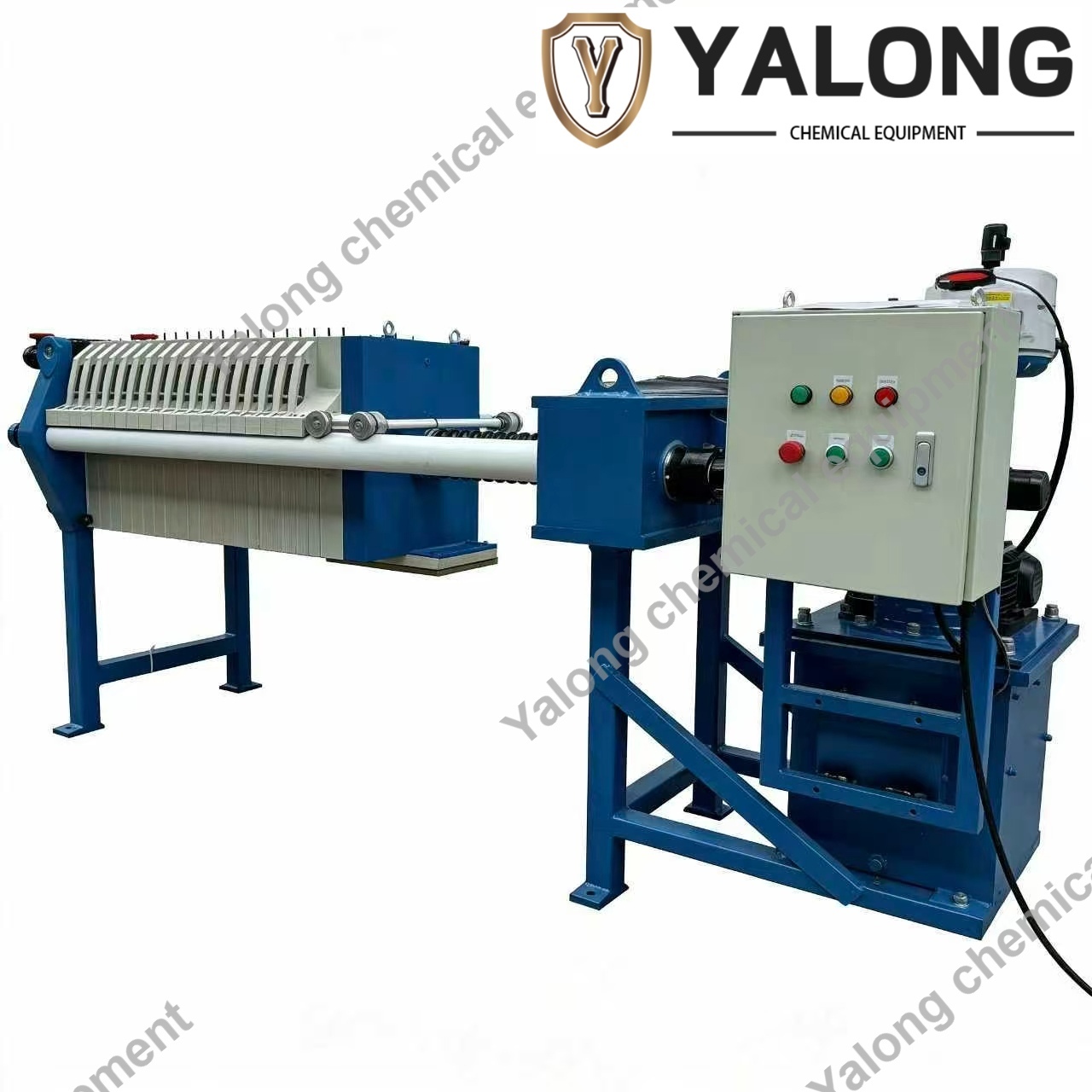

Fully/Semi-Automatic Diaphragm Filter Press
$6,800.00
Our high-performance diaphragm filter press is a premium solid-liquid separation solution for global industries. Equipped with advanced diaphragm squeezing technology, it reduces filter cake moisture content to below 60% , ensuring efficient dehydration and lower transportation costs.
Adopting glass fiber-reinforced polypropylene filter plates and high-quality rubber diaphragms, the equipment boasts excellent corrosion resistance and durability, with a service life of over 100,000 cycles. Its fully automated PLC control system enables unmanned operation from pressing to discharging.
Widely applied in chemical, mining, environmental protection, food and pharmaceutical sectors worldwide, it meets international standards and offers customized solutions.
描述
Fully/Semi-Automatic Filter Press with Plate-Pulling Mechanism for Wastewater Treatment
A diaphragm filter press is a type of filter press equipped with elastic diaphragms installed between the filter plates and the filter cloths. During operation, once the feeding process is completed, high-pressure fluid or gas can be injected into the diaphragm plates. This causes the entire diaphragm to expand and compress the filter cake, thereby achieving further dewatering—a process commonly referred to as squeeze filtration.
A diaphragm filter press is a solid-liquid separation device that utilizes an elastic diaphragm to perform secondary squeezing of the filter cake, primarily used in industries such as chemical, environmental protection, pharmaceutical, and food processing. By incorporating diaphragm technology into the filter plates, it significantly enhances the solid dryness. Compared to traditional filtration processes, it achieves the lowest residual moisture content in the filter cake, making it one of the most robust and widely applied systems. Special materials such as PVDF are also available for specific requirements.
The working principle involves adding an elastic membrane between the filter plates and the filter cloth of a standard filter press. After the filter chamber completes feeding, high-pressure fluid or gas is injected into the diaphragm, causing it to expand and compress the filter cake. This further squeezes liquid out of the filter cake, significantly reducing its moisture content.
Key Features & Benefits:
Full Automation & Unattended Operation: Program-controlled for continuous, reliable processing with minimal manual intervention.
Efficient Cleaning System: An overhead washing device with few moving parts operates in sync with the automatic plate shifter. Cleaning cycles are customizable.
Advanced Plate Material & Design: Plates are made from a TPE elastomer, fiberglass, and polypropylene composite, delivering superior flexibility, toughness, and rigidity.
Precision Engineering: CNC-machined to a flatness of <25µm, ensuring a perfect seal (zero leakage) during pressing and feeding, which boosts filtration speed by approximately 20%.
Enhanced Durability: Offers improved cake density, structural integrity, and doubled resistance to fatigue and aging.
Superior Application Performance: Effectively replaces vacuum filters for dewatering fine-particle (<0.5mm) flotation concentrates, featuring a small footprint, high productivity, and low energy consumption.
Efficient Cleaning System: An overhead washing device with few moving parts operates in sync with the automatic plate shifter. Cleaning cycles are customizable.
Advanced Plate Material & Design: Plates are made from a TPE elastomer, fiberglass, and polypropylene composite, delivering superior flexibility, toughness, and rigidity.
Precision Engineering: CNC-machined to a flatness of <25µm, ensuring a perfect seal (zero leakage) during pressing and feeding, which boosts filtration speed by approximately 20%.
Enhanced Durability: Offers improved cake density, structural integrity, and doubled resistance to fatigue and aging.
Superior Application Performance: Effectively replaces vacuum filters for dewatering fine-particle (<0.5mm) flotation concentrates, featuring a small footprint, high productivity, and low energy consumption.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material |
FRPP |
| Pressure |
Hydraulic Pressure |
| Cake Thickness |
30\35\40mm |
| Feed |
Feeding From Both Ends |
| Filtration Area |
200-1000m² |
| Chamber Volume |
3.5-20m³ |
| Expression Pressure |
0.6-2.0MPa |
| Filter Pressure |
0.5-1.6MPa |
