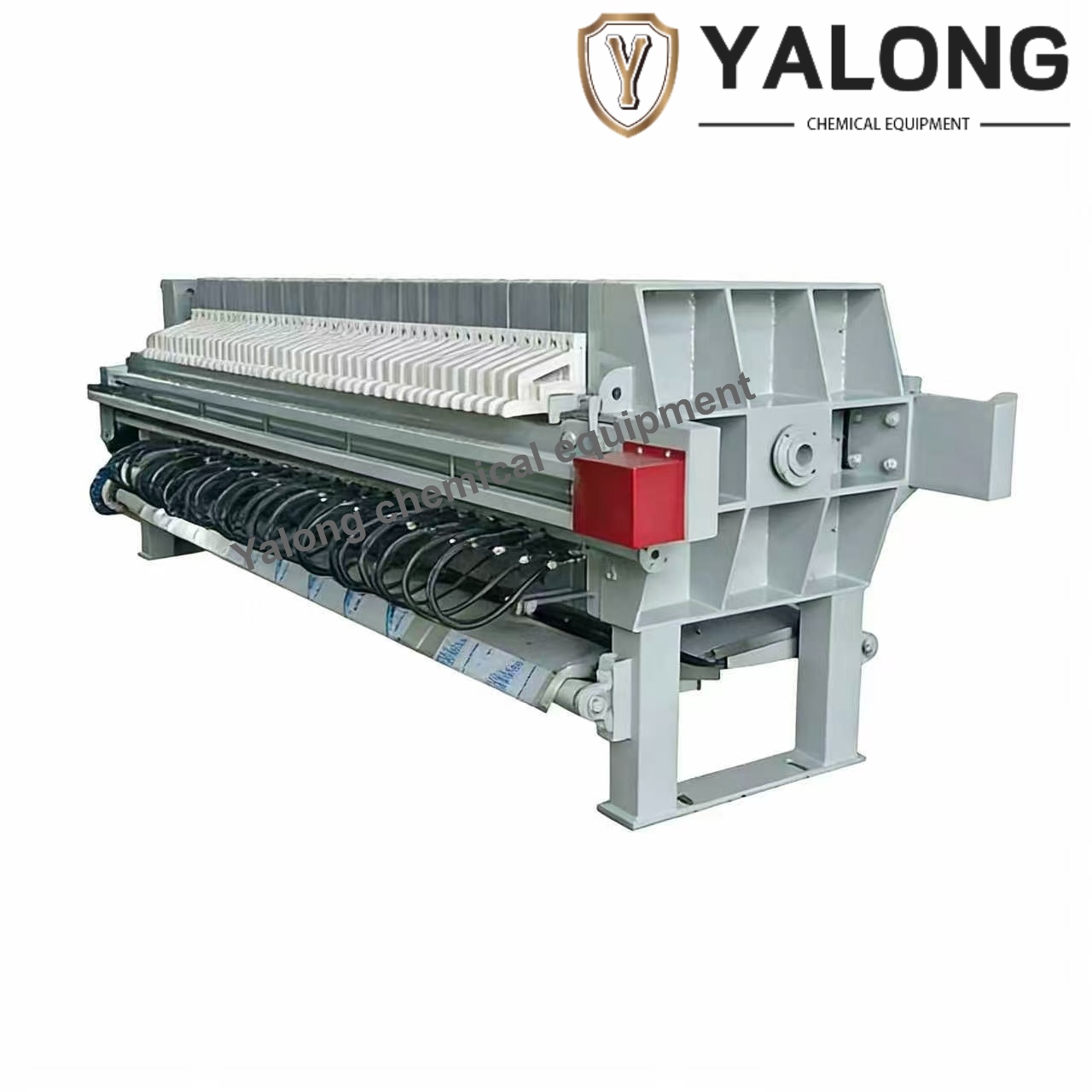

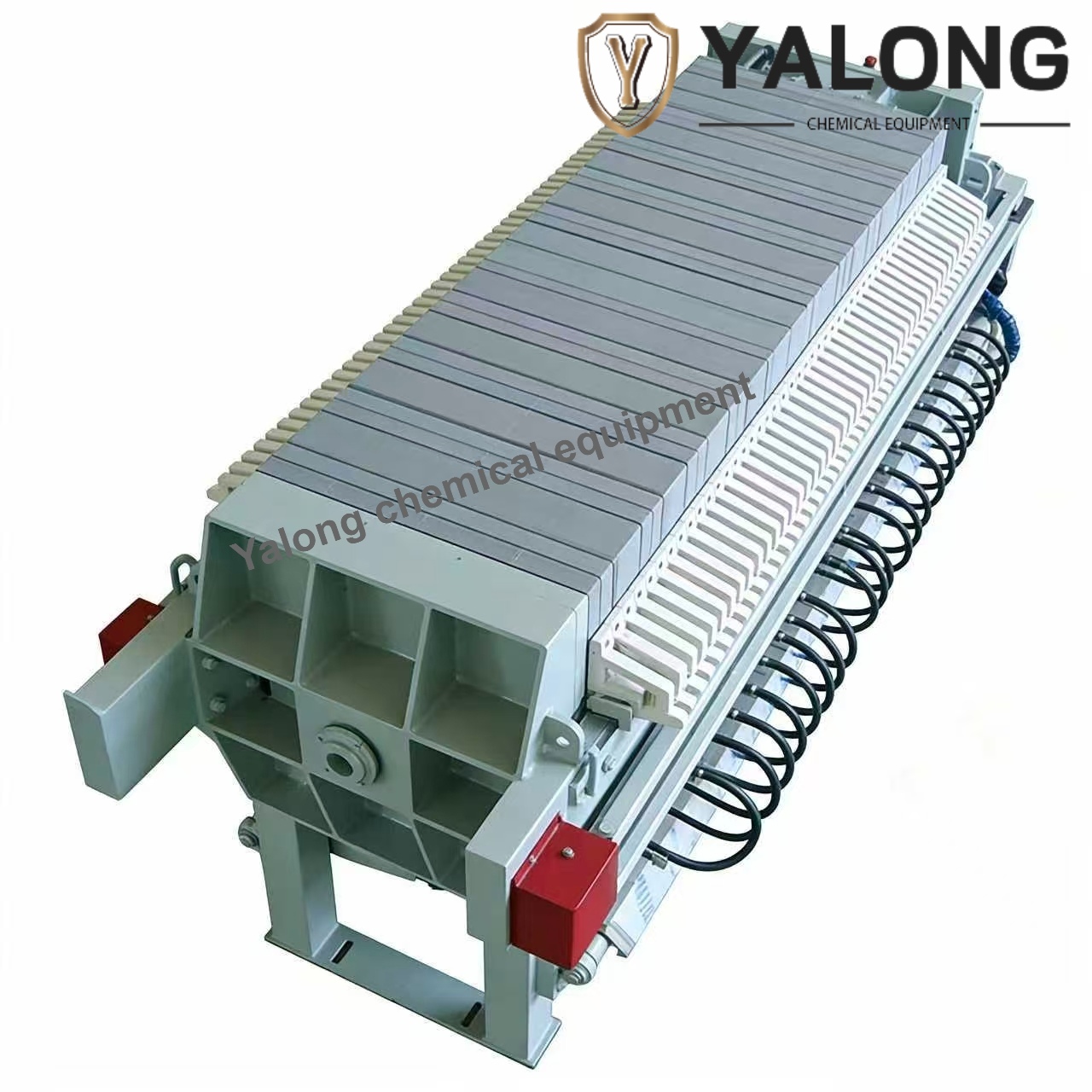

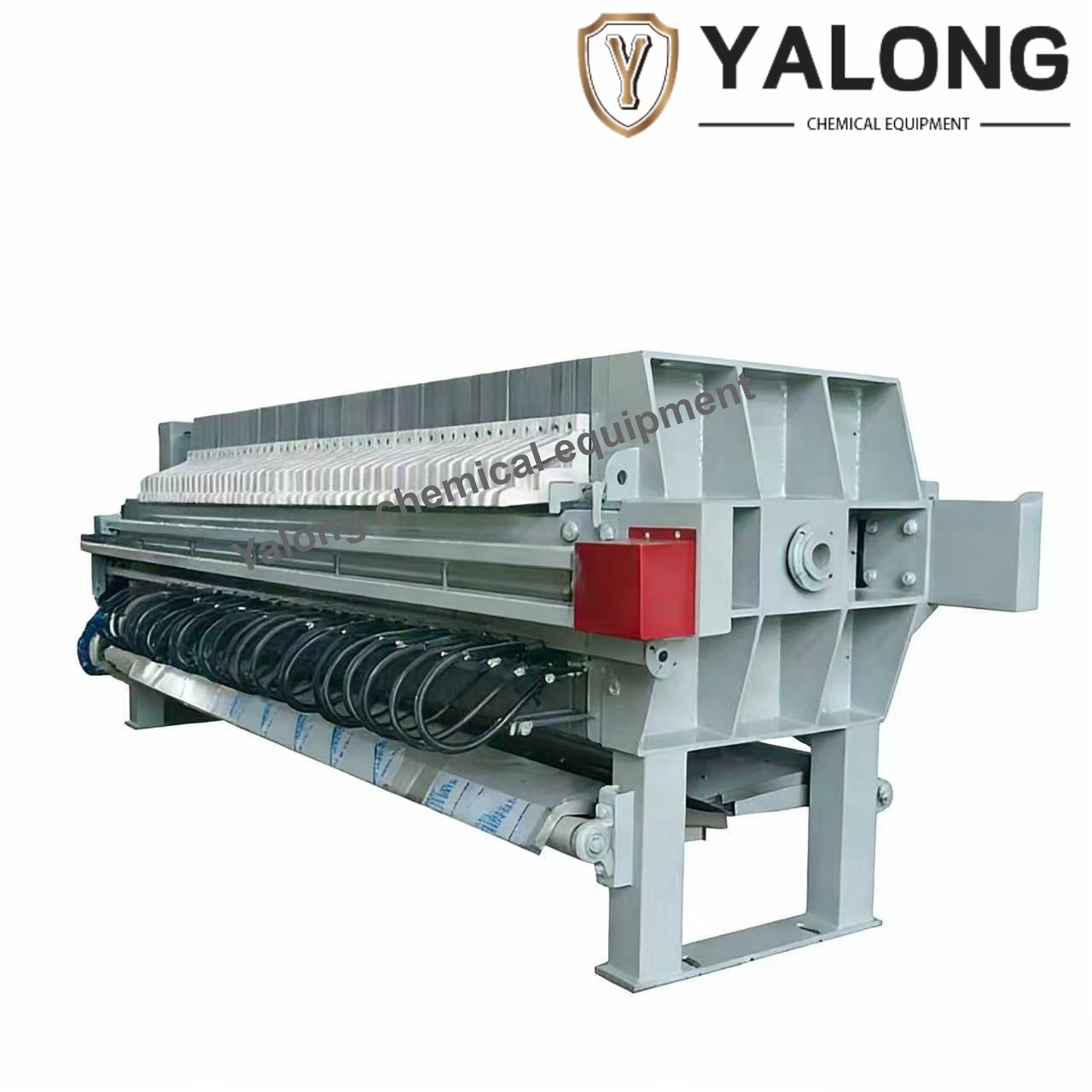

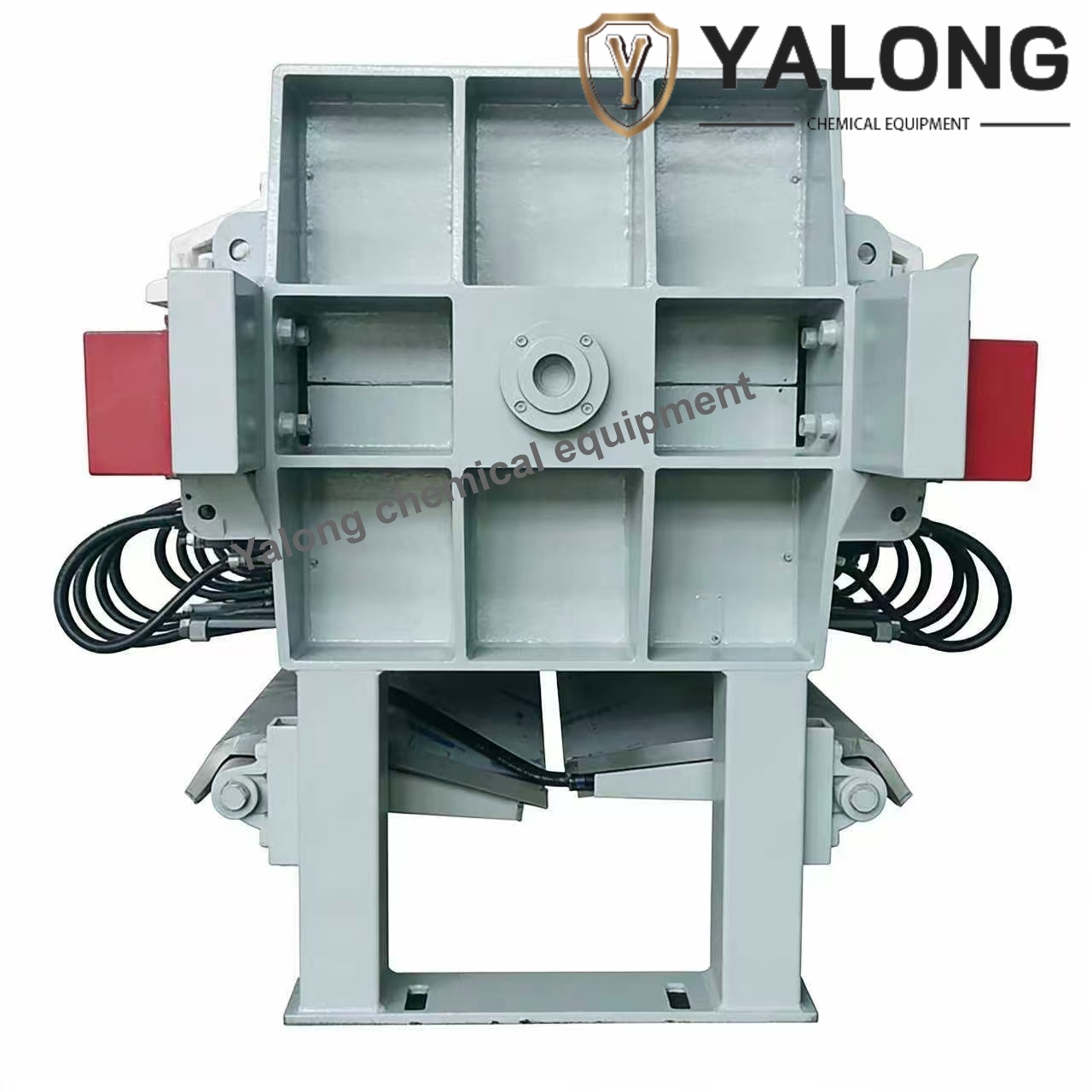

High-Performance Plate and Frame Filter Press
$13,800.00
Our Plate and Frame Filter Press is engineered for high-efficiency solid-liquid separation, ideal for mining, chemical, food & beverage industries. Featuring robust steel frame, corrosion-resistant filter plates and precise pressure control system, it delivers superior filtration accuracy and stable performance even in harsh working conditions.
Equipped with fast plate-shifting device, it cuts down unloading time by 30% and boosts production efficiency. Customizable plate sizes, filter materials and automation levels are available to meet diverse global demands.
描述
High-Performance Plate and Frame Filter Press for Liquid Filtration
A plate and frame filter press is basically a machine that separates solids from liquids. It’s made up of a bunch of filter plates and frames arranged alternately, with filter cloth sandwiched in between.It is widely used in wastewater treatment, chemical industry, pharmaceutical manufacturing, food and beverage production, mining, and other sectors.
The key components of a plate and frame filter press are the filter plates and the filter frames. These elements are arranged alternately to form a series of chambers for the slurry (a mixture of solid and liquid) to pass through. The filter plates are typically made of polypropylene or stainless steel, while the frames can be made from various materials such as plastic or metal.
A plate and frame filter press how it works: you pump the solid-liquid mixture into the spaces between the plates and frames. The liquid passes through the filter cloth and flows out, while the solids get trapped on the cloth, building up what’s called a filter cake. Once the process is done, you just take the cake out. This equipment is super common in industries like chemicals, pharmaceuticals, food processing, and wastewater treatment. The good thing is it’s really efficient at filtering, but the downside is it usually runs in batches, not continuously.”
The great thing about its design is that it’s simple and modular, so it’s easy to customize for whatever you need.
The plate and frame filter press offers several key advantages over other filtration methods, including:
1.High Filtration Efficiency: It achieves an excellent level of solid-liquid separation, producing a clear filtrate and a dry, solid cake.
2.Modular Design: Its configuration allows for easy customization to suit various processing capacities and specific application needs.
3.Low Maintenance: With a robust yet straightforward design, it requires minimal maintenance and is easy to clean.
4.Environmental Benefits: The press promotes sustainability by facilitating water reuse and significantly reducing waste.
5.Flexibility: Cake thickness can be easily adjusted by changing the frame thickness. It is suitable for a wide range of slurry characteristics.
6.Complete Cake Washing: The design allows for efficient and thorough cake washing if required.
7.Robust Construction: Simple design ensures durability and a long service life.
Filter Plate & Frame Design Advantages:
1. Material & Construction:
• One-Piece Molded Design: Manufactured from reinforced polypropylene for integrity and durability.
• Superior Material Properties: Chemically stable, resistant to acids, alkalis, and salts; non-toxic and odorless.
• Lightweight & Robust: High strength-to-weight ratio with good toughness, reducing operator fatigue during cake discharge.
• One-Piece Molded Design: Manufactured from reinforced polypropylene for integrity and durability.
• Superior Material Properties: Chemically stable, resistant to acids, alkalis, and salts; non-toxic and odorless.
• Lightweight & Robust: High strength-to-weight ratio with good toughness, reducing operator fatigue during cake discharge.
2. Structural & Aesthetic Features:
• Sturdy Corrosion-Resistant Frame: Ensures long service life.
• Aesthetic & Practical Design: Combines a clean appearance with economic and functional benefits.
• Sturdy Corrosion-Resistant Frame: Ensures long service life.
• Aesthetic & Practical Design: Combines a clean appearance with economic and functional benefits.
3. Performance Enhancements:
• Multi-Directional Filtrate Flow: Shortens flow paths to greatly accelerate filtration speed.
• Large Central Feed Inlet: Minimizes feed resistance and promotes even pressure distribution.
• Adaptability: Effectively handles hard-to-filter materials while reducing blockage incidents.
• Multi-Directional Filtrate Flow: Shortens flow paths to greatly accelerate filtration speed.
• Large Central Feed Inlet: Minimizes feed resistance and promotes even pressure distribution.
• Adaptability: Effectively handles hard-to-filter materials while reducing blockage incidents.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material |
FRPP |
| Pressure |
Hydraulic Pressure |
| Filter Pressure |
0.6MPa |
| Filter Plate Size |
1000X1000mm |
| Cylinder Diameter |
250 |
| Filter Plate Quantity |
55PCS |
| Filter Area |
100 Square Meters |
| Filter Plate Thickness |
60mm |
