High-Speed Waterproof Flat Mold Medical Blister Packaging Equipment
$20,000.00

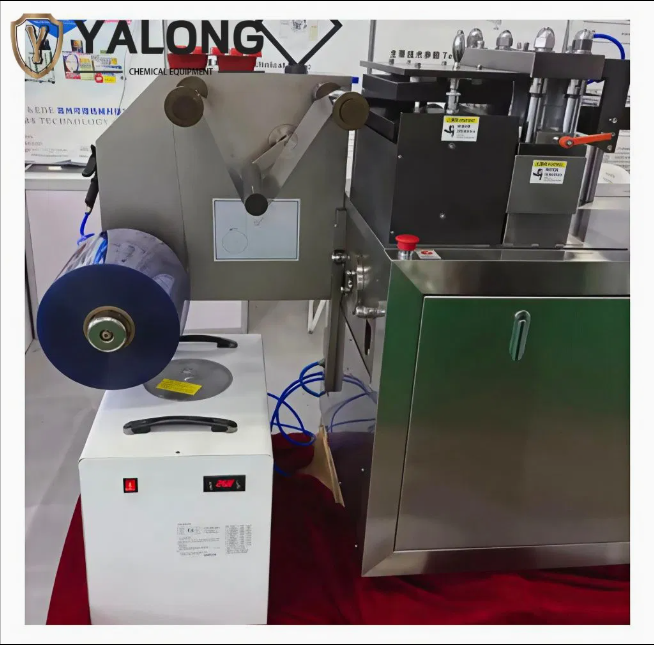

DPP-260 Automatic Blister Packing Machine (PVC-ALU/PVC-PVC Compatible)
Production Compliance
All materials and manufacturing processes of this machine strictly adhere to the WHO Guidelines for Pharmaceutical Production and Quality Management, fully complying with the requirements of GMP standards.
Equipment Material Configuration
Main Machine: Carbon steel with aluminum alloy structure
Outer Shell: SUS304 stainless steel (corrosion-resistant & easy to clean)
Feeder Component: SUS316 stainless steel (meets strict hygiene standards for pharmaceutical applications)
Control System
Adopts a human-machine integrated PLC automatic control system, enabling precise, stable and intelligent operation.
Production & Certification Standards
Complies with YY/T 0208-2008 Blister Packing Machine Manufacturing Specifications
Certified by ISO9001:2000 Quality Management System and CE Certification

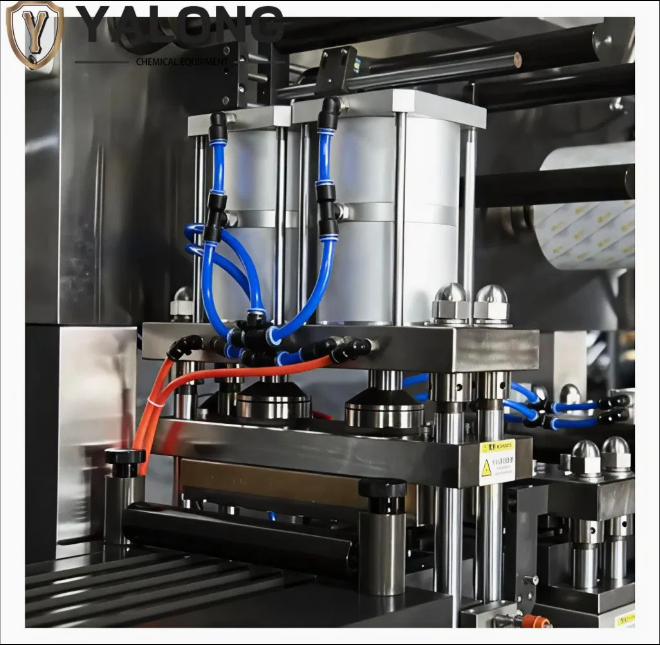

Precision Molded Dimensions
Flat molds deliver exceptional forming accuracy, ensuring blister packages are consistently standardized in size and shape.
Superior Small-Part Reproducibility
The mold excels at replicating tiny components, making it ideal for the precise packaging of small, delicate items.
Uniform Wall Thickness
Consistent wall thickness across the blister guarantees the overall quality, structural integrity and polished appearance of the final packaging.
Outstanding Luster & Transparency
Produced blisters boast excellent gloss and high transparency, elevating visual appeal while enabling clear product visibility for consumers.
Flat, Warp-Free Finished Plates
Molds yield perfectly flat blister plates with zero warping, enhancing the premium texture and professional look of the packaged products.
Flexible Plate Layout Adaptability
The equipment offers strong compatibility with varying plate sizes, allowing flexible adjustment of the layout to meet diverse packaging requirements.
Expansive Forming Area
The flat mold features an extra-large forming area, perfectly suited for high-volume production requirements and capable of boosting overall production efficiency significantly.
Superior Moisture & Dust Resistance
The aluminum-plastic blister packages deliver exceptional sealing performance, effectively shielding contents from water, moisture and dust intrusion, and thereby extending the product’s shelf life substantially.
Reliable Anti-Counterfeiting Performance
The aluminum-plastic blister packaging comes with inherent anti-counterfeiting properties, which helps safeguard the legitimate rights and interests of both brands and end consumers.
User-Friendly Easy Opening Design
The blister packages are designed for hassle-free opening for end users, while maintaining the excellent sealing and protective performance of the packaging solution.

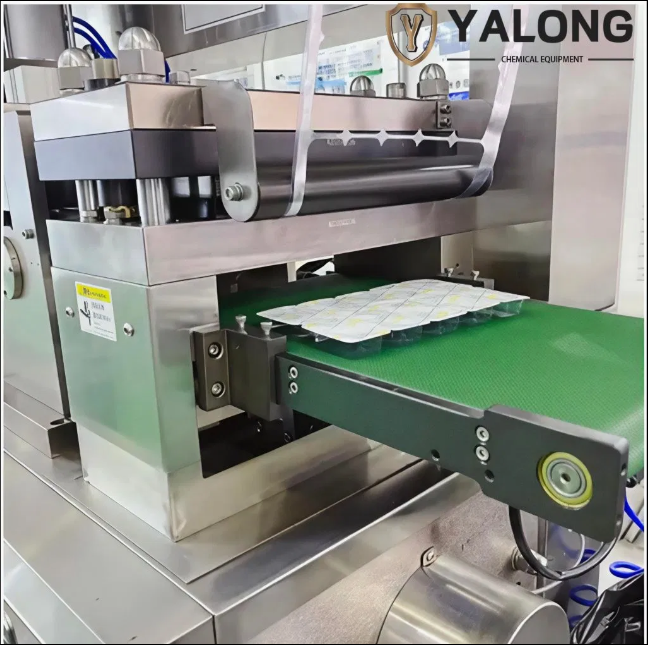

High-Efficiency Automated Production
Equipped with a fully automatic control system, the machine can continuously and stably execute a full range of packaging processes—from feeding, forming and heat sealing to blanking. Its high-speed production capacity not only elevates efficiency remarkably but also cuts down on labor costs effectively.
Flexible & Versatile Packaging Design
The machine supports the customization of blister packages in diverse shapes and sizes, tailored precisely to meet individual customer requirements. It also accommodates a wide range of packaging materials, including aluminum foil, PVC and PTP, making it suitable for fulfilling the packaging needs of different product categories.
Precision Dosage Control
Leveraging its high-precision mechanical structure and advanced sensor technology, the equipment guarantees the exactness of product quantity in each blister cavity. It delivers exceptional measurement accuracy, which is particularly critical for products with strict dosage requirements, such as pharmaceuticals.
Superior Sealing Performance
Adopting cutting-edge heat-sealing technology, the machine ensures blister seals are tight, uniform and visually appealing. Its reliable sealing effect effectively protects products from moisture, oxidation and contamination, thus extending the product shelf life significantly
Easy Cleaning & Maintenance
The equipment features an optimized structural design that allows for convenient disassembly and thorough cleaning, fully complying with GMP and other stringent hygiene standards. Detailed maintenance guidelines and operation manuals are provided as standard, enabling users to effortlessly perform daily upkeep and troubleshooting.
Intelligent Operation Interface
Configured with a touch screen or PLC control system, the machine offers an intuitive operation interface paired with a comprehensive suite of functional options. It also supports remote monitoring and fault diagnosis, which further enhances the equipment’s operational reliability and maintainability.
Energy Efficiency & Environmental Friendliness
The machine operates with low energy consumption, aligning with strict energy-saving and emission-reduction requirements. Environmentally friendly materials and manufacturing processes are adopted throughout, minimizing the equipment’s environmental footprint.
The above represent the core advantages of the flat blister machine. These strengths have made it a highly versatile packaging solution, widely used across industries including pharmaceuticals, food, cosmetics, medical devices and electronic components.
|
Model
|
DPP-260
|
|
Speed
|
15-25pcs/min
|
|
Material
|
PTP ALU:Width 260mm,Thick:0.02-0.03mm;
Forming material:Width 260mm,Thick0.50-0.15mm |
|
Adjustable range of travel
|
Traction stroke:30-140mm
Batch number:0-50mm Forming:0-100mm Heat seal: fixed reference point |
|
Maximum forming depth(mm)
|
28mm
|
|
Maximum molding area(mm2)
|
250×130×28mm
|
|
Power supply
|
380V 50Hz
|
|
Total Power(KW)
|
5kW
|
|
Compressed air pressure(MPa)
|
0.5-0.7MPa
|
|
Compressed air consumption(m3/h)
|
≥ 0.22
|
|
Cooling water consumption(m3/h)
|
Ordinary tap water circulation cooling.
|
|
Noise(dB)
|
75dB
|
|
Overall dimension(L×W×Hmm)
|
4200×650×1640mm
|
|
Weight(kg)
|
1500kg
|
|
Frequency modulation capability of motor
|
20-50Hz
|
We provide 1 year warranty, lifetime technical support, remote video guidance,
Our main products include reactors, centrifuges, dryers, filter presses, food & pharmaceutical packaging machines, water treatment equipment and other chemical machinery. We provide customizable products at competitive prices based on clients’ specific needs.
In addition to high-quality equipment supply, we offer one-stop services from process design, equipment customization, installation and commissioning to technical training. Our business has expanded to Southeast Asia, the Middle East, Europe, South America, Africa and other regions.
Adhering to the philosophy of “Integrity as the Foundation, Customer First, and Win-Win Cooperation”, we strive to be a trusted strategic partner and engineering service provider for our clients.
OEM/ODM OEM/ODM
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Capping/Sealing Equipment
Labeling Equipment
Automatic Packaging Equipment
Conveying & Sorting Equipment
Mixing & Agitating Equipment
Reaction Equipment
Drying Equipment
Filtration & Separation Equipment
Storage Equipment
Q: What is your minimum order quantity?
Answer: 1 set.
Question: How to choose the right equipment?
Answer: Please inform us of your User Requirements Specification (URS). We will recommend suitable equipment for you based on your requirements, application experience, and feedback from our customers.
Question: How to solve equipment malfunctions during use?
Answer: Please send your questions to us in the form of pictures or videos (preferably short videos), and we will identify and solve them. If a malfunction occurs within the warranty period, we will replace the new part for you free of charge.
| Application |
Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Food, Medical, Commodity, Machinery & Hardware, |
|---|---|
| Type |
Filling and Sealing Machine |
| Forming Species |
Bag Moulding |
| Forming Function |
Forming, Filling, Sealing |
| Material Type |
Liquid |
| Packaging Material |
PVC,PS,PP,Pet |
| Modes of Packaging |
Standard Export Packing |
| Speed |
15-25PCS/Min |
