Industrial Chamber Filter Press
$7,800.00
A high-performance solid-liquid separation device tailored for chemical, mining, environmental protection and food industries. Its recessed filter plates form integrated enclosed chambers, eliminating the need for separate filter frames and minimizing maintenance workload.
When slurry is pumped into the chambers, pressure-driven filtration takes effect instantly: liquid seeps through filter media, while solid particles are trapped to form uniform, easy-to-discharge filter cakes. Boasting excellent sealing, stable operation and strong adaptability to high-viscosity slurries, this cost-efficient equipment is your dependable choice for material purification, wastewater treatment and residue recovery.
描述

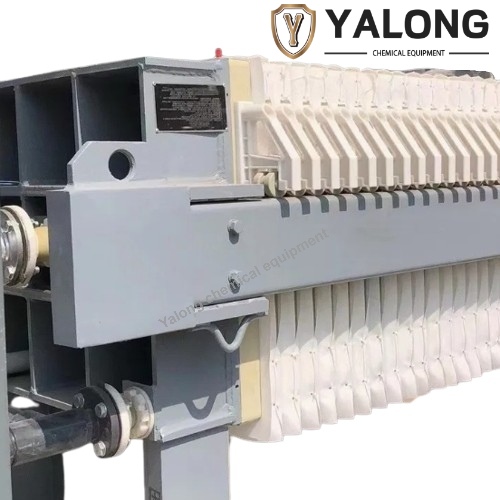

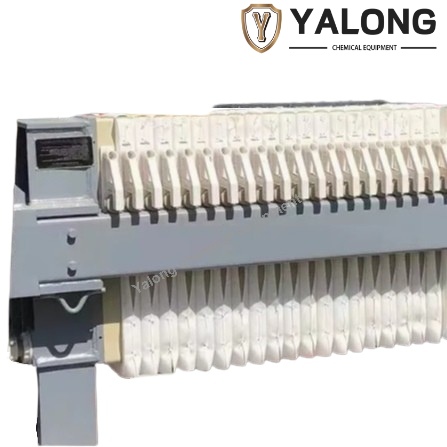

Industrial Chamber Filter Press with Optional Blow-Dry System for Enhanced Dewatering
The industrial chamber filter press filter press with an integrated self-cleaning system automates plate shifting and filter cloth washing. This integrated solution addresses common issues such as difficult cleaning and frequent cloth replacement. Key benefits include significant labor savings, reduced water consumption, shorter cleaning cycles, enhanced cloth permeability for faster filtration, and an extended filter cloth service life.
The industrial chamber filter press filter press is a versatile workhorse for separating solids from liquids in various slurries. As a batch-operated pressure filtration system, it is widely adopted across industries due to its excellent filtering performance, cost-effectiveness, and straightforward operation.
Here’s a simple way to understand it: the filter plate in a box-type press combines the features of a separate plate and frame into one unit. First, each plate has recessed chambers on both sides. Second, a large central feeding hole is the key feature. The real advantage of this design is that it feeds material faster and more uniformly, reducing clogs. It can also operate at higher pressures, which is ideal for demanding, high-volume applications.
Think of the chamber filter press as the go-to machine for turning liquid mixtures with solid particles into separate solids and liquids. It works in batches. Its popularity comes down to three big reasons: it filters exceptionally well, it’s low-cost, and it’s easy to run, which is why you’ll see it used in so many different industries.
Advantages of Chamber Filter Press
1.High Filtration Efficiency: We utilize advanced filtration technologies, such as precise filter cloth arrangement and optimized plate design, to achieve highly efficient filtration performance.
2.Robust and Durable Construction: The filter plates are typically made from high-strength polypropylene or other corrosion-resistant materials.
3.Excellent Sealing Performance: The chamber filter press is equipped with a reliable sealing system that prevents leakage and ensures consistent pressure is applied throughout the filtration process.
4.User-Friendly Operation: The equipment features automated or semi-automated control systems that simplify operation and reduce manual intervention.
5.Wide Range of Applications: Customization options are available to tailor the filter press to meet specific process requirements.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material: |
PP or Stainless Steel |
| Pressure |
Hydraulic Pressure |
| Filter Cake Thickness |
30mm |
| Filtration Pressure |
0.6-1.0MPa |
| Motor Power |
4.0-15.0kw |
| Application |
Oil Industry/Juice Industry |
