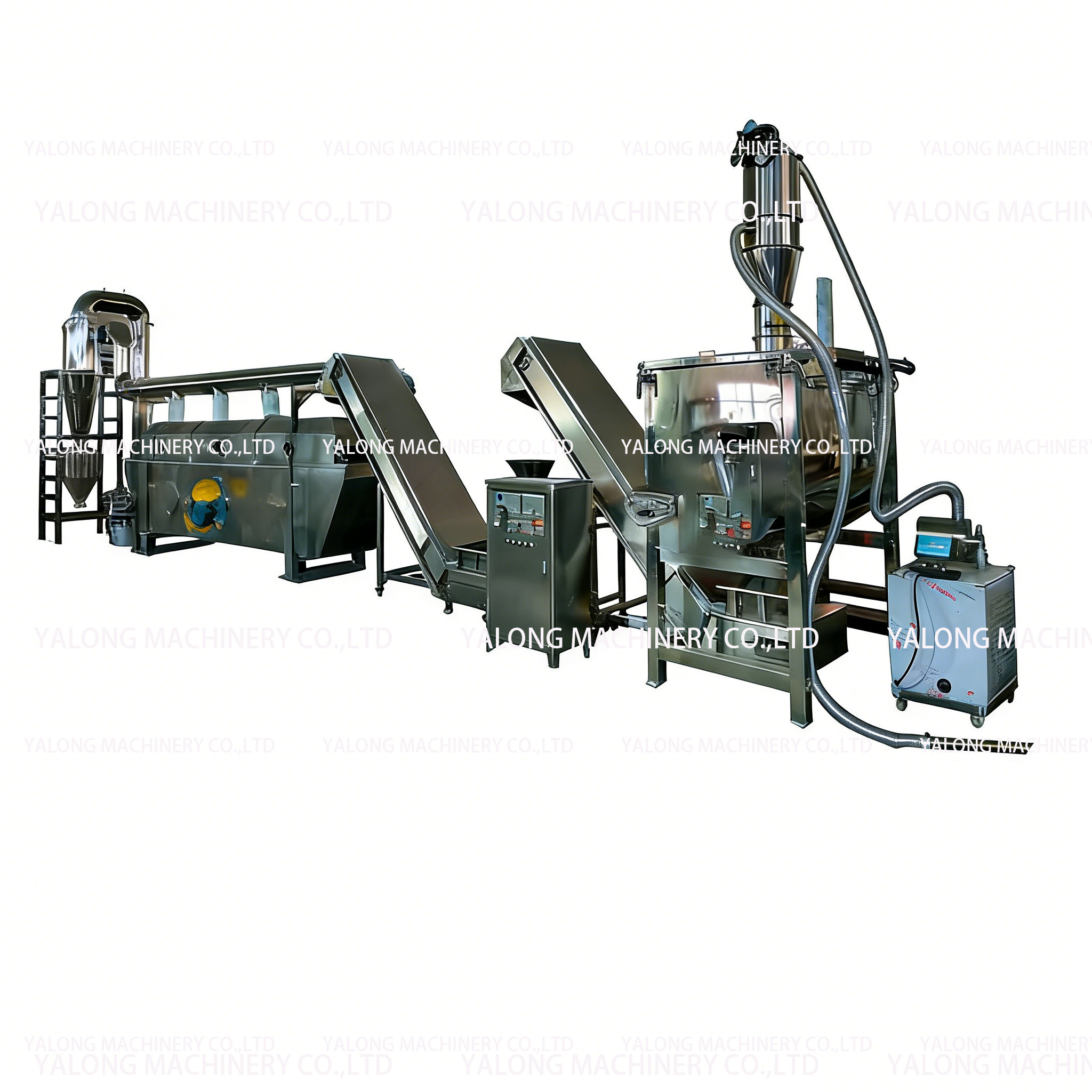

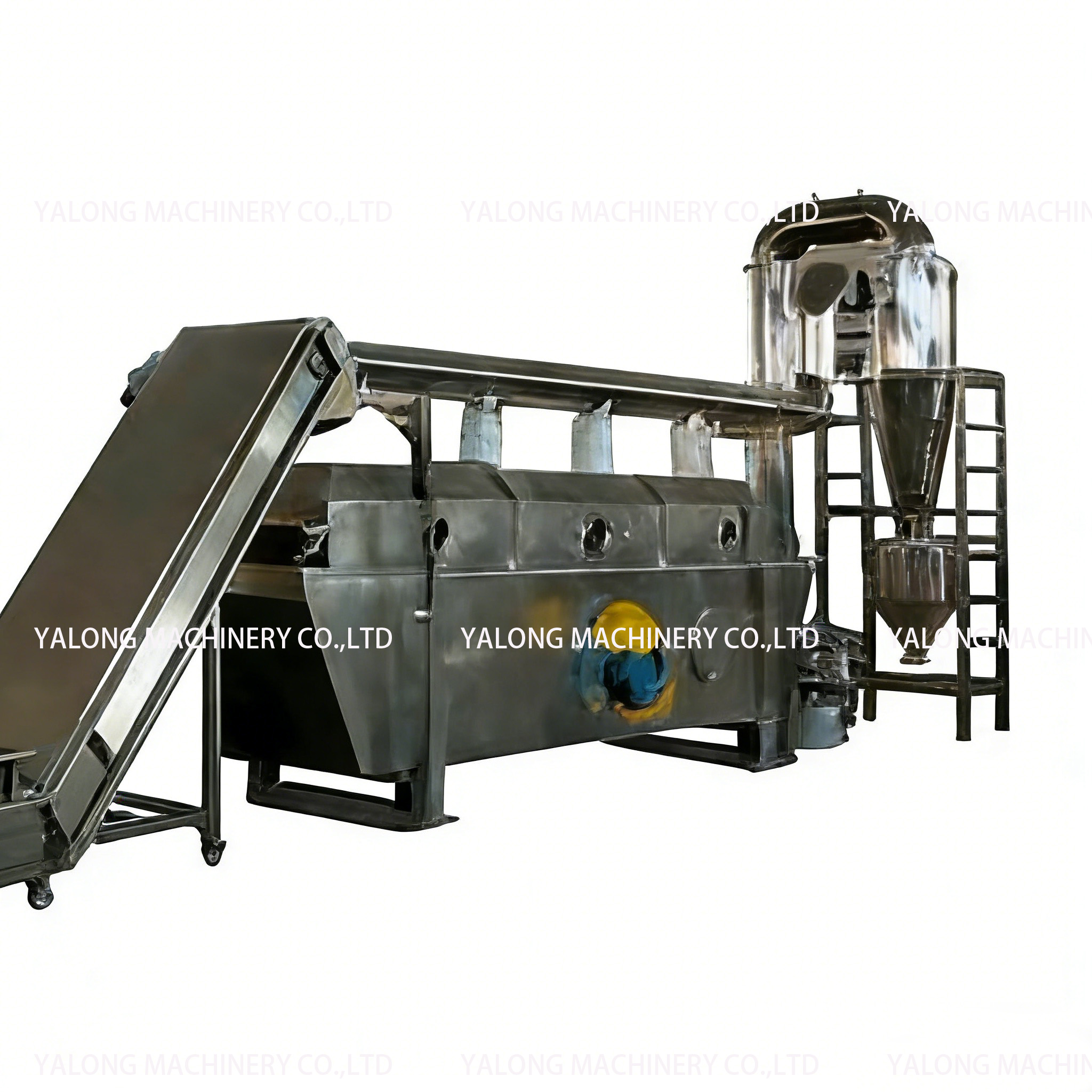

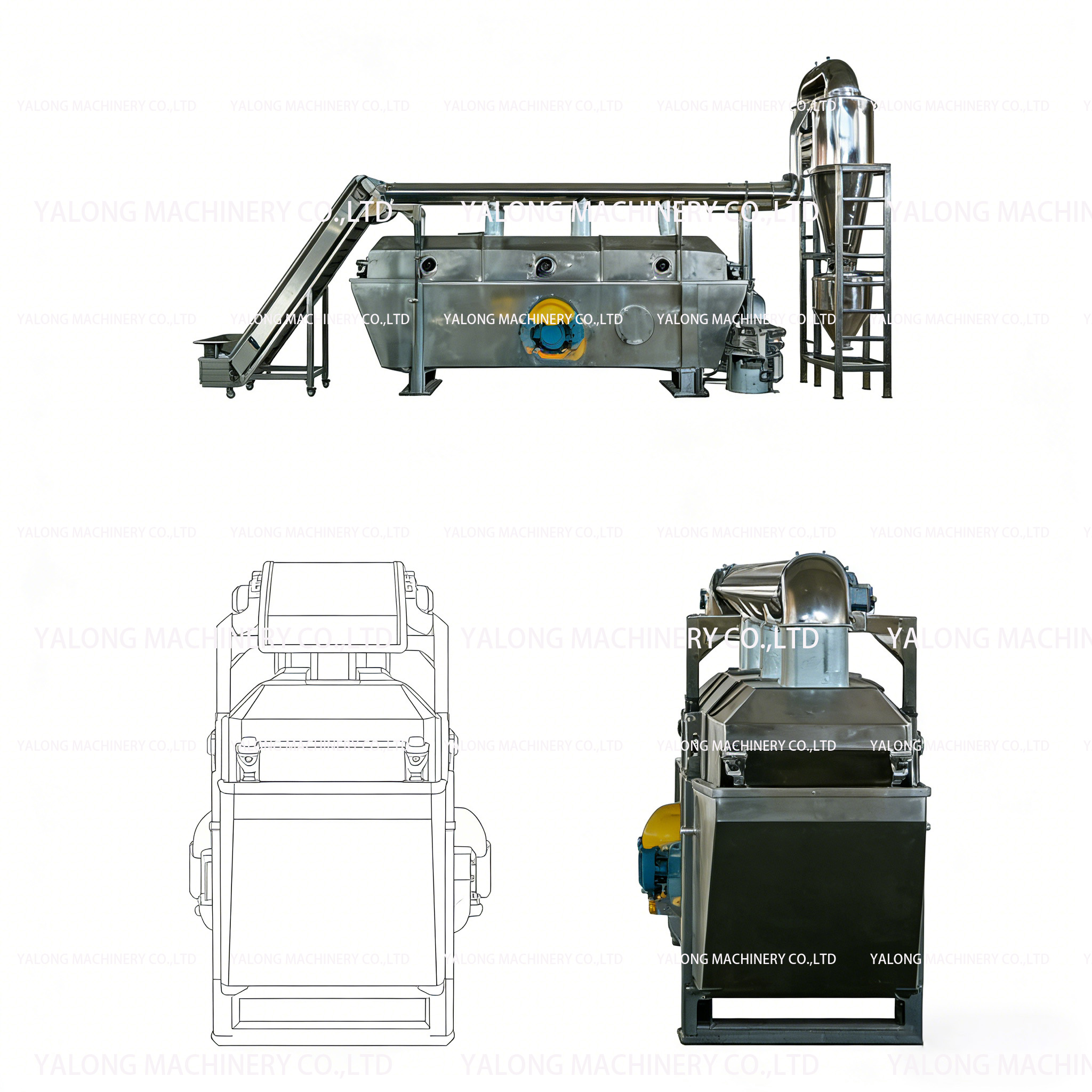

Industrial Fluidized Bed Dryer for Potassium Sodium Citrate Applications

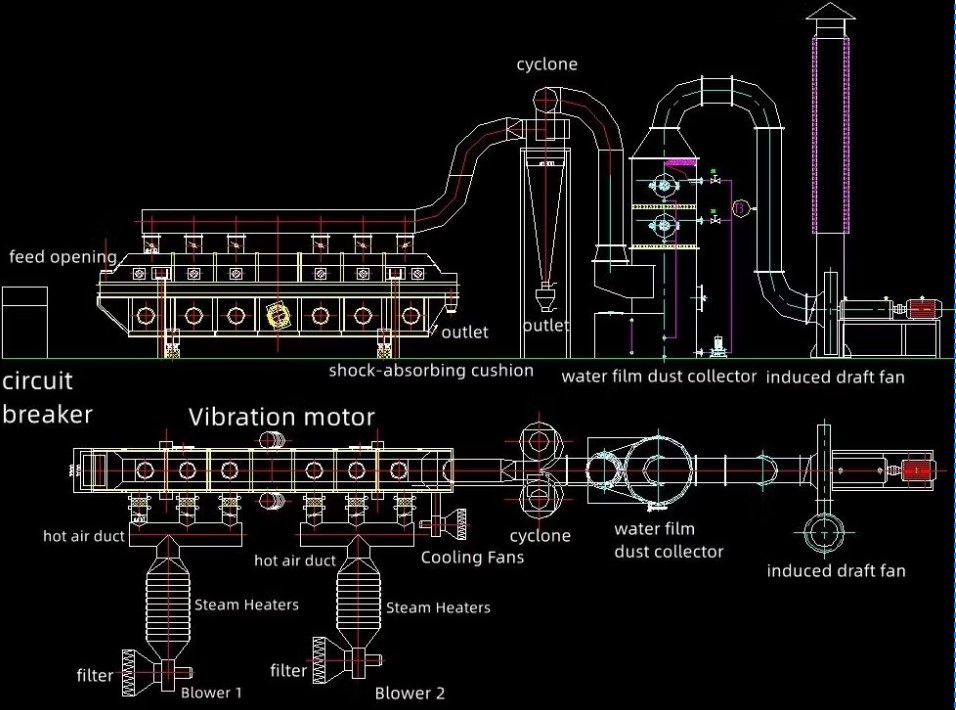

This potassium sodium citrate industrial fluidized bed dryer is a highly efficient drying equipment specially designed for the material characteristics of potassium sodium citrate, which is prone to moisture absorption and heat sensitivity. The equipment adopts vibration fluidization technology, achieving rapid heat and mass transfer through the full contact between hot air and materials, and can precisely control the drying temperature and time. The entire system is composed of a fabric system, a heating system, a main unit, a dust removal system and an intelligent control system. The flow-through parts are made of stainless steel, which meets the environmental protection and hygiene requirements of industrial production and can effectively ensure the uniformity of product drying and the stability of quality.

Product features

1. It is highly targeted and specially designed for potassium sodium citrate materials. It can prevent the problems of material adhesion and coking during the drying process, and can retain the original chemical properties and physical form of the materials to the greatest extent, which is suitable for their core attributes of being heat-sensitive and prone to moisture absorption.
2. It features high drying efficiency. With the design of vibration fluidization and counter-current contact of hot air, the material is in a suspended fluidized state, providing a large heat and mass transfer area. Compared with traditional drying equipment, the drying time is shortened by more than 30%, significantly enhancing production capacity.
3. It operates stably and environmentally friendly, equipped with a two-stage dust removal system of cyclone separator and bag filter, featuring high powder collection rate and low material loss. The system operates under a closed and slightly negative pressure, preventing dust from flying and meeting industrial environmental protection emission standards.
