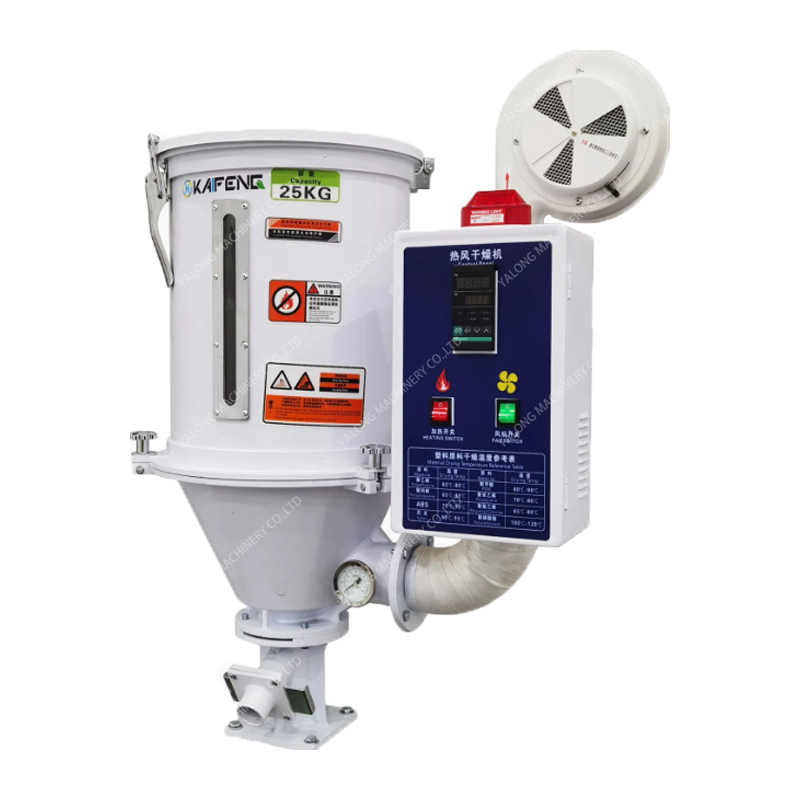

Industrial plastic dryer

1) Capacity: 12kg – 1500kg
2) Good heat distribution

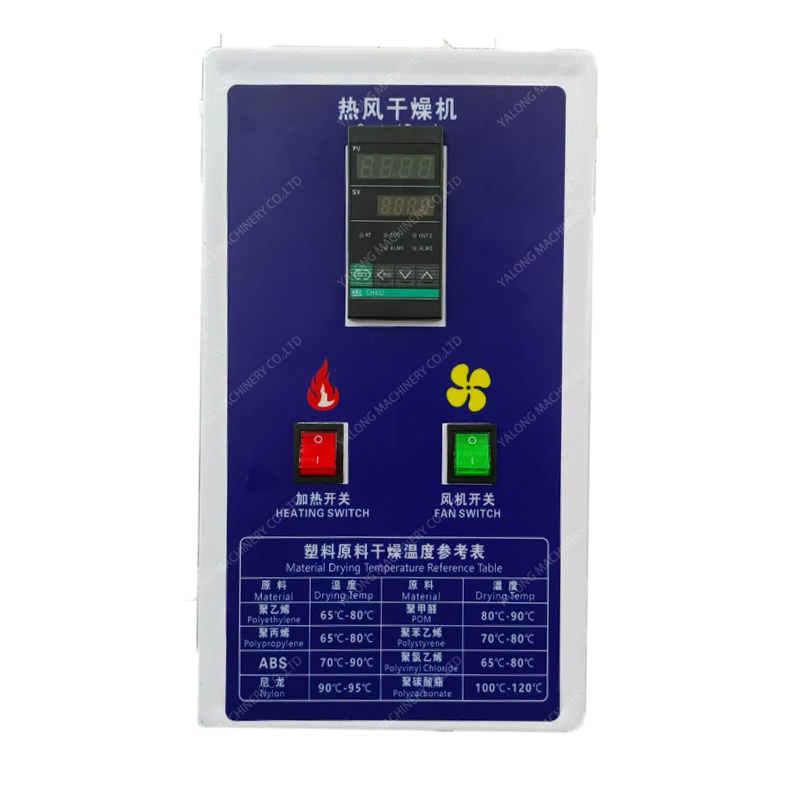

3) Precise temperature control
4) Time and labor-saving
5) Reliable design
6) Standard voltage: 380V 50Hz three-phase

1.The heating cylinder is made of stainless steel to ensure that the material is not contaminated and is easier to clean.
2. The stainless steel mesh plate air dispersion device ensures that the hot air is evenly blown towards the materials, resulting in uniform temperature inside the cylinder and preventing the materials from caking.
3. The heating cylinder and the hopper are connected by a hinge structure, which is convenient for opening, loading and cleaning.
4. It adopts a door-type magnetic base, which is convenient for removing the magnet to clean the scrap iron.
5. It can be equipped with a 24-hour timed start-up device to shorten the preheating time for work and improve efficiency.
6. A hot air circulation device can be equipped to reduce energy consumption.
7. A hopper dust collector can be equipped to prevent dust from entering the workshop.

The air hot hopper dryer can effectively remove the moisture on the surface of plastic particles. The dried material is taken out from the bottom area of the hopper dryer. Meanwhile, the undried raw materials are fed into the upper area of the hopper by a vacuum feeder. This causes hot air and wet polymers to form a countercurrent and flow from top to bottom. This design has a positive effect on the dehumidification effect. The significant advantages of the hopper dryer:
* Stainless steel working parts
* detachable design * Easy to clean
* Temperature control system, automatic power-off of heating elements
* Magnetic adsorbers can be installed
