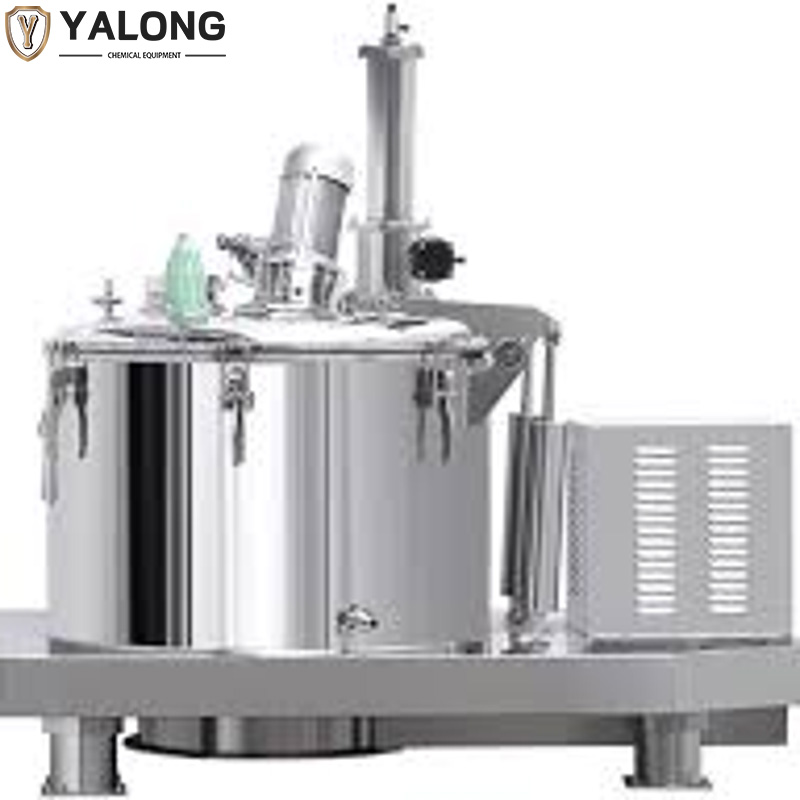

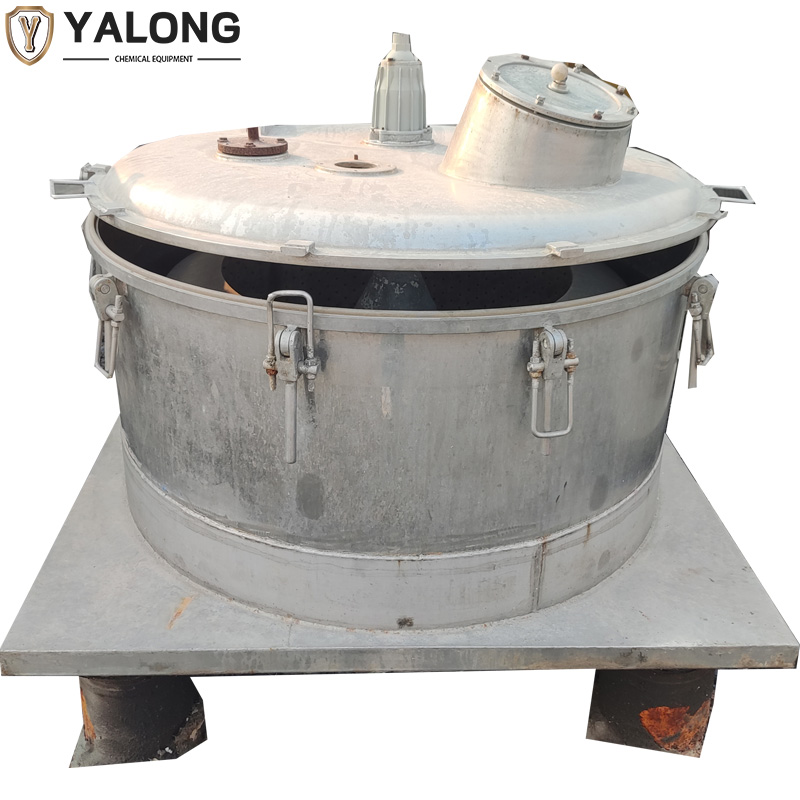

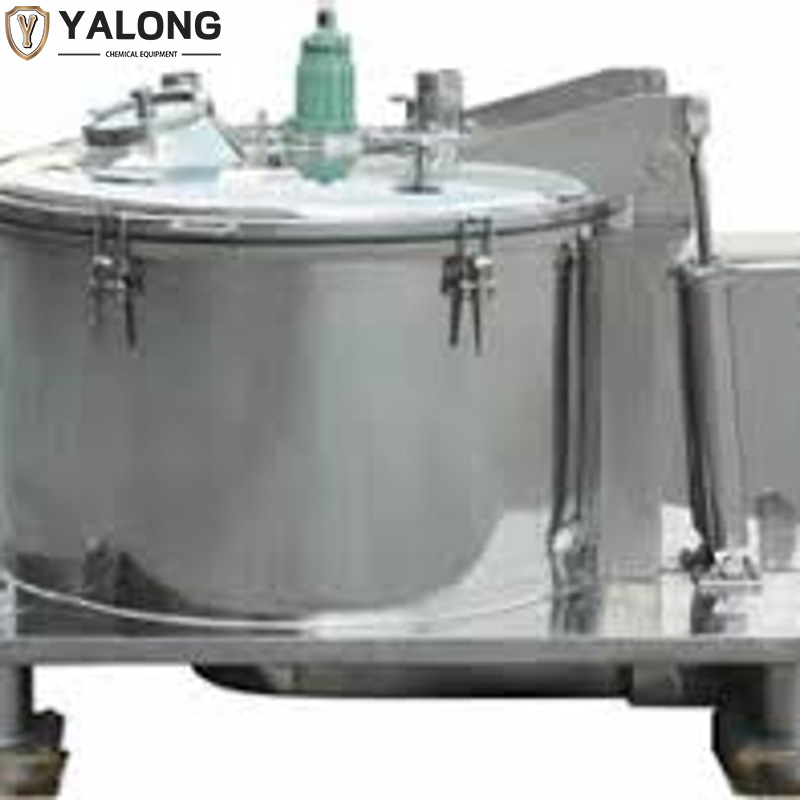

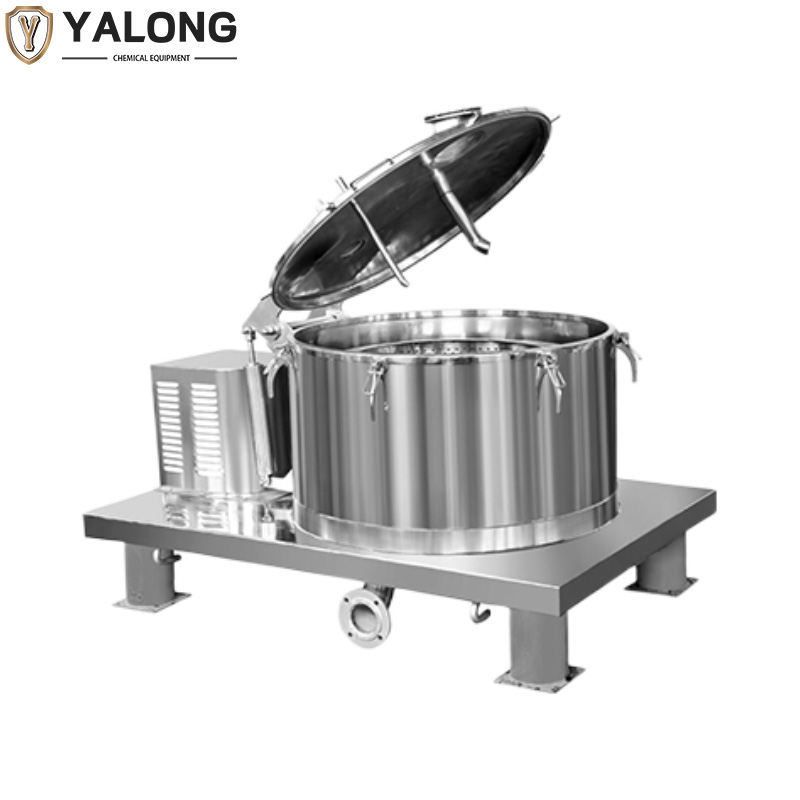

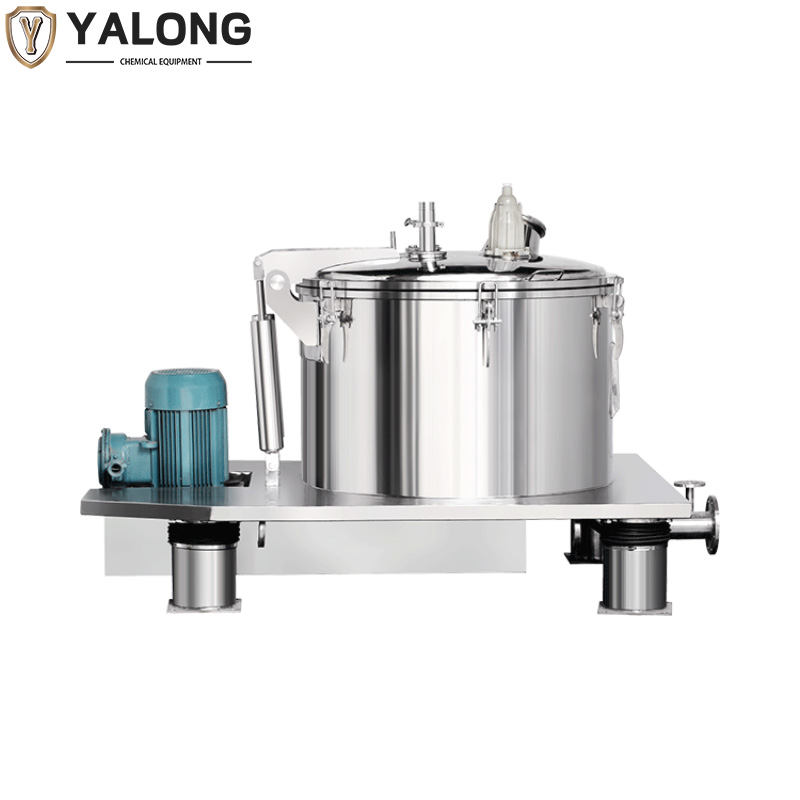

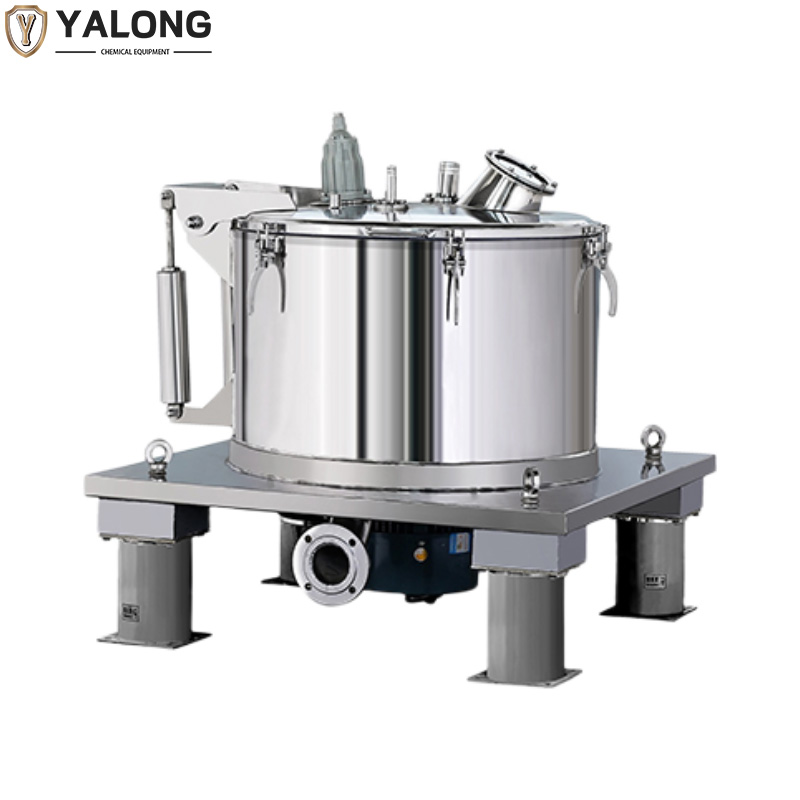

L(P)B Series Flat Plate Sealed Centrifuge
$50,000.00a set of
An advanced industrial flat-type closed filtration centrifuge that emphasizes sealing performance, safety and ease of cleaning
Standard structural form
Platform type structure. The shell and the platform are welded together. The shell cover and the shell body adopt a flange connection quick-opening structure. The opening of the shell cover is assisted by a mechanical balance device. The shell cover is equipped with feeding pipes, cleaning pipes, sight glasses, observation lights, ventilation holes, etc.
描述
Main materials:
The plate is Q235 lined with stainless steel, the drum except for the bottom basket uses HT lined with stainless steel, and the shell, the shell cover (including its accessories) are all made of stainless steel, and the shaft seat is cast steel (or cast iron) with an outer layer of stainless steel.
Standard configuration: Vertical ordinary (explosion-proof) motor, equipped with clutch and hand brake, ordinary V-belts, motor pulley safety guard, damping type shock absorber.
Structural Selection
1.The shell and the plate are connected by flanges, which are quickly locked and equipped with reliable sealing, or the shell is in a flipped structure.
2.The motor is directly driven.
3.The drum is made of all stainless steel cutting type.
According to the user’s requirements, air (replacement) ports, nitrogen filling ports and other structural requirements are opened.
2.The motor is directly driven.
3.The drum is made of all stainless steel cutting type.
According to the user’s requirements, air (replacement) ports, nitrogen filling ports and other structural requirements are opened.
Material Selection
Due to the need for corrosion prevention, other materials as per the customer’s requirements can be used, such as SUS316, 316L, 321, 304, titanium, Hastelloy alloy, plastic lining, rubber lining, spraying F46, spraying Halar, etc.
Due to the need for corrosion prevention, other materials as per the customer’s requirements can be used, such as SUS316, 316L, 321, 304, titanium, Hastelloy alloy, plastic lining, rubber lining, spraying F46, spraying Halar, etc.
Configuration Selection
1.Frequency control + energy consumption braking (feedback braking)
2.Vibration protection
3.Nitrogen filling protection, oxygen content measurement (including nitrogen filling and air exchange control)
4.Cover opening stop and shell cover anti-slip locking
5.Liquid seal device at the outlet port (or cyclone separation)
6.Online cleaning device
7.Explosion-proof motor, anti-static transmission belt
8.Other configuration requirements
1.Frequency control + energy consumption braking (feedback braking)
2.Vibration protection
3.Nitrogen filling protection, oxygen content measurement (including nitrogen filling and air exchange control)
4.Cover opening stop and shell cover anti-slip locking
5.Liquid seal device at the outlet port (or cyclone separation)
6.Online cleaning device
7.Explosion-proof motor, anti-static transmission belt
8.Other configuration requirements
其他信息
| 重量 | 680 磅 |
|---|---|
| Drum diameter (mm) |
200~1500 |
| Drum volume(L) |
3~700 |
| Drum height(mm) |
140~700 |
| Loading capacity (Kg) |
3.5~800 |
| Drum Max.Speed(r/min) |
3000~850 |
| Maximum saparating factor |
1315~605 |
| Mctor power (Kw) |
0.5~22 |
