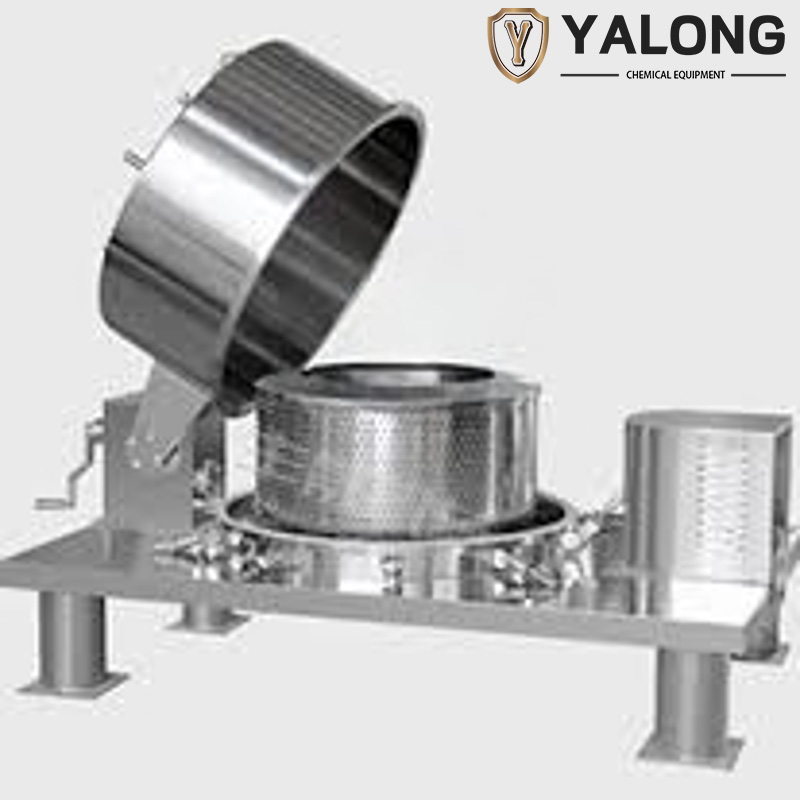

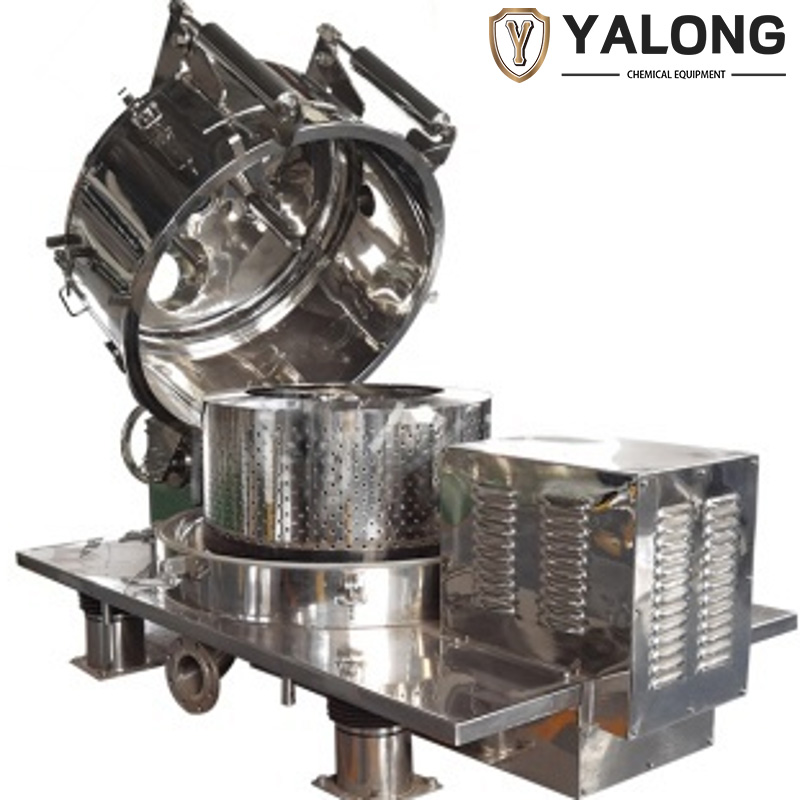

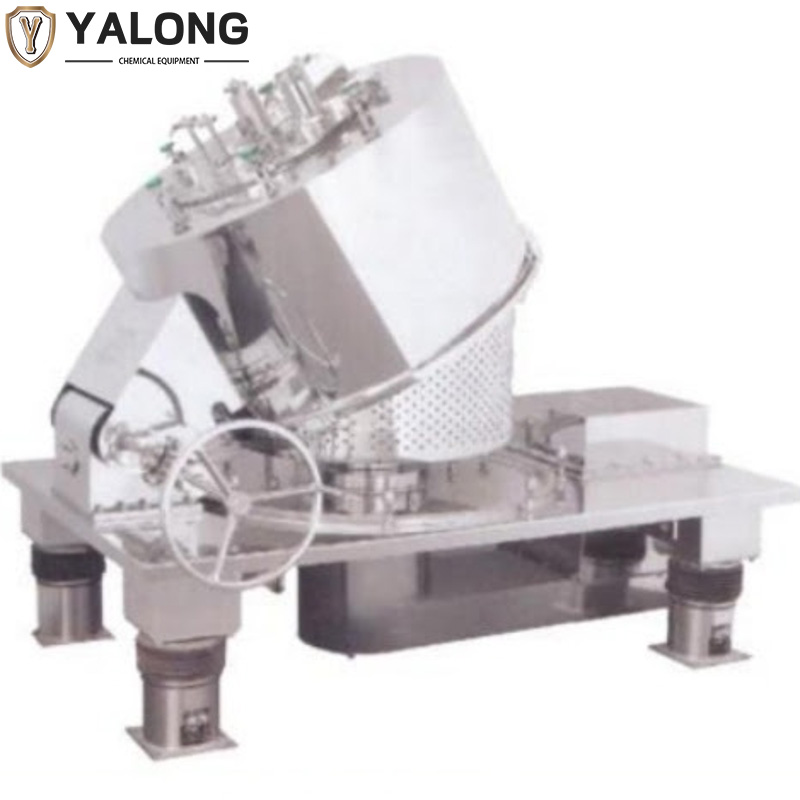

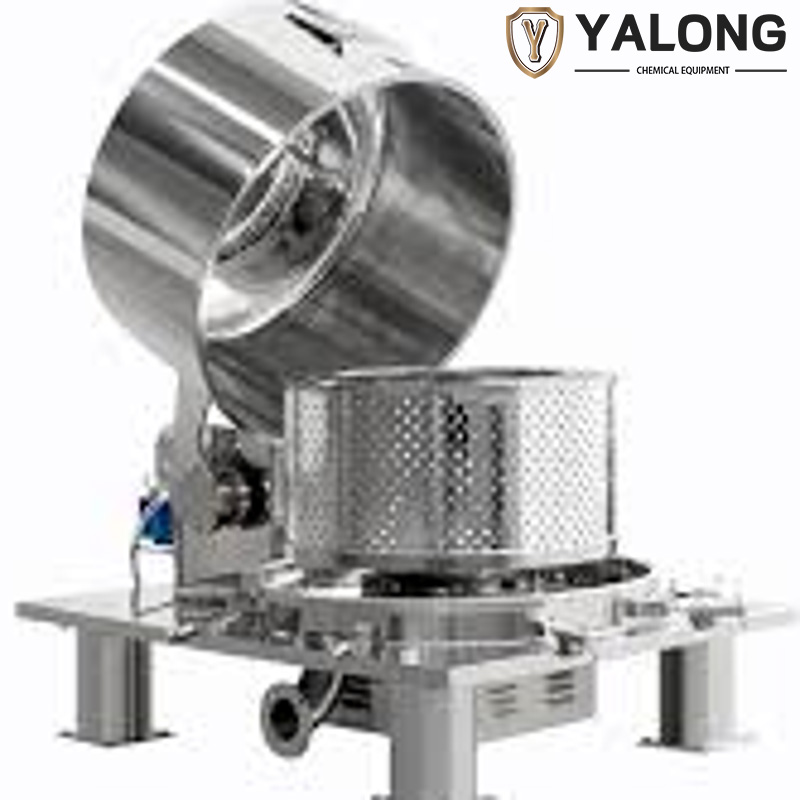

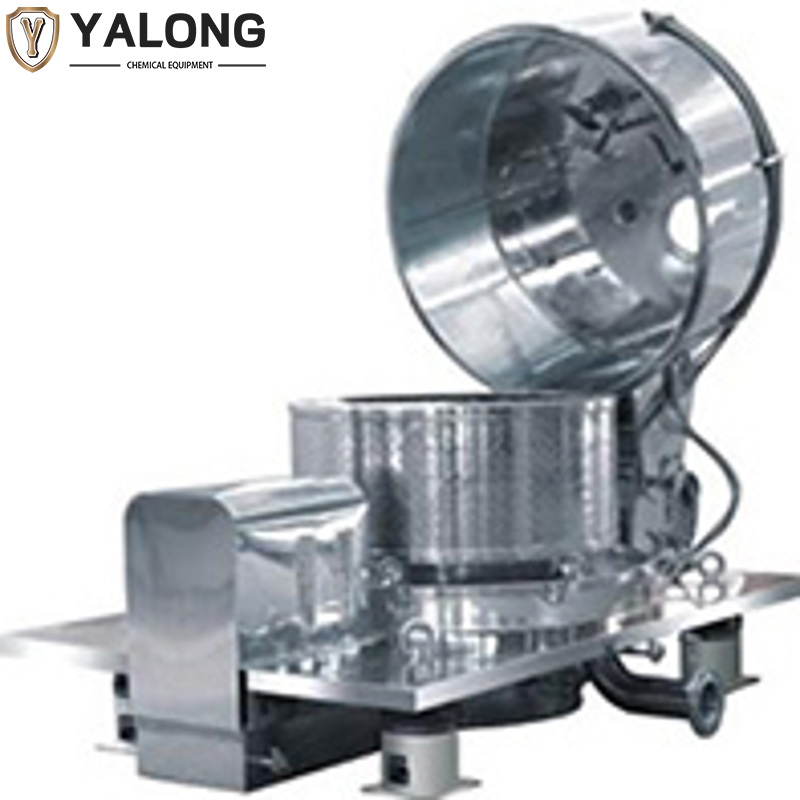

L(P)BF Series Flat-Plate Sealed Full-Enclosure Centrifuge
$50,000.00a set of
High-Efficiency Centrifuge for Solid-Liquid Mixtures in Fine Chemicals
The L(P)BF series of flat-bottomed closed centrifuges are sealed centrifuges designed based on the LB series centrifuges, in accordance with GMP standards and the requirements of precision packaging centrifuges.
The L(P)BF series centrifuges are a type of high-cleanliness production and sanitary filtering centrifuge. They are widely applicable for the separation of various solid-liquid mixtures in industries such as pharmaceuticals, food, and fine chemicals. It features high manufacturing process, strong corrosion resistance, stable operation, and compliance with high-standard hygiene requirements.
The L(P)BF series centrifuges are a type of high-cleanliness production and sanitary filtering centrifuge. They are widely applicable for the separation of various solid-liquid mixtures in industries such as pharmaceuticals, food, and fine chemicals. It features high manufacturing process, strong corrosion resistance, stable operation, and compliance with high-standard hygiene requirements.
描述
Working Principle
The motor is started smoothly under frequency control. It is driven by the transmission system to rotate the drum at high speed, creating a centrifugal force field. The feeding speed, cleaning speed, and liquid removal speed can all be selected arbitrarily within a certain range of the drum (rated speed). Under the action of the centrifugal force field, the materials are evenly distributed on the drum for liquid separation. The liquid phase passes through the gaps of the filter net (bag), is sprayed out through the holes on the drum wall into the cavity of the machine shell, and is discharged from the liquid outlet on the base plate. The solid-phase materials are retained in the drum. The material liquid is added through the feeding pipe, and the washing water is added through the washing pipe. After the material is dehydrated, the machine is stopped, the machine cover is opened, and the materials are unloaded. In addition to the large cover being able to be opened, the entire casing of the centrifuge can also be opened to conduct a comprehensive cleaning of the drum of the centrifuge and the internal dead corners of the casing after the separation and discharging process is completed.
The motor is started smoothly under frequency control. It is driven by the transmission system to rotate the drum at high speed, creating a centrifugal force field. The feeding speed, cleaning speed, and liquid removal speed can all be selected arbitrarily within a certain range of the drum (rated speed). Under the action of the centrifugal force field, the materials are evenly distributed on the drum for liquid separation. The liquid phase passes through the gaps of the filter net (bag), is sprayed out through the holes on the drum wall into the cavity of the machine shell, and is discharged from the liquid outlet on the base plate. The solid-phase materials are retained in the drum. The material liquid is added through the feeding pipe, and the washing water is added through the washing pipe. After the material is dehydrated, the machine is stopped, the machine cover is opened, and the materials are unloaded. In addition to the large cover being able to be opened, the entire casing of the centrifuge can also be opened to conduct a comprehensive cleaning of the drum of the centrifuge and the internal dead corners of the casing after the separation and discharging process is completed.
Main features
1. The materials of all components in contact with the materials are all stainless steel, with excellent corrosion resistance.
2. The surfaces of the main parts of the equipment are all precisely polished, and the internal structure has no dead corners, making it easy to clean.
3. The shell can be fully flipped. When the rotating drum rotates more than 90 degrees, the entire drum can be exposed. It is possible to touch the bottom of the drum, which is convenient for cleaning and replacing the filter cloth, etc.
4. The transmission part adopts a fully enclosed belt cover and motor cover. A gas replacement port is set to avoid dust pollution caused by belt wear.
2. The surfaces of the main parts of the equipment are all precisely polished, and the internal structure has no dead corners, making it easy to clean.
3. The shell can be fully flipped. When the rotating drum rotates more than 90 degrees, the entire drum can be exposed. It is possible to touch the bottom of the drum, which is convenient for cleaning and replacing the filter cloth, etc.
4. The transmission part adopts a fully enclosed belt cover and motor cover. A gas replacement port is set to avoid dust pollution caused by belt wear.
Application Case
It is widely applicable for the separation of various solid-liquid mixtures in industries such as pharmaceuticals, food, and fine chemicals. It is also suitable for the production of sterile powders.
It is widely applicable for the separation of various solid-liquid mixtures in industries such as pharmaceuticals, food, and fine chemicals. It is also suitable for the production of sterile powders.
其他信息
| 重量 | 1000 磅 |
|---|---|
| 尺寸 | 1460 × 920 × 1120 英寸 |
| Diameter of the drum (mm) |
450~1250 |
| Belt drum height (mm) |
300~500 |
| Rotary drum volume (L) |
20~320 |
| Loading limit (kg) |
30~400 |
| Maximum rotational speed (r/min) |
2000~950 |
| The maximum separation factor |
1006~605 |
| Motor power (KW) |
3~18.5 |
