L(P)D Series Centrifugal Separator for Discharging from the Upper Part of the Bag
$50,000.00a set of
High-Performance Centrifuge Separator for Chemical and Food Industries

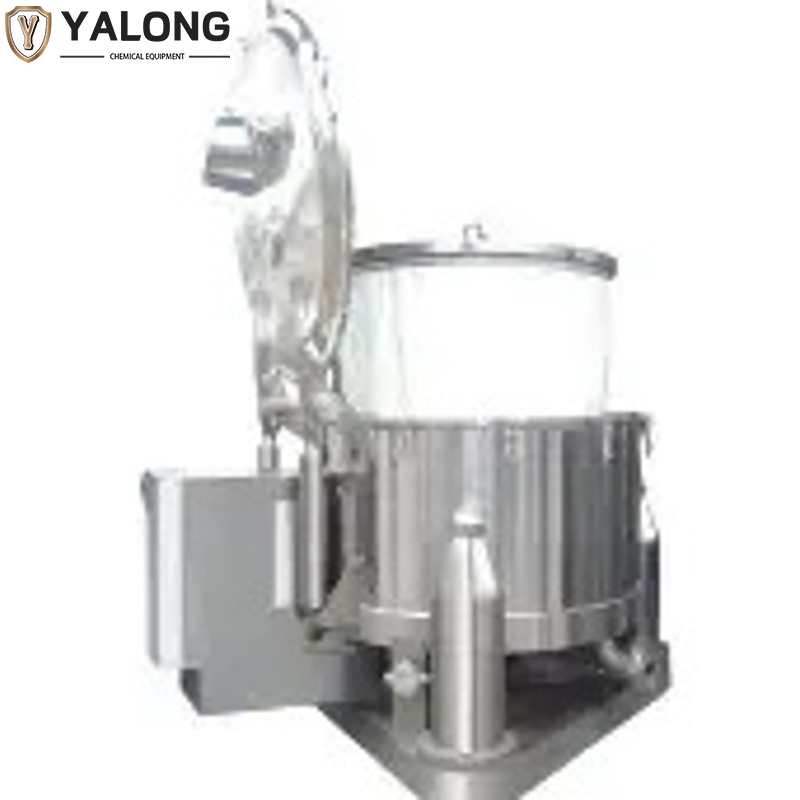

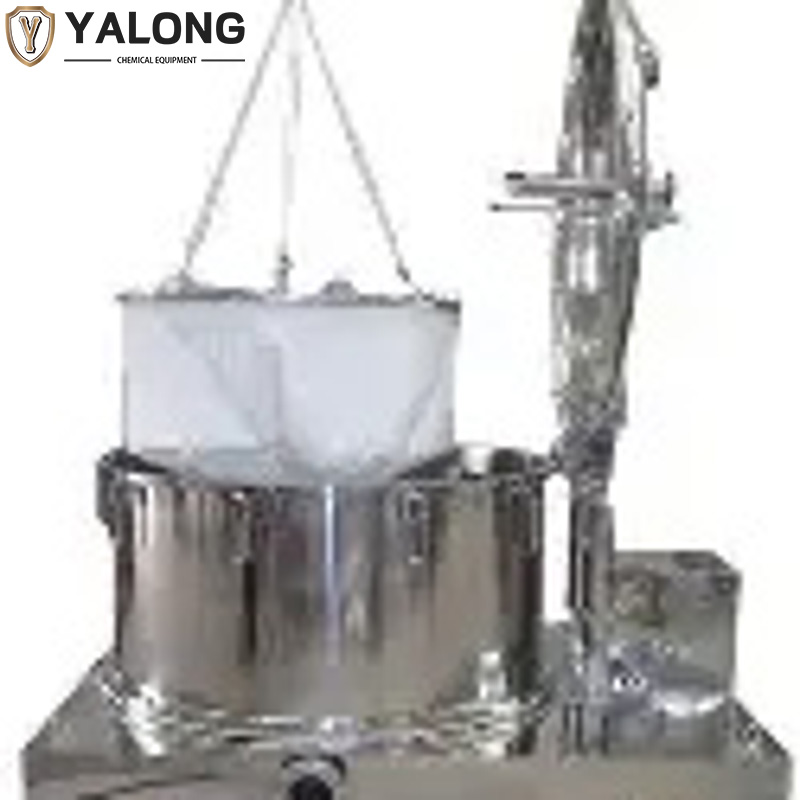

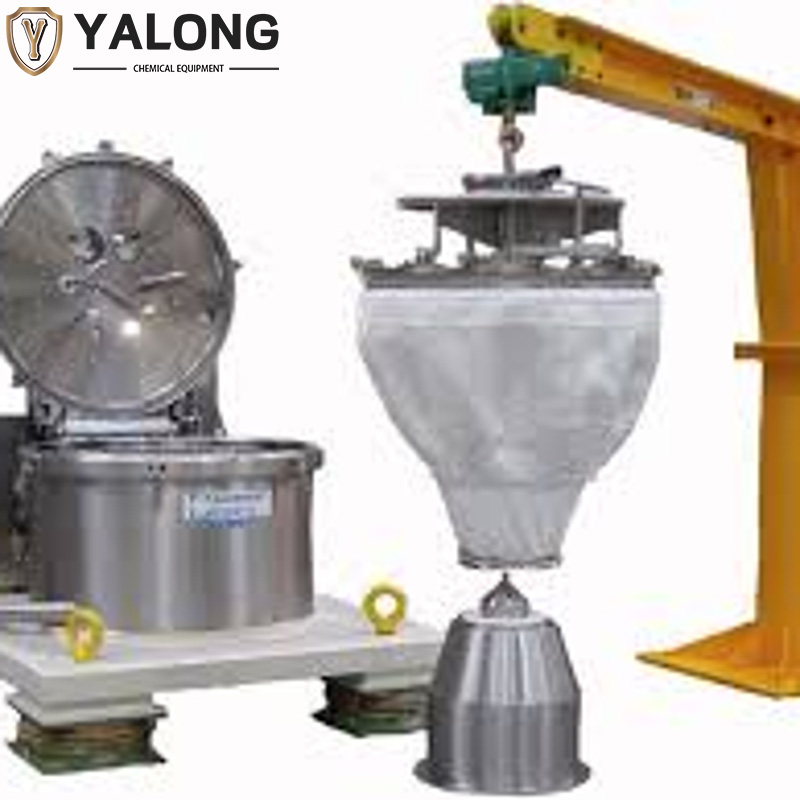

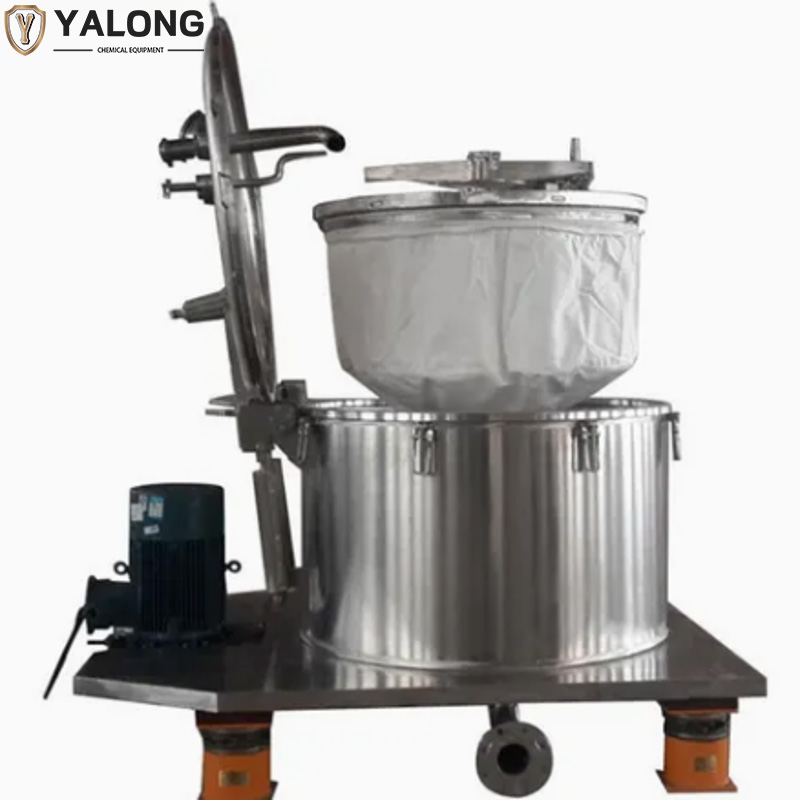

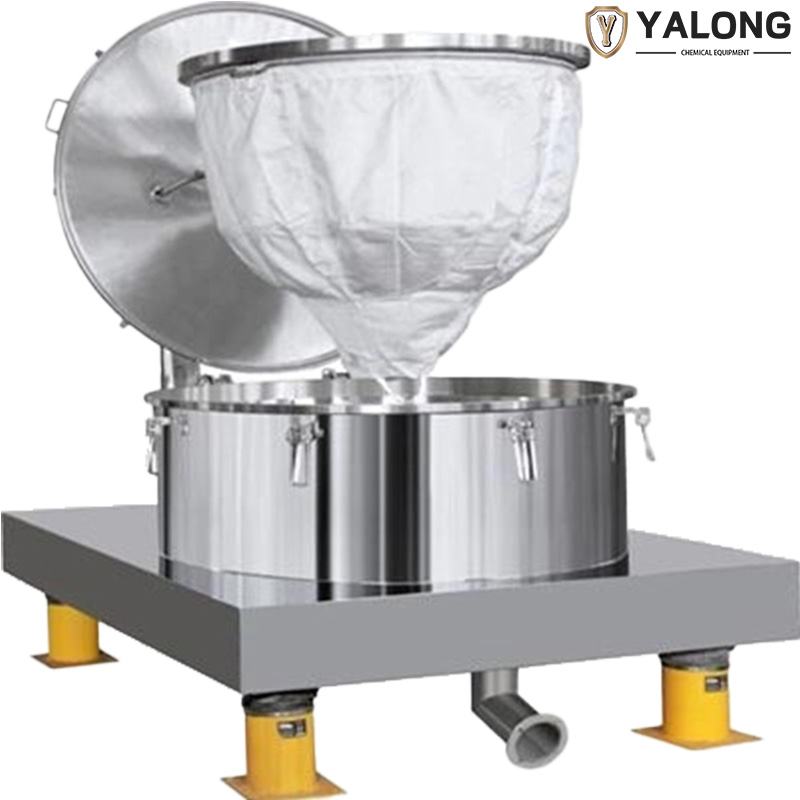

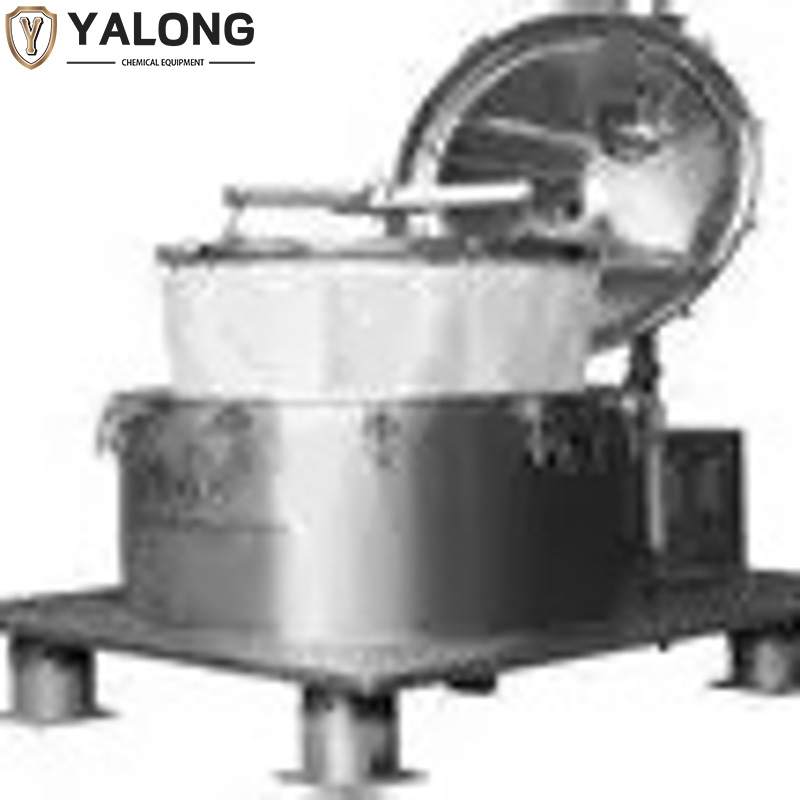

The platform structure of the L(P)D series bag-type centrifugal separator with upper discharge is that the shell and the flat plate are welded together. The shell cover and the shell adopt a flange connection quick-opening structure. The opening of the shell cover is assisted by a balance cylinder (spring). The shell cover is equipped with feeding pipes, cleaning pipes, sight glasses, observation lights, air vents, etc. The external connection ports all use standard baskets. The discharging method is that the shell cover is opened, and the filter bag is lifted as a whole through the cantilever to the drum for feeding.
描述
Application Case
Widely applicable, it can be used for solid-liquid separation of various particle sizes, and can also be applied to solid-liquid separation of fibrous substances, such as salt, monosodium glutamate, food additives, etc. It is widely used in industries such as chemical engineering, food, pharmaceuticals, and environmental protection.
Widely applicable, it can be used for solid-liquid separation of various particle sizes, and can also be applied to solid-liquid separation of fibrous substances, such as salt, monosodium glutamate, food additives, etc. It is widely used in industries such as chemical engineering, food, pharmaceuticals, and environmental protection.
Working Principle
The motor is controlled by frequency conversion to start smoothly. The drum rotates at high speed, creating a centrifugal force field. The feeding speed, cleaning speed, and liquid removal speed can all be selected arbitrarily within a certain drum (rated speed). Under the action of the centrifugal force field, the materials are evenly distributed on the drum for liquid separation. The gaps of the liquid phase filter bag, after being thrown by the drum wall holes, fall into the cavity of the machine shell and are discharged from the liquid outlet on the base plate. The solid-phase materials are retained in the drum. The material liquid is added through the feeding pipe, and the washing water is added through the washing pipe. The feeding and washing can be controlled by a dedicated valve. After dehydration, the machine stops. The cover is opened, and the filter bags containing solid materials are lifted out of the drum by the cantilever and unloaded. After the unloading is completed, the inside of the centrifuge can be cleaned in all directions.
The motor is controlled by frequency conversion to start smoothly. The drum rotates at high speed, creating a centrifugal force field. The feeding speed, cleaning speed, and liquid removal speed can all be selected arbitrarily within a certain drum (rated speed). Under the action of the centrifugal force field, the materials are evenly distributed on the drum for liquid separation. The gaps of the liquid phase filter bag, after being thrown by the drum wall holes, fall into the cavity of the machine shell and are discharged from the liquid outlet on the base plate. The solid-phase materials are retained in the drum. The material liquid is added through the feeding pipe, and the washing water is added through the washing pipe. The feeding and washing can be controlled by a dedicated valve. After dehydration, the machine stops. The cover is opened, and the filter bags containing solid materials are lifted out of the drum by the cantilever and unloaded. After the unloading is completed, the inside of the centrifuge can be cleaned in all directions.
Main features
1. The quick-installation type bag discharge method is adopted, making the operation convenient, fast and labor-saving.
2. The machine cover opening is equipped with a mechanical balancer for assistance.
3. It has strong versatility and a wide range of applications, and the crystal grains are not easily damaged.
4. The fully enclosed structure design avoids cross-contamination of separated materials and complies with GMP standards. The internal cavity of the centrifuge is protected by nitrogen, fully meeting the requirements of a sealed and explosion-proof environment.
5. It is equipped with a variable frequency program control system, ensuring smooth startup.
6. It uses a large machine cover, making the discharge convenient.
7. The inner and outer surfaces are polished, with no dead corners and all in smooth transitions. It is equipped with online cleaning (material cleaning, machine cleaning) to achieve the best washing effect.
2. The machine cover opening is equipped with a mechanical balancer for assistance.
3. It has strong versatility and a wide range of applications, and the crystal grains are not easily damaged.
4. The fully enclosed structure design avoids cross-contamination of separated materials and complies with GMP standards. The internal cavity of the centrifuge is protected by nitrogen, fully meeting the requirements of a sealed and explosion-proof environment.
5. It is equipped with a variable frequency program control system, ensuring smooth startup.
6. It uses a large machine cover, making the discharge convenient.
7. The inner and outer surfaces are polished, with no dead corners and all in smooth transitions. It is equipped with online cleaning (material cleaning, machine cleaning) to achieve the best washing effect.
其他信息
| 重量 | 950 磅 |
|---|
