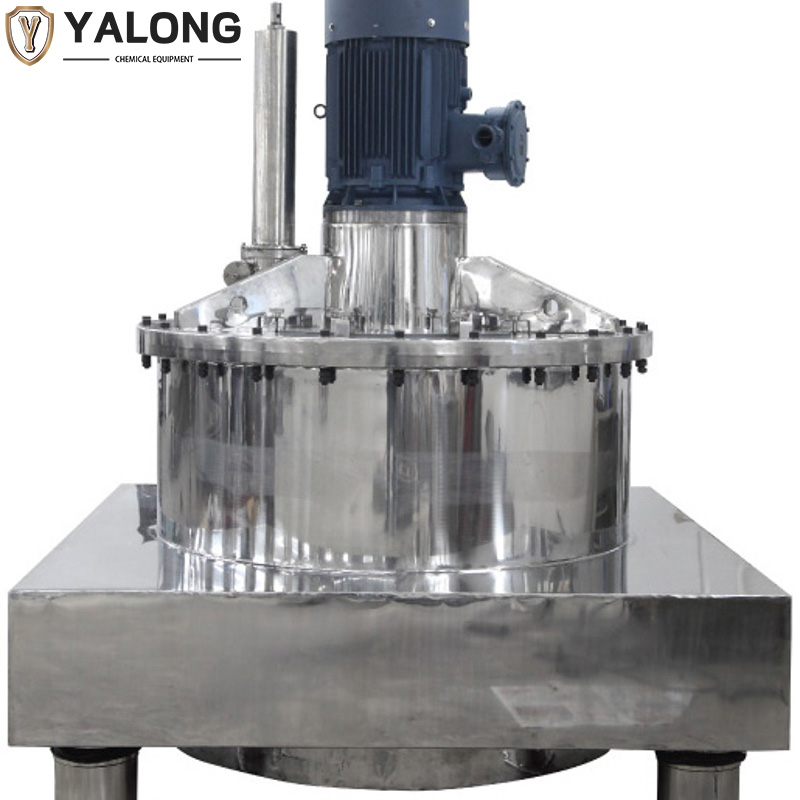

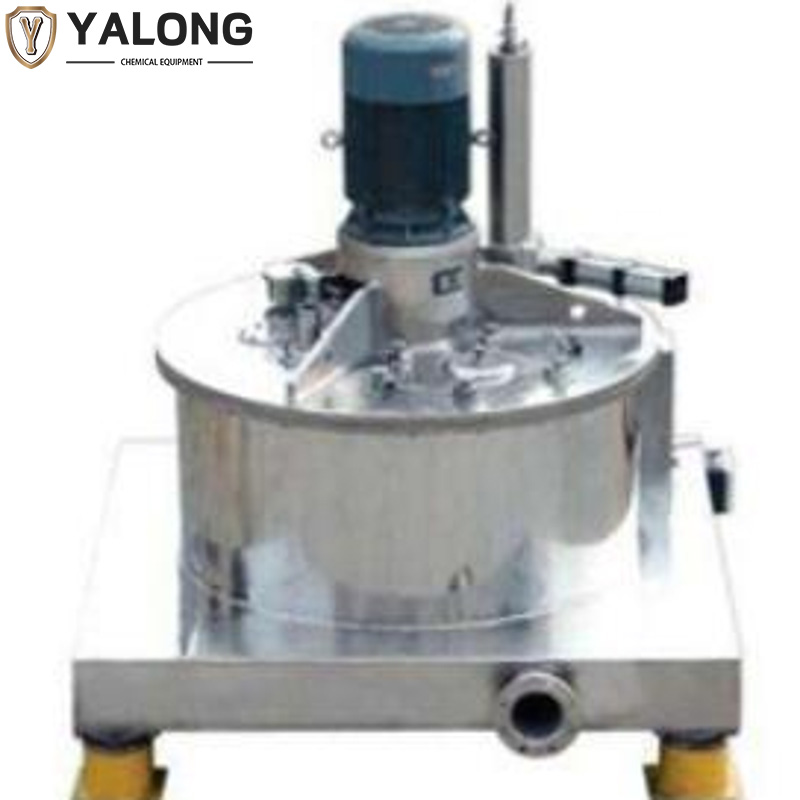

L(P)GZ(MDL) series motor-mounted direct-connection scraper bottom-discharge centrifuge
$50,000.00a set of
High-Efficiency Centrifuge for Gypsum and Ammonium Sulfate Processing

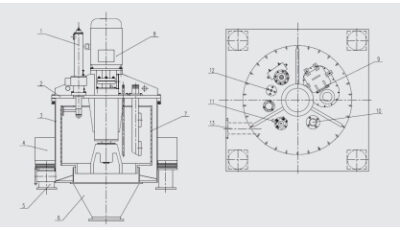

The L(P)GZ(MDL) series of motor-mounted direct-connection scraper-bottom discharge centrifuges are a type of fully automatic centrifuge. They can achieve full-process automation through PLC control. The transmission system is located at the top and is driven by a vertical motor through a coupling to rotate the main shaft. The drum is fixed at the lower end of the main shaft.
描述
Application Case
The application scope is extensive, and it is used in various chemical industries such as gypsum, ammonium sulfate, copper sulfate, potassium chloride, borax, fuel, resin, and pesticides.
The application scope is extensive, and it is used in various chemical industries such as gypsum, ammonium sulfate, copper sulfate, potassium chloride, borax, fuel, resin, and pesticides.
Working principle
The L(P)GZ(MDL) series of motor-mounted direct-connection scraper bottom-discharge centrifuges can achieve complete and automatic solid-liquid separation. Before the centrifuge starts running, it can be quickly purged with nitrogen inside the centrifuge. Once the centrifuge is powered on, the drum begins to rotate. When the set feed speed is reached, the motor-mounted direct-connection centrifuge cannot install the feeder. The solid-liquid mixture is fed through the lateral feeding pipe. The drum increases its speed to the separation speed, and the solid-liquid mixture undergoes high-speed dehydration. The liquid passes through the pores of the filter cloth and is discharged through the discharge pipe. After dehydration, the drum slows down to the discharge speed, and the centrifuge scraper discharges the material. The material is transferred from the discharge chute at the bottom of the centrifuge to outside the machine.
The L(P)GZ(MDL) series of motor-mounted direct-connection scraper bottom-discharge centrifuges can achieve complete and automatic solid-liquid separation. Before the centrifuge starts running, it can be quickly purged with nitrogen inside the centrifuge. Once the centrifuge is powered on, the drum begins to rotate. When the set feed speed is reached, the motor-mounted direct-connection centrifuge cannot install the feeder. The solid-liquid mixture is fed through the lateral feeding pipe. The drum increases its speed to the separation speed, and the solid-liquid mixture undergoes high-speed dehydration. The liquid passes through the pores of the filter cloth and is discharged through the discharge pipe. After dehydration, the drum slows down to the discharge speed, and the centrifuge scraper discharges the material. The material is transferred from the discharge chute at the bottom of the centrifuge to outside the machine.
Main features
1. The motor is of the top-mounted type. The motor is directly connected to the main shaft through a coupling, eliminating the defect in conventional transmission methods where belt friction causes dust pollution. .
2. Controlled by PLC, operates automatically.
3. The centrifuge housing and base are welded together, featuring high strength, simple structure and compact design.
4. Equipped with liquid damping shock absorbers, the operation is more stable and there is no need for foundation installation.
5. Utilizing variable frequency speed control, the start-up is stable and can effectively protect the motor from overload damage.
6. The entire structure is airtight, without odor pollution.
2. Controlled by PLC, operates automatically.
3. The centrifuge housing and base are welded together, featuring high strength, simple structure and compact design.
4. Equipped with liquid damping shock absorbers, the operation is more stable and there is no need for foundation installation.
5. Utilizing variable frequency speed control, the start-up is stable and can effectively protect the motor from overload damage.
6. The entire structure is airtight, without odor pollution.
其他信息
| 重量 | 5800 磅 |
|---|---|
| 尺寸 | 2000 × 2000 × 2266 英寸 |
| Diameter of the drum (mm) |
1250~1600 |
| Belt drum height (mm) |
630~1000 |
| Rotary drum volume (L) |
350~1000 |
| Loading limit (kg) |
450~1300 |
| Maximum rotational speed (r/min) |
970~850 |
| The maximum separation factor |
657~605 |
