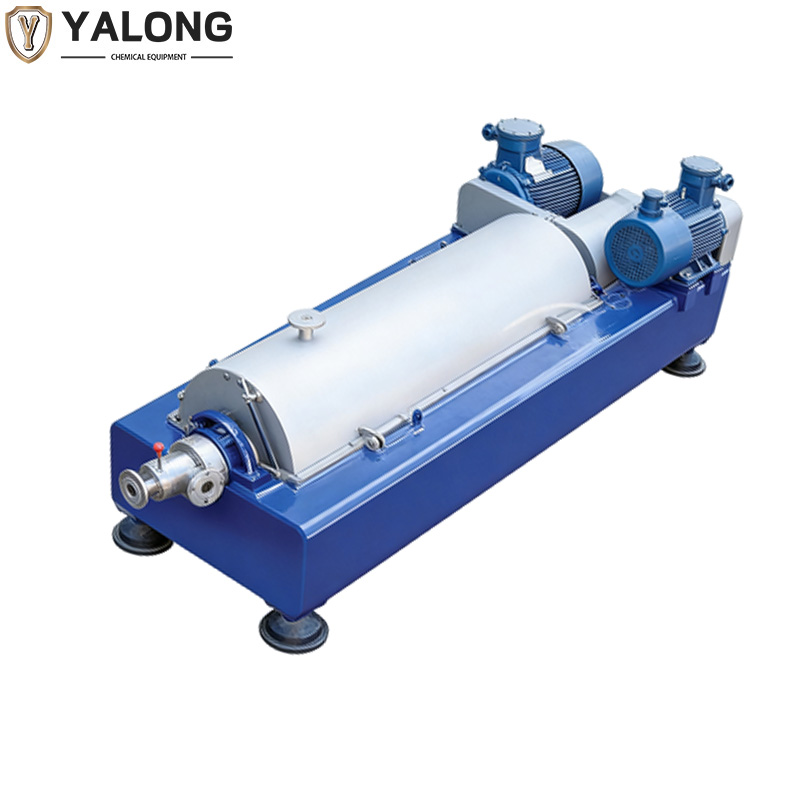

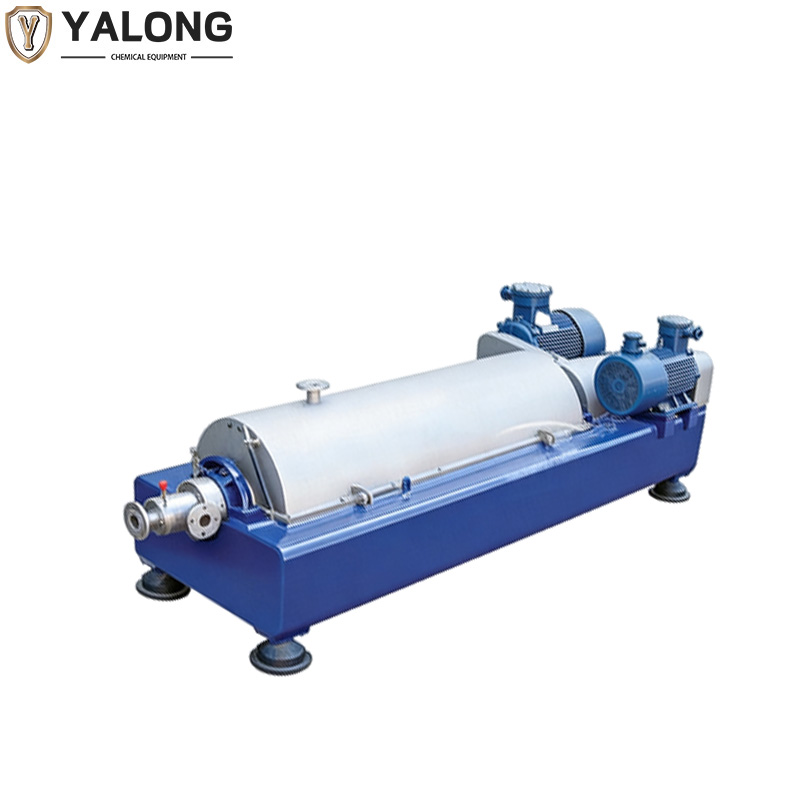

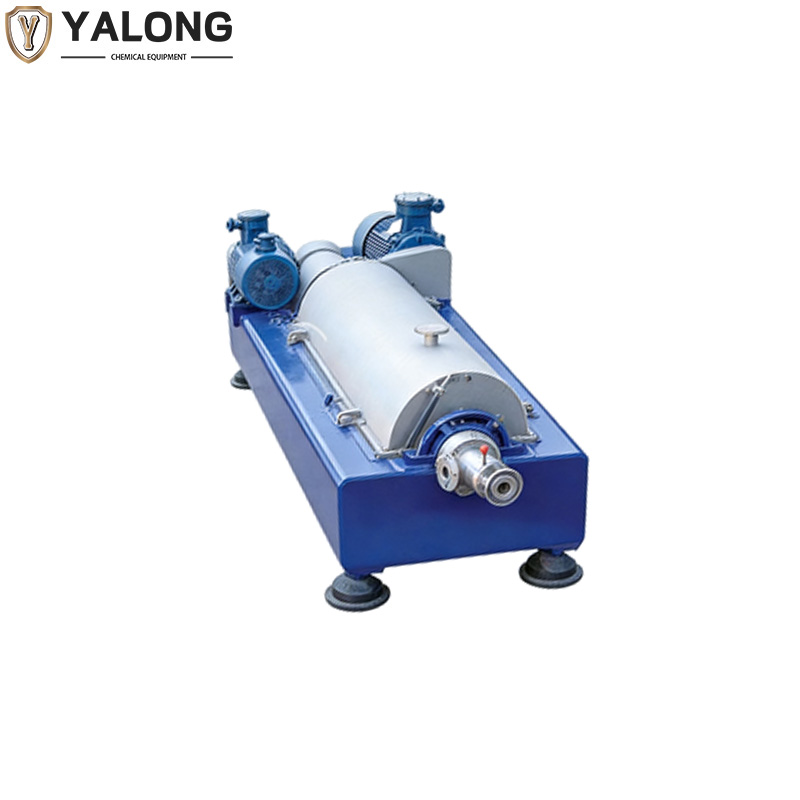

Lwfx Horizontal Spiral Discharge Sedimentation Centrifuge
$50,000.00a set of
描述
Application fields
This model is mainly used in flammable and explosive environments in industries such as chemical engineering, petrochemicals, and pharmaceuticals. During the solid-liquid separation process, it is necessary to prevent any gas leakage into the external air or for external air to enter the machine and cause an explosion that may occur during solid-liquid separation. The airtight seal with automatic compensation function forms a micro-positive pressure dynamic sealed space inside the centrifuge during its operation, achieving a good sealed explosion-proof effect.
Unique sealing structure
1.Open type seal
Used in separation scenarios where the internal materials or gases do not escape into the environment,
and where it is not necessary to separate the centrifuge drum from the ambient atmosphere.
Used in separation scenarios where the internal materials or gases do not escape into the environment,
and where it is not necessary to separate the centrifuge drum from the ambient atmosphere.
2.Sealing by gas tightness
Used in situations where the process medium will be emitted and pollute the atmosphere or where it is undesirable for the process medium to come into contact with the atmosphere.
Used in situations where the process medium will be emitted and pollute the atmosphere or where it is undesirable for the process medium to come into contact with the atmosphere.
3.Airtight seal
In the sealed areas of the machine, inert gas is added to ensure safe operation in cases involving toxic, corrosive or flammable media.
In the sealed areas of the machine, inert gas is added to ensure safe operation in cases involving toxic, corrosive or flammable media.

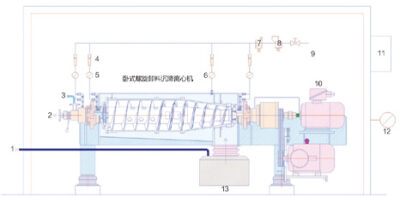

1. After use, the nitrogen with impurities is discharged.
2. Feed
3. Liquid pressure discharge
4. Flow meter
5. Differential pressure gauge
8. Pressure reducing valve
6. Pressure gauge
7. Electromagnetic valve
9. Nitrogen gas source
10. Explosion-proof motor
11. Environmental hazardous gas detection instrument
12. Environmental gas pressure
13. Solid discharge
Safety:
Multiple drive and sealing structures,
achieving full explosion-proof function
Centrifugal casting drum, higher strength
Various wear-resistant protection measures.
achieving full explosion-proof function
Centrifugal casting drum, higher strength
Various wear-resistant protection measures.
Multiple safety protection mechanisms
Stability:
Continuous operation, fully automatic control
Greater length-to-diameter ratio, better liquid phase effect
Configurable CIP online cleaning device
Greater length-to-diameter ratio, better liquid phase effect
Configurable CIP online cleaning device
其他信息
| Bowl Diameter |
350 |
|---|---|
| L/D |
4.17 |
| Bowl Speed |
4000 |
| Separation Factor |
3130 |
| Power of Driving Motor |
22-30 |
| Weight |
2250 |
| Dimension (LxWxH) |
3450x1010x1030 |
