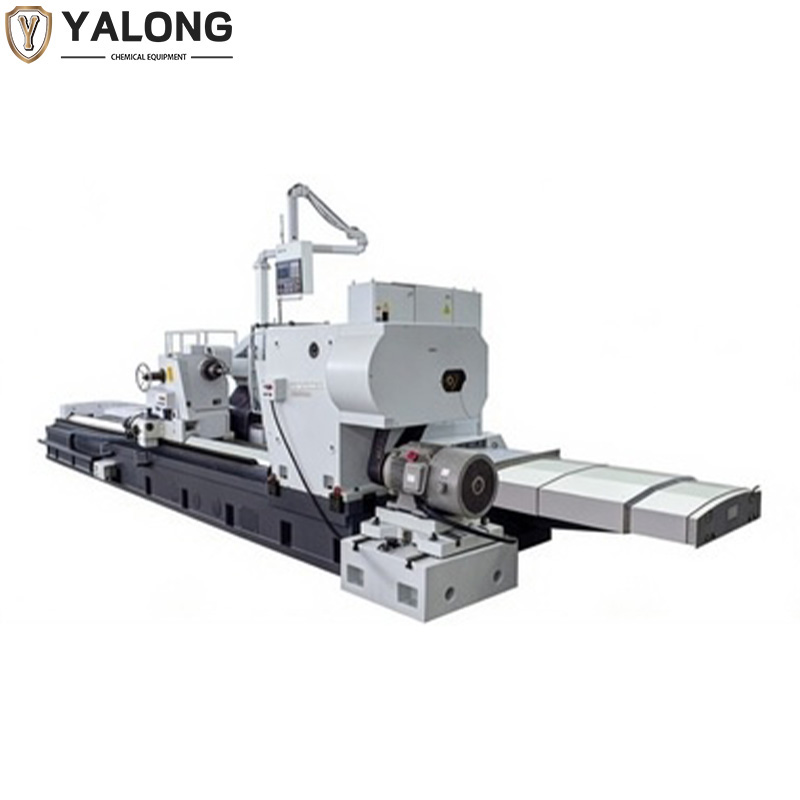

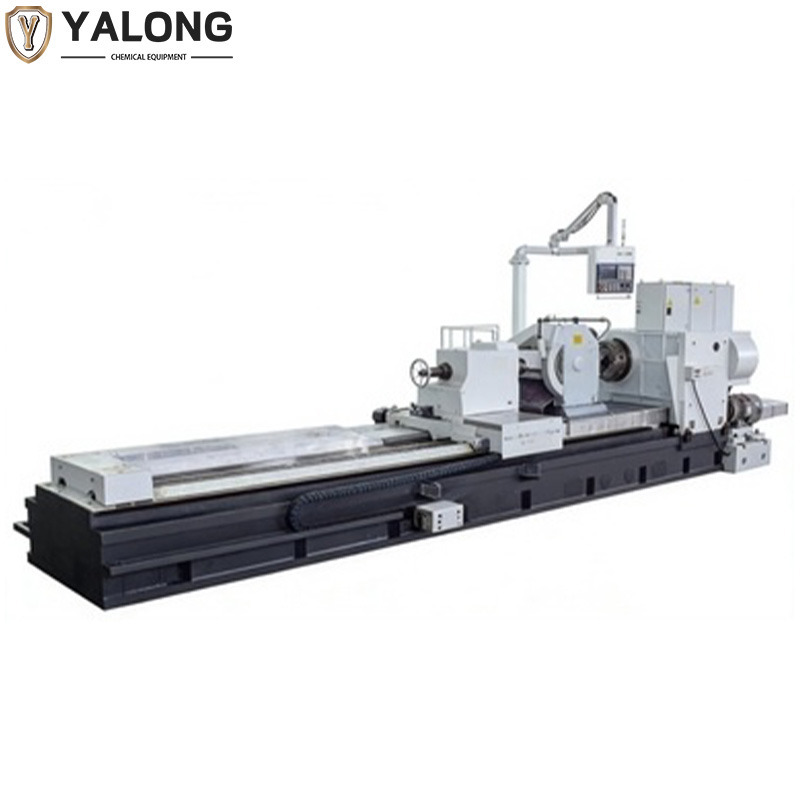

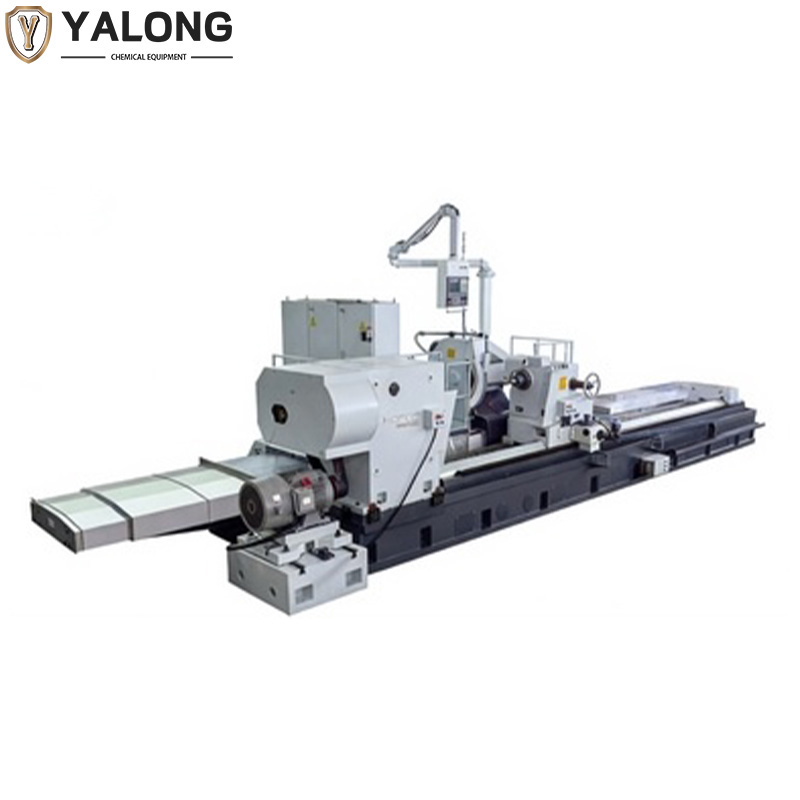

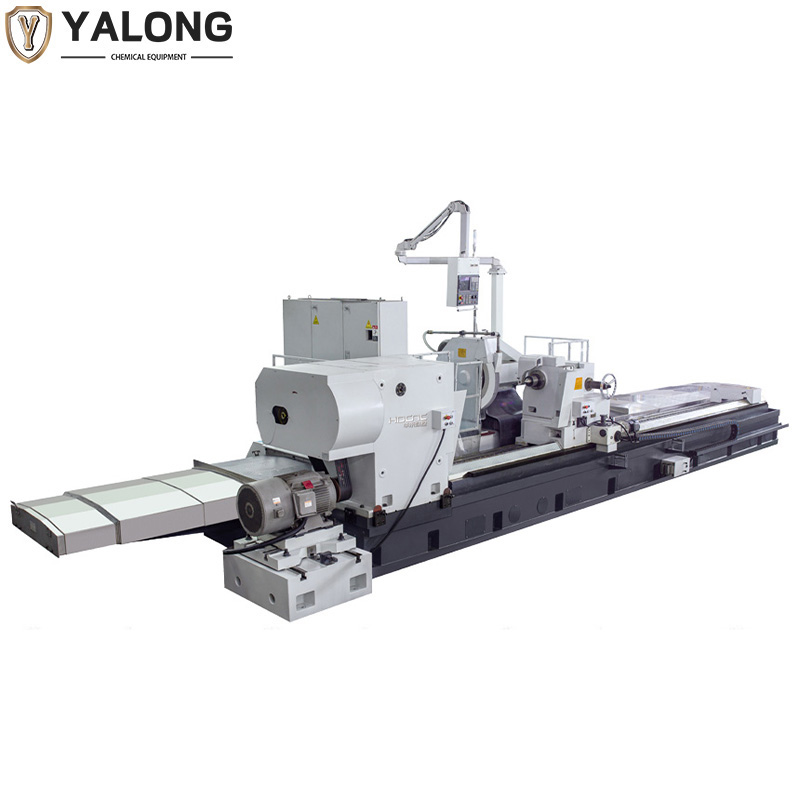

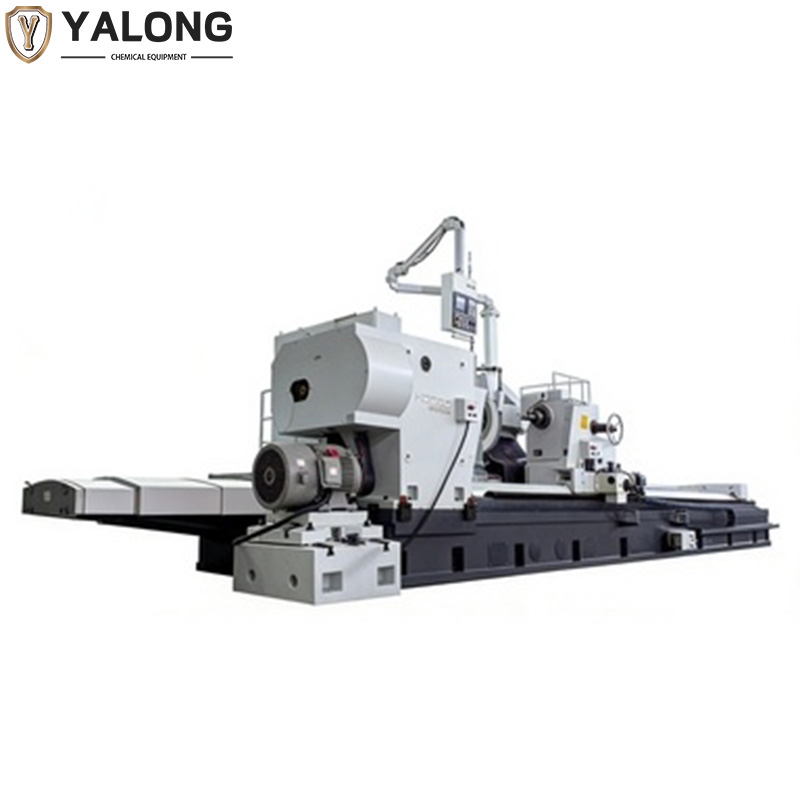

MC(K)W1380AV Mobile External Grinding Machine with Grinding Wheel Holder
$50,000.00a set of
Mobile grinding machine for external cylindrical grinding using a grinding wheel holder
MCW represents the programmed control grinding machine, MKW represents the numerical control grinding machine, MCD represents the programmed control top grinding machine, and MKD represents the numerical control top grinding machine.
Top grinding machines can grind heavy parts by using the top grinding method. They are easy to operate and have high efficiency.
Top grinding machines can grind heavy parts by using the top grinding method. They are easy to operate and have high efficiency.
描述
product feature
MCW represents the programmed control grinding machine, MKW represents the numerical control grinding machine, MCD represents the programmed control top grinding machine, and MKD represents the numerical control top grinding machine.
Top grinding machines can grind heavy parts by using the top grinding method. They are easy to operate and have high efficiency.
The structure of the machine tool adopts the structure of a grinding machine with a moving grinding wheel frame. The workpiece only moves in a rotational motion, while the grinding wheel frame carriage (Z-axis) moves longitudinally on the carriage bed.
The grinding wheel frame (X-axis) moves laterally on the carriage, and the operation position is arranged in the structure on the carriage. The MCW1380A series cylindrical grinding machines have a bed structure where the workpiece bed and the carriage bed are cast as one piece. For cylindrical grinding machines with a diameter of 800mm or above, a structure where the workpiece bed and the carriage bed are separated is used.
The longitudinal Z-axis transmission part of the carriage is driven by a servo motor and a gear rack transmission. For numerical control machine tools with a length of 5 meters or less, a servo motor-driven ball screw transmission is used.
The X-axis of the grinding wheel frame is all driven by a servo motor and a ball screw transmission.
. The longitudinal guide rails of the table and the transverse guide rails of the grinding wheel carriage are all of non-load-bearing static pressure type. The low-speed movement is smooth.
The main spindle of the grinding wheel carriage adopts a high-stiffness dynamic and static pressure main spindle, with high rotational accuracy, good rigidity and high grinding quality.
The main spindles of the headstock and tailstock of the top grinding machine are all of rotating live spindle structure. The spindles are supported by ultra-precision rolling bearings and lubricated with strong grease. The positioning accuracy is high and the load-bearing capacity is large.
The rotational accuracy of the top grinding machine is completely guaranteed by the high-precision bearings selected for the headstock and tailstock. Therefore, the grinding quality is high.
The top grinding machine can be equipped with a four-jaw chuck, enabling one clamping and one supporting for grinding.
Top grinding machines can grind heavy parts by using the top grinding method. They are easy to operate and have high efficiency.
The structure of the machine tool adopts the structure of a grinding machine with a moving grinding wheel frame. The workpiece only moves in a rotational motion, while the grinding wheel frame carriage (Z-axis) moves longitudinally on the carriage bed.
The grinding wheel frame (X-axis) moves laterally on the carriage, and the operation position is arranged in the structure on the carriage. The MCW1380A series cylindrical grinding machines have a bed structure where the workpiece bed and the carriage bed are cast as one piece. For cylindrical grinding machines with a diameter of 800mm or above, a structure where the workpiece bed and the carriage bed are separated is used.
The longitudinal Z-axis transmission part of the carriage is driven by a servo motor and a gear rack transmission. For numerical control machine tools with a length of 5 meters or less, a servo motor-driven ball screw transmission is used.
The X-axis of the grinding wheel frame is all driven by a servo motor and a ball screw transmission.
. The longitudinal guide rails of the table and the transverse guide rails of the grinding wheel carriage are all of non-load-bearing static pressure type. The low-speed movement is smooth.
The main spindle of the grinding wheel carriage adopts a high-stiffness dynamic and static pressure main spindle, with high rotational accuracy, good rigidity and high grinding quality.
The main spindles of the headstock and tailstock of the top grinding machine are all of rotating live spindle structure. The spindles are supported by ultra-precision rolling bearings and lubricated with strong grease. The positioning accuracy is high and the load-bearing capacity is large.
The rotational accuracy of the top grinding machine is completely guaranteed by the high-precision bearings selected for the headstock and tailstock. Therefore, the grinding quality is high.
The top grinding machine can be equipped with a four-jaw chuck, enabling one clamping and one supporting for grinding.
其他信息
| Distance between centers |
5000,6000,8000,100D0 |
|---|---|
| Dia, Ground(O.D) |
100-800 |
| Max. length ground(O.D) |
5000,6000,8000,10000 |
| Maxground weight between center |
2000 |
| Max.ground weight with support rest |
6000(10000) |
| Range of rest supporting |
100-260/260-400/400-600 |
