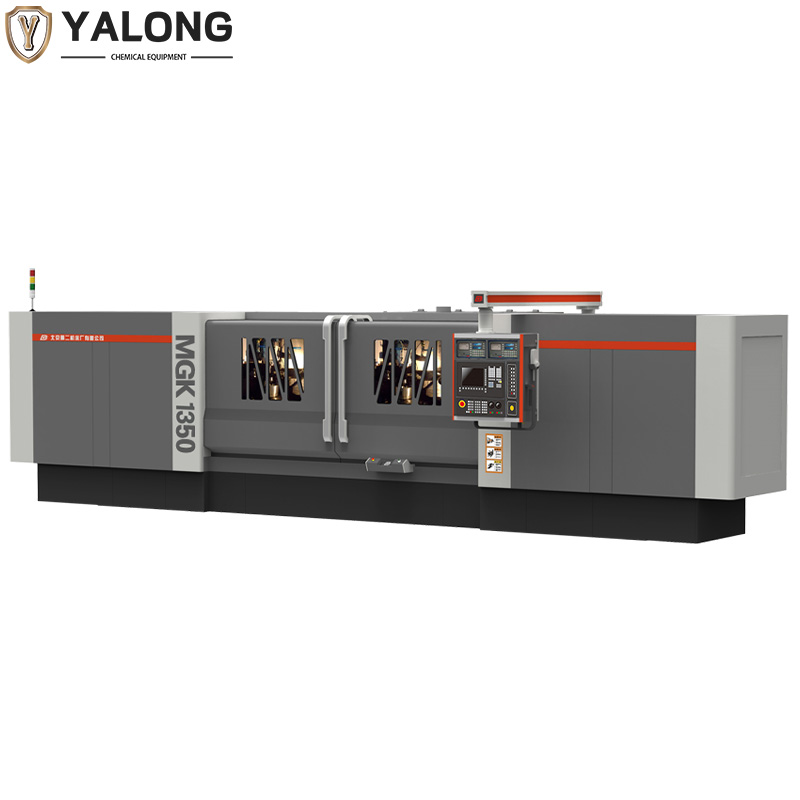

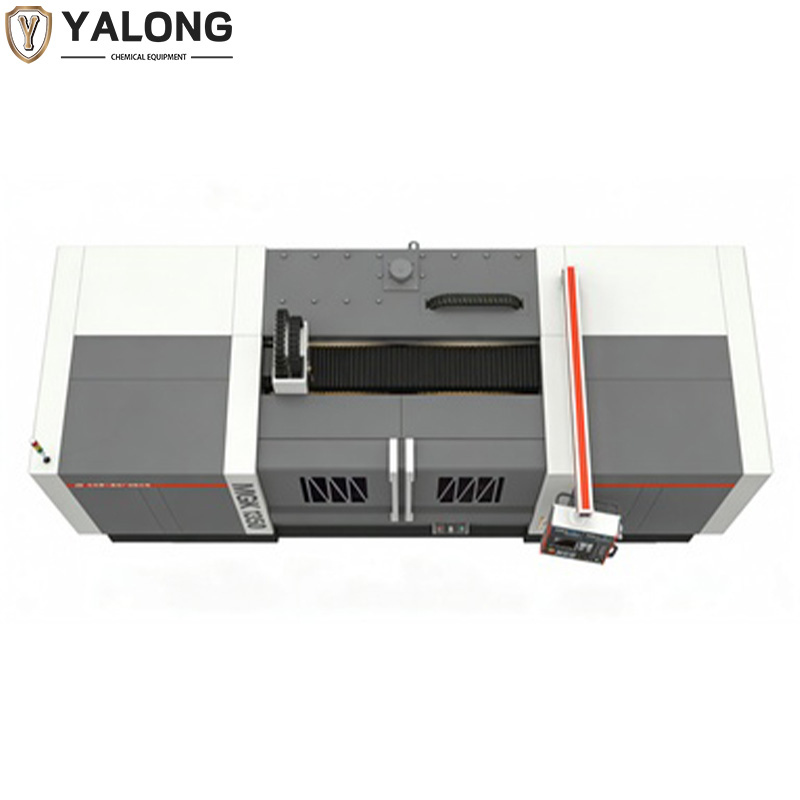

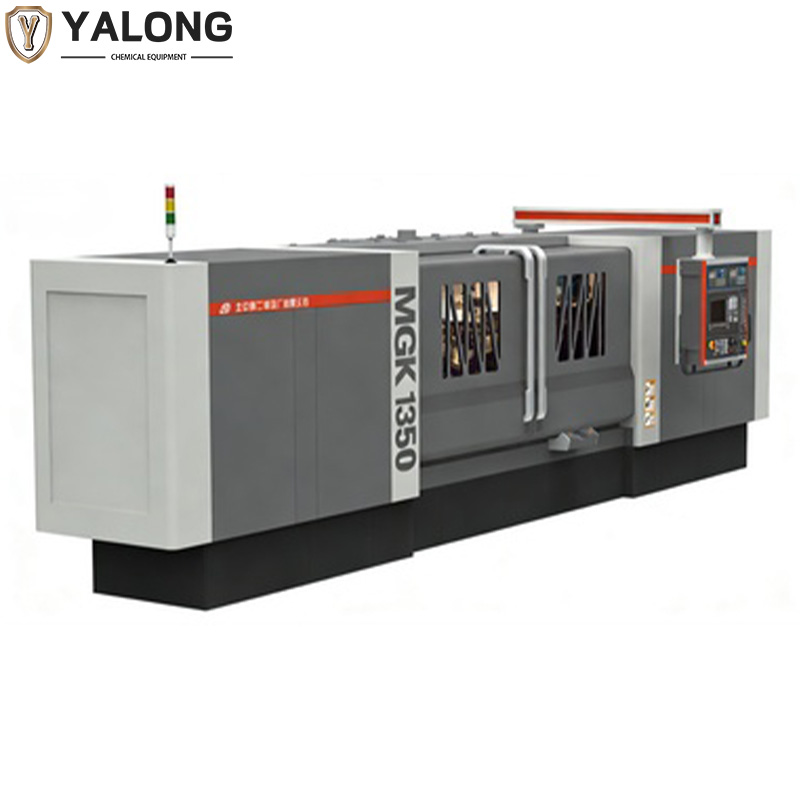

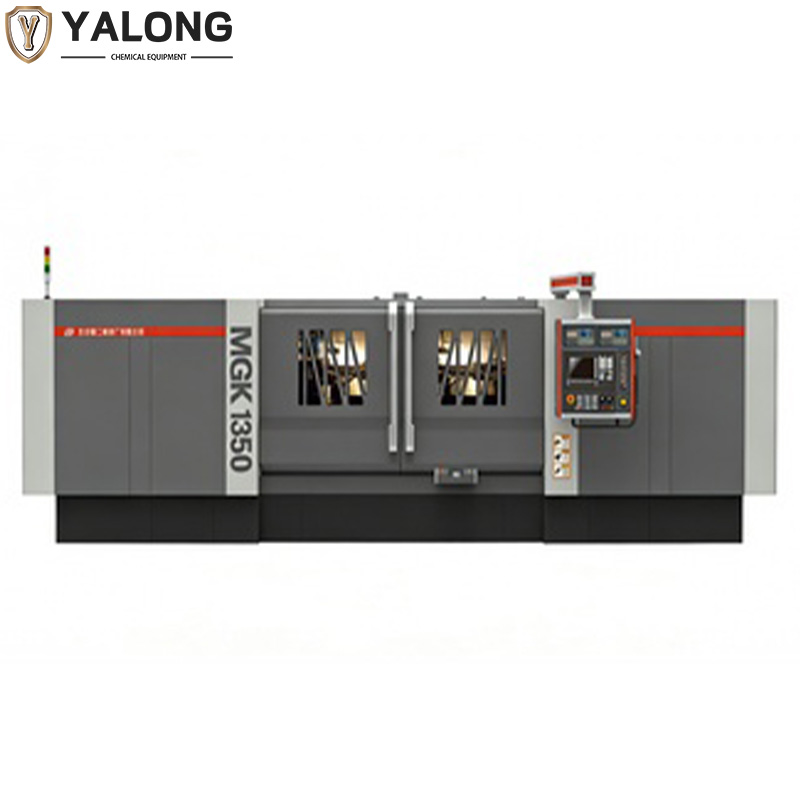

MGK1363 High Precision CNC External Grinding Machine

The MGK1363 and MGK1463 high-precision CNC (universal) cylindrical grinding machines are advanced CNC machine tools developed based on years of design and manufacturing experience of CNC grinding machines, as well as new technologies. They feature generalization, modularization, high rigidity, high adaptability, and are suitable for precision processing of large components such as machine tool spindles, shafts, and gear shafts. They are easy to operate and have reliable performance:
Overall protection, convenient maintenance in line with ergonomic requirements,
The grinding wheel spindle adopts a sleeve-type dynamic and static pressure spindle system, featuring high rotational accuracy and strong rigidity.
Two-axis feed, the worktable (Z-axis) and the grinding wheel holder (X-axis) are driven by AC servo-ball screw pairs, with the minimum setting unit being 0.1 um, and the maximum rapid feed speed reaching 5 m/min.
Various forms of diamond dressing devices (installed on the rear side of the headstock) can be selected to achieve precise dressing of complex grinding wheel surfaces, and automatic compensation.
Equipped with an active measurement device to achieve full closed-loop control in grinding processing,
Using a CNC system, it has comprehensive control functions such as program transformation during the grinding process, workpiece quality management, machine status monitoring, self-diagnosis of faults and abnormal alarms, and menu-style interface input is simple.
