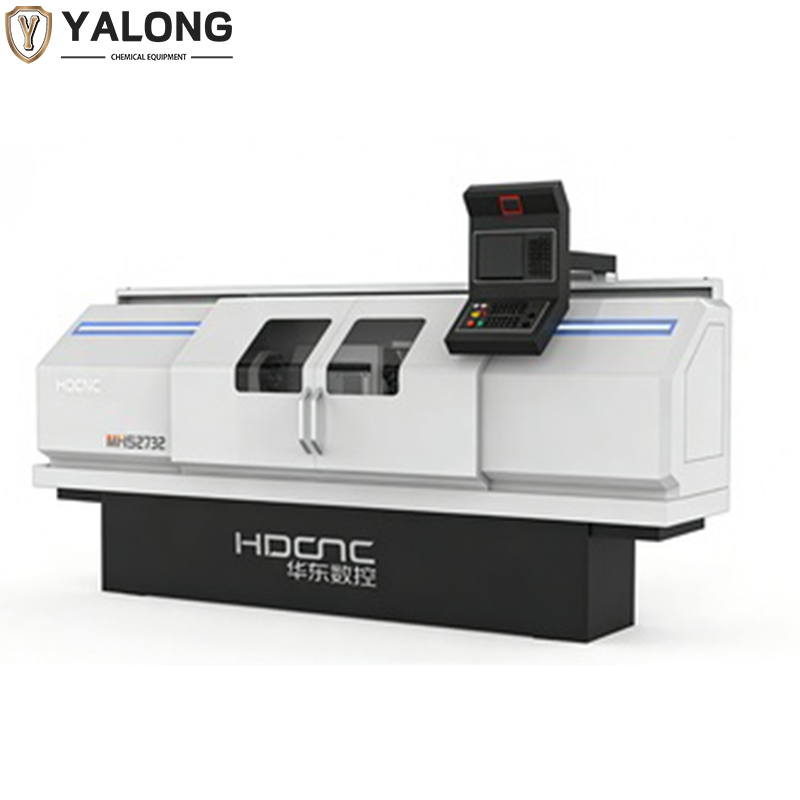

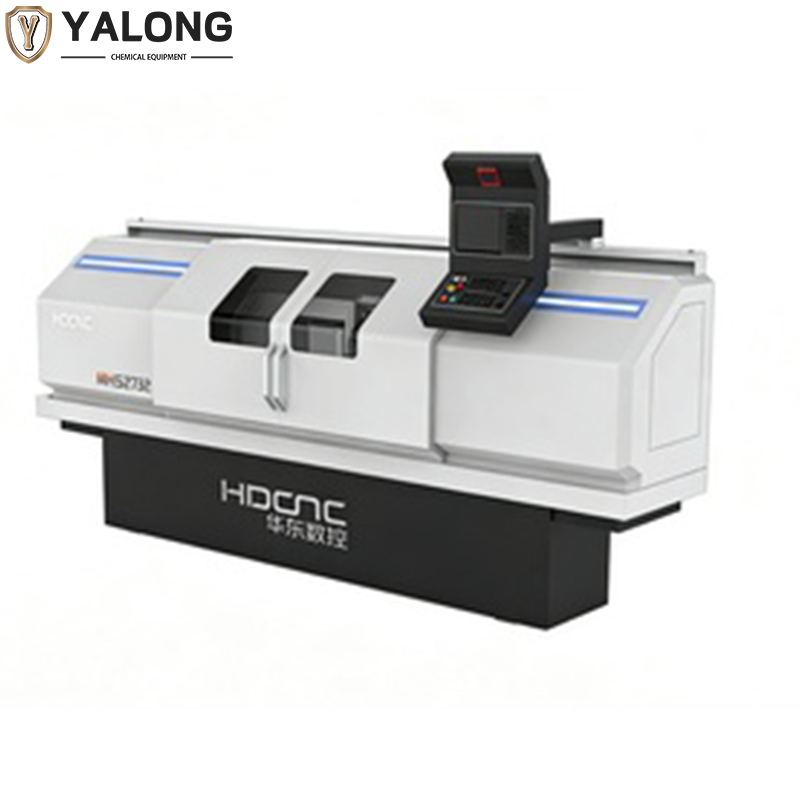

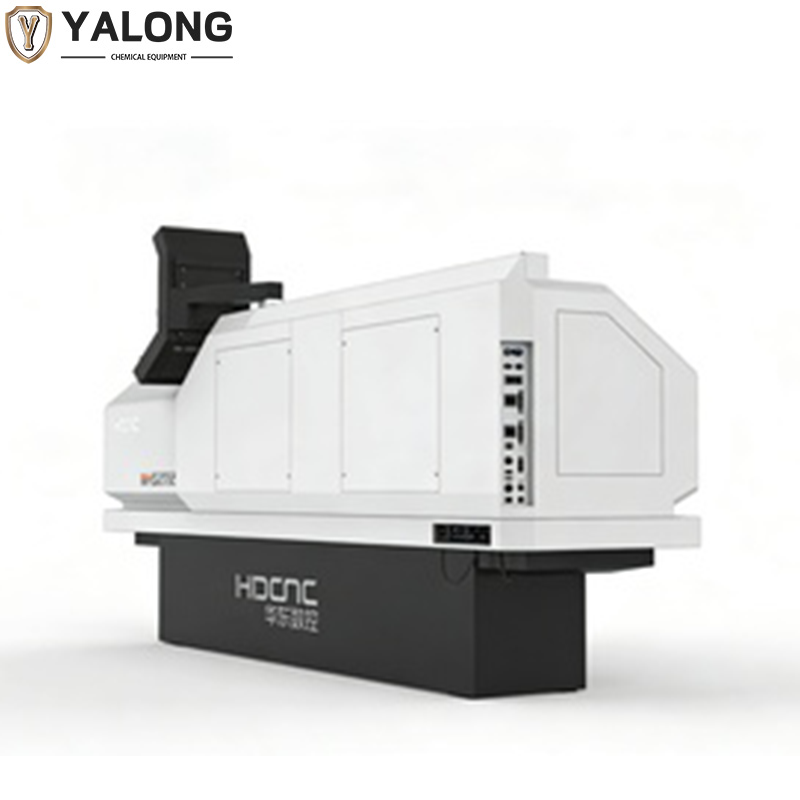

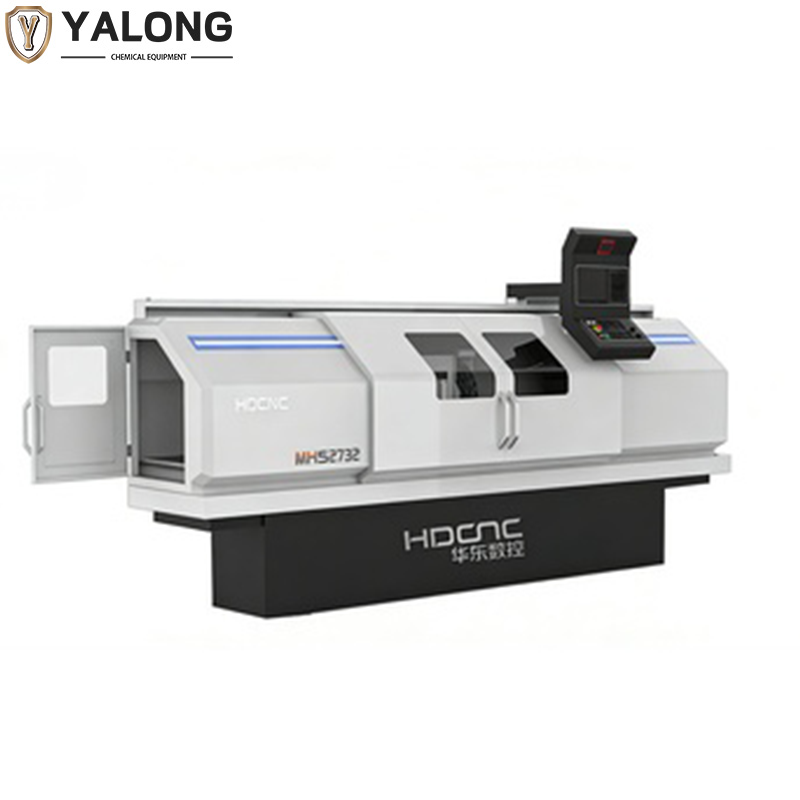

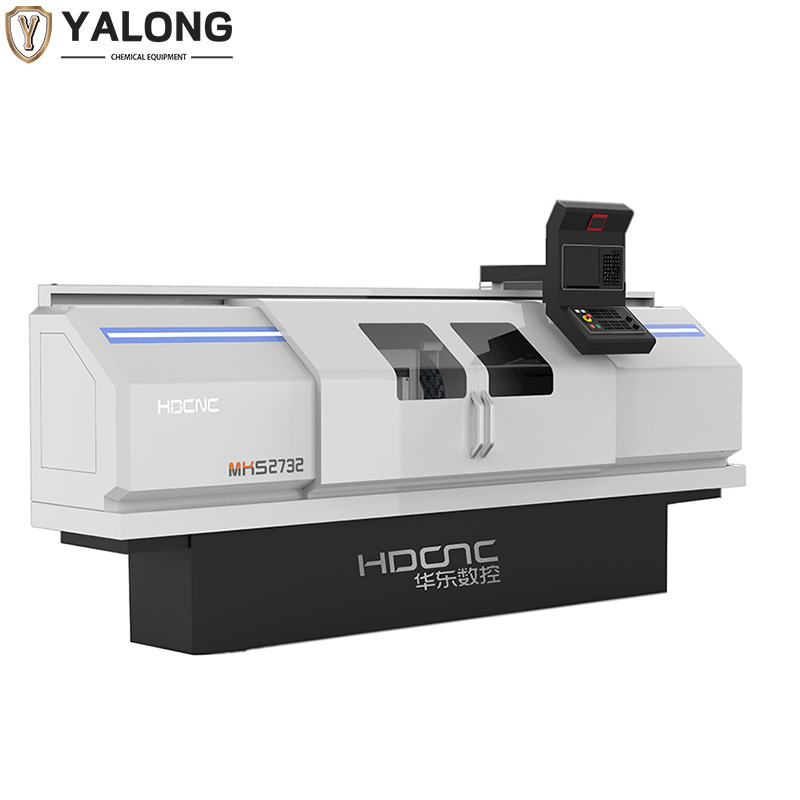

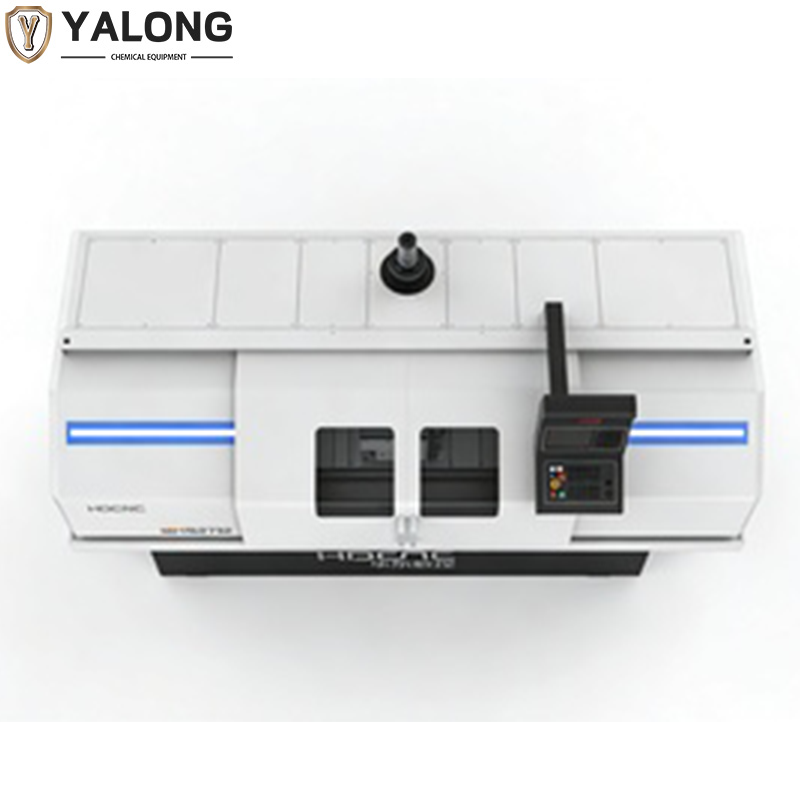

MKS2720X500 Type CNC Rotary Tower Multi-functional Grinding Machine
$50,000.00a set of
product feature
1.1 The machine tool adopts a compound box-type structure, with high-strength low-stress castings, resulting in small thermal deformation and excellent stability.
1.2 The Z-axis guide rail employs static pressure guide technology, featuring high rigidity and no crawling at low speeds; the X-axis uses imported pre-pressed linear guide technology, with large load-bearing capacity and high sensitivity.
1.3 The outer circle grinding wheel spindle is equipped with an imported well-known brand grinding motor spindle, which can be configured with two outer circle grinding wheels simultaneously, featuring high rigidity and large torque; the inner circle grinding wheel motor spindle is equipped with a domestic well-known brand.
1.4 The headstock adopts a high-precision live and dead dual-purpose headstock structure, and the tailstock adopts a pre-pressed bearing tailstock, providing overall good rigidity, suitable for grinding processes.
1.5 The tool turret can be equipped with a DDR direct-drive turret, with a standard T4 position turret, meeting both rigidity requirements and precision requirements.
1.6 The standard configuration includes a domestic Huazhong numerical control system, with stable performance, a dedicated grinding interface, convenient operation, and high cost-effectiveness.
1.2 The Z-axis guide rail employs static pressure guide technology, featuring high rigidity and no crawling at low speeds; the X-axis uses imported pre-pressed linear guide technology, with large load-bearing capacity and high sensitivity.
1.3 The outer circle grinding wheel spindle is equipped with an imported well-known brand grinding motor spindle, which can be configured with two outer circle grinding wheels simultaneously, featuring high rigidity and large torque; the inner circle grinding wheel motor spindle is equipped with a domestic well-known brand.
1.4 The headstock adopts a high-precision live and dead dual-purpose headstock structure, and the tailstock adopts a pre-pressed bearing tailstock, providing overall good rigidity, suitable for grinding processes.
1.5 The tool turret can be equipped with a DDR direct-drive turret, with a standard T4 position turret, meeting both rigidity requirements and precision requirements.
1.6 The standard configuration includes a domestic Huazhong numerical control system, with stable performance, a dedicated grinding interface, convenient operation, and high cost-effectiveness.

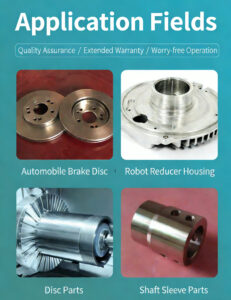

Application fields
Automotive brake discs, disc-type parts, robot reducer housing, shaft core sleeves
描述
product feature
1.1 The machine tool adopts a compound box-type structure, with high-strength low-stress castings, resulting in small thermal deformation and excellent stability.
1.2 The Z-axis guide rail employs static pressure guide technology, featuring high rigidity and no crawling at low speeds; the X-axis uses imported pre-pressed linear guide technology, with large load-bearing capacity and high sensitivity.
1.3 The outer circle grinding wheel spindle is equipped with an imported well-known brand grinding motor spindle, which can be configured with two outer circle grinding wheels simultaneously, featuring high rigidity and large torque; the inner circle grinding wheel motor spindle is equipped with a domestic well-known brand.
1.4 The headstock adopts a high-precision live and dead dual-purpose headstock structure, and the tailstock adopts a pre-pressed bearing tailstock, providing overall good rigidity, suitable for grinding processes.
1.5 The tool turret can be equipped with a DDR direct-drive turret, with a standard T4 position turret, meeting both rigidity requirements and precision requirements.
1.6 The standard configuration includes a domestic Huazhong numerical control system, with stable performance, a dedicated grinding interface, convenient operation, and high cost-effectiveness.
1.2 The Z-axis guide rail employs static pressure guide technology, featuring high rigidity and no crawling at low speeds; the X-axis uses imported pre-pressed linear guide technology, with large load-bearing capacity and high sensitivity.
1.3 The outer circle grinding wheel spindle is equipped with an imported well-known brand grinding motor spindle, which can be configured with two outer circle grinding wheels simultaneously, featuring high rigidity and large torque; the inner circle grinding wheel motor spindle is equipped with a domestic well-known brand.
1.4 The headstock adopts a high-precision live and dead dual-purpose headstock structure, and the tailstock adopts a pre-pressed bearing tailstock, providing overall good rigidity, suitable for grinding processes.
1.5 The tool turret can be equipped with a DDR direct-drive turret, with a standard T4 position turret, meeting both rigidity requirements and precision requirements.
1.6 The standard configuration includes a domestic Huazhong numerical control system, with stable performance, a dedicated grinding interface, convenient operation, and high cost-effectiveness.
Application fields
Automotive brake discs, disc-type parts, robot reducer housing, shaft core sleeves
其他信息
| height of center |
180mm |
|---|---|
| The grinding diameter range of the outer cylindrical specimen |
Φ8~Φ200mm |
| The maximum grinding length of the outer cylindrical specimen |
500mm |
| The grinding hole diameter range of the inner circular specimen |
Φ10~Φ80mm |
| Inner circle specimen grinding hole diameter depth |
125mm |
| Minimum feed rate of the grinding wheel holder |
0.0005mm |
| Minimum feed rate of the worktable |
0.001mm |
| Minimum resolution of X/Z axis drive servo system |
0.0001mm |
