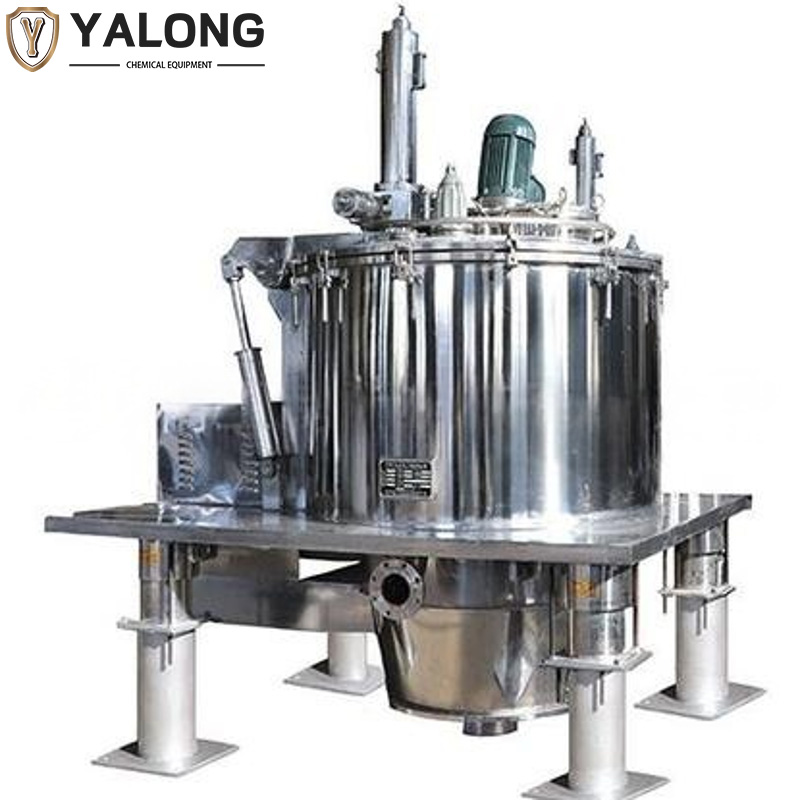

PLD scraper-type down-discharge centrifuge (thermally insulated type)
PLD insulated type
Based on the excellent features of standard PLD products, a thermal insulation layer structure design is adopted. Low-temperature-resistant or high-temperature-resistant bearings and seals are used to meet the requirements for solid-liquid separation of materials in low-temperature or high-temperature environments. Thermal insulation layer: single-layer insulation (insulation agent filling layer) or double-layer insulation (insulation agent filling layer + cold and hot medium circulation chamber).
Based on the excellent features of standard PLD products, a thermal insulation layer structure design is adopted. Low-temperature-resistant or high-temperature-resistant bearings and seals are used to meet the requirements for solid-liquid separation of materials in low-temperature or high-temperature environments. Thermal insulation layer: single-layer insulation (insulation agent filling layer) or double-layer insulation (insulation agent filling layer + cold and hot medium circulation chamber).
描述
main application
It is mainly used for the solid-liquid separation of various solid-phase particles suspensions, and can also be used for the solid-liquid separation of fibrous materials. Especially for the separation of materials with high viscosity, fine particle size, toxicity, flammability and explosiveness. Such as: pharmaceutical products like antibiotics, vitamins, and pharmaceutical intermediates, food products like salt, monosodium glutamate, food additives, starch, sugar production, chemical seasonings, ammonium sulfate, gypsum, mirabilite, copper sulfate, potassium chloride, borax, dyes, pigments, resins, pesticide agents, etc., chemical raw materials like lithium battery ternary precursors in the new energy industry, as well as solid-liquid separation in industries such as mining, metallurgy, and environmental protection.
main feature
The filter cake removal rate is as high as over 99%.
The regeneration structure design of the filter bag effectively removes residual filter cake, avoids cross-contamination of materials, improves filtration efficiency, and extends the service life of the filter bag.
Meet GMP standards and explosion-proof requirements
The surface has high cleanliness, with a roughness of up to Ra0.2-0.4um, in line with GMP requirements.
The large flip cover or full flip cover design combined with the CIP online cleaning system enables comprehensive cleaning of the inside of the centrifuge.
The surface has high cleanliness, with a roughness of up to Ra0.2-0.4um, in line with GMP requirements.
The large flip cover or full flip cover design combined with the CIP online cleaning system enables comprehensive cleaning of the inside of the centrifuge.
Safety usage
Full processing drum, 100% weld flaw detection. Layer control device, electromechanical level detection, effectively controls the amount of material added, prevents the centrifuge from overloading, avoids material leakage, and ensures the fully automatic operation of the feeding process.
Multiple safety protections and guarantees: includes vibration protection, overcurrent protection, temperature control protection, scraper in-place protection, scraper stroke protection, opening protection, interlock protection, scraper block rotation protection, nitrogen protection, etc.
Fully enclosed structure: The material is completely isolated from the transmission, meeting the nitrogen protection requirements inside the equipment, effectively avoiding material contamination and ensuring personnel safety.
Full processing drum, 100% weld flaw detection. Layer control device, electromechanical level detection, effectively controls the amount of material added, prevents the centrifuge from overloading, avoids material leakage, and ensures the fully automatic operation of the feeding process.
Multiple safety protections and guarantees: includes vibration protection, overcurrent protection, temperature control protection, scraper in-place protection, scraper stroke protection, opening protection, interlock protection, scraper block rotation protection, nitrogen protection, etc.
Fully enclosed structure: The material is completely isolated from the transmission, meeting the nitrogen protection requirements inside the equipment, effectively avoiding material contamination and ensuring personnel safety.
Runs smoothly
Adopts liquid damping vibration reduction technology, with minimal vibration and low noise.
The box-shaped design of the base: increases the weight of the chassis, lowers the center of gravity of the centrifuge, and reduces the vibration speed. Without a foundation installation form, it effectively reduces the vibration of the centrifuge, facilitating the installation and maintenance of the machine.
The box-shaped design of the base: increases the weight of the chassis, lowers the center of gravity of the centrifuge, and reduces the vibration speed. Without a foundation installation form, it effectively reduces the vibration of the centrifuge, facilitating the installation and maintenance of the machine.
Discharge is smooth
The automatic material scraping device has functions of speed adjustment and distance adjustment. The scraper adopts various structural designs such as double-edged blades (including wear-resistant: alloy blades, wear-resistant coatings, etc.), optimizes the cutting angle, has low scraping resistance, and for harder materials, the layer-by-layer scraping technology can be selected.
The fabric is uniform
The streamlined fabric distributor is designed to improve the balance of the fabric and reduce the vibration of the fabric for materials with poor fluidity.

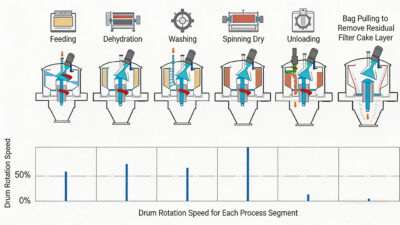

The materials to be separated are added into the rotating drum of the centrifuge through the feed pipe. Under the action of the centrifugal field, the materials pass through the filter cloth for filtration, and the liquid phase is discharged through the outlet pipe, while the solid phase is retained in the drum. When the drum is filled with the materials, the feeding and dehydration process stops. Then, the filter cake is washed and the washing liquid is filtered out. The centrifuge continues to rotate to dry the filter cake. After the filter cake meets the separation requirements, the centrifuge slows down and the filter cake is scraped off from the bottom and discharged outside the machine. The centrifuge then slows down again, and the pneumatic bagging device moves up and down reciprocally to shake off the residual filter cake, achieving the complete removal of the filter cake.
其他信息
| Diameter of the drum (mm) |
800 |
|---|---|
| Effective height of the drum (mm) |
460 |
| Rotary drum volume (L) |
100 |
| Maximum loading capacity (kg) |
130 |
| Motor power (kW) |
7.5/11 |
| Maximum rotational speed (r/min) |
1200/1500 |
| The maximum separation factor |
645/1007 |
| Machine weight (kg) |
2000 |
