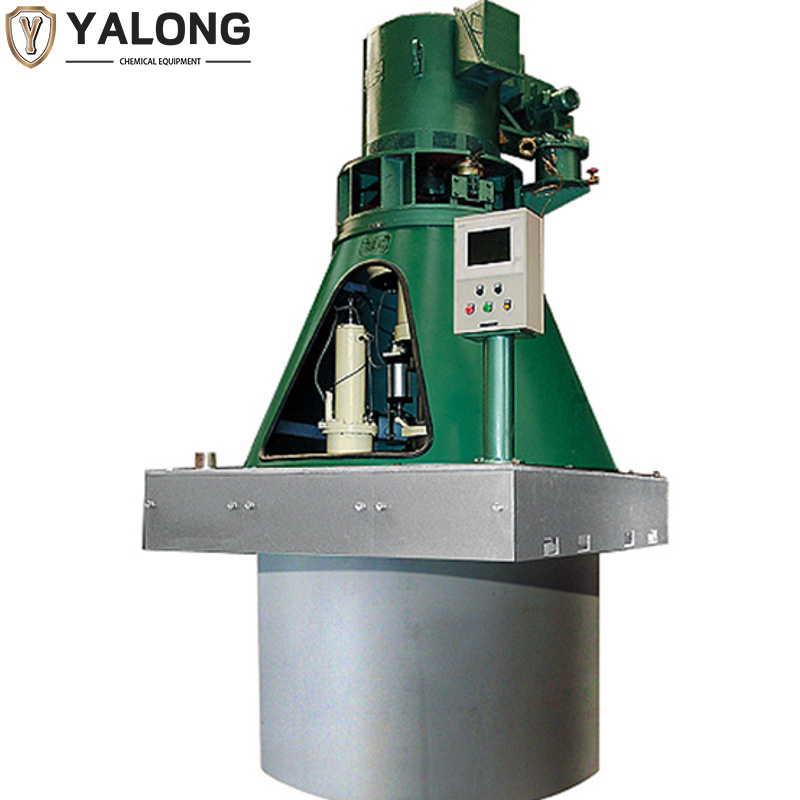

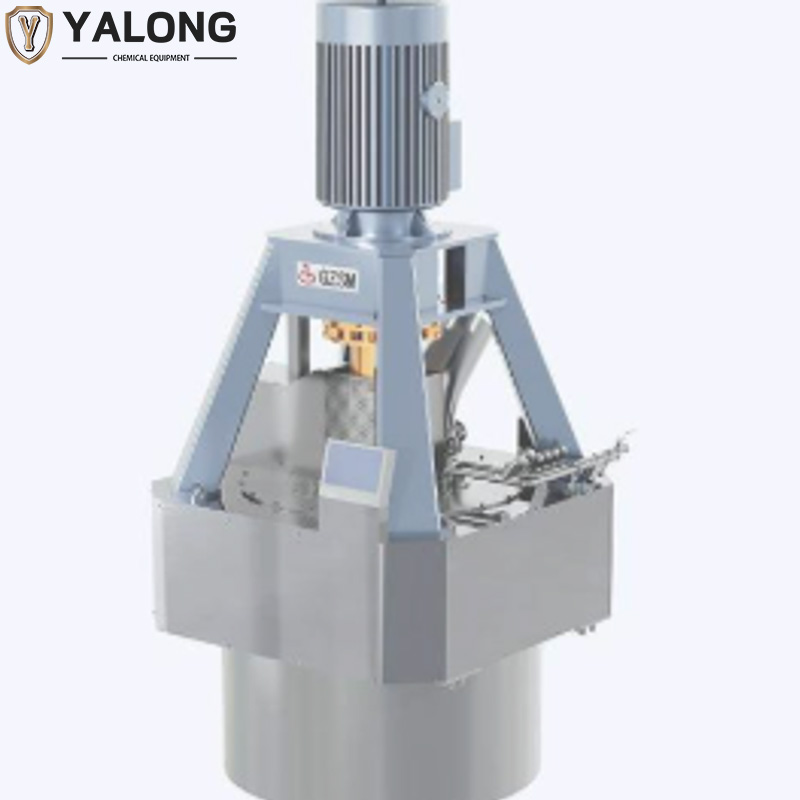

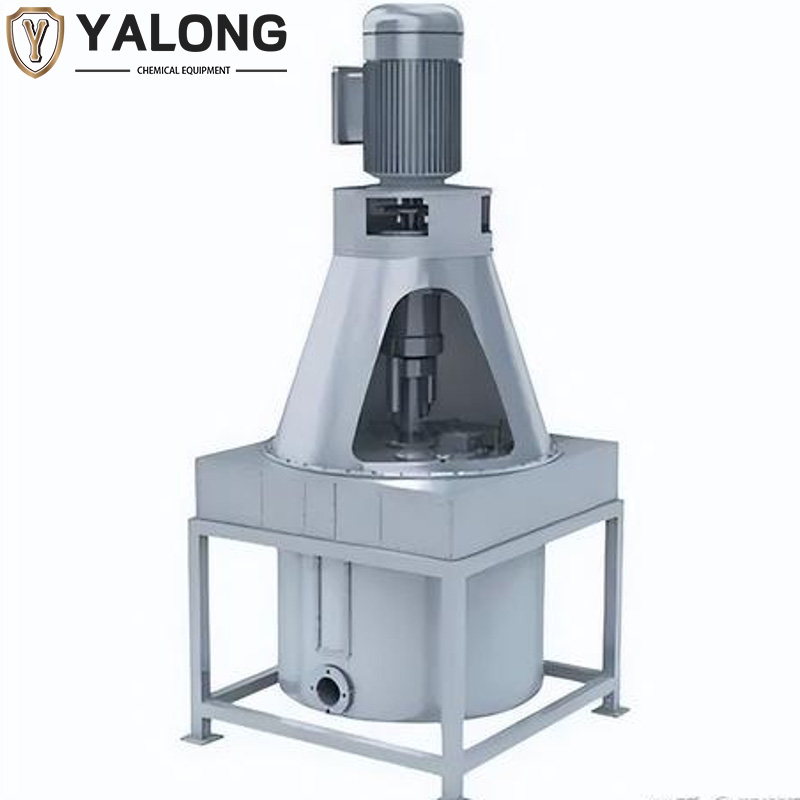

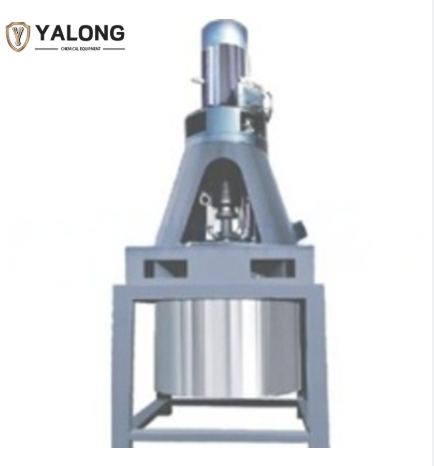

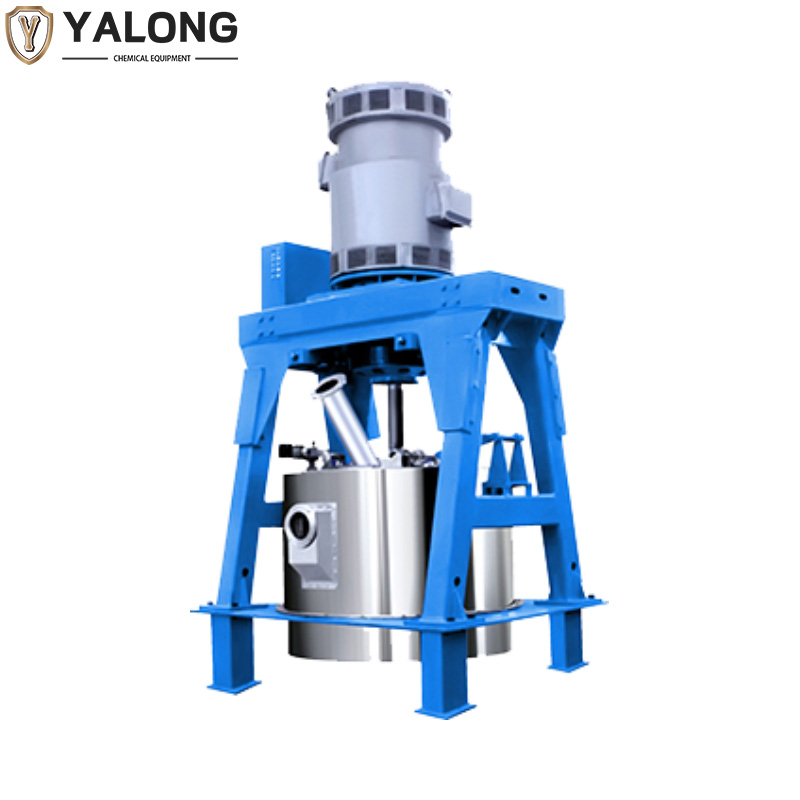

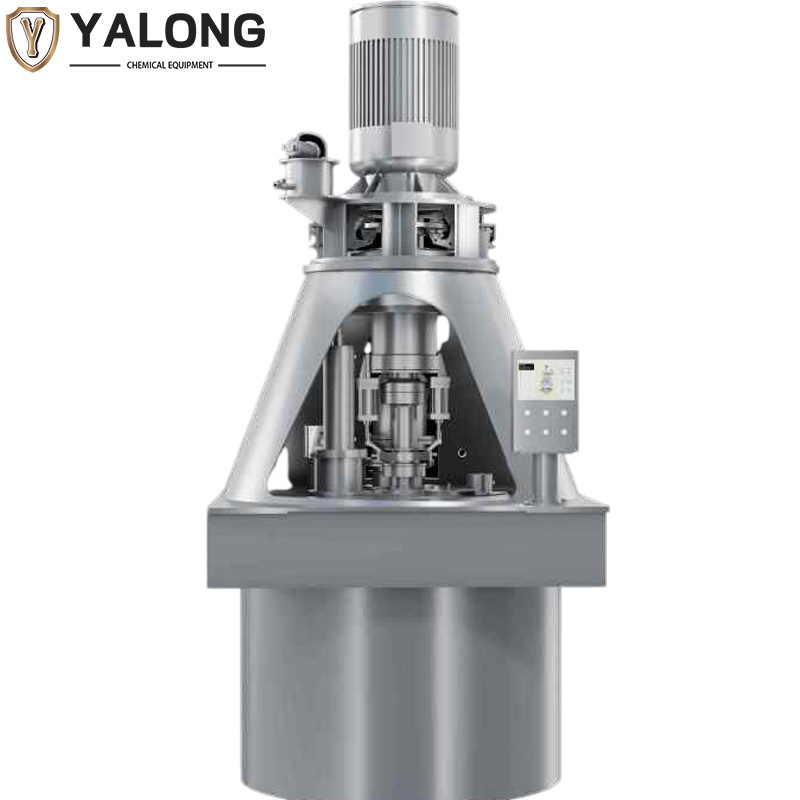

Precision Centrifuge for Methyl and Ethyl Sugar Purification
$30,000.00a set of
Batch Centrifuge is an industrial-grade solid-liquid separation equipment, commonly found in fields such as chemical engineering, pharmaceuticals, food, metallurgy, and environmental protection. It is used for solid-liquid separation, washing, and dehydration of medium to high viscosity materials and crystal products. This type of centrifuge operates in a non-continuous mode, where each batch of material input, centrifugation, washing, and discharge process runs in a cycle. Therefore, it is called “batch” type.
Main features
The centrifuge adopts AC frequency conversion or DC speed regulation. During the automatic cycle operation, the stepless speed adjustment can meet the requirements of low-speed feeding, high-speed separation, and low-speed discharging for the rotational speed. According to the changes in material properties, corresponding rotational speed points can be provided to achieve the most optimized operation.
When the centrifuge slows down, it adopts the energy feedback braking form, converting the mechanical energy of the drum into electrical energy and feeding it back to the power grid, achieving significant energy-saving effects.
The electrical control uses a programmable logic controller (PLC). On the operation display screen, the time for each process can be set and the real-time working status of each process can be displayed. The operation is flexible, simple, and convenient.
The entire machine realizes the fully automatic cycle operation of each process through a combined control system of electrical, pneumatic and mechanical.
The parts in contact with the material of the centrifuge are made of carbon steel or austenitic stainless steel, meeting the needs of different users.
The overall structure of the centrifuge is compact, running smoothly. It has a large capacity, high rotational speed, high separation efficiency, large production capacity, high automation level, low noise, and low labor intensity.
| Basket lnmer Diameter (mm) |
1500 |
|---|---|
| Max Speed (r/min) |
1150 |
| Max Load |
1550 |
| Overall dimensions (mm) |
3120x2290x4920 |
| Weight (kg) |
8900 |
| Suitable for processing |
A-massecuite, |
