Processing Capacity: 1.5 – 13 Kl/H. Centrifuge for Use in Industries Such as Chemical Engineering.
$30,000.00a set of
The application of separators in the chemical industry is highly challenging. Severe acids, strong alkalis, high temperatures, flammability, explosiveness, and high wear resistance are all major tests for separators. Senior technical personnel from Jumei can overcome each difficulty based on the characteristics of their products, and tailor personalized solutions for each piece of equipment. Each perfect solution ensures the optimization of separation effects, the safety of use, the simplicity of operation, and the minimization of costs.

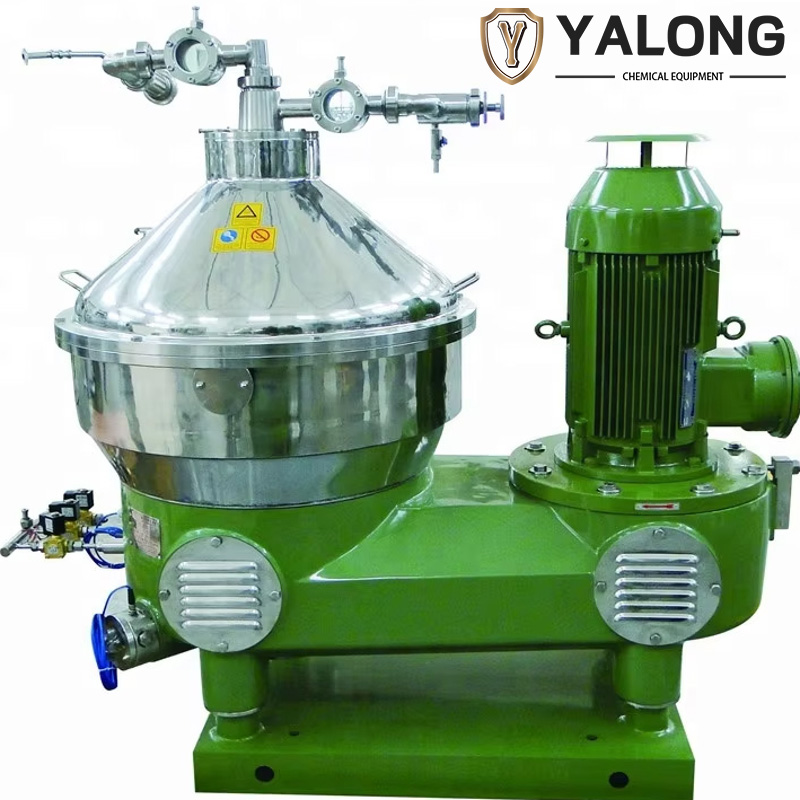

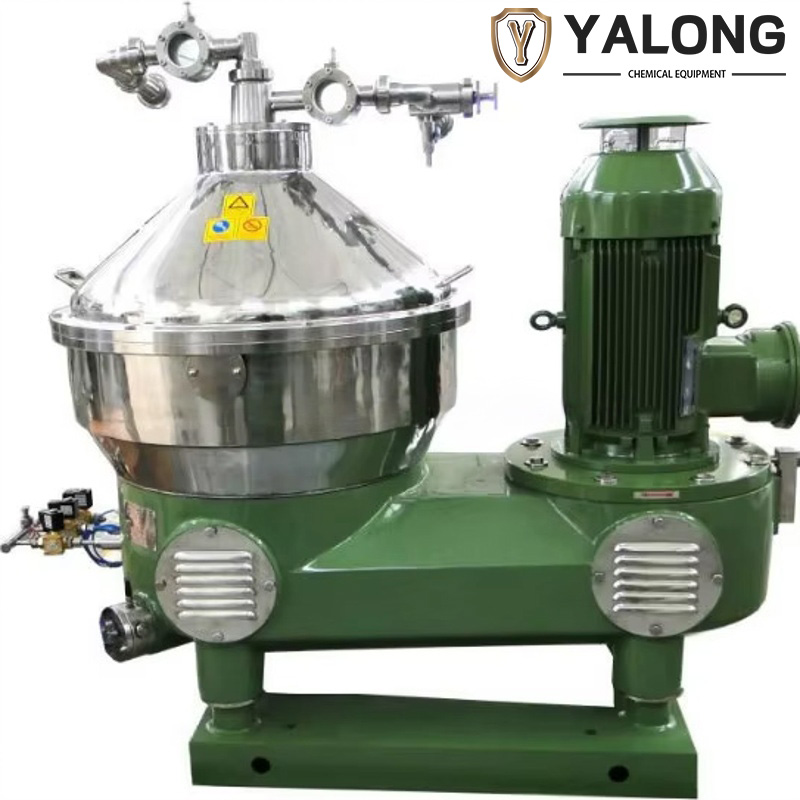

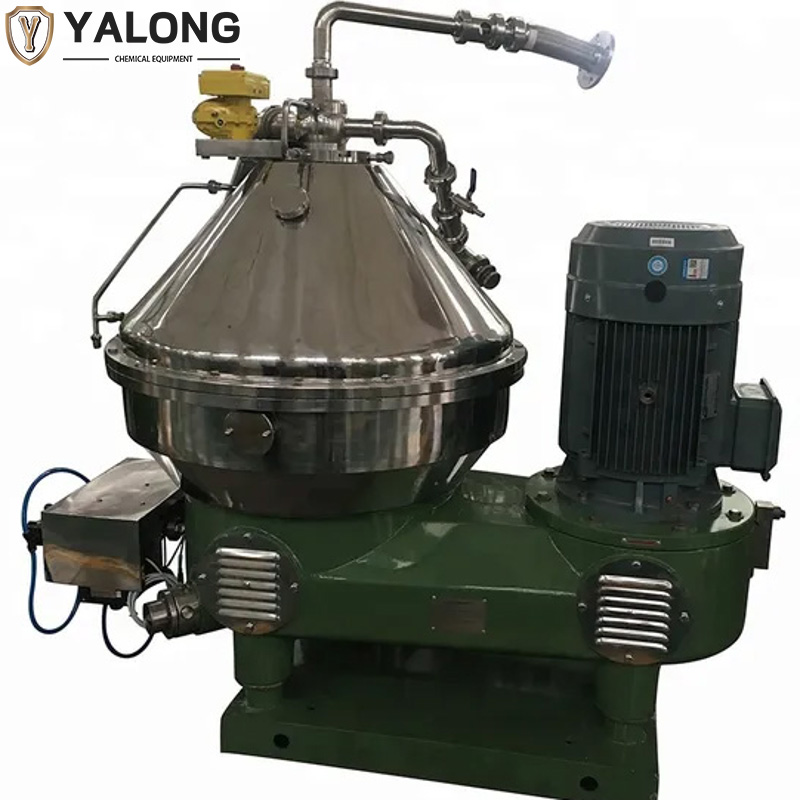

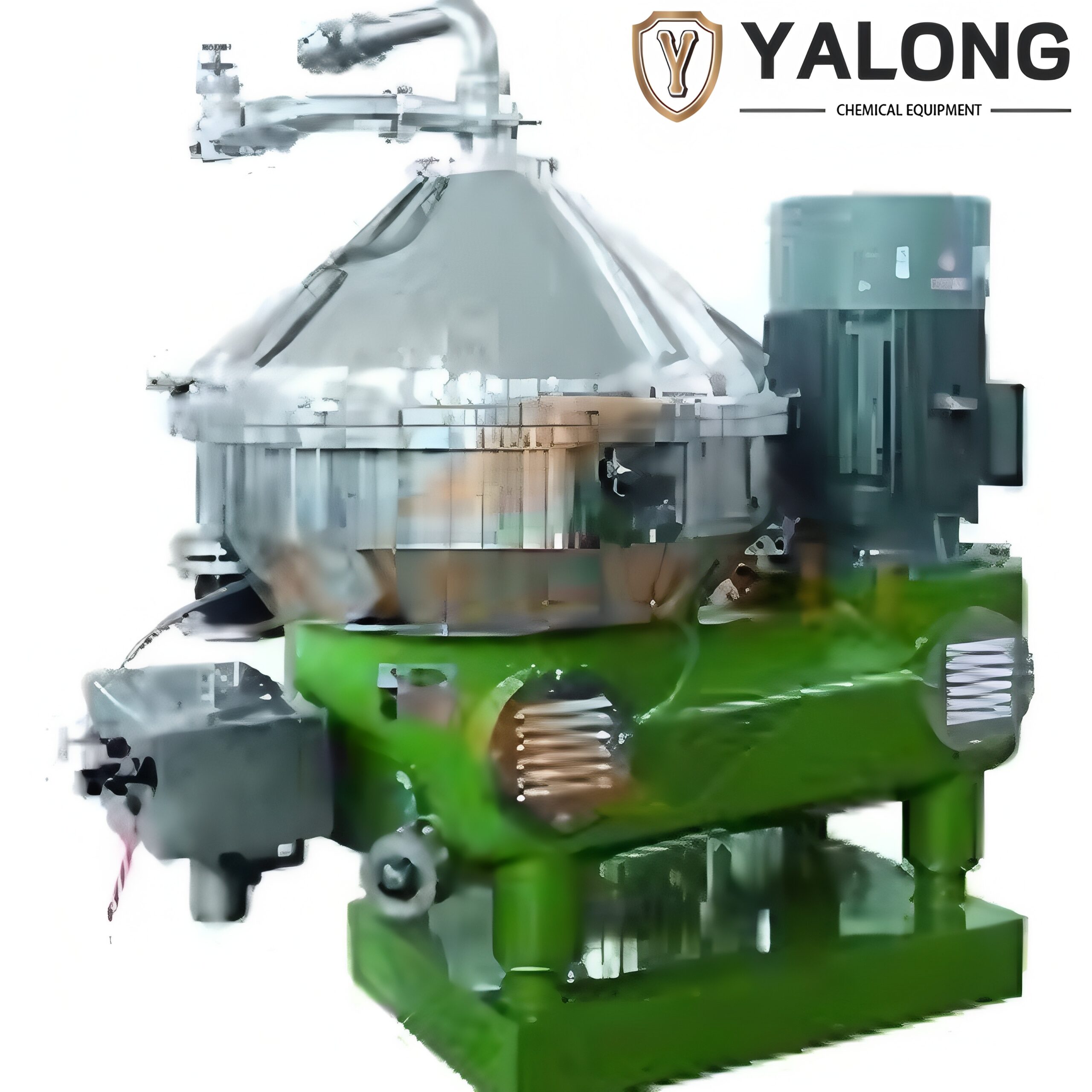

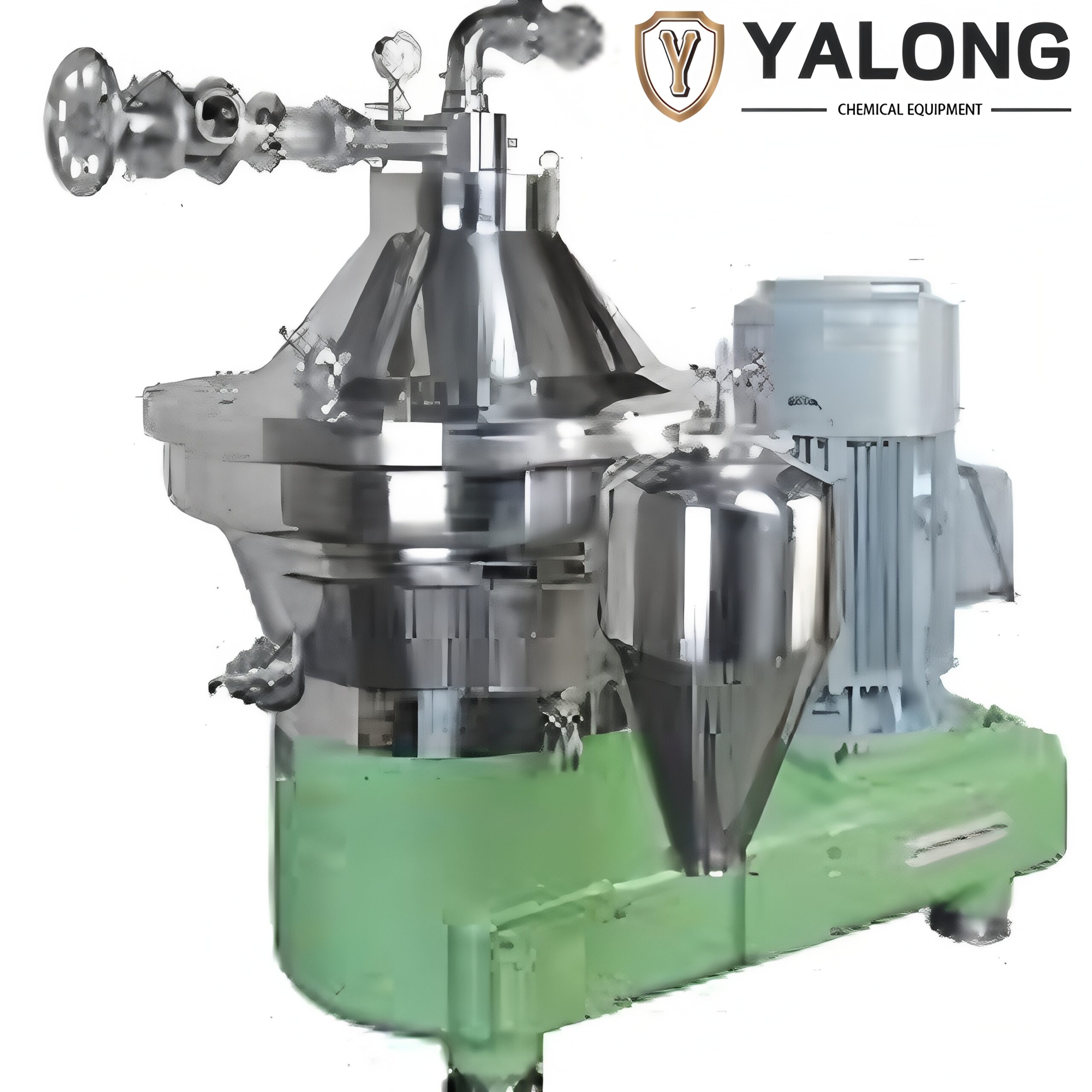

Stainless steel separation drum: The upper part is a conical stainless steel casing, and inside there are multiple layers of discs, which are used to increase the separation area and enhance the separation efficiency.
Vertical high-speed structure: Vertical spindle design, small footprint, high rotational speed
Independent motor drive: The right side features a vertical motor, which is driven by gears or belts and operates stably.
Feed and discharge system: The top pipeline is used for feeding and discharging the light phase/ heavy phase. The bottom can be equipped with a discharge structure.
Overall cast iron/steel base: Strong in rigidity, suitable for continuous operation
The denser solid phase or heavy liquid phase moves outward.
The less dense light liquid phase moves towards the central area.
The disc assembly enhances the separation process, enabling rapid, efficient and continuous separation.
Food and beverages: Vegetable oil, dairy products, fermentation liquid separation
Pharmaceutical industry: Clarification of fermentation broth, separation of bacterial cells
Biological Engineering: Cell and Protein Separation
Petroleum and environmental protection industry: Oil-water separation, waste liquid treatment
Continuous feeding and continuous discharging
High degree of automation and stable operation
Easy to clean and maintain (optional CIP)
Suitable for medium and high-end industrial separation applications
| Treatment Capacity(L/H) |
6000-13000 |
|---|---|
| Iniet Pressure(MPa) |
0.2 |
| Outlet Pressure(MPa) |
≤0.4 |
| Motor Powen(Kw) |
30 |
| Weight(Kg) |
2350 |
| Outline Dimension(mm) |
2050*1610*1860 |
