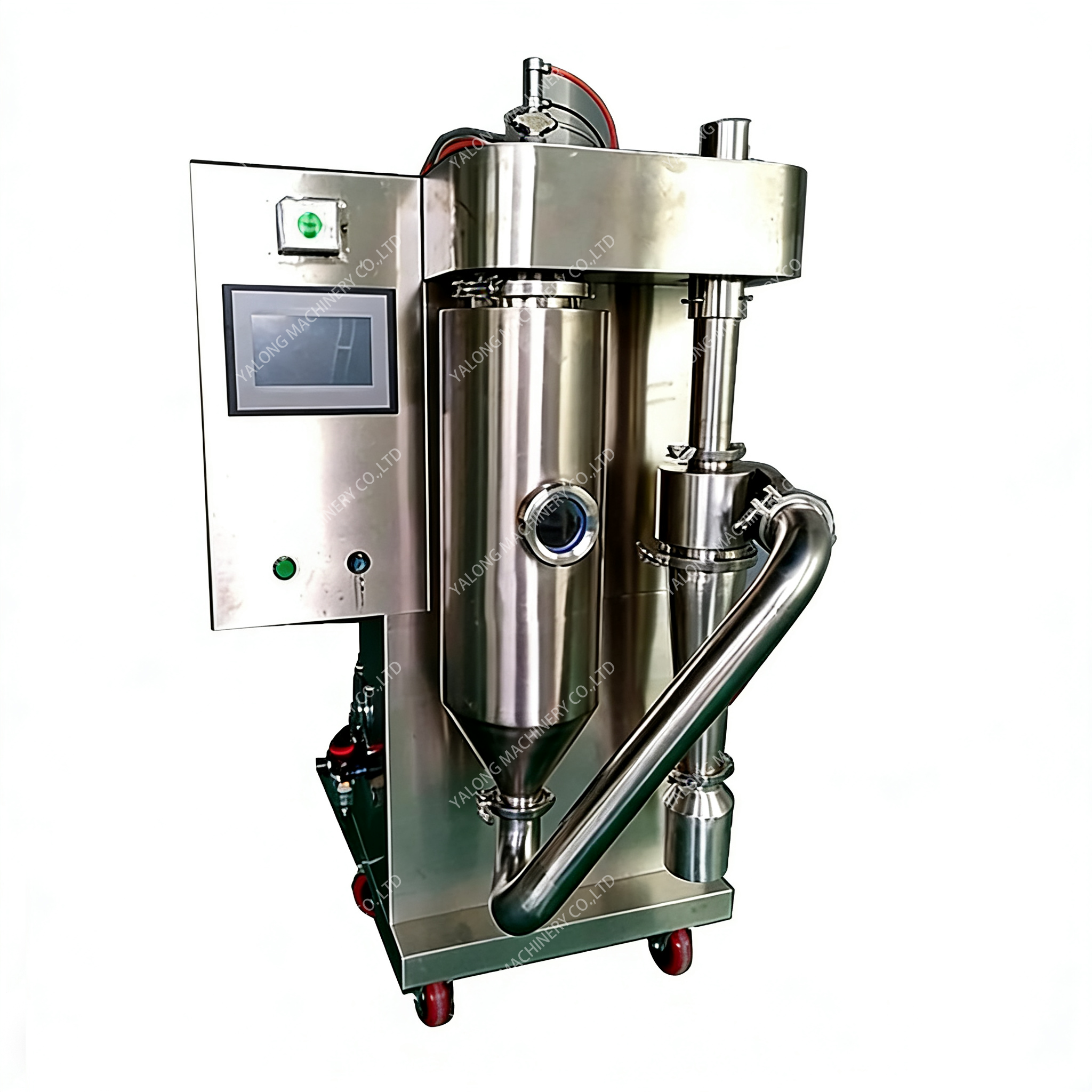

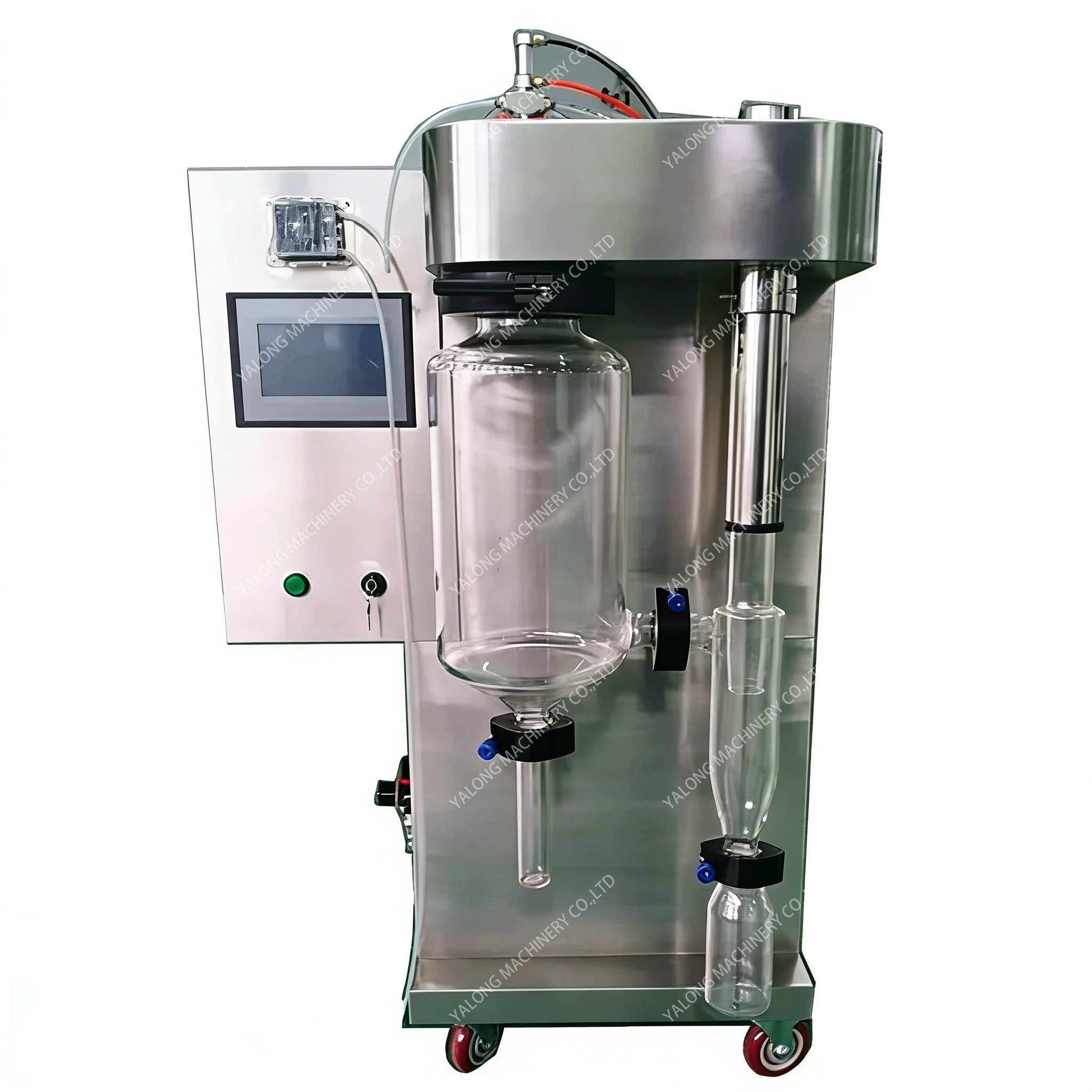

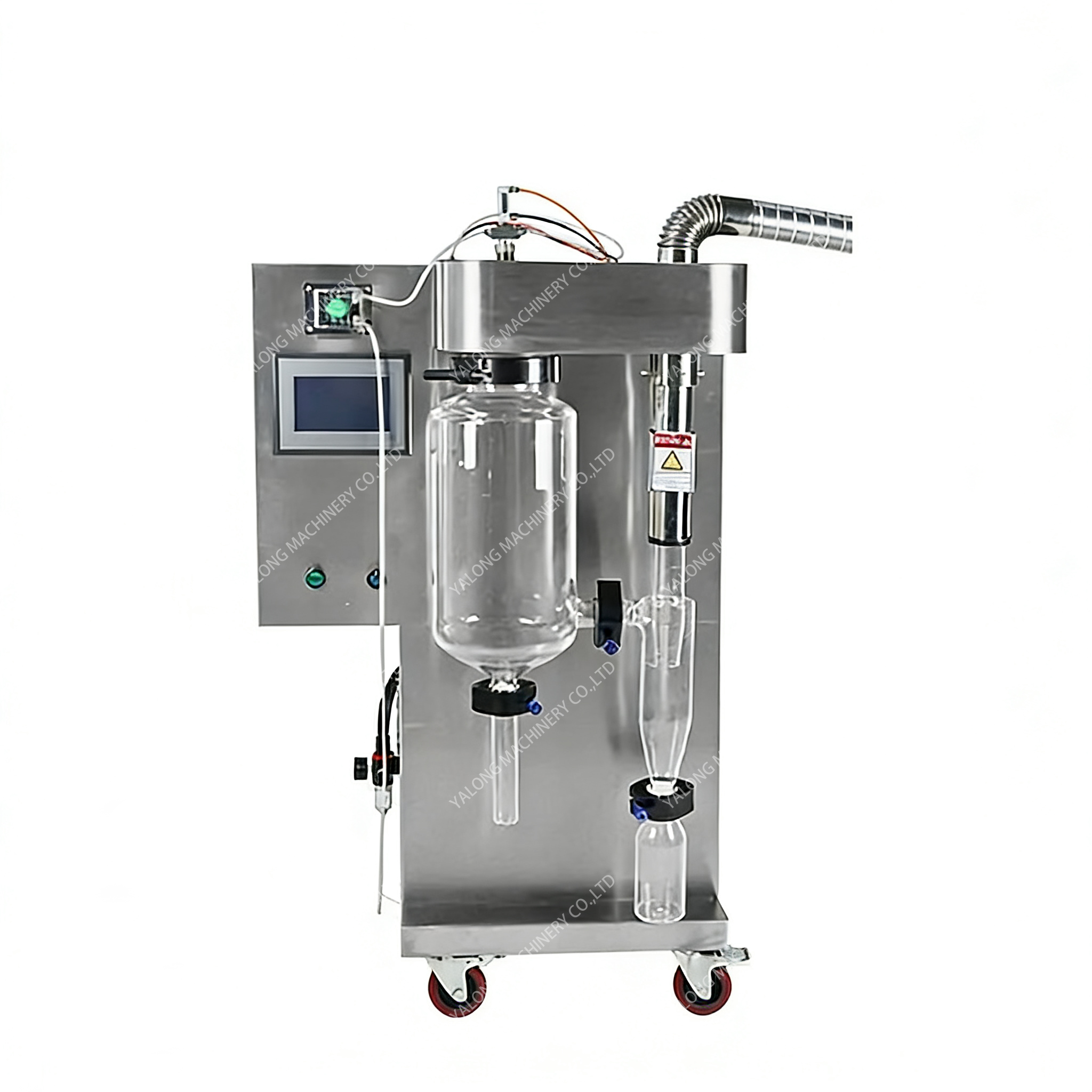

Stainless Steel Laboratory, Milk Powder Spray Dryer

Laboratory spray dryer, small and mini laboratory spray dryer, mainly used for powder production in laboratories. This dryer has been improved by extending the drying chamber and disassembling the cyclone separator. The brand-new design ensures that there is no powder residue in the corner areas. It is widely used in universities, research institutes, food and pharmaceutical fields. This dryer is suitable for various solutions, such as emulsions and suspensions. It is also applicable to heat-sensitive materials, such as biological agents, biopesticides and enzyme preparations. During the drying process, the activity of the material will not be affected. Specification: Interface: 7-inch English LCD touch screen, all parameters can be set on the screen. Temperature: PID control, ±1℃; Real-time temperature accuracy: 0.1℃ Intake air temperature: 30℃ to 300℃ Outlet gas temperature: 30℃ to 140℃ Evaporation capacity: 0-2000ml/h; Particle size: 5-110μm Feeding method: Peristaltic pump adjustment; Feeding rate: 50-2200ml/h (adjustable) Dry air volume: 0-330m³/h; Maximum atmospheric pressure: 686Pa; Temperature accuracy: Average drying time: 0.8 to 1 second; Power: 8.8KW/220V, single-phase, 50HZ; Fan: 0.75kw Air volume: 105m³/h Compressor: Oil-free, 8L, 0.55kw; Dimensions: (length * height * width) : Dimensions: 1380mm*770mm*590mm Air compressor: Built-in dryer Main body: SUS304 Nozzle dimensions: 0.5, 0.75, 1.0mm
