Stainless Steel Plate Filter Press
$10,800.00
Our high-performance chamber filter press is a core solid-liquid separation solution for global industries. With filtering area ranging from 20 to 1180㎡ and pressure of 0.5-1.6MPa, it excels in mining, chemical, food, and new energy sectors, especially lithium extraction and sludge treatment.
Adopting automated control systems, it realizes one-click operation from pressing to cake discharge, boosting efficiency by 50% compared to traditional models. The corrosion-resistant filter plates ensure durability, meeting international environmental standards.
描述

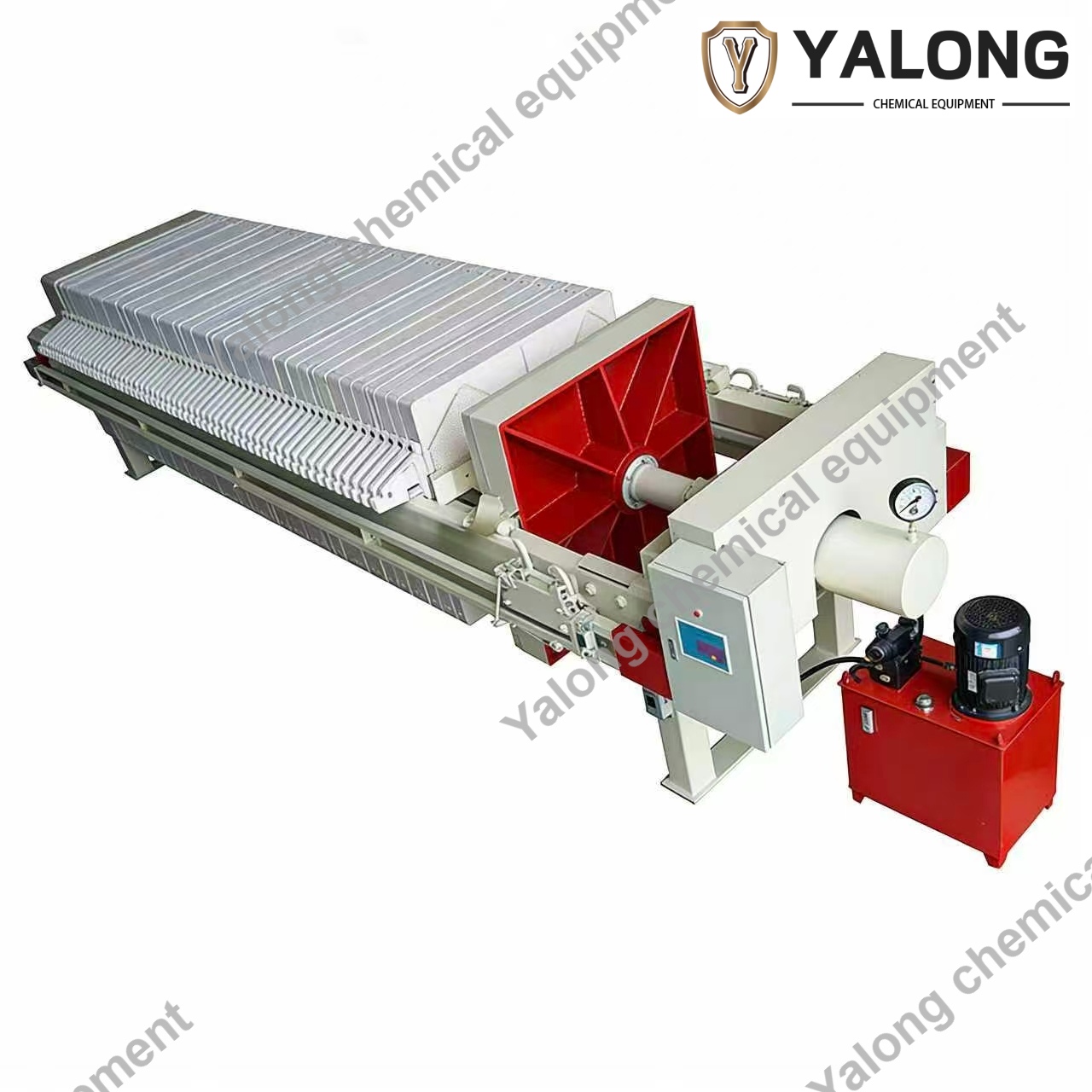

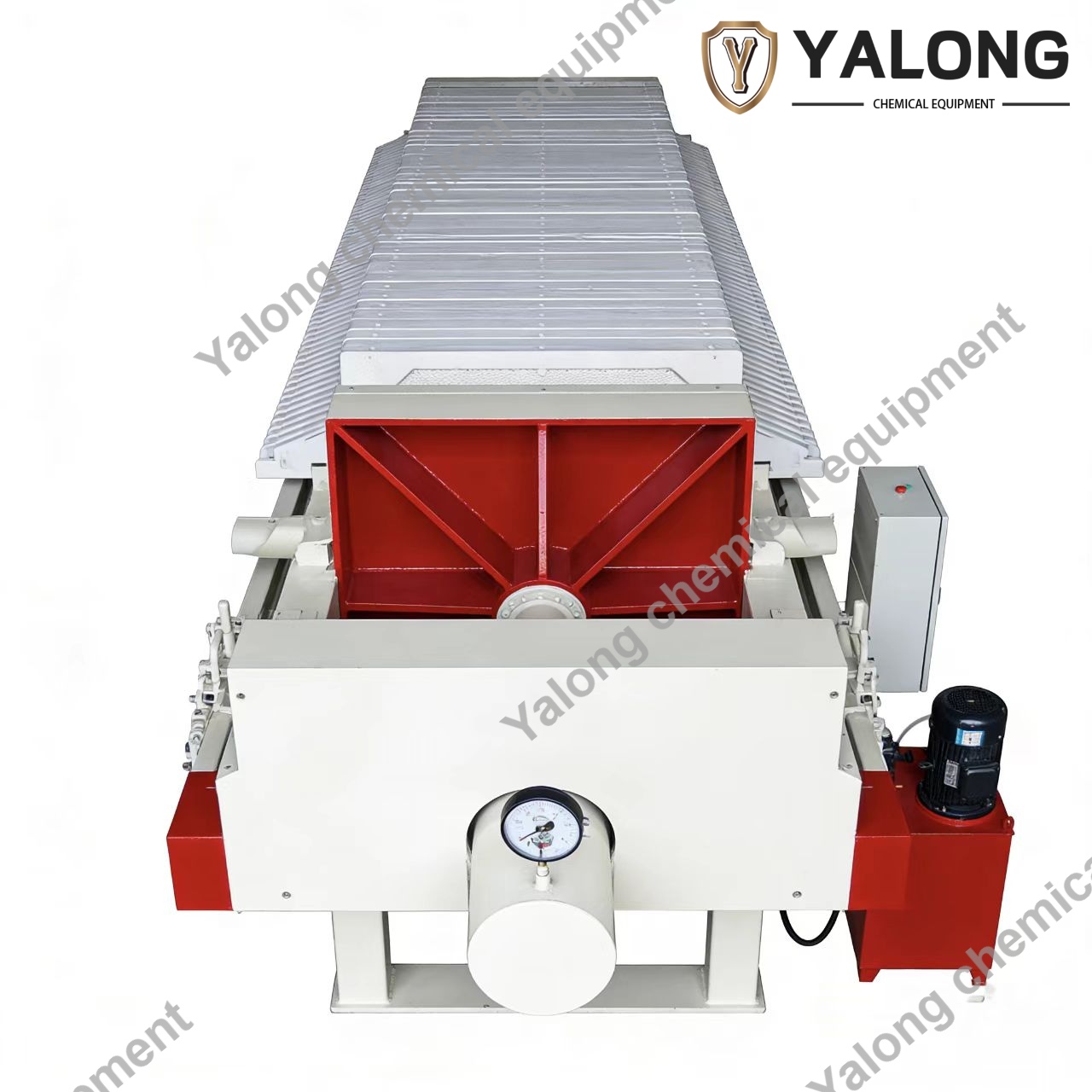

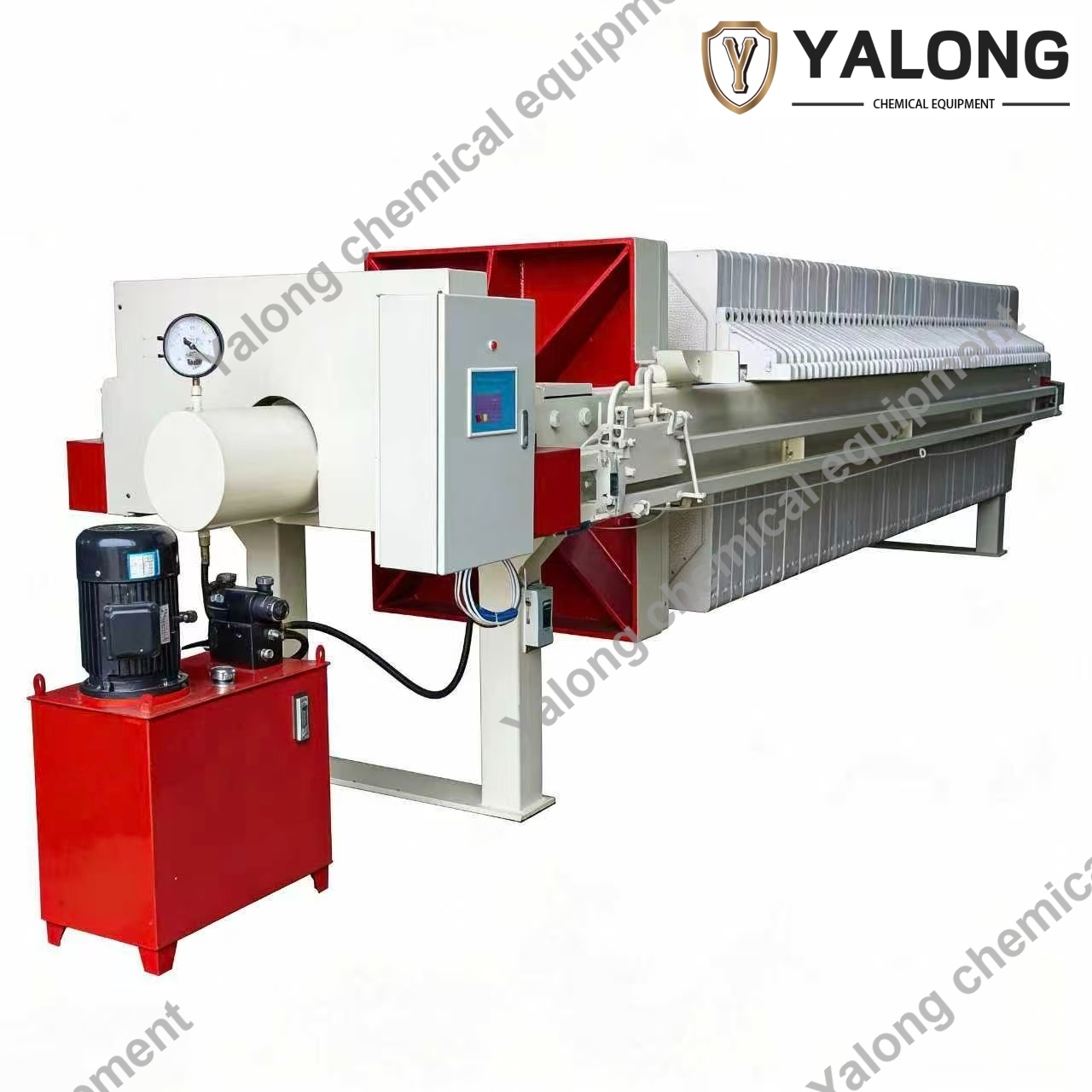

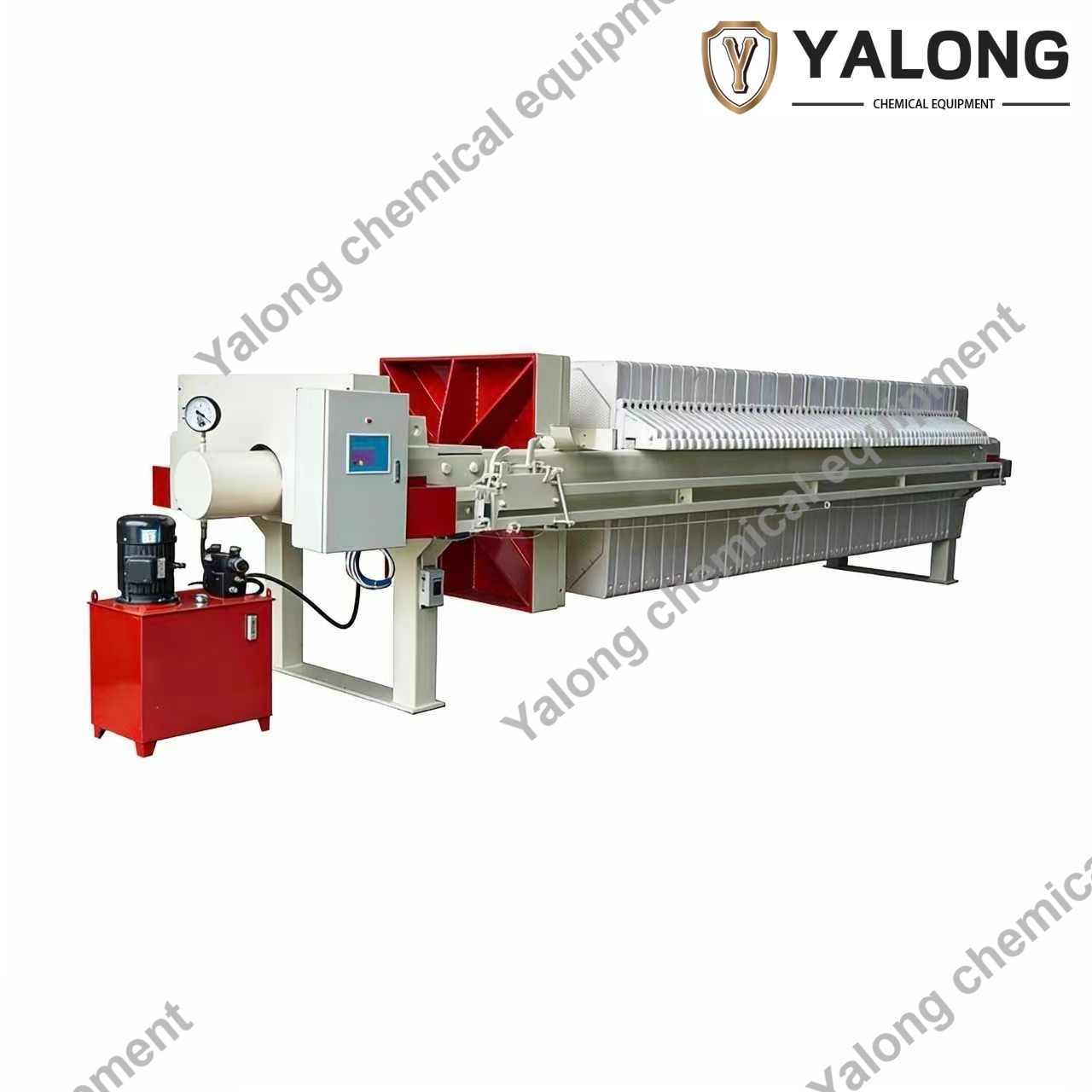

Stainless Steel Filter Press with Automatic Plate-Pulling and Auto Plate Shifter
A chamber filter press is an industrial device that separates solids from liquids in a suspension by applying pressure. It’s made up of a bunch of filter plates and frames arranged alternately, with filter cloth sandwiched in between.It is widely used in wastewater treatment, chemical industry, pharmaceutical manufacturing, food and beverage production, mining, and other sectors.
A chamber filter press is a type of filter press widely used across various industries for solid-liquid separation. It is commonly employed in wastewater treatment plants, mining operations, the chemical industry, and food processing facilities.
It forces the liquid portion to pass through filter cloth while retaining solid particles within the chambers. The basic structure of a chamber filter press consists of a series of filter plates with filter cloth, alternating with solid plates. The filter plates in our products are typically made of materials such as polypropylene, cast iron, or stainless steel, depending on the application and the nature of the material being filtered. Each plate features a central cavity or chamber where solids accumulate during the filtration process.
Filtration Principle: The filter cloth acts as a medium, allowing liquid to pass through while retaining solids. This results in the formation of a filter cake within the chambers and the collection of filtrate, thereby achieving efficient solid-liquid separation.
Advantages of Chamber Filter Press
1.High Filtration Efficiency: We utilize advanced filtration technologies, such as precise filter cloth arrangement and optimized plate design, to achieve highly efficient filtration performance.
2.Robust and Durable Construction: The filter plates are typically made from high-strength polypropylene or other corrosion-resistant materials.
3.Excellent Sealing Performance: The chamber filter press is equipped with a reliable sealing system that prevents leakage and ensures consistent pressure is applied throughout the filtration process.
4.User-Friendly Operation: The equipment features automated or semi-automated control systems that simplify operation and reduce manual intervention.
5.Wide Range of Applications: Customization options are available to tailor the filter press to meet specific process requirements.
Scope of Application
This filter press is designed for solid-liquid separation, wastewater treatment, and sludge dewatering across a wide range of industries, including but not limited to:
• Primary & Chemical Industries: Petroleum, Chemical, Mining & Metallurgy, Mineral Processing, Ore Washing, Coal Processing.
• Process & Manufacturing: Pharmaceuticals, Food & Beverage, Edible Oil, Sugar Making, Starch Processing.
• Specialty & Materials: Metal/Non-metal Ores, Fuel Production, Leather Tanning, Graphite, Dyeing & Printing, Ceramics, Papermaking.
• Primary & Chemical Industries: Petroleum, Chemical, Mining & Metallurgy, Mineral Processing, Ore Washing, Coal Processing.
• Process & Manufacturing: Pharmaceuticals, Food & Beverage, Edible Oil, Sugar Making, Starch Processing.
• Specialty & Materials: Metal/Non-metal Ores, Fuel Production, Leather Tanning, Graphite, Dyeing & Printing, Ceramics, Papermaking.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material |
FRPP |
| Pressure |
Hydraulic Pressure |
| Filter Pressure |
0.6MPa |
| Filter Plate Thickness |
60 |
| Filter Cake Thickness |
40 |
| Filter Plate Size |
1250X1250mm |
| Filter Area |
200m2 |
