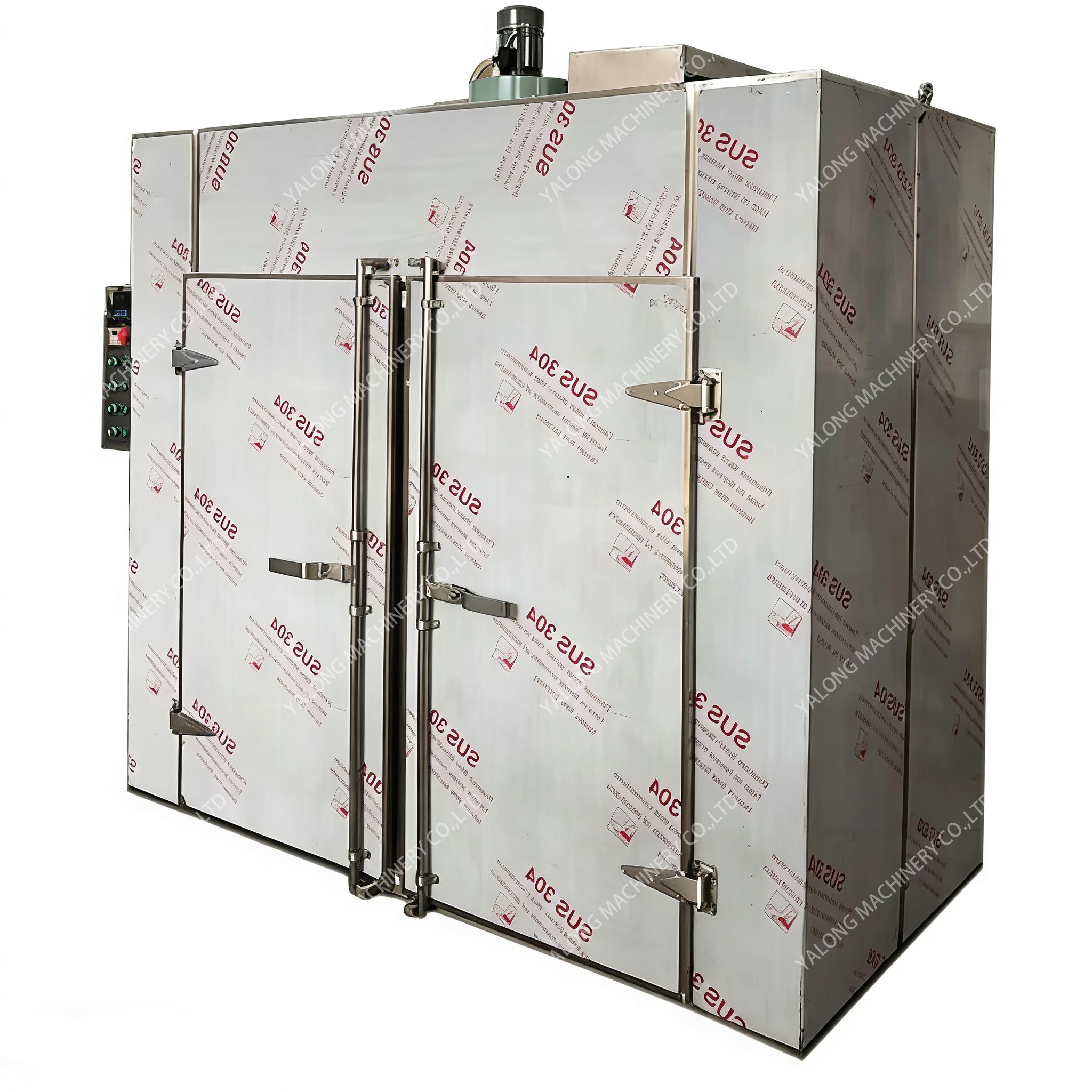

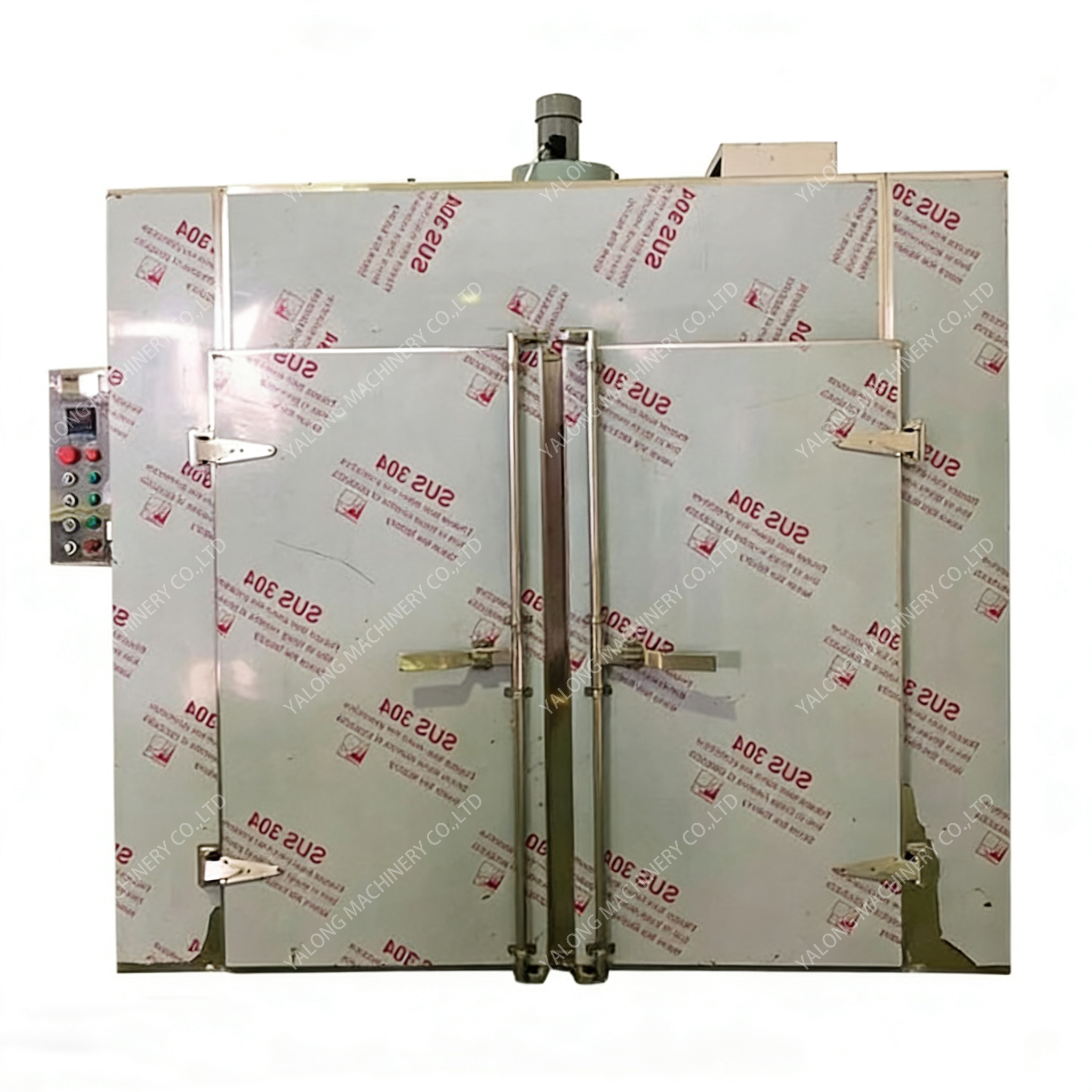

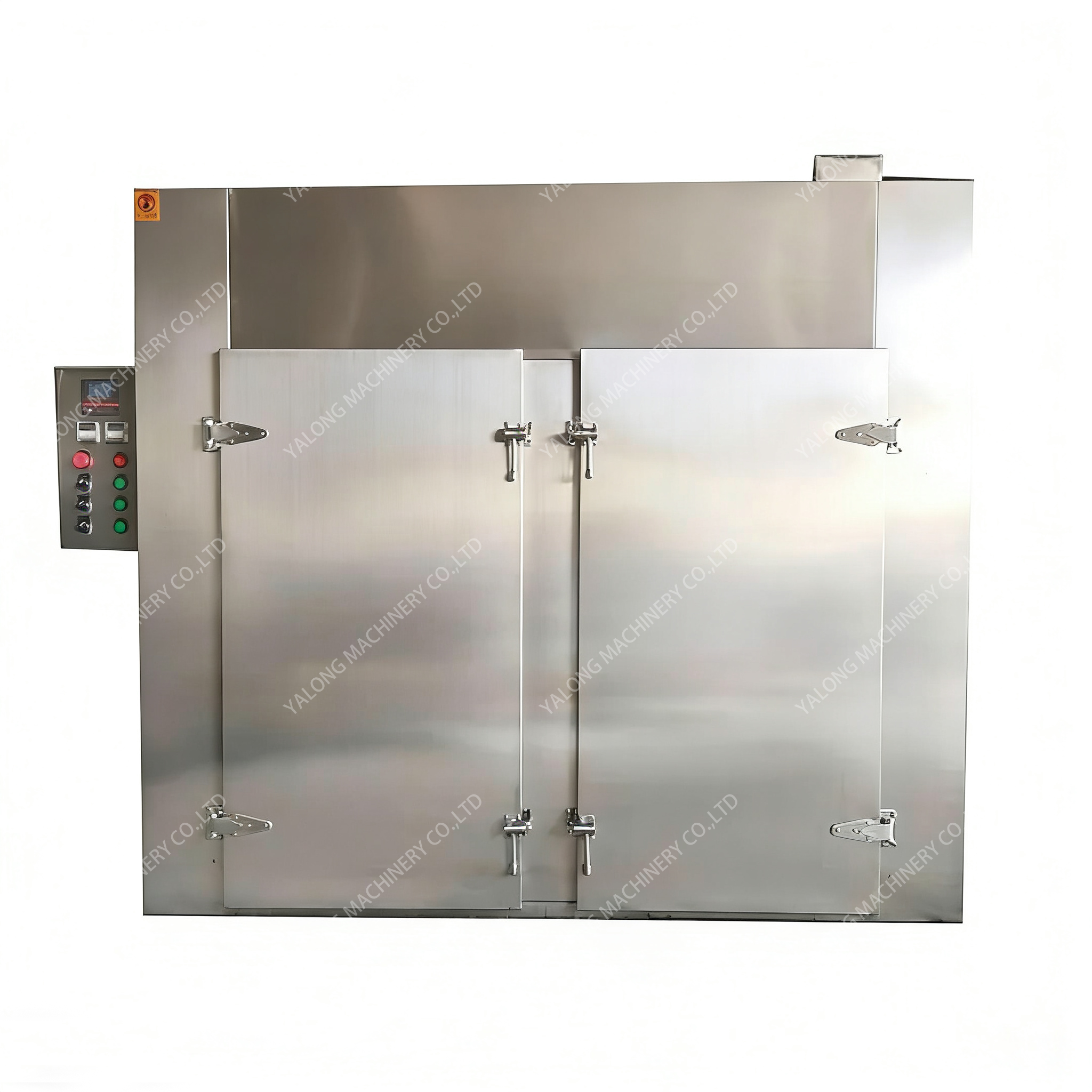

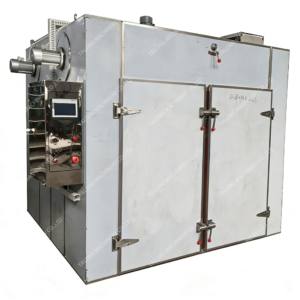

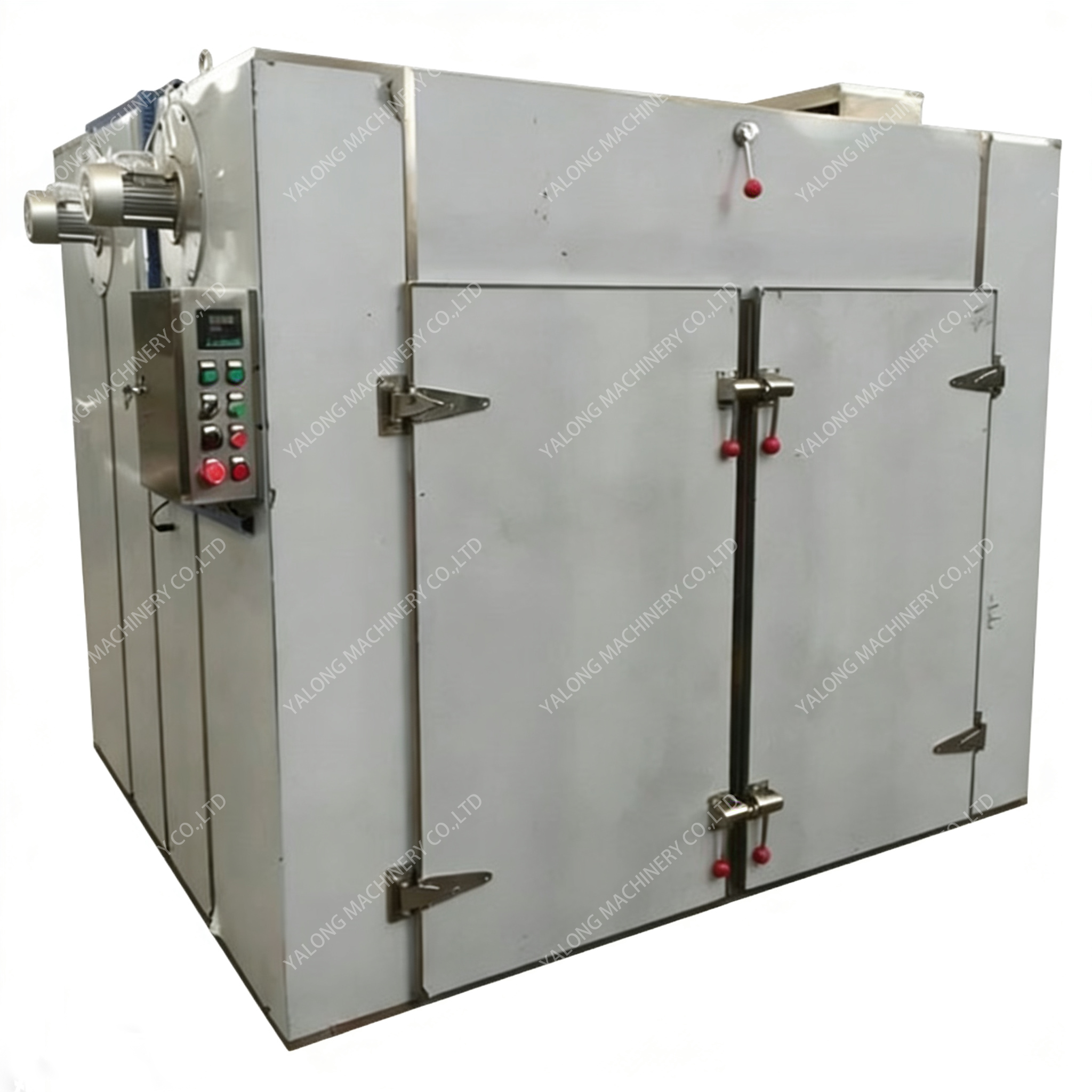

Tray-type vacuum dryer

原价为:$15,000.00。当前价格为:$10,000.00。

This tray dryer is an energy-efficient batch drying device widely used in food, pharmaceutical, and chemical industries, suitable for dehydrating granular, powdery, and flaky materials. It features a multi-layer tray rack structure where materials are spread evenly to ensure uniform heating.
Equipped with a forced hot air circulation system, it quickly removes moisture from materials, while the precise temperature control module effectively prevents thermal-sensitive materials from denaturation and ingredient loss. The whole machine is made of food-grade stainless steel, with corrosion resistance and easy cleaning performance, complying with strict industry hygiene standards. Easy to operate and stable in running, it supports timed temperature control and automatic shutdown, catering to both small-batch testing and large-scale mass production needs, and is a preferred equipment for enterprises to improve material drying quality.
分类: ,
描述
Product Description:
The tray dryer is equipped with a low-noise, high-temperature resistant axial flow fan and an automatic temperature control system. The entire circulation system adopts a fully enclosed design, which enhances thermal efficiency. The dryer can be optionally equipped with a forced dehumidification centrifugal fan, which can regularly discharge the hot and humid air inside the dryer, thereby improving efficiency and achieving energy-saving effects. The tray dryer is equipped with an automatic temperature control system, which can achieve precise temperature control and is widely used in the drying of various materials.
 Applicable materials: Drying processes for powdery, paste-like and filter cake-like materials.
Typical applications: herbs and leaves, dehydrated vegetables, agricultural products, meat products, seafood, seeds, nuts, fibers (such as garlic slices, jujube slices, carrot strips, cassava slices, onion shreds), feed, coconuts, bamboo fibers, palm fibers, coconut shells, activated carbon particles, synthetic rubber, catalyst particles, electronic components, plastic resins, etc.



The hot air circulation tray dryer adopts a high-temperature resistant long-shaft circulation fan. The forced hot air heated by electric heating tubes or steam heat exchangers circulates inside the furnace. The drying furnace is equipped with an adjustable air distribution plate. Under the effect of forced ventilation, the relative temperature becomes more uniform, heat transfer is enhanced, thereby increasing the water evaporation rate and shortening the drying time. The entire furnace body adopts a fully enclosed structure. Most of the hot air circulates within the furnace, and the hot and humid air is reasonably discharged. It has the advantages of high thermal efficiency, energy conservation, and uniform drying of materials under forced ventilation.



其他信息
Length

200cm

Volume

600kg

Material

Stainless steel 304/316

Operating pressure

Vacuum drying
