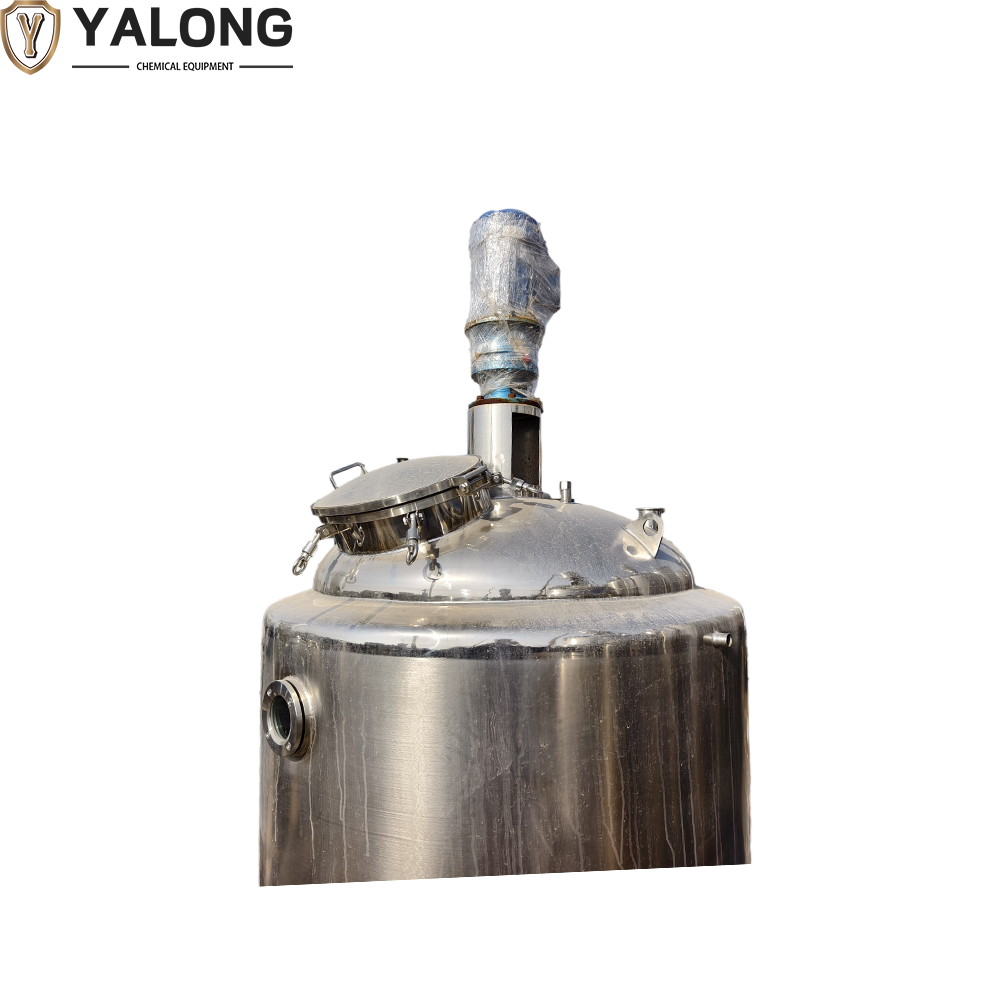

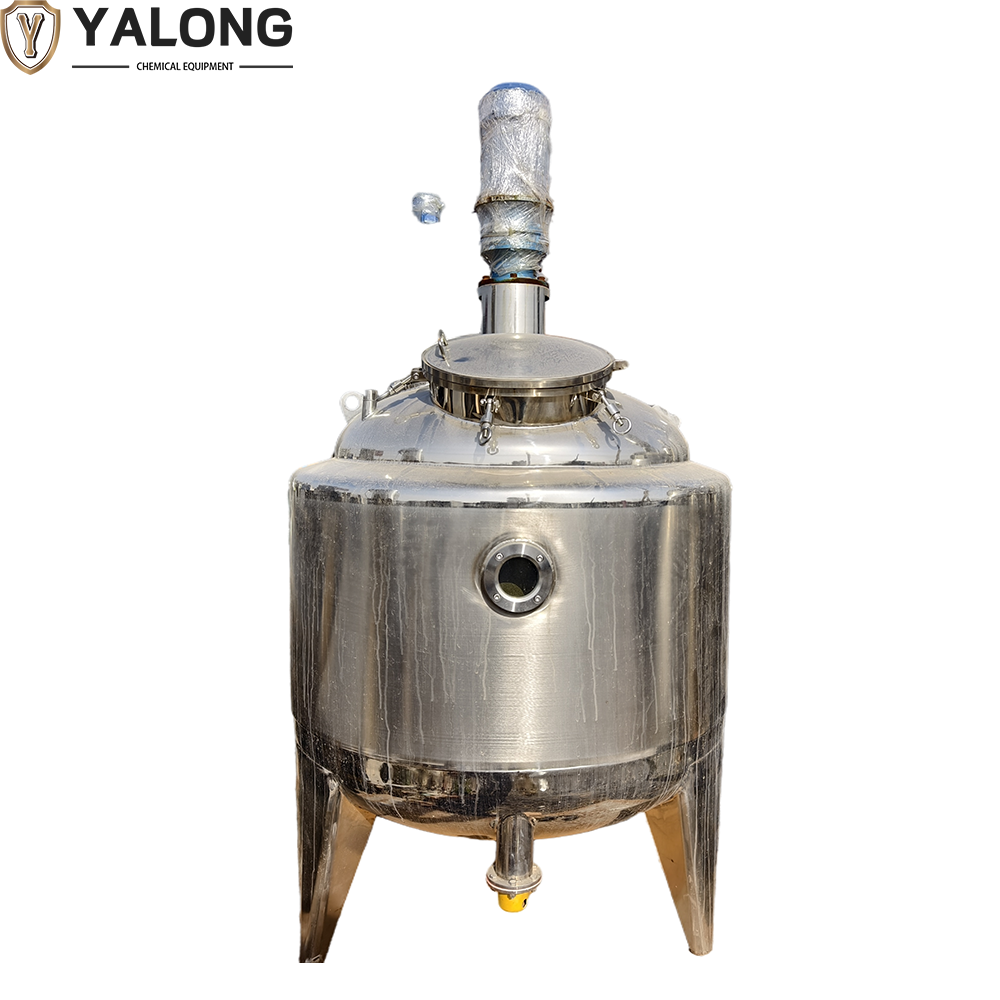

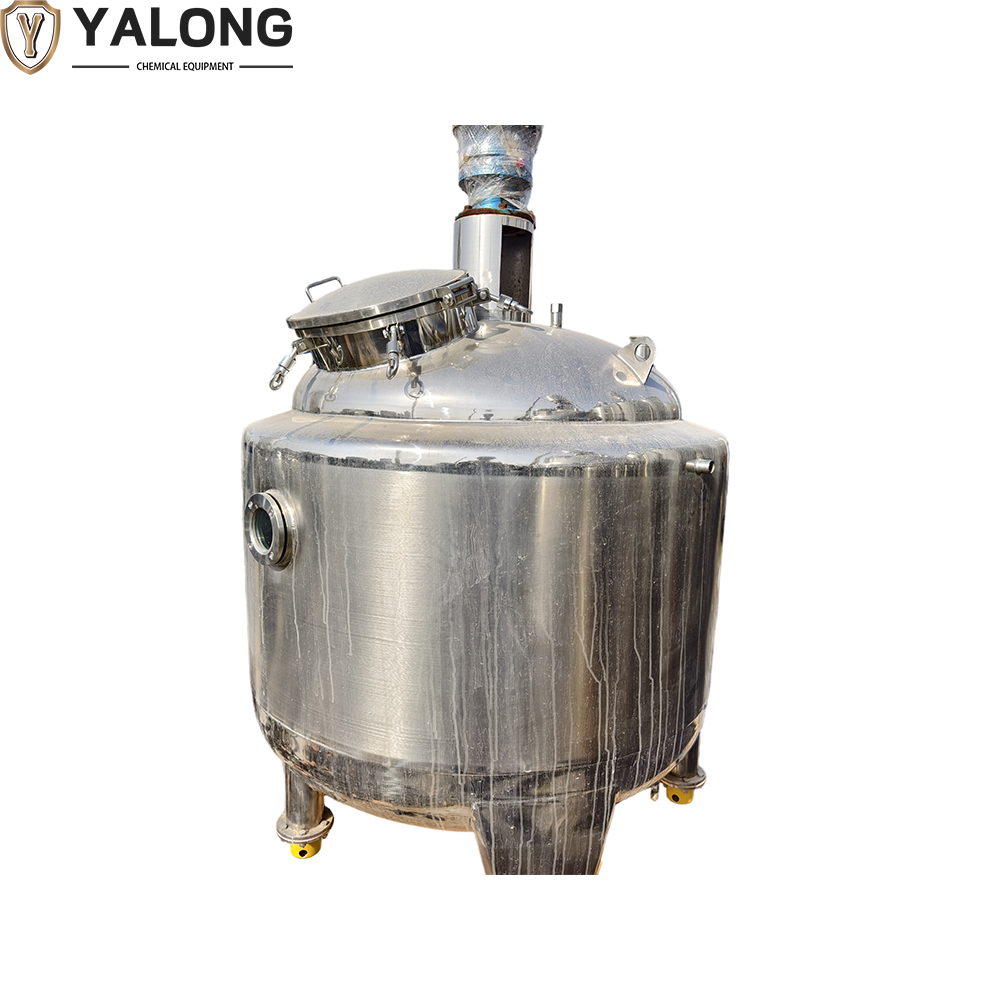

Vertical Stainless Steel Reactor
$5,600.00
描述
industrial Chemical Reactor/Pressure Vessel Reactor
This stainless steel jacketed reactor is widely used in chemical, pharmaceutical, food, resin, paint, and adhesive production. The tank is constructed with high-quality stainless steel, featuring precision-polished interior and exterior surfaces for durability and excellent sealing performance. The jacket supports steam heating, electric heating, or cooling water circulation to meet various process temperature requirements. Multiple impeller types—anchor, frame, turbine, propeller—are available to enhance mixing efficiency. The reactor supports VFD speed control, temperature display, pressure monitoring, explosion-proof options, and fully customized specifications. With stable operation, easy cleaning, and low maintenance, it is an ideal solution for liquid, slurry, and solid-liquid mixing processes.
Key Configurations of Stainless Steel Agitated Reactor
1. Reactor Material: SUS304 / SUS316L
2. Working Volume: 100–5000 L (Customizable)
3. Agitator Type: Paddle / Anchor / Frame / Turbine
4.Agitator Motor: Standard or Explosion-Proof Motor
5. Speed Control: Variable Frequency Speed Regulation
6. Sealing Type: Mechanical Seal or Packing Seal
7.Jacket Type: Steam/Oil Heating & Water/Coolant Cooling
8.Working Pressure: Atmospheric ~ 0.4 MPa
9.Working Temperature: –20°C to 220°C
10.Internal Finish: Mirror Polishing Available (Ra≤0.4–0.6 μm)
11.Manhole and Process Ports (Feeding, Thermowell, Pressure Port)
12.Safety Devices: Pressure Gauge, Safety Valve, Sight Glass
13.Discharge Valve: Bottom Ball Valve or Butterfly Valve
14.Installation Options: Floor-Mounted / Platform-Mounted
Applications
1.Construction: Building foundations, trenching, demolition
2.Roadwork: Land leveling, ditch digging, material handling
3.Mining: Quarrying, ore extraction, loading
4.Agriculture: Land clearing, irrigation channel digging
5.Forestry: Log handling, land preparation
其他信息
| Type |
Stainless Steel Agitated Reactor ,Stainless Steel Reactor ,Agitated Reactor ,Chemical Reactor |
|---|
