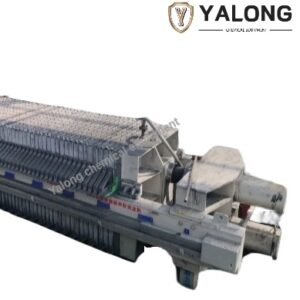

Water-Saving Diaphragm Filter Press
$15,800.00
A top-tier solid-liquid separation solution tailored for chemical, mining, environmental protection and food industries. Its core competitive edge is the flexible diaphragm plate, which enables a two-step filtration process: after the initial filter cake forms in sealed chambers, high-pressure fluid is injected into the diaphragms to squeeze out residual moisture.
This dual-pressure technology maximizes separation efficiency, drastically lowers cake moisture content and reduces post-processing costs. With stable operation, easy maintenance and strong adaptability to high-solid, high-viscosity slurries, this cost-effective equipment is your reliable partner for material purification, wastewater treatment and residue recycling.
描述

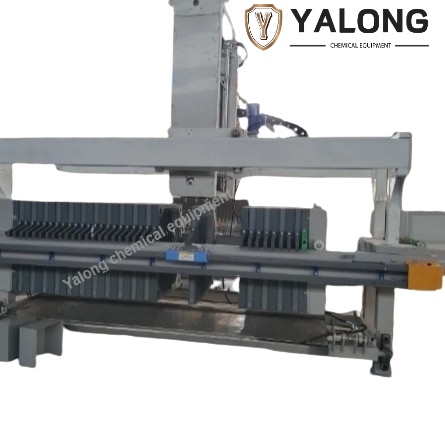

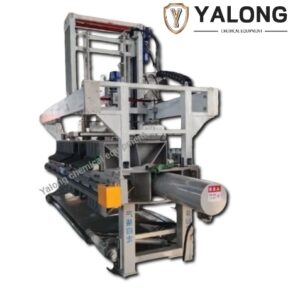

Water-Saving Diaphragm Filter Press with High-Efficiency Wash, Factory-Engineered Design
A diaphragm filter press is a type of filter press equipped with elastic diaphragms installed between the filter plates and the filter cloths. During operation, once the feeding process is completed, high-pressure fluid or gas can be injected into the diaphragm plates. This causes the entire diaphragm to expand and compress the filter cake, thereby achieving further dewatering—a process commonly referred to as squeeze filtration.
A diaphragm filter press is a solid-liquid separation device that utilizes an elastic diaphragm to perform secondary squeezing of the filter cake, primarily used in industries such as chemical, environmental protection, pharmaceutical, and food processing. By incorporating diaphragm technology into the filter plates, it significantly enhances the solid dryness. Compared to traditional filtration processes, it achieves the lowest residual moisture content in the filter cake, making it one of the most robust and widely applied systems. Special materials such as PVDF are also available for specific requirements.
The working principle involves adding an elastic membrane between the filter plates and the filter cloth of a standard filter press. After the filter chamber completes feeding, high-pressure fluid or gas is injected into the diaphragm, causing it to expand and compress the filter cake. This further squeezes liquid out of the filter cake, significantly reducing its moisture content.
Advantages of diaphragm filter press:
1.High Solid-Liquid Separation Efficiency: Through secondary pressing, the moisture content of the filter cake is significantly reduced, resulting in improved separation effectiveness.
2.High Level of Automation: Many units are equipped with programmable control systems, enabling fully automated operations including feeding, filtration, pressing, and cake discharge.
3.Flexible Operation: The degree of compression can be adjusted by controlling the pressure and duration of diaphragm inflation to suit different material requirements.
4.Wide Range of Applications: Widely utilized in industries requiring efficient solid-liquid separation and low filter cake moisture, such as chemical processing, metallurgy, mining, food processing, and wastewater treatment.
5.Customization options are available to tailor the filter press to meet specific process requirements.
其他信息
| Structure |
Cantilever Beam Type |
|---|---|
| Filter Material: |
Stainless Steel |
| Pressure |
Hydraulic Pressure |
| Voltage |
220-450V |
| Power |
1.5-3kw |
| Purpose |
Sand and Gravel Factory/Metallurgical Industry |
| Advantage |

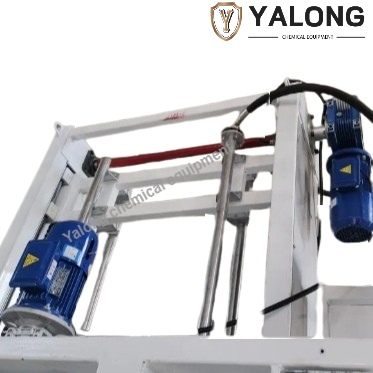

Automatic Washing Filter Cloth |
