Industrial Plate Filter Press

$8,500.00

Our heavy-duty chamber filter press delivers superior dewatering performance for mining, chemical, wastewater treatment and food & beverage industries. Featuring robust steel frame, wear-resistant filter plates and automated operation system, it ensures low moisture content in filter cakes and minimal maintenance cost. Customizable plate sizes, pressure ranges and control modes are available to meet diverse global demands. CE and ISO certified, with timely after-sales service and spare parts supply worldwide.

Industrial Plate Filter Press for Battery, PV, and Lithium Extraction

Name: Industrial Plate Filter Press
SKU: 19272
Availability: InStock

A plate and frame filter press is basically a machine that separates solids from liquids. It’s made up of a bunch of filter plates and frames arranged alternately, with filter cloth sandwiched in between.It is widely used in wastewater treatment, chemical industry, pharmaceutical manufacturing, food and beverage production, mining, and other sectors.

The key components of a plate and frame filter press are the filter plates and the filter frames. These elements are arranged alternately to form a series of chambers for the slurry (a mixture of solid and liquid) to pass through. The filter plates are typically made of polypropylene or stainless steel, while the frames can be made from various materials such as plastic or metal.

A plate and frame filter press how it works: you pump the solid-liquid mixture into the spaces between the plates and frames. The liquid passes through the filter cloth and flows out, while the solids get trapped on the cloth, building up what’s called a filter cake. Once the process is done, you just take the cake out. This equipment is super common in industries like chemicals, pharmaceuticals, food processing, and wastewater treatment. The good thing is it’s really efficient at filtering, but the downside is it usually runs in batches, not continuously.”

The great thing about its design is that it’s simple and modular, so it’s easy to customize for whatever you need.

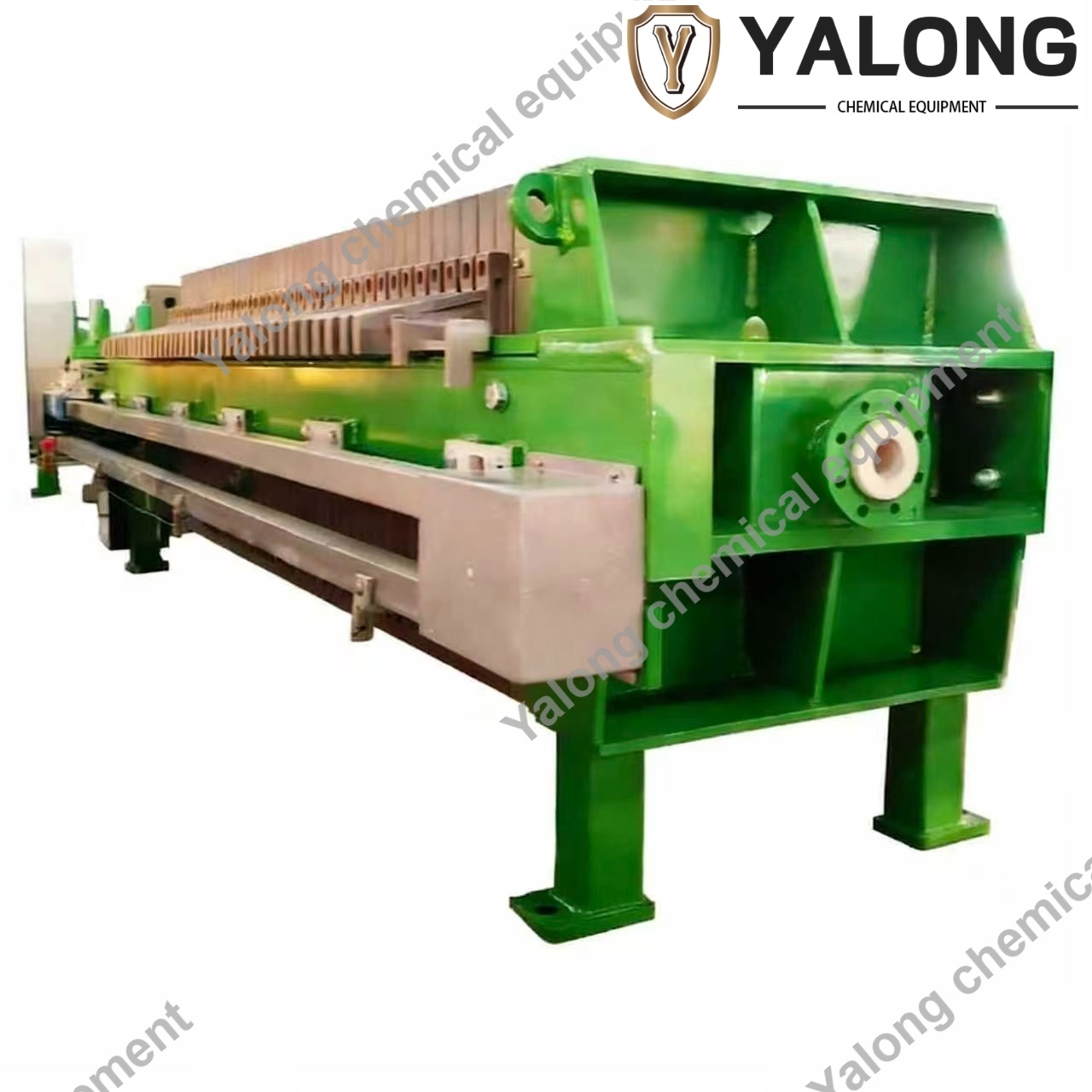

The filtration assembly consists of filter plates arranged sequentially along the main beam, with filter cloth positioned between each plate. The alternating arrangement of plates and cloth forms multiple independent filtration units—known as filter chambers.

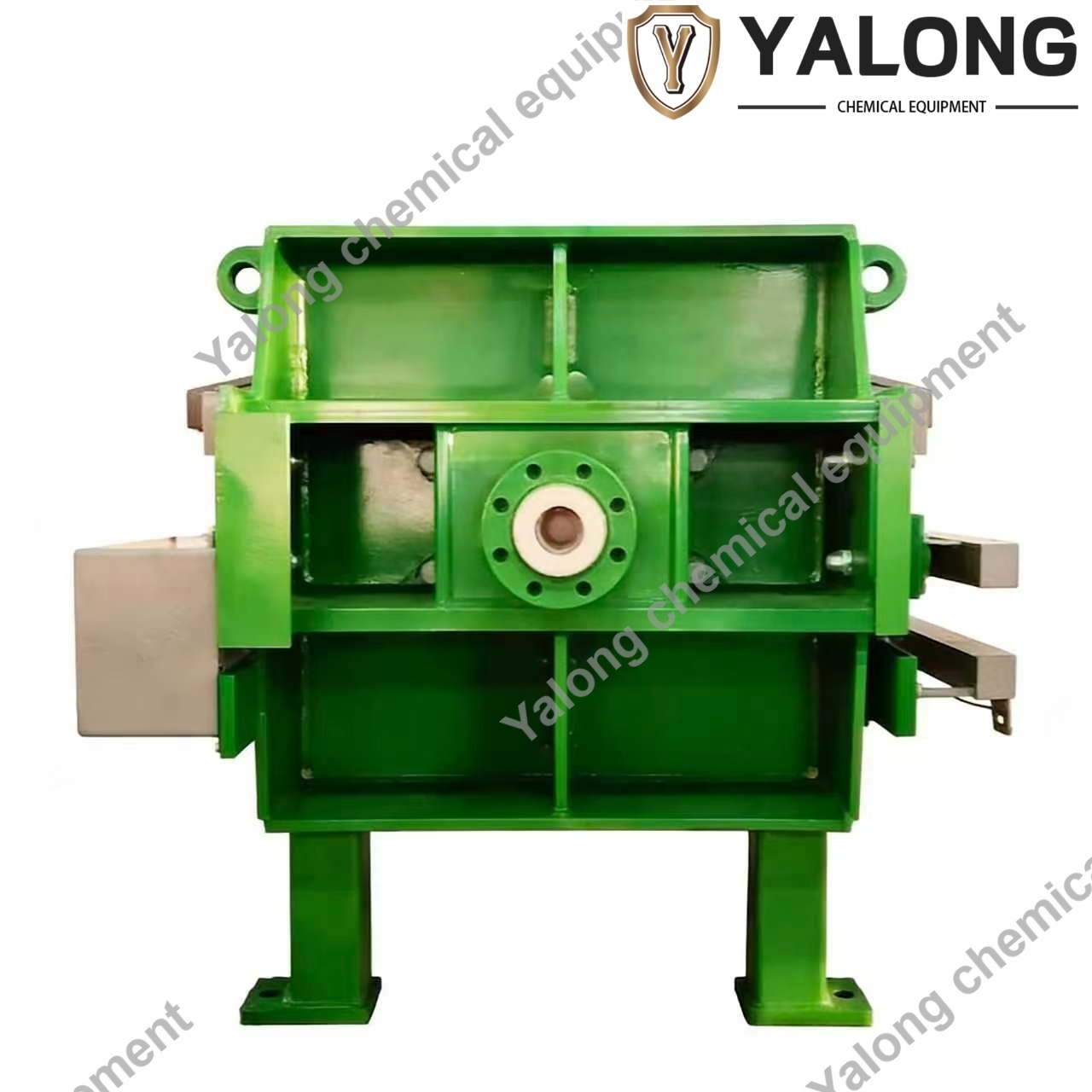

During operation, the feed pump directs the slurry into the filter chambers through the feed port on the thrust plate. Filtration is driven by the pressure generated by the pump. The filter cloth traps solid particles within the chambers, forming a filter cake, while the filtrate is discharged through the water nozzle or liquid valve.

If cake washing is required, washing water can be introduced through the washing port on the thrust plate. For further reduction of cake moisture, compressed air may also be supplied through the same port to pass through the cake layer, thereby removing residual moisture.

The plate and frame filter press offers several key advantages over other filtration methods, including:

1.High Filtration Efficiency: It achieves an excellent level of solid-liquid separation, producing a clear filtrate and a dry, solid cake.

2.Modular Design: Its configuration allows for easy customization to suit various processing capacities and specific application needs.

3.Low Maintenance: With a robust yet straightforward design, it requires minimal maintenance and is easy to clean.

4.Environmental Benefits: The press promotes sustainability by facilitating water reuse and significantly reducing waste.

5.Flexibility: Cake thickness can be easily adjusted by changing the frame thickness. It is suitable for a wide range of slurry characteristics.

6.Complete Cake Washing: The design allows for efficient and thorough cake washing if required.

7.Robust Construction: Simple design ensures durability and a long service life.

Structure

Cantilever Beam Type

Pressure

Hydraulic Pressure

Condition

New

Automatic Grade

Automatic

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

simon@yalong-equip.com

+86 15666244485

Industrial Plate Filter Press

Industrial Plate Filter Press for Battery, PV, and Lithium Extraction

评价

MAECENAS IACULIS

ADIPISCING CONVALLIS BULUM

Automatic Chamber Filter Press

Customized Automatic Membrane Filter Press

Fully Automated Chamber Filter Press

Membrane Filter Presses for Sludge Dewatering

Municipal Sludge Dewatering Filter Press

Premium Plate Filter Presses

Program-Controlled Automatic Filter Press

Recessed Chamber Filter Press

Do you like the theme?
Share with your friends!

Structure	Cantilever Beam Type
Filter Material	FRPP
Pressure	Hydraulic Pressure
Filter Area	30-1000m3
Condition	New
Automatic Grade	Automatic
Filter Cake Thickness	30mm
Filter Pressure	0.6MPa
